EN(H4SO 2.0)(diag)-197

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

BR:DTC P2102 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT LOW

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance
• Engine stalls.

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO 2.0)(diag)-
38, OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.0)(diag)-32, PRO-
CEDURE, Inspection Mode.>.

29

CHECK ELECTRONIC THROTTLE CON-
TROL.
Move the throttle valve to the fully open and
fully closed positions with fingers.
Check that the valve returns to the specified
position when releasing fingers.

Does the valve return to the
specified position? Specifica-
tion: 3 mm (0.12 in) from fully
closed position

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4SO 2.0)-
34, Engine Con-
trol Module
(ECM).>

Replace the elec-
tronic throttle con-
trol.

Step

Check

Yes

No

EN(H4SO 2.0)(diag)-198

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

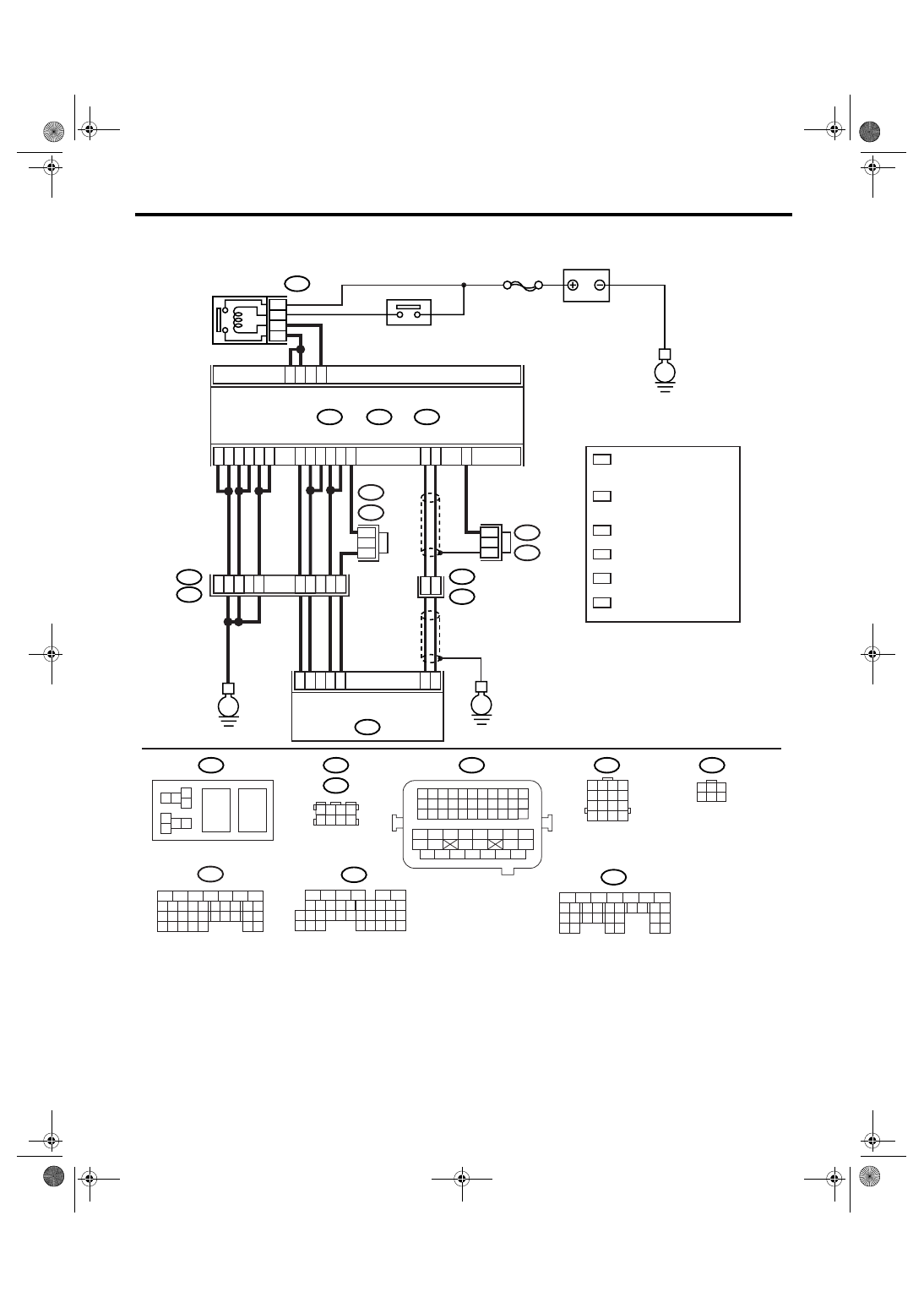

WIRING DIAGRAM:

EN-03508

SBF-7

B134

A:

B137

B136

D:

B362

E1

B20

C:

E

E

E

D6

D9

38

39

20

19

16

15

E2

B21

E78

2

5

D4

D5

D2

C17

C6

A2

C2

C5

C1

C30

36

35

37

D24

D23

ECM

5

7

8

6

B362

B20

B21

E78

1 2

7 8

3
4

5
6

1 2 3 4 5 6 7 8 9 10 11

12 13 14 15 16 17 18 19 20 21 22
23 24 25

34 35

36 37 38 39 40 41

48 49

50 51 52 53 54

42 43

44 45

46 47

26 27 28 29 30 31 32 33

1 2 3 4
5 6 7 8

1

2

7

8 9

5

6

3

4

10 11 12

19 20 21

29

30 31

13 14 15 16 17

27

28

18

22 23

24 25

26

1

2

8 9

5

6

3

4

10 11 12

19 20 21

29 30

31

13 14 15 16

17

27

28

18

22 23 24 25 26

7

32 33 34 35

B136

C:

B137

D:

BATTERY

MAIN RELAY

ELECTRONIC
THROTTLE
CONTROL RELAY

ELECTRONIC
THROTTLE CONTROL

D7

D1

D3

C18

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

A:

1

3

4 5 6

2

B83

:LHD

B138 :RHD

B83

:LHD

B138 :RHD

B83

B138

*

1

: TERMINAL No.
  RANDOM ARRANGEMENT
  AMONG 3,4,7, AND 8

*

2

: TERMINAL No.
  RANDOM ARRANGEMENT
  AMONG 1,2,5, AND 6

*

3

LHD : 4
RHD : 6

*

4

LHD : 6
RHD : 4

*

5

LHD : 3
RHD : 1

*

6

LHD : 1
RHD : 3

*

1

*

1

*

3

*

4

*

5

*

6

*

2

*

2

1 2 3 4
5 6 7 8
9 10 11 12

14

13

15 16

EN(H4SO 2.0)(diag)-199

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK ELECTRONIC THROTTLE CON-
TROL RELAY.
1) Turn the ignition switch to OFF.
2) Remove the electronic throttle control relay.
3) Connect the battery to electronic throttle
control relay terminals No. 5 and No. 6.
4) Measure the resistance between electronic
throttle control relay terminals.

Terminals

No. 7 — No. 8:

Is the resistance less than 1
Ω?

Go to step 2.

Replace the elec-
tronic throttle con-
trol relay.

2

CHECK POWER SUPPLY OF ELECTRONIC
THROTTLE CONTROL RELAY.
1) Turn the ignition switch to ON.
2) Measure the voltage between electronic
throttle control relay connector and chassis
ground.

Connector & terminal

(B362) No. 8 (+) — Chassis ground (

−

):

(B362) No. 5 (+) — Chassis ground (

−

):

Is the voltage more than 10 V? Go to step 3.

Repair the open or
ground short cir-
cuit of power sup-
ply circuit.

3

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Turn the ignition switch to ON.
4) Measure the voltage between electronic
throttle control relay connector and chassis
ground.

Connector & terminal

(B362) No. 6 (+) — Chassis ground (

−

):

Is the voltage more than 10 V? Repair the power

supply short cir-
cuit of harness
between ECM and
electronic throttle
control relay.

Go to step 4.

4

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
1) Turn the ignition switch to OFF.
2) Measure the resistance between electronic
throttle control relay connector and chassis
ground.

Connector & terminal

(B362) No. 6 — Chassis ground:
(B362) No. 7 — Chassis ground:

Is the resistance more than 1
M

Ω?

Go to step 5.

Repair the ground
short circuit of har-
ness between
ECM and elec-
tronic throttle con-
trol relay.

5

CHECK HARNESS BETWEEN ECM AND
ELECTRONIC THROTTLE CONTROL RE-
LAY.
Measure the resistance between ECM connec-
tor and electronic throttle control relay connec-
tor.

Connector & terminal

(B137) No. 9 — (B362) No. 6:
(B137) No. 6 — (B362) No. 7:
(B137) No. 7 — (B362) No. 7:

Is the resistance less than 1
Ω?

Repair the poor
contact in ECM
connector.
Replace the ECM
if defective. <Ref.
to FU(H4SO 2.0)-
34, Engine Con-
trol Module
(ECM).>

Repair the open
circuit of harness
between ECM and
electronic throttle
control relay.

EN(H4SO 2.0)(diag)-200

ENGINE (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

BS:DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH

DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
• Erroneous idling
• Poor driving performance
• Engine stalls.

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO 2.0)(diag)-
38, OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO 2.0)(diag)-32, PRO-
CEDURE, Inspection Mode.>.
