Subaru Legacy (2005 year). Manual - part 109

EN(H4SO 2.0)(diag)-25

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

9. Subaru Select Monitor

A: OPERATION

1. HOW TO USE SUBARU SELECT MONI-
TOR

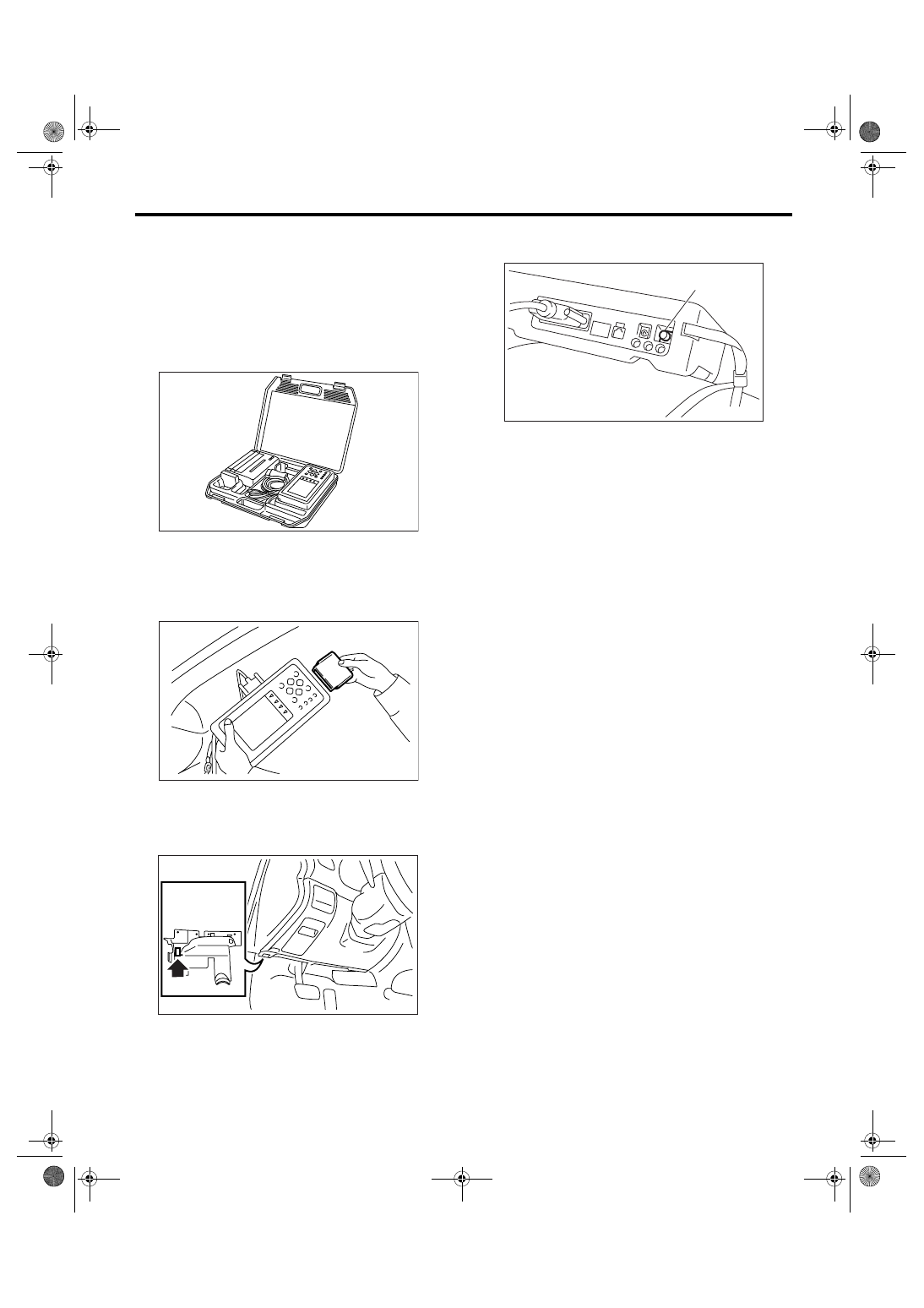

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4SO 2.0)(diag)-7, PREPARATION TOOL,
General Description.>

2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to Subaru Select Monitor.
<Ref. to EN(H4SO 2.0)(diag)-7, PREPARATION
TOOL, General Description.>

4) Connect the Subaru Select Monitor to data link
connector.

(1) Data link connector is located in the lower
portion of instrument panel (on the driver’s side).

(2) Connect the diagnosis cable to data link
connector.

CAUTION:
Do not connect any scan tools except Subaru
Select Monitor or general scan tool.

5) Turn the ignition switch to ON (engine OFF), and
the Subaru Select Monitor power switch to ON.

6) Using the Subaru Select Monitor, call up DTC
and data, then record them.

2. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (NORMAL MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTCs. <Ref. to
EN(H4SO 2.0)(diag)-31, Read Diagnostic Trouble
Code (DTC).>

3. READ DIAGNOSTIC TROUBLE CODE
(DTC) FOR ENGINE (OBD MODE)

Refer to “Read Diagnostic Trouble Code (DTC)” for
information about how to indicate DTCs. <Ref. to
EN(H4SO 2.0)(diag)-31, Read Diagnostic Trouble
Code (DTC).>

EN-00038

EN-00039

EN-02533

(A) Power switch

(A)

EN-00040

EN(H4SO 2.0)(diag)-26

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

4. READ CURRENT DATA FOR ENGINE. (NORMAL MODE)

1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Engine} and press the [YES] key.
3) Press the [YES] key after the information of engine type has been displayed.
4) On the «Engine Diagnosis» display screen, select the {Current Data Display & Save}, and then press the
[YES] key.
5) On the «Data Display Menu» screen, select the {Data Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.
• A list of the support data is shown in the following table.

Remarks

Display

Unit of mea-

sure

Note (at idling)

Engine load

Engine load

%

1 — 3%

Engine coolant temperature signal

Coolant Temp.

°C or °F

≥ 75 °C or 167°F

A/F Correction #1

A/F Correction #1

%

−10 — +10%

A/F Learning #1

A/F Learning #1

%

−15 — +15%

Intake manifold absolute pressure

Mani. Absolute Pressure

mmHg, kPa,

inHg or psig

200 — 300 mmHg, 26.7

— 40 kPa, 7.8 — 11.8

inHg or 3.8 — 5.8 psig

Engine speed signal

Engine Speed

rpm

600 — 800 rpm (Agree

with the tachometer indi-

cation)

Meter vehicle speed signal

Vehicle Speed

km/h or

MPH

0 km/h or 0 MPH

 (at parking)

Ignition timing signal

Ignition Timing

deg

10 — 15 deg

Intake air temperature signal

Intake Air Temp.

°C or °F

(Ambient air temperature)

Throttle opening angle signal

Throttle Opening Angle

%

1 — 2%

Rear oxygen sensor voltage

Rear O2 Sensor

V

0.01 — 0.85 V

Battery voltage

Battery Voltage

V

12 — 14 V

Injection 1 pulse width

Fuel Injection #1 Pulse

ms

2 — 4 ms

Knock sensor correction

Knocking Correction

deg

0.0 deg

Atmospheric pressure signal

Atmosphere Pressure

mmHg, kPa,

inHg or psig

(Atmosphere pressure)

Intake manifold relative pressure

Mani. Relative Pressure

mmHg, kPa,

inHg or psig

(Intake manifold absolute

pressure

− Atmospheric

pressure)

Learned Ignition Timing

Learned Ignition Timing

°

−2 — 2°

Acceleration opening angle signal

Accel. Opening Angle

%

0.0%

Rear oxygen sensor heater current

Rear O2 Heater Current

A

0.9 — 1.1 A

Purge control solenoid duty ratio

CPC Valve Duty Ratio

%

0 — 3%

EGR step number

EGR step number

STEP

0

Generator duty ratio

ALT Duty

%

0 — 100%

A/F sensor resistance value 1

A/F Sensor #1 Resis-
tance

Ω

25 — 27 mA

A/F sensor output lambda 1

A/F Sensor #1

—

0.85 — 1.15

A/F correction 3

A/F Correction #3

%

3.5 — 6.5%

Front oxygen (A/F) sensor current

A/F Heater Current

A

5 — 10 A

Main-throttle position sensor fully closed voltage

Main-Throttle Sensor
Closed Position Voltage

V

0.3 — 0.7 V

AT/MT identification terminal

AT Vehicle ID Signal

—

ON/OFF

Test mode terminal

Test Mode Signal

—

OFF

Neutral position switch signal

Neutral Position Switch

—

ON

Soft idle switch signal

Idle Switch Signal

—

ON

Ignition switch signal

Ignition Switch

—

ON

Power steering switch signal

P/S Switch

—

OFF (At OFF)

EN(H4SO 2.0)(diag)-27

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.

Air conditioning switch signal

A/C Switch

—

OFF (At OFF)

Steering wheel switch signal

Handle Switch

—

Hi/Low

Starter switch signal

Starter Switch

—

OFF

Rear O

2

 monitor

Rear O2 Rich Signal

—

Rich/Lean

Knocking signal

Knocking Signal

—

OFF

Crankshaft position sensor signal

Crankshaft Position Sig.

—

OFF

Camshaft position sensor signal

Camshaft Position Sig.

—

OFF

Rear defogger switch signal

Rear defogger SW

—

OFF (At OFF)

Blower fan switch signal

Blower Fan SW

—

OFF (At OFF)

Light switch signal

Light Switch

—

OFF (At OFF)

Wiper switch signal

Wiper Switch

—

OFF (At OFF)

A/C middle pressure switch signal

A/C Mid Pressure Switch

—

OFF (At OFF)

Air conditioner compressor relay output signal

A/C Compressor Signal

—

OFF (At OFF)

Radiator fan relay 1 signal

Radiator Fan Relay #1

—

OFF (At OFF)

Radiator fan relay 2 signal

Radiator Fan Relay #2

—

OFF (At OFF)

Fuel pump relay signal

Fuel Pump Relay

—

ON

AT coordinate retard angle demand signal

Retard Signal from AT

—

OFF

AT coordinate fuel cut demand signal

Fuel Cut Signal from AT

—

OFF

AT coordinate permission signal

Torque Permission Sig-
nal

—

ON/OFF

Throttle motor duty

Throttle Motor Duty

%

5 — 10%

Throttle power supply voltage

Throttle Motor Voltage

V

(Battery voltage)

Sub throttle sensor voltage

Sub-Throttle Sensor

V

1.48 — 1.50 V

Main throttle sensor voltage

Main-throttle Sensor

V

0.62 V

Sub acceleration sensor voltage

Sub-Accelerator Sensor

V

0.5 — 1.5 V

Main acceleration sensor voltage

Main-Accelerator Sensor

V

0.5 — 1.5 V

Memory vehicle speed

Memorized Cruise
Speed

km/h or

MPH

0 km/h or 0 MPH

Fuel level sensor resistance

Fuel level resistance

Ω

0 — 100

Ω

ETC motor relay signal

ETC Motor Relay

—

ON

Clutch switch signal

Clutch Switch

—

OFF (At OFF)

Stop light switch signal

Stop Light Switch

—

OFF (At OFF)

SET/COAST switch signal

SET/CST Switch

—

OFF (At OFF)

RESUME/ACCEL switch signal

RES/ACC Switch

—

OFF (At OFF)

Brake switch signal

Brake Switch

—

OFF (At OFF)

Main switch signal

Main Switch

—

OFF (At OFF)

Integrated module data reception

Body Int. Unit Data

—

ON

Integrated module data update

Body Int. Unit Count

—

ON

Remarks

Display

Unit of mea-

sure

Note (at idling)

EN(H4SO 2.0)(diag)-28

ENGINE (DIAGNOSTICS)

Subaru Select Monitor

5. READ CURRENT DATA FOR ENGINE (OBD MODE)

1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Engine} and press the [YES] key.
3) Press the [YES] key after the information of engine type has been displayed.
4) On the «Engine Diagnosis» display screen, select the {OBD System} and press the [YES] key.
5) On the «OBD Menu» display screen, select the {Current Data Display & Save}, and then press the [YES]
key.
6) On the «Data Display Menu» screen, select the {Data Display} and press the [YES] key.
7) Using the scroll key, move the display screen up or down until the desired data is shown.
• A list of the support data is shown in the following table.

NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.

6. READ FREEZE FRAME DATA FOR ENGINE. (OBD MODE)

1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Engine} and press the [YES] key.
3) Press the [YES] key after the information of engine type has been displayed.
4) On the «Engine Diagnosis» display screen, select the {OBD System} and press the [YES] key.
5) On the «OBD Menu» display screen, select the {Freeze Frame Data} and press the [YES] key.
• A list of the support data is shown in the following table.

NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.

DESCRIPTION

Display

Unit of measure

Number of diagnosis code

Number of Diagnostic Code(s):

0

Condition of malfunction indicator light

MI (MIL)

OFF

Monitoring test of misfire

Misfire monitoring

—

Monitoring test of fuel system

Fuel system monitoring

complete

Monitoring test of comprehensive component

Component monitoring

complete

Test of catalyst

Catalyst Diagnosis

—

Test of heating-type catalyst

Heated catalyst

no support

Test of evaporative emission purge control system

Evaporative purge system

no support

Test of secondary air system

Secondary air system

no support

Test of air conditioning system refrigerant

A/C system refrigerant

no support

Test of oxygen sensor

Oxygen sensor

complete

Test of oxygen sensor heater

O2 Heater Diagnosis

complete

Test of EGR system

EGR system

complete

DESCRIPTION

Display

Unit of measure

DTC for freeze frame data

Freeze frame data

DTC

Air fuel ratio control system for bank 1

Fuel system for Bank1

—

Engine load data

Engine Load

%

Engine coolant temperature signal

Coolant Temp.

°C or °F

Short term fuel trim by front oxygen (A/F) sensor

Short term fuel trim B1

%

Long term fuel trim by front oxygen (A/F) sensor

Long term fuel trim B1

%

Intake manifold absolute pressure signal

Mani. Absolute Pressure

mmHg, kPa, inHg or psig

Engine speed signal

Engine Speed

rpm

Vehicle speed signal

Vehicle Speed

km/h or MPH

Ignition timing signal

Ignition Timing

°

Amount of intake air

Mass Air Flow

g/s or lb/m

Intake air temperature signal

Intake Air Temp

°C or °F

Throttle position signal

Throttle Opening Angle

%
