IM(diag)-17

IMMOBILIZER (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

10.Diagnostic Procedure with Diagnostic Trouble Code (DTC)

A: DTC P0513 INCORRECT IMMOBILIZER KEY

DTC DETECTING CONDITION:
Incorrect immobilizer key (Use of unregistered key in body integrated module)

Step

Check

Yes

No

1

PERFORM TEACHING OPERATION ON IG-
NITION KEY.
Perform teaching operation on all keys of the
vehicle. Refer to “IMMOBILIZER TEACHING
OPERATION MANUAL”.

Is the teaching operation for all
keys completed?

Finish the diagno-
sis.

Replace the igni-
tion keys (includ-
ing transponder)
which cannot be
registered. Go to
step 2.

2

PERFORM TEACHING OPERATION ON IG-
NITION KEY.
Perform teaching operation on all keys of the
vehicle. Refer to “IMMOBILIZER TEACHING
OPERATION MANUAL”.

Is the teaching operation for all
keys completed?

Finish the diagno-
sis.

Replace the body
integrated module
<Ref. to SL-44,
Body Integrated
Module.> and
replace all the igni-
tion keys (includ-
ing transponder).
Execute the regis-
tration procedure
next. Refer to
“IMMOBILIZER
TEACHING
OPERATION
MANUAL”.

IM(diag)-18

IMMOBILIZER (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

B: DTC P1570 ANTENNA

DTC DETECTING CONDITION:
Faulty antenna

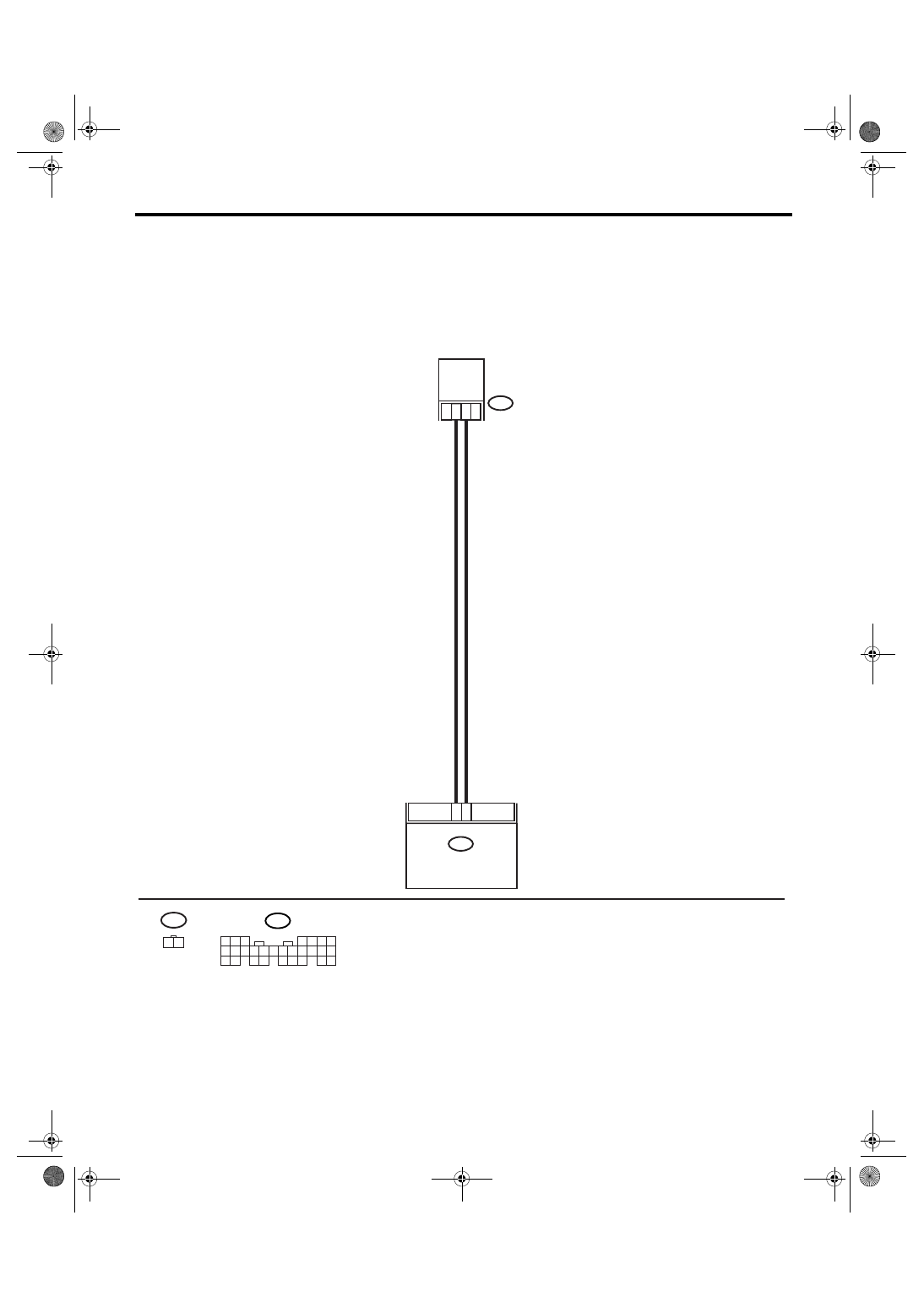

WIRING DIAGRAM:

IM-00079

C20

C21

ANTENNA

B351

1 2

2

1

B281

BODY INTEGRATED

MODULE

C:

B351

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B281

C:

IM(diag)-19

IMMOBILIZER (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

Step

Check

Yes

No

1

CHECK ANTENNA CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector from
antenna. <Ref. to SL-48, Immobilizer
Antenna.>
3) Measure the resistance of antenna circuit.

Connector & terminal

(B351) No. 1 — No. 2:

Is the resistance less than 10
Ω?

Go to step 2.

Replace the
antenna. <Ref. to
SL-48, Immobi-
lizer Antenna.>

2

CHECK ANTENNA CIRCUIT.
1) Disconnect the harness connector from
body integrated module.
2) Measure the resistance between harness
connector and chassis ground.

Connector & terminal

(B281) No. 21 — Chassis ground:

Is the resistance less than 10
Ω?

Repair the har-
ness.

Go to step 3.

3

CHECK ANTENNA CIRCUIT.
Measure the resistance between harness con-
nector and chassis ground.

Connector & terminal

(B281) No. 20 — Chassis ground:

Is the resistance less than 10
Ω?

Repair the har-
ness.

Go to step 4.

4

CHECK ANTENNA CIRCUIT.
1) Turn the ignition switch to ON. (Engine
OFF)
2) Measure the voltage between harness con-
nector and chassis ground.

Connector & terminal

(B281) No. 21 (+) — Chassis ground (

−

):

Is the voltage 0 V?

Go to step 5.

Repair the har-
ness.

5

CHECK ANTENNA CIRCUIT.
Measure the voltage between harness connec-
tor and chassis ground.

Connector & terminal

(B281) No. 20 (+) — Chassis ground (

−

):

Is the voltage 0 V?

Go to step 6.

Repair the har-
ness between
body integrated
module and
antenna, because
there is short cir-
cuit with battery
voltage line or igni-
tion switch “ON”
line.

6

CHECK BODY INTEGRATED MODULE
FUNCTION.
1) Turn the ignition switch to OFF.
2) Connect the harness connector to body
integrated module.
3) Insert the key to ignition switch, and mea-
sure the changes in voltage between antenna
harness connectors.

Connector & terminal

(B281) No. 20 (+) — Chassis ground (

−

):

Is the voltage

−30 to 30 V?

(Approx. 0.1 second after
inserting the key) Is the voltage
0 V? (Approx. 1 second after
inserting the key)

Go to step 7.

Replace the body
integrated module
<Ref. to SL-44,
Body Integrated
Module.> and
replace all the igni-
tion keys (includ-
ing transponder).
Execute the regis-
tration procedure
next. Refer to
“IMMOBILIZER
TEACHING
OPERATION
MANUAL”.

IM(diag)-20

IMMOBILIZER (DIAGNOSTICS)

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

C: DTC P1571 REFERENCE CODE INCOMPATIBILITY

DTC DETECTING CONDITION:
Reference code incompatibility between body integrated module and ECM

7

CHECK IGNITION KEY (TRANSPONDER).
1) Remove the key from ignition switch.
2) Start the engine using other key which is
already registered.

Does the engine start?

Replace all the
ignition keys
(including tran-
sponder). Execute
the registration
procedure next.
Refer to “IMMOBI-
LIZER TEACH-
ING OPERATION
MANUAL”.

Replace the body
integrated module
<Ref. to SL-44,
Body Integrated
Module.> and
replace all the igni-
tion keys (includ-
ing transponder).
Execute the regis-
tration procedure
next. Refer to
“IMMOBILIZER
TEACHING
OPERATION
MANUAL”.

Step

Check

Yes

No

1

PERFORM TEACHING OPERATION ON IG-
NITION KEY.
Perform teaching operation on all keys of the
vehicle. Refer to “IMMOBILIZER TEACHING
OPERATION MANUAL”.

Is the teaching operation for all
keys completed?

Finish the diagno-
sis.

Replace the ECM.
<Ref. to FU(H4SO
2.0)-34, Engine
Control Module
(ECM).> <Ref. to
FU(H4SO 2.5)-37,
Engine Control
Module (ECM).>
<Ref. to
FU(H4DOTC)-34,
Engine Control
Module (ECM).>
<Ref. to
FU(H6DO)-34,
Engine Control
Module (ECM).>
Replace the body
integrated module
<Ref. to SL-44,
Body Integrated
Module.> and
replace all the igni-
tion keys (includ-
ing transponder).
Execute the regis-
tration procedure
next. Refer to
“IMMOBILIZER
TEACHING
OPERATION
MANUAL”.

Step

Check

Yes

No
