CC-7

CRUISE CONTROL SYSTEM

Clutch Switch

5. Clutch Switch

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Disconnect the connector from clutch switch,
and then remove the switch. <Ref. to CL-37, DIS-
ASSEMBLY, Clutch Pedal.>

B: INSTALLATION

Install in the reverse order of removal.

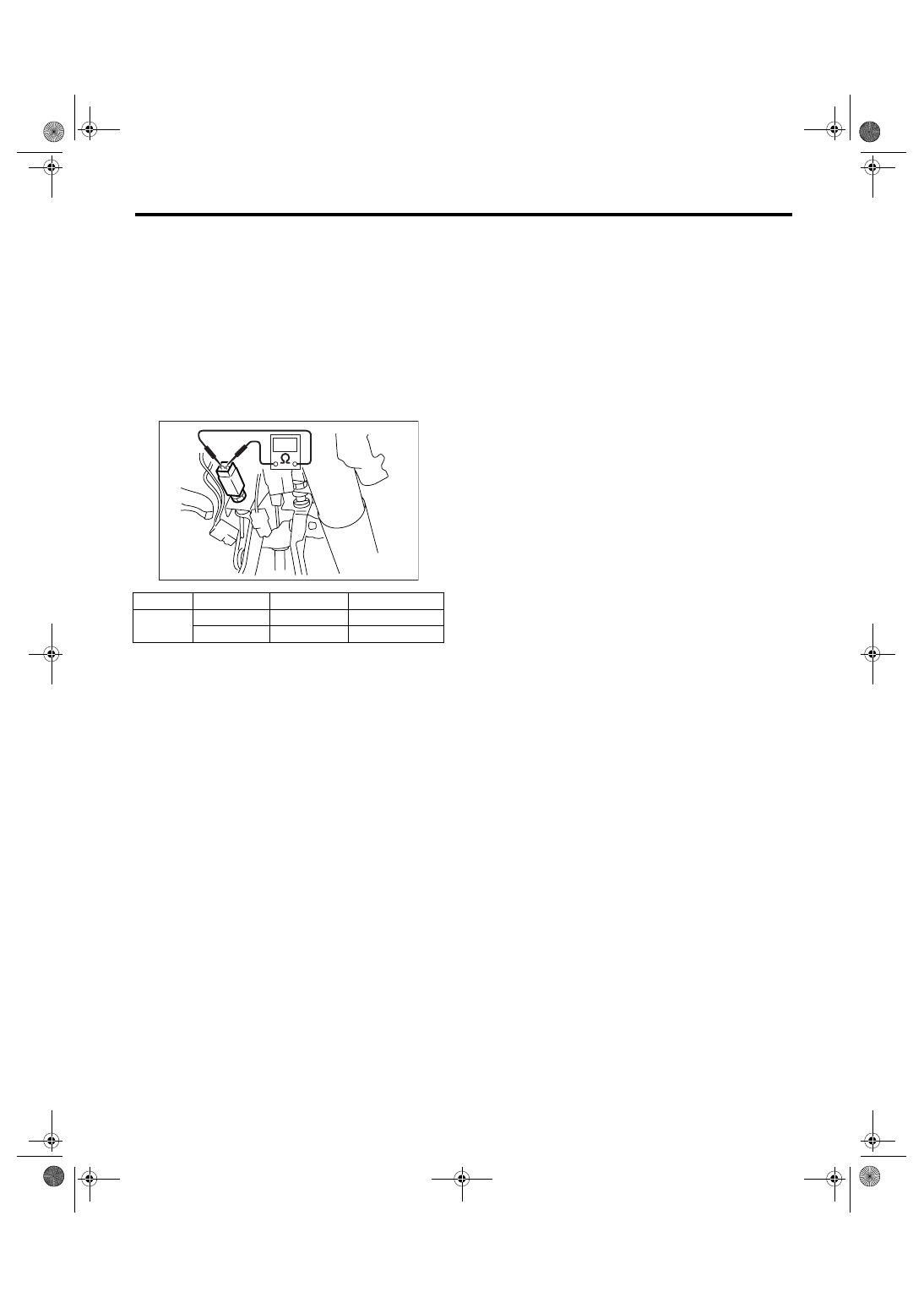

C: INSPECTION

Measure the clutch switch resistance.

If NG, replace the clutch switch.

Switch

Pedal

Terminal No.

Standard

Clutch

Released

1 and 2

Less than 1

Ω

Depressed

1 and 2

More than 1 M

Ω

CC-00023

CC-8

CRUISE CONTROL SYSTEM

Inhibitor Switch

6. Inhibitor Switch

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Disconnect the connector from inhibitor switch,
and then remove the switch. <Ref. to 4AT-52, RE-
MOVAL, Inhibitor Switch.>

B: INSTALLATION

Install in the reverse order of removal.

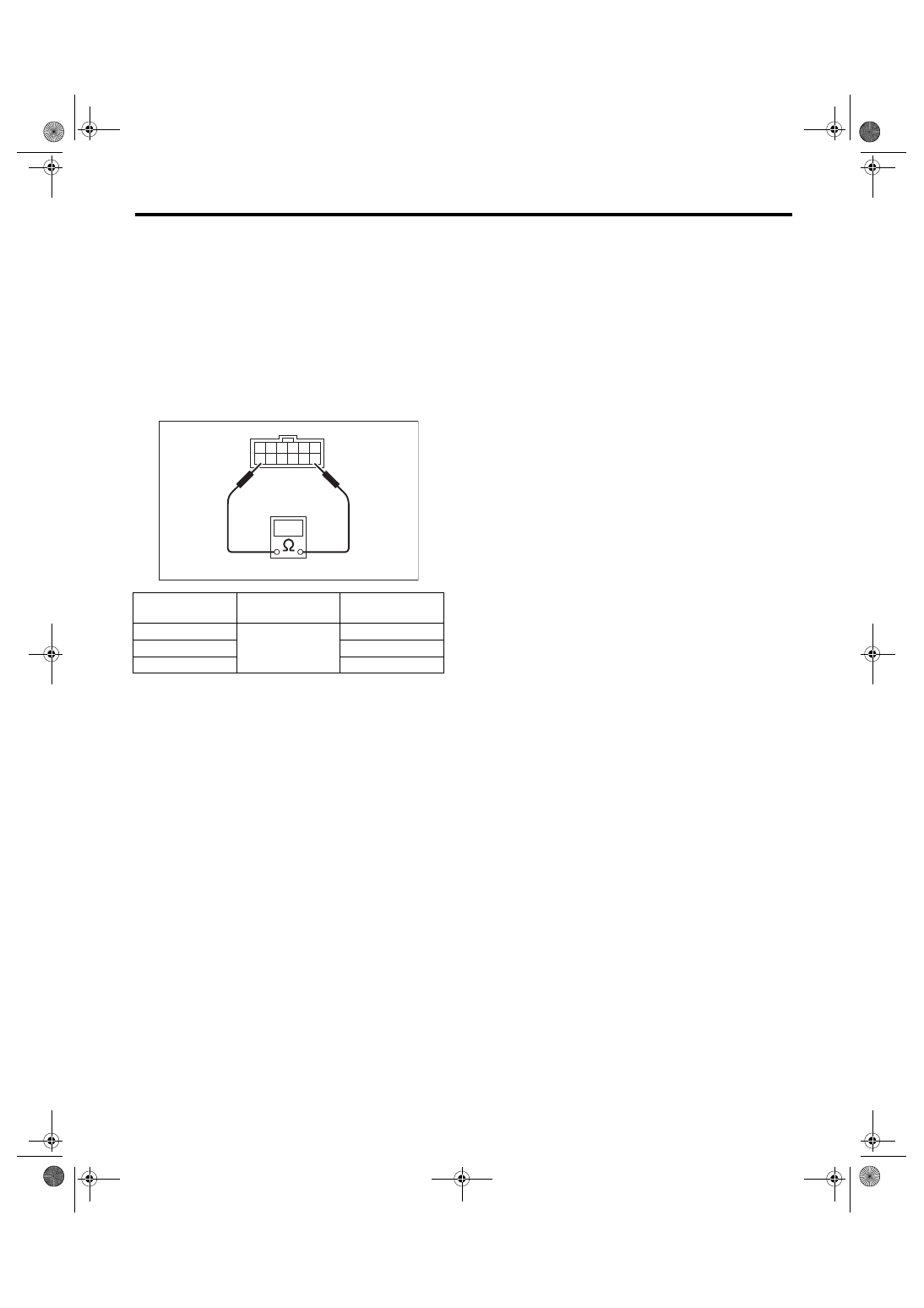

C: INSPECTION

Measure the inhibitor switch resistance.

If NG, replace the inhibitor switch.

Selector lever

position

Terminal No.

Standard

P

7 and 12

Less than 1

Ω

N

Less than 1

Ω

Except P and N

More than 1 M

Ω

CC-00024

1

2

3

4

5

6

7

8

9

10

11

12

CC-9

CRUISE CONTROL SYSTEM

Neutral Position Switch

7. Neutral Position Switch

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Disconnect the connector from neutral position
switch, and then remove the switch. <Ref. to 5MT-
40, BACK-UP LIGHT SWITCH AND NEUTRAL
POSITION SWITCH, REMOVAL, Switches and
Harness.>

B: INSTALLATION

Install in the reverse order of removal.

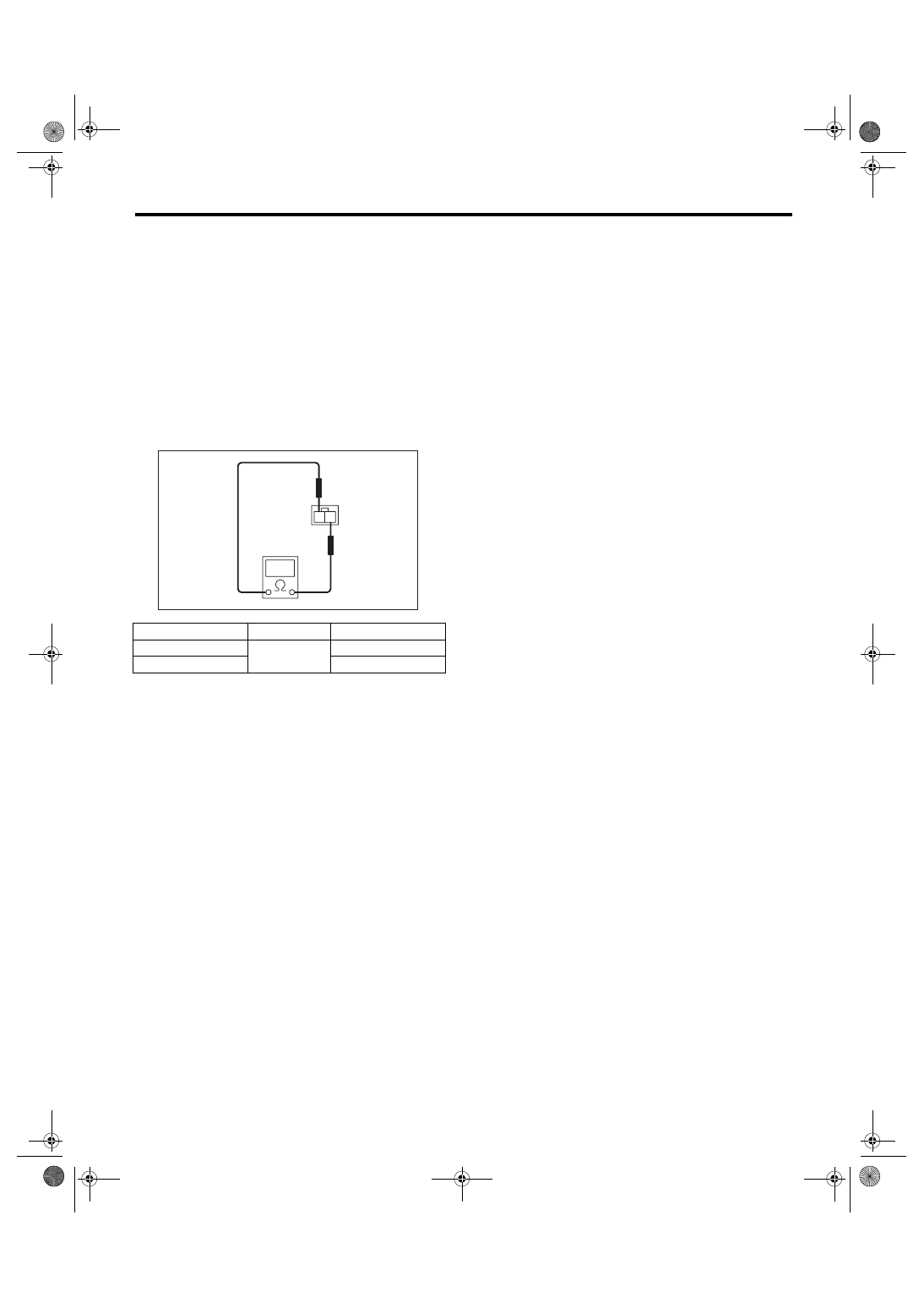

C: INSPECTION

Measure the neutral position switch resistance.

If NG, replace the neutral position switch.

Gear shift position

Terminal No.

Standard

Neutral position

1 and 2

Less than 1

Ω

Other positions

More than 1 M

Ω

MT-00110

1

2

CC-10

CRUISE CONTROL SYSTEM

Neutral Position Switch
