ME(H4SO 2.0)-35

MECHANICAL

Engine Mounting

10.Engine Mounting

A: REMOVAL

1) Remove the engine assembly. <Ref. to
ME(H4SO 2.0)-30, REMOVAL, Engine Assembly.>
2) Remove the engine mounting from engine as-
sembly.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Engine mounting

35 N

⋅

m (3.6 kgf-m, 25.8 ft-lb)

C: INSPECTION

Make sure that no crack or other damages do not
exist.

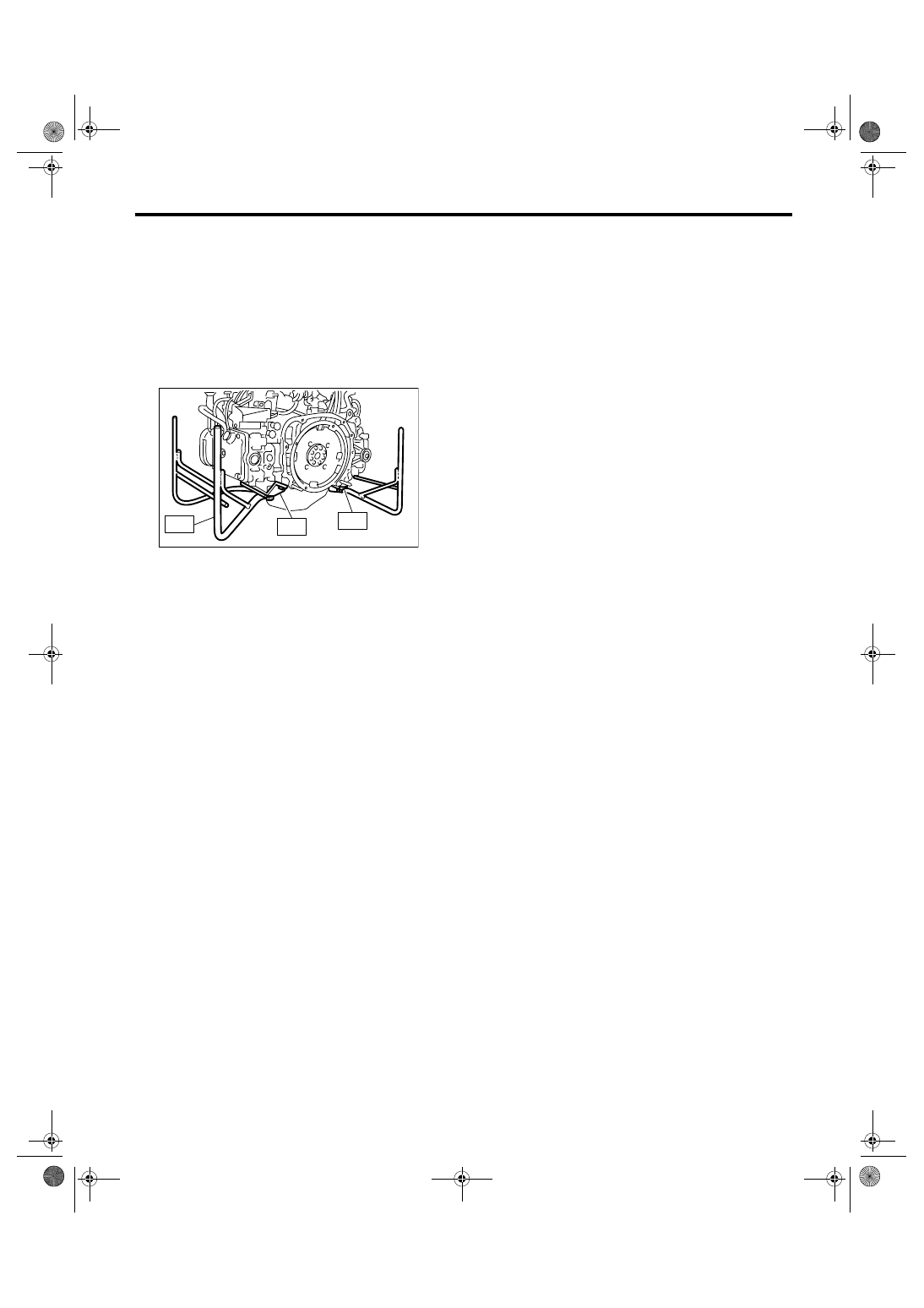

ME(H4SO 2.0)-36

MECHANICAL

Preparation for Overhaul

11.Preparation for Overhaul

A: PROCEDURE

1) After removing the engine from body, secure it in
the ST shown below.
ST1

498457000

ENGINE STAND ADAPTER
RH

ST2

498457100

ENGINE STAND ADAPTER
LH

ST3

499817100

ENGINE STAND

2) In this section the procedures described under
each index are all connected and stated in order.
The procedure for overhauling of the engine will be
completed when you go through all steps in the
process.
Therefore, in this section, to conduct the particular
procedure within the flow of a section, you need to
go back and conduct the procedure described pre-
viously in order to do that particular procedure.

ME-00221

ST2

ST1

ST3

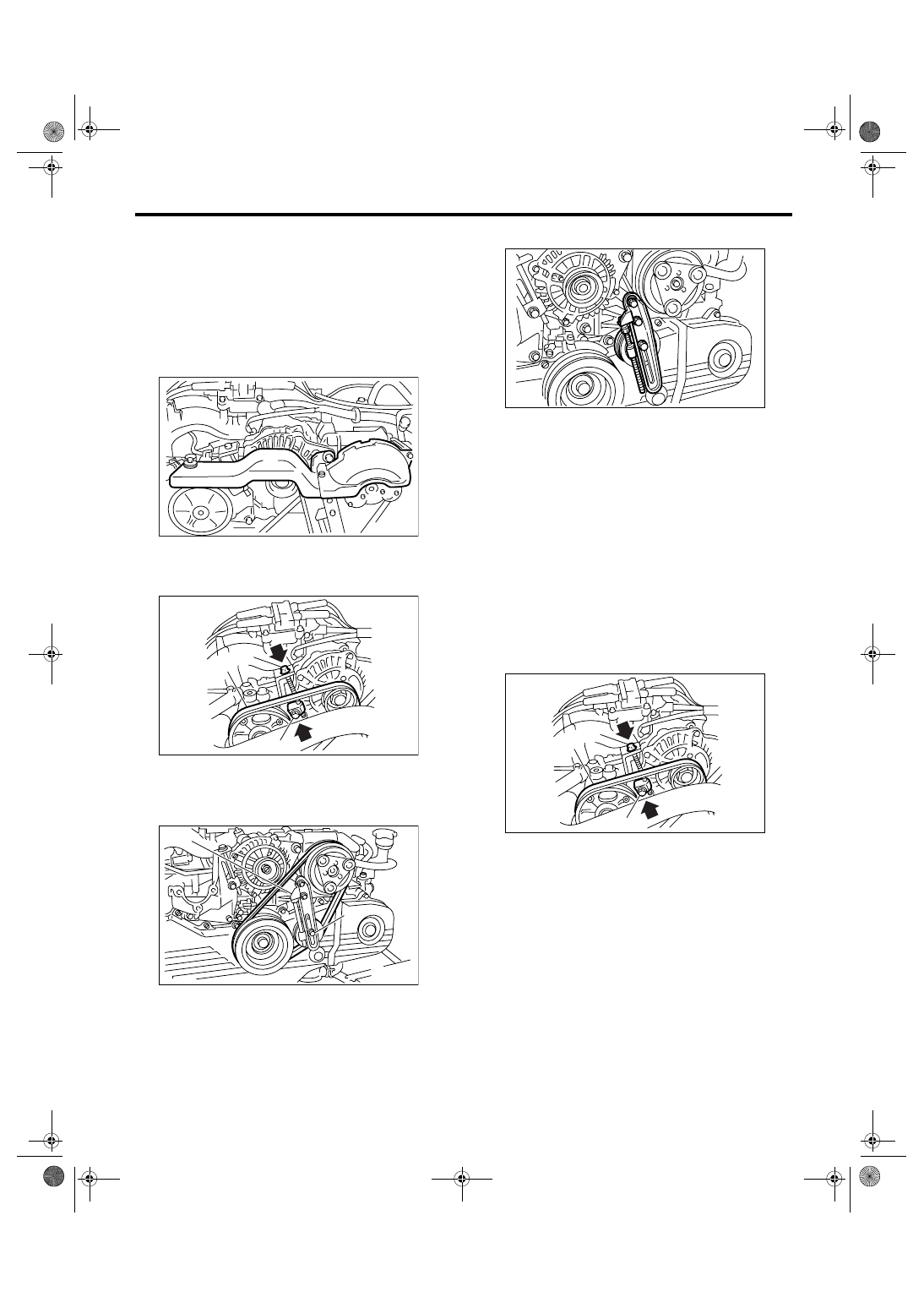

ME(H4SO 2.0)-37

MECHANICAL

V-belt

12.V-belt

A: REMOVAL

NOTE:
Perform the following procedures with the engine
installed to the body.

1. FRONT SIDE BELT

1) Remove the V-belt covers.

2) Loosen the lock bolt (A).
3) Loosen the slider bolt (B).
4) Remove the front side belt (C).

2. REAR SIDE BELT

1) Loosen the lock nut (A).
2) Loosen the slider bolt (B).

3) Remove the rear side belt.

4) Remove the belt tensioner.

B: INSTALLATION

NOTE:
Wipe off any oil or water on the belt and pulley.

1. FRONT SIDE BELT

1) Install the V-belt (C), and tighten the slider bolt
so as to obtain the specified belt tension. <Ref. to
ME(H4SO 2.0)-38, INSPECTION, V-belt.>
2) Tighten the lock bolt (A).
3) Tighten the slider bolt (B).

Tightening torque:

Lock bolt (A)

25 N

⋅

m (2.5 kgf-m, 18.4 ft-lb)

Slider bolt (B)

8 N

⋅

m (0.8 kgf-m, 5.8 ft-lb)

ME-00222

ME-00223

(B)

(C)

(A)

ME-00224

(A)

(B)

ME-00225

ME-00223

(B)

(C)

(A)

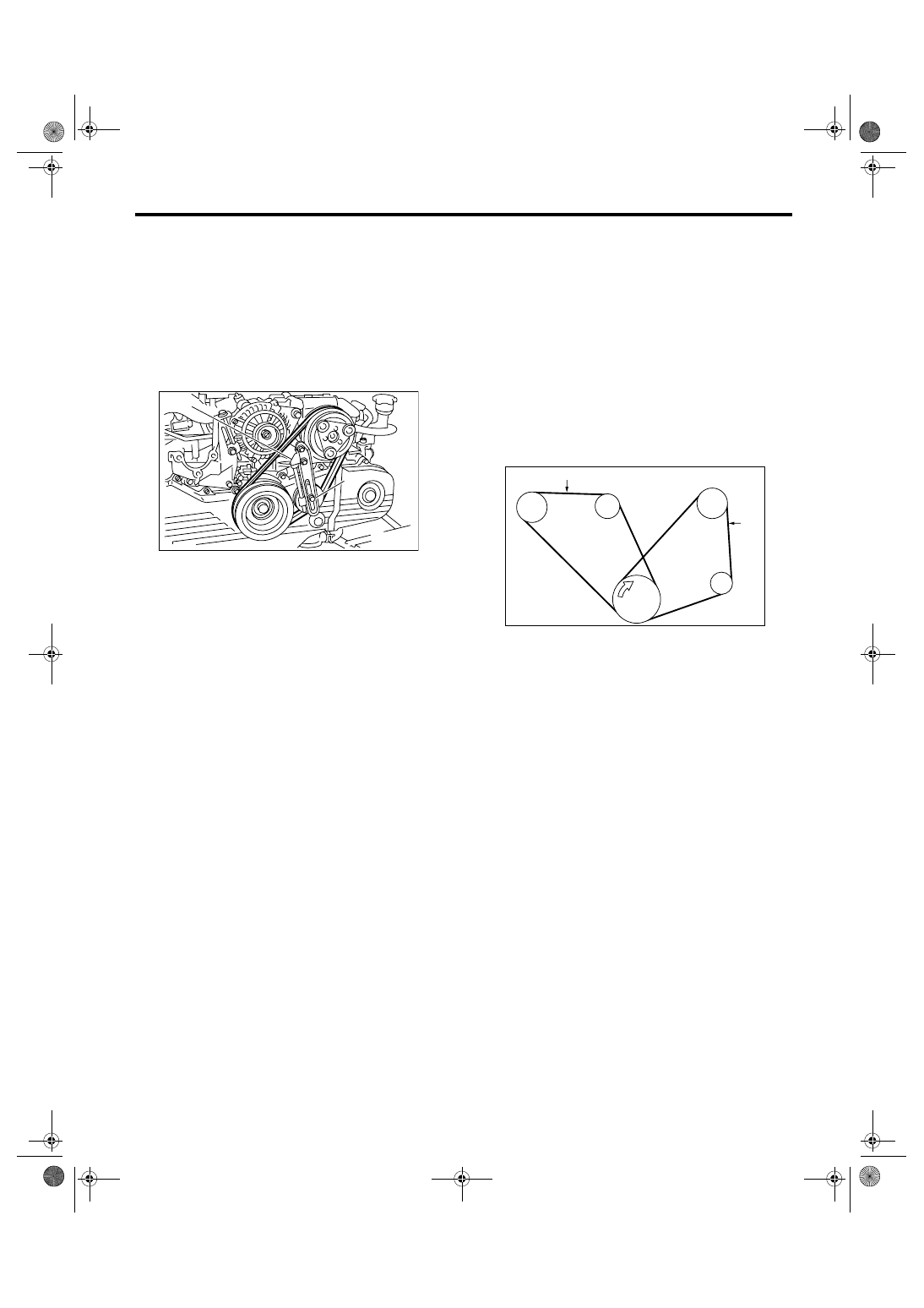

ME(H4SO 2.0)-38

MECHANICAL

V-belt

2. REAR SIDE BELT

1) Install the belt tensioner.
2) Install the V-belt, and tighten the slider bolt (B)
so as to obtain the specified belt tension.
<Ref. to ME(H4SO 2.0)-38, INSPECTION, V-belt.>
3) Tighten the lock nut (A).

Tightening torque:

Lock nut (A)

23 N

⋅

m (2.3 kgf-m, 17.0 ft-lb)

C: INSPECTION

1) Replace the belts, if crack, fraying or wear is
found.
2) Remove the V-belt cover and reservoir tank.
(with belt tension gauge)
3) Check the V-belt tension and adjust it if neces-
sary by changing the generator installing position
or idler pulley installing position.

Belt tension (with belt tension gauge):

Front side belt

When installing new parts

618 — 755 N (63 — 77 kgf, 139 — 170 lbf)

At inspection

490 — 640 N (50.0 — 65.3 kgf, 110.2 — 143.9
lbf)

Rear side belt

When installing new parts:

740 — 880 N (75.5 — 89.7 kgf, 166 — 198
lbf)

At inspection

350 — 450 N (35.7 — 45.9 kgf, 78.7 — 101.2
lbf)

ME-00224

(A)

(B)

(A) Front side belt

(B) Rear side belt

C/P Crank pulley

GEN Generator

P/S Power steering oil pump pulley

A/C Air conditioning compressor pulley

I/P Idler pulley

C/P

P/S

A/C

GEN

(A)

(B)

I/P

PM-00154
