ME(H4SO 2.0)-19

MECHANICAL

General Description

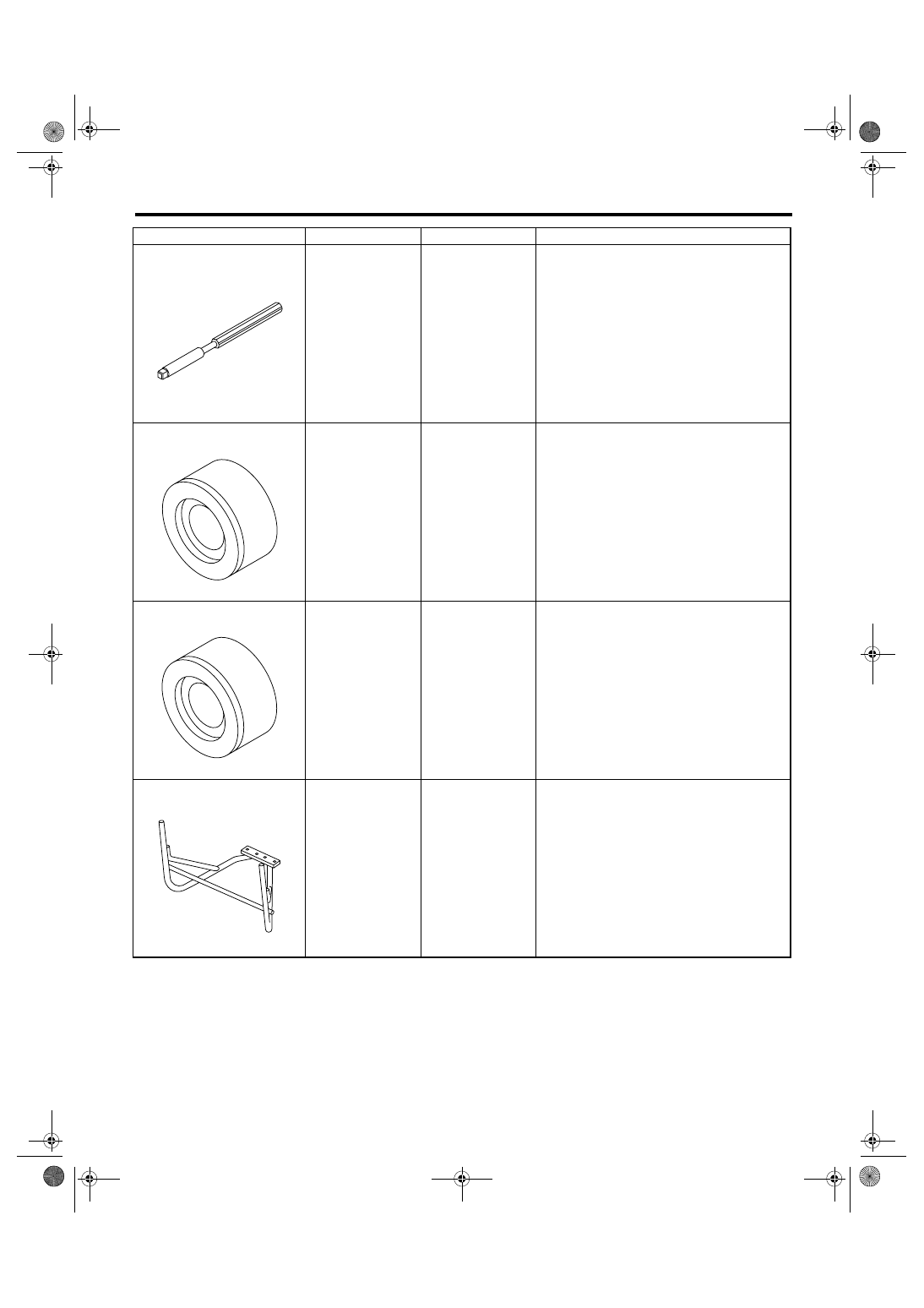

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499767700

VALVE GUIDE
ADJUSTER

Used for installing valve guides. (Intake side)

499767800

VALVE GUIDE
ADJUSTER

Used for installing valve guides. (Exhaust side)

499817100

ENGINE STAND

• Used for disassembling and assembling
engine.
• Used with ENGINE STAND ADAPTER RH
(498457000) & LH (498457100).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499767400

ST-499767700

ST-499767800

ST-499817100

ME(H4SO 2.0)-20

MECHANICAL

General Description

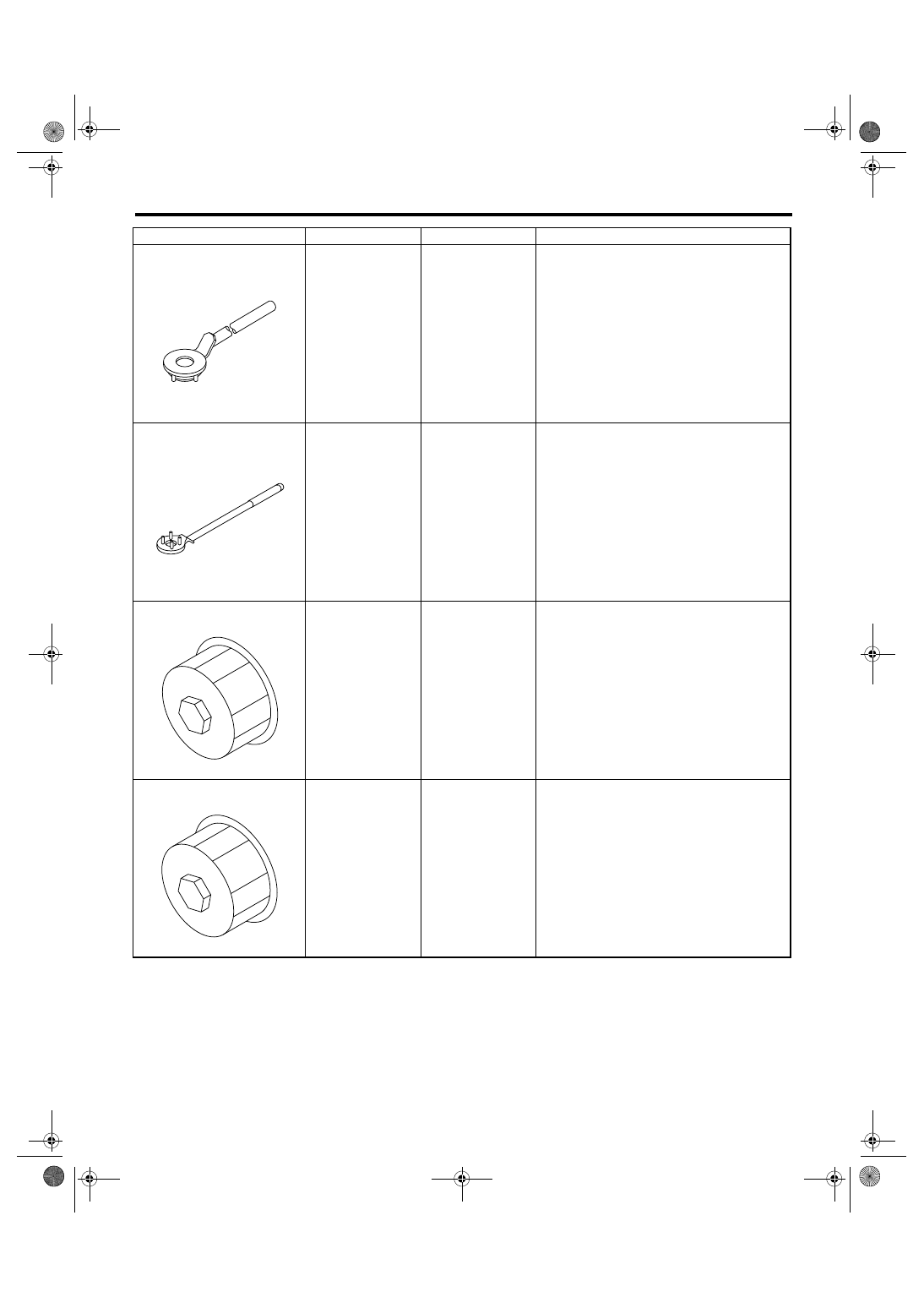

499977400

CRANK PULLEY
WRENCH

Used for stopping rotation of crank pulley when
removing and tightening crank pulley bolt. (2.0 L
model)

499977100

CRANK PULLEY
WRENCH

Used for stopping rotation of crank pulley when
removing and tightening crank pulley bolt. (2.5 L
model)

18332AA000

OIL FILTER
WRENCH

Used for removing and installing oil filter. (Outer
diameter: 68 mm (2.68 in))

18332AA010

OIL FILTER
WRENCH

Used for removing and installing oil filter. (Outer
diameter: 65 mm (2.56 in))

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499977400

ST-499977100

ST18332AA000

ST18332AA010

ME(H4SO 2.0)-21

MECHANICAL

General Description

2. GENERAL TOOL

E: PROCEDURE

It is possible to conduct the following service proce-
dures with engine on the vehicle, however, the pro-
cedures described in this section are based on the
condition that the engine is removed from the vehi-
cle.
• V-belt
• Timing belt
• Valve rocker assembly
• Camshaft
• Cylinder head

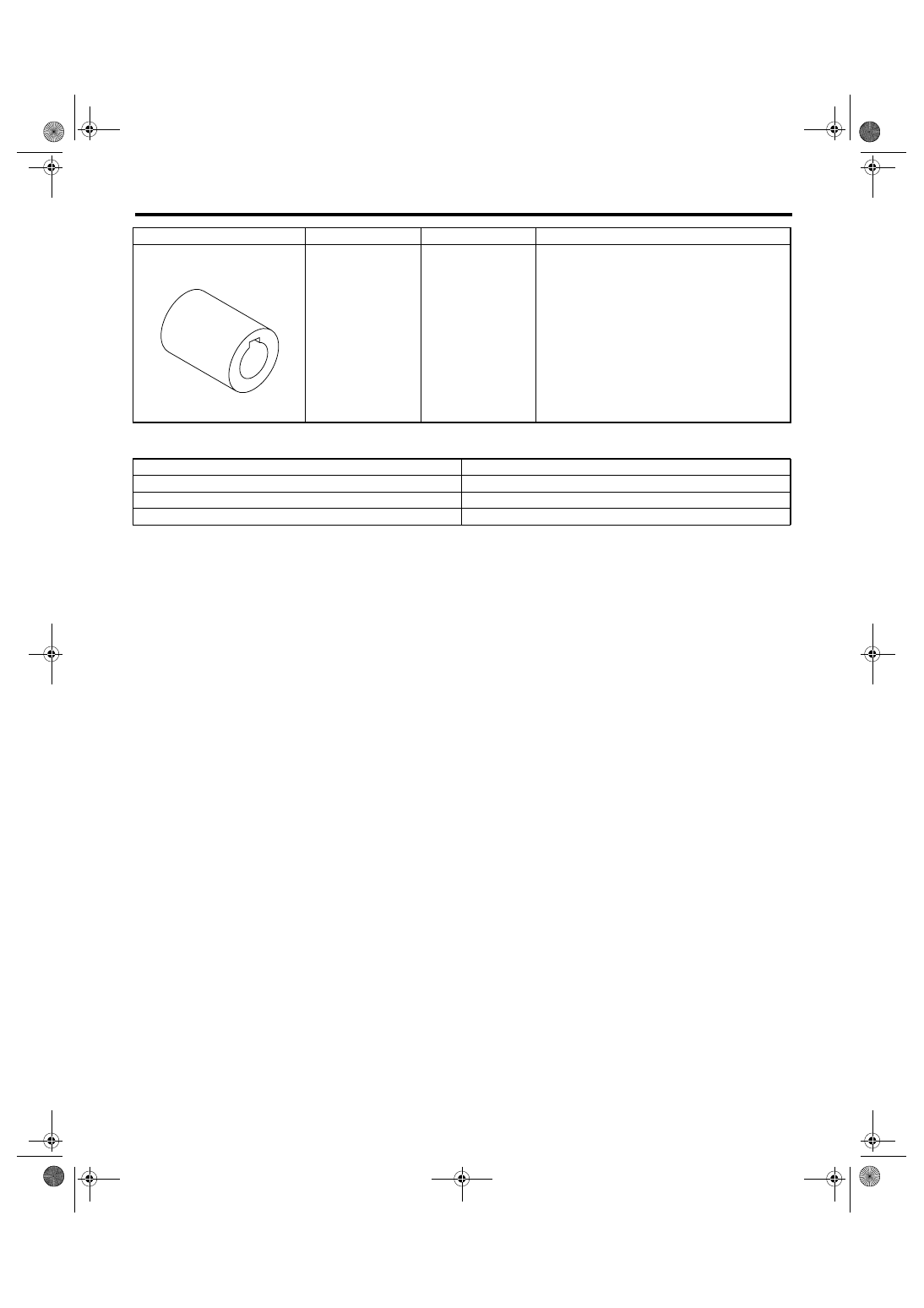

499987500

CRANKSHAFT
SOCKET

Used for rotating crankshaft.

TOOL NAME

REMARKS

Compression gauge

Used for measuring compression.

Tachometer (Secondary pick-up type)

Used for measuring idle speed.

Timing light

Used for measuring ignition timing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499987500

ME(H4SO 2.0)-22

MECHANICAL

Compression

2. Compression

A: INSPECTION

CAUTION:
After warming-up, engine becomes very hot. Be
careful not to burn yourself during measure-
ment.
1) After warming-up the engine, turn the ignition
switch to OFF.
2) Make sure that the battery is fully charged.
3) Release the fuel pressure.
<Ref. to FU(H4SO 2.0)-38, RELEASING OF FUEL
PRESSURE, PROCEDURE, Fuel.>
4) Remove all the spark plugs. <Ref. to IG(H4SO
2.0)-5, REMOVAL, Spark Plug.>
5) Fully open the throttle valve.
6) Check the starter motor for satisfactory perfor-
mance and operation.

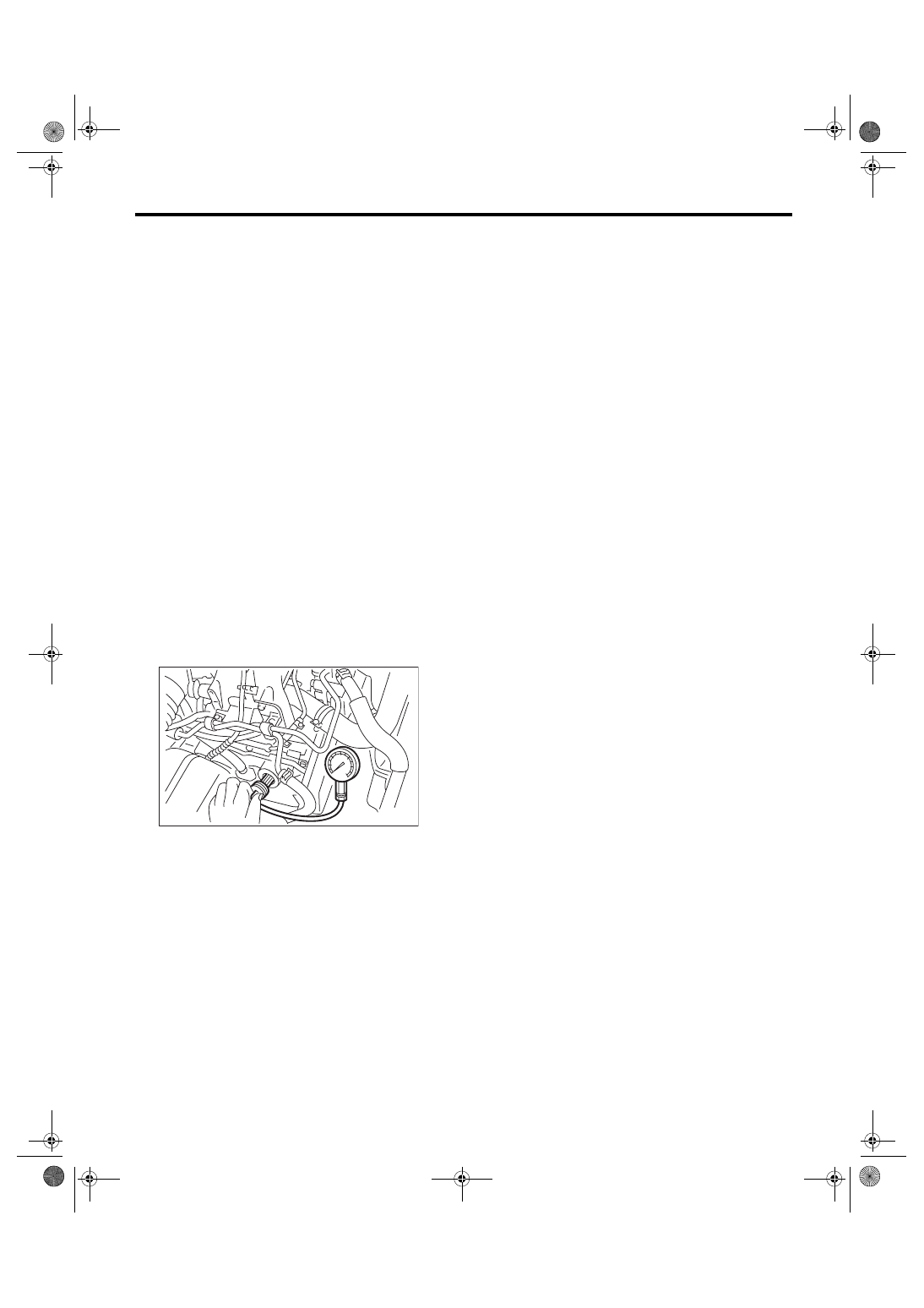

7) Hold the compression gauge tightly against the
spark plug hole.

NOTE:
When using a screw-in type compression gauge,
the screw (put into cylinder head spark plug hole)
should be less than 18 mm (0.71 in) long.
8) Crank the engine by means of the starter motor,
and read the maximum value on the gauge when
the gauge needle is steady.

9) Perform at least two measurements per cylinder,
and make sure that the values are correct.

Compression (350 rpm and fully opened throt-
tle):

Standard

1,020 — 1,275 kPa (10.4 — 13.0 kgf/cm

2

,

148 — 185 psi)

Difference between cylinders

49 kPa (0.5 kgf/cm

2

, 7 psi) or less

ME-00192
