Subaru Legacy (2005 year). Manual - part 58

ME(H4SO 2.0)-15

MECHANICAL

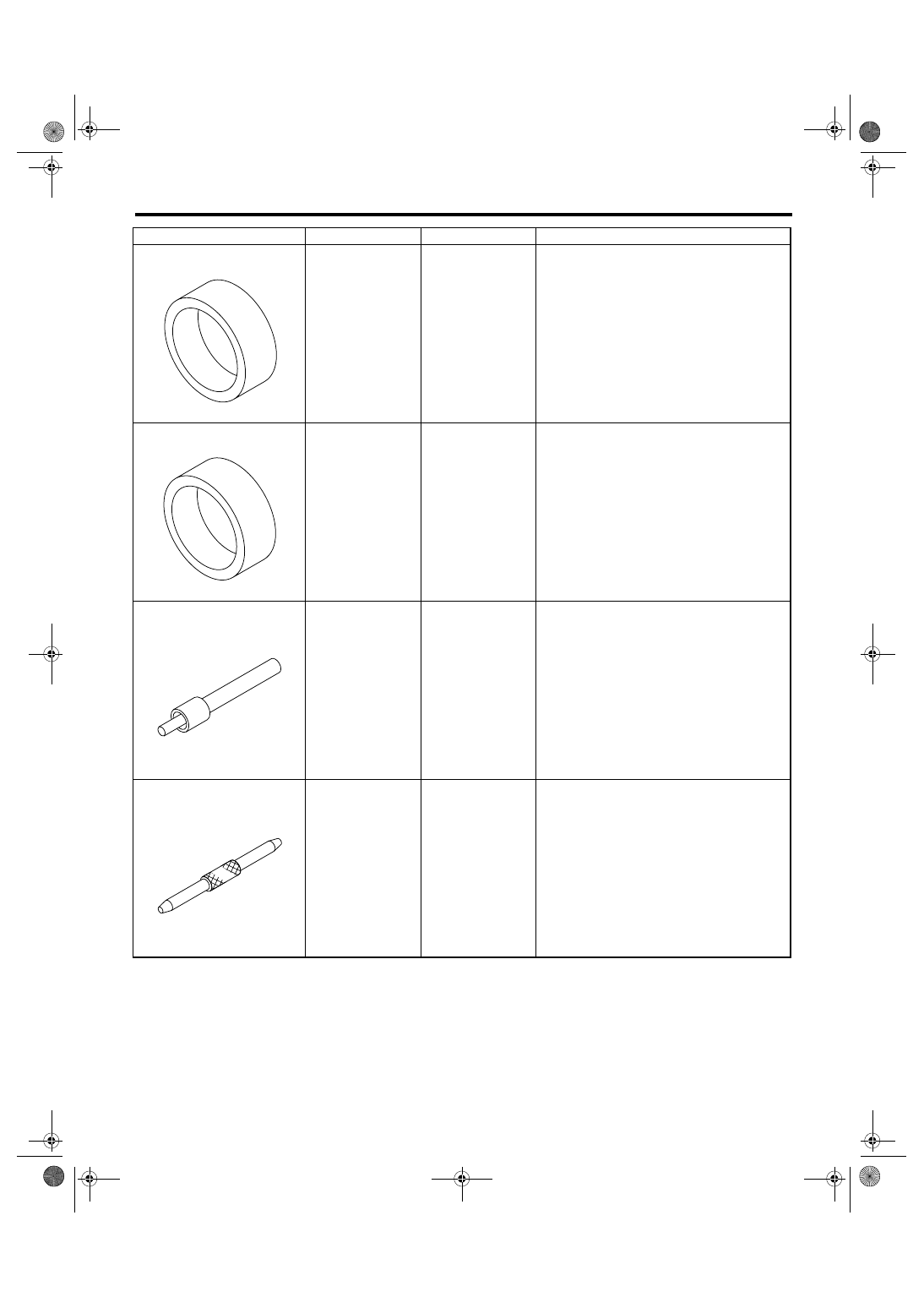

General Description

398744300

PISTON GUIDE

Used for installing piston in cylinder.
(2.0 L model)

498747300

PISTON GUIDE

Used for installing piston in cylinder.
(2.5 L model)

498857100

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust valve
guide oil seals.

499017100

PISTON PIN GUIDE

Used for installing piston pin, piston and con-
necting rod.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398744300

ST-498747300

ST-498857100

ST-499017100

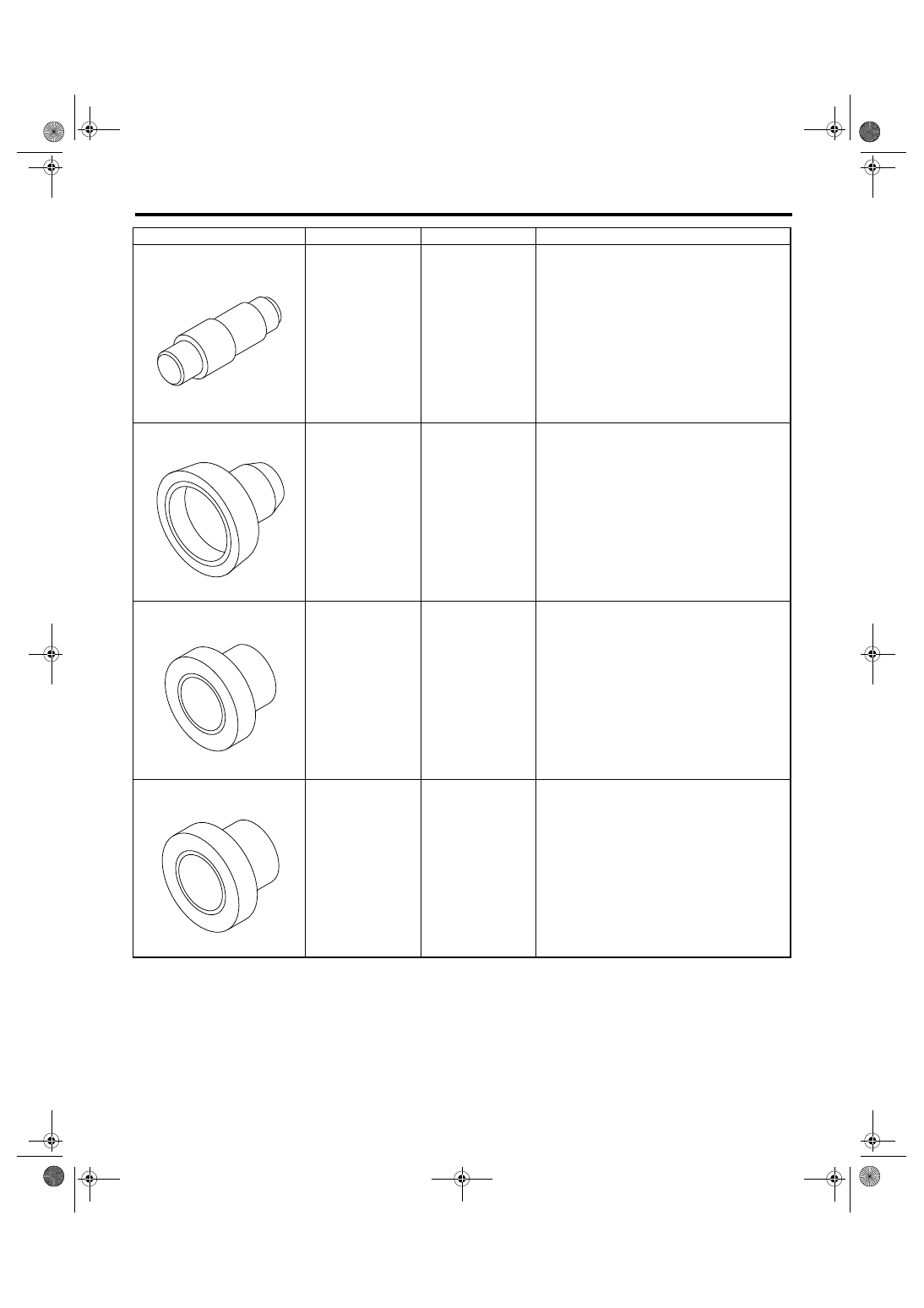

ME(H4SO 2.0)-16

MECHANICAL

General Description

499037100

CONNECTING ROD
BUSHING
REMOVER AND
INSTALLER

Used for removing and installing connecting rod
bushing.

499587200

CRANKSHAFT OIL
SEAL INSTALLER

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL GUIDE
(499597100).

499587500

OIL SEAL
INSTALLER

• Used for installing camshaft oil seal.
• Used with OIL SEAL GUIDE (499597000).

499587700

CAMSHAFT OIL
SEAL INSTALLER

Used for installing cylinder head plug.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499037100

ST-499587200

ST-499587500

ST-499587700

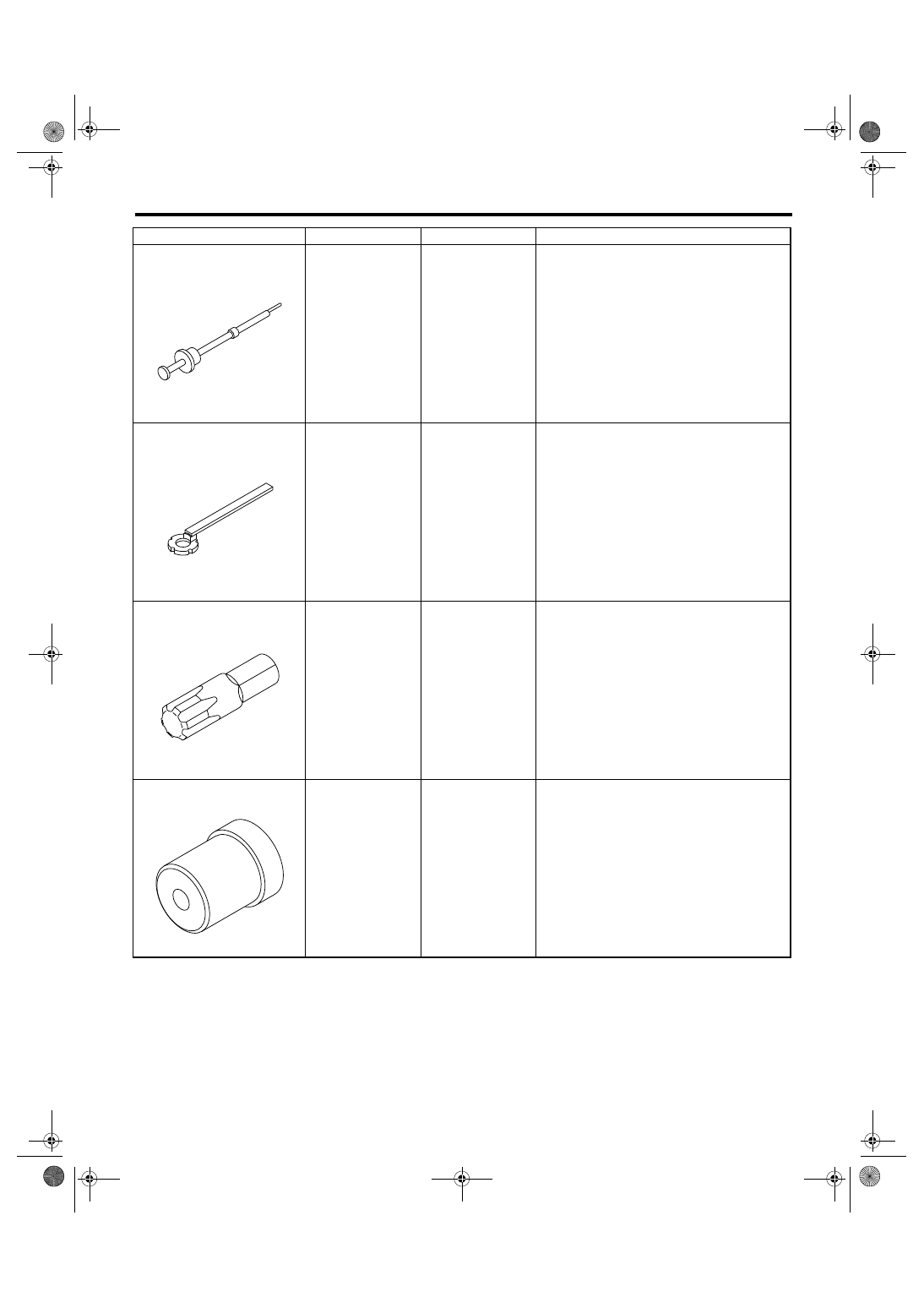

ME(H4SO 2.0)-17

MECHANICAL

General Description

499097700

PISTON PIN
REMOVER ASSY

Used for removing piston pin.

499207400

CAM SPROCKET
WRENCH

Used for removing and installing cam sprocket.
(RH side)

499497000

TORX PLUS

®

Used for removing and installing camshaft cap.

499587100

OIL SEAL
INSTALLER

Used for installing oil pump oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499097700

ST-499207400

ST-499497000

ST-499587100

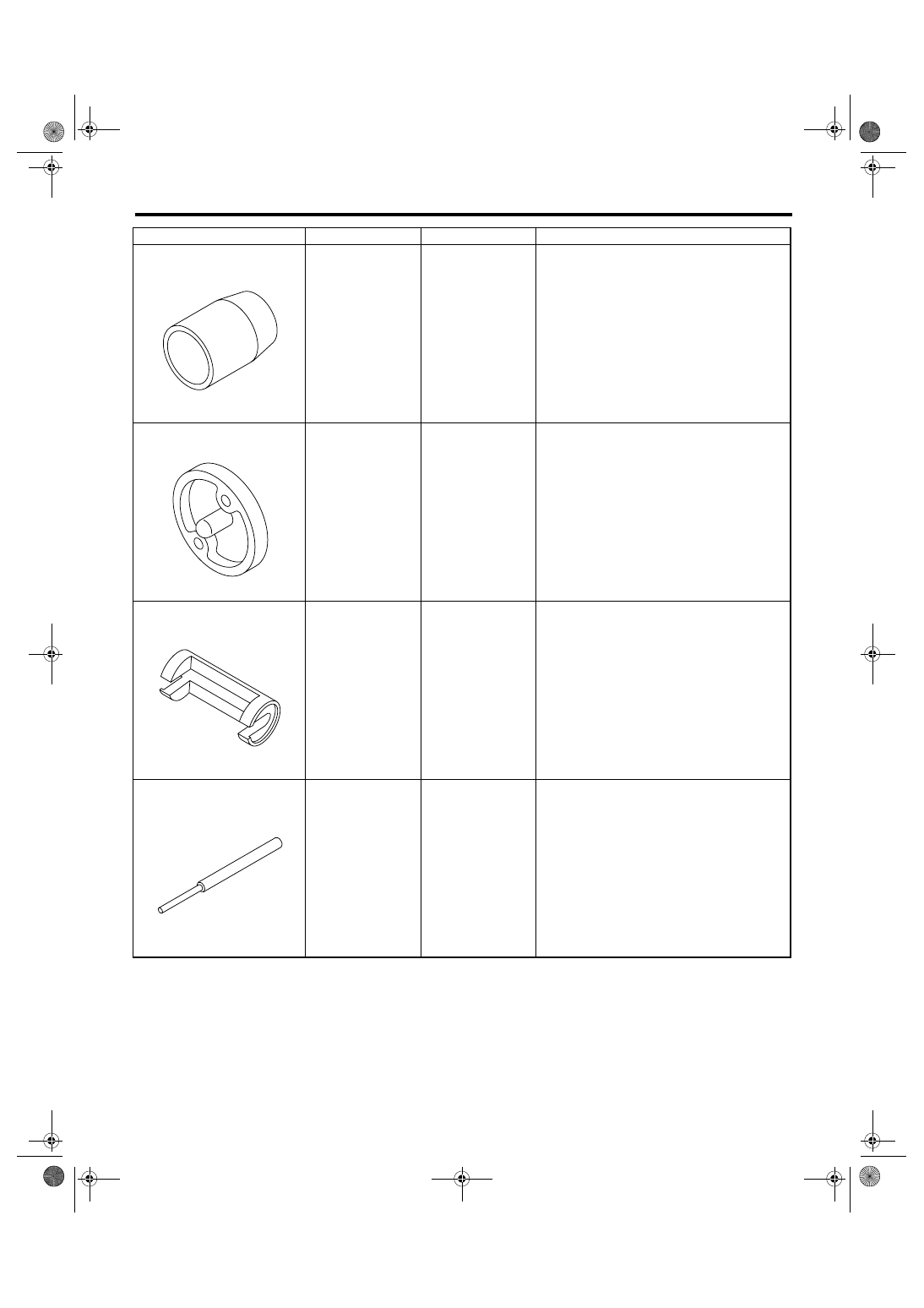

ME(H4SO 2.0)-18

MECHANICAL

General Description

499597000

OIL SEAL GUIDE

• Used for installing camshaft oil seal.
• Used with CAMSHAFT OIL SEAL INSTALLER
(499587500).

499597100

CRANKSHAFT OIL
SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL
INSTALLER (499587200).

499718000

VALVE SPRING
REMOVER

Used for removing and installing valve spring.

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499597000

ST-499597100

ST-499718000

ST-499767200
