Subaru Legacy (2005 year). Manual - part 14

NT-3

NOTE

Note

(1)

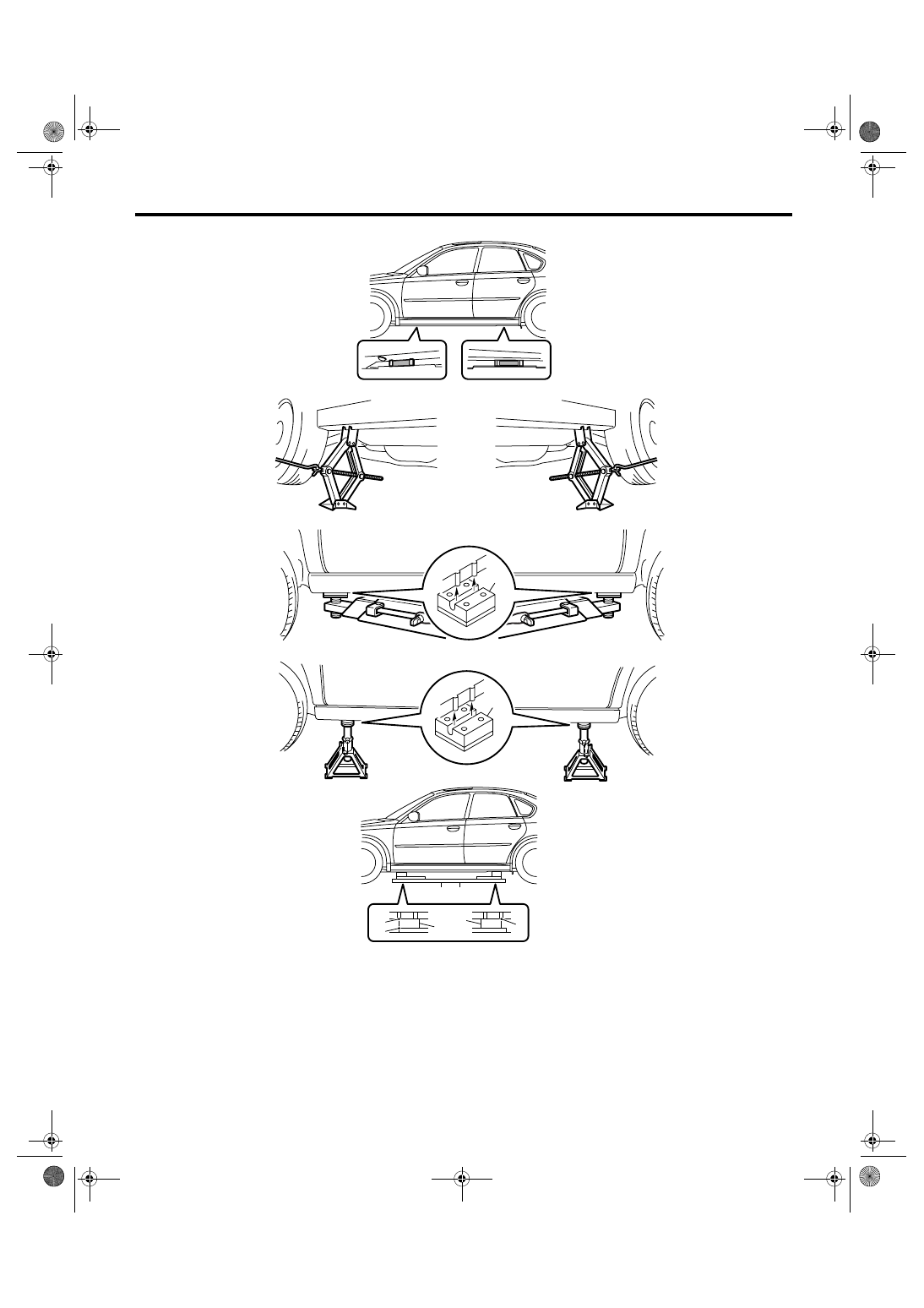

Supporting locations

(3)

Swing arm lift

(5)

Plate lift

(2)

Pantograph jack

(4)

Rigid rack

(6)

Attachment

NT-00086

a

a

b

(1)

(2)

(3)

(4)

(5)

(6)

(6)

(6)

(6)

NT-4

Vehicle-id:
SIE-id:Sa03676a15:A:NOTE
∼

NOTE

Note

8. TIE DOWNS

Tie downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to
the specified locations on the vehicle.

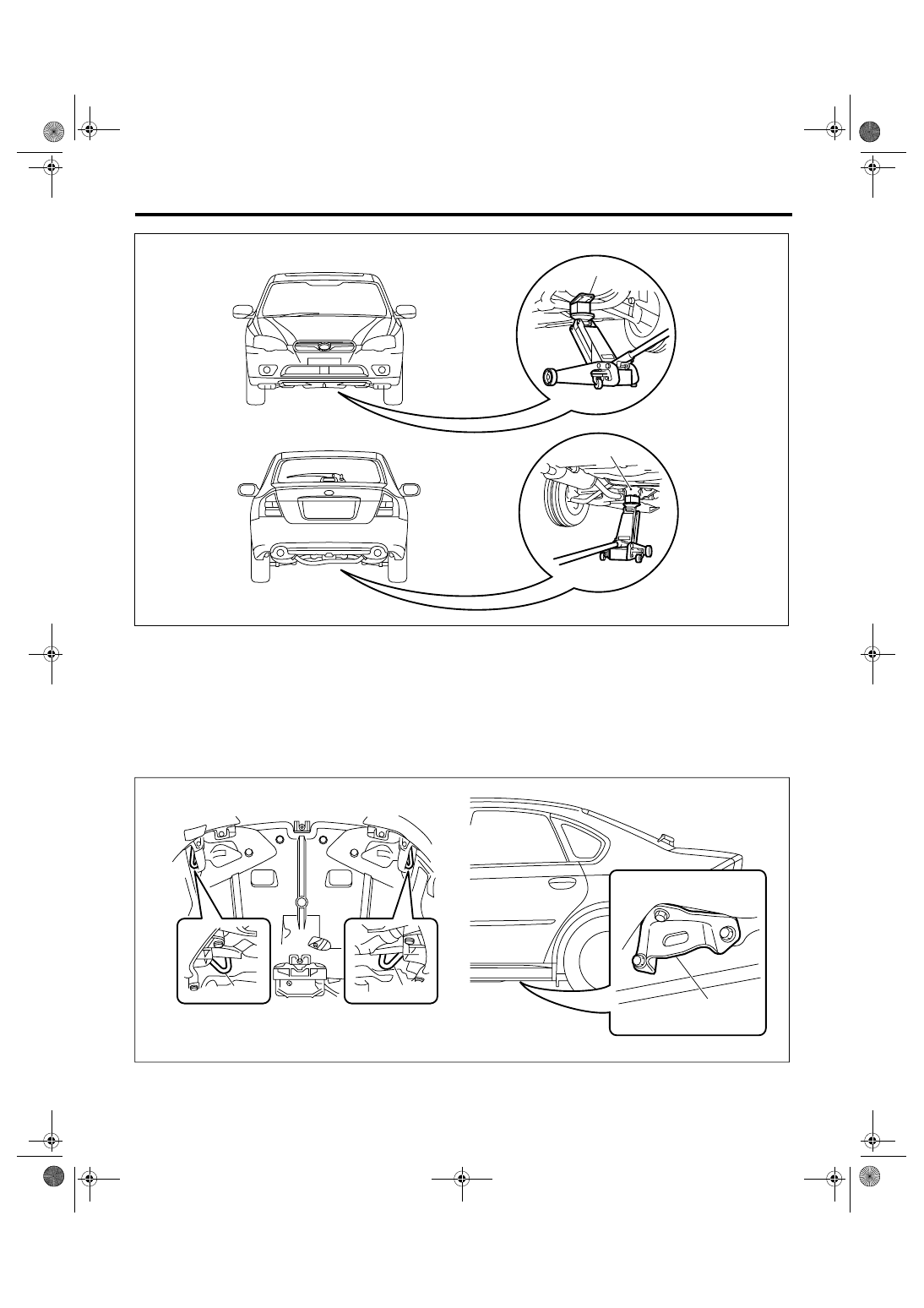

• TIE-DOWN LOCATION

(A)

Front

(B)

Rear

(1)

Front crossmember

(2)

Rear differential

(1)

Hook for tie-down

NT-00072

(1)

(2)

(A)

(B)

NT-00073

(1)

(1)

(1)

NT-5

NOTE

Note

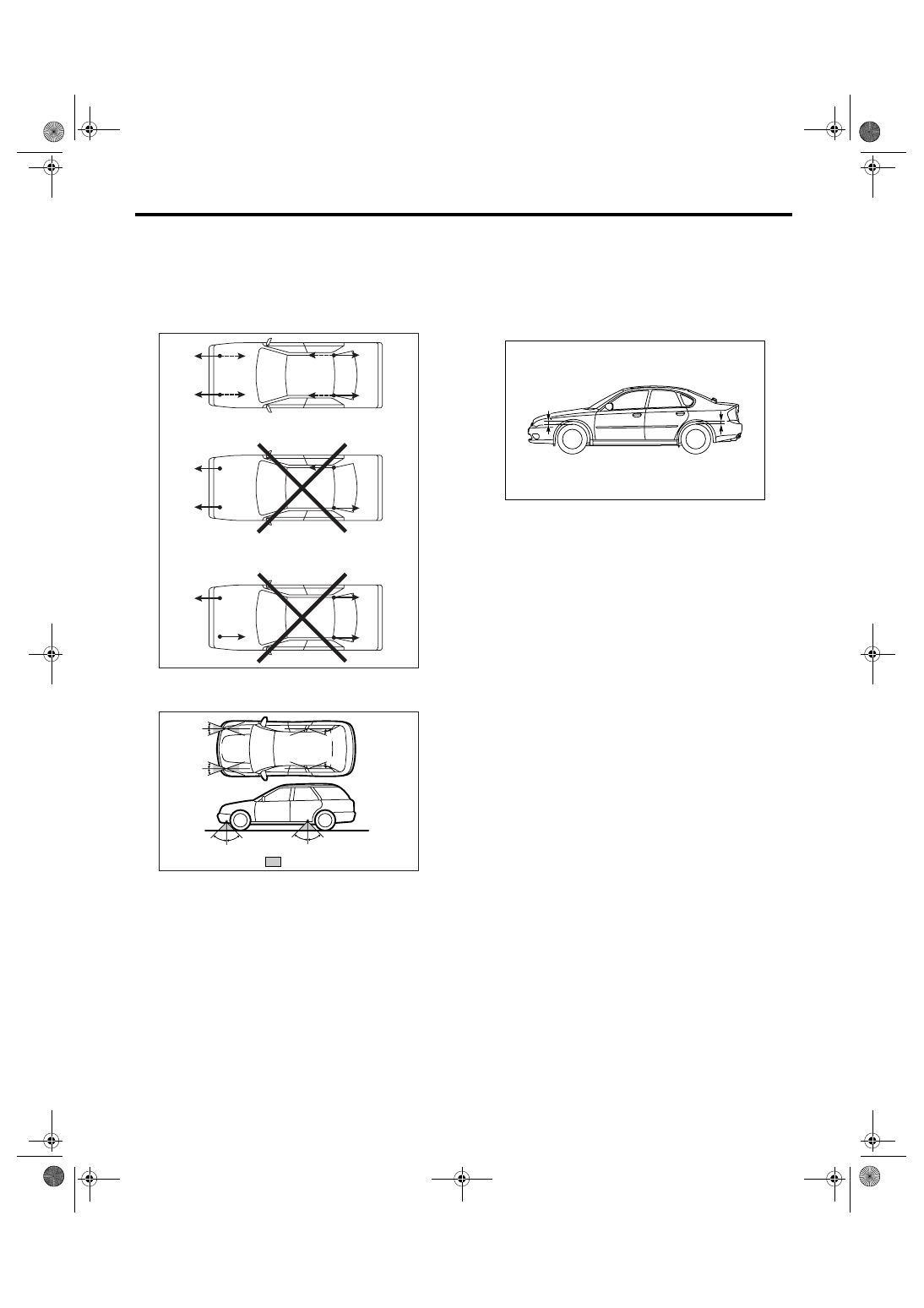

• CHAIN DIRECTION AT TIE-DOWN CONDI-
TION

NOTE:
Pull the chains LH and RH in the same direction,
but front and rear side in the counter direction. Pull
all the chains in a same moment.

• CHAIN PULLING RANGE AT TIE-DOWN CON-
DITION

• VEHICLE SINKING VOLUME AT TIE-DOWN
CONDITION
Measure the distance between the highest tire
point and highest arch point before and after tie-
down. Difference of measurement value (sinking
volume) shall be within 50 mm (1.97 in) and make
sure to fix the vehicle securely.

(1) Chain pulling range at tie-down condition

(2) 20

°

(3) 45

°

NT-00117

NT-00122

(2)

(2)

(2)

(2)

(3)

(3)

(3)

(3)

: (1)

(2)

(2)

NT-00076

L

L

NT-6

Vehicle-id:
SIE-id:Sa03676a15:A:NOTE
∼

NOTE

Note

9. TOWING

Avoid towing vehicles except when the vehicle cannot be driven. For models with AWD, AT or VTD, use a
loader instead of towing. When towing other vehicles, pay attention to the following to prevent hook or vehicle
damage resulting from excessive weight.
• Do not tow other vehicles with a front tie-down hook.
• Make sure the towing vehicle is heavier than the towed vehicle.

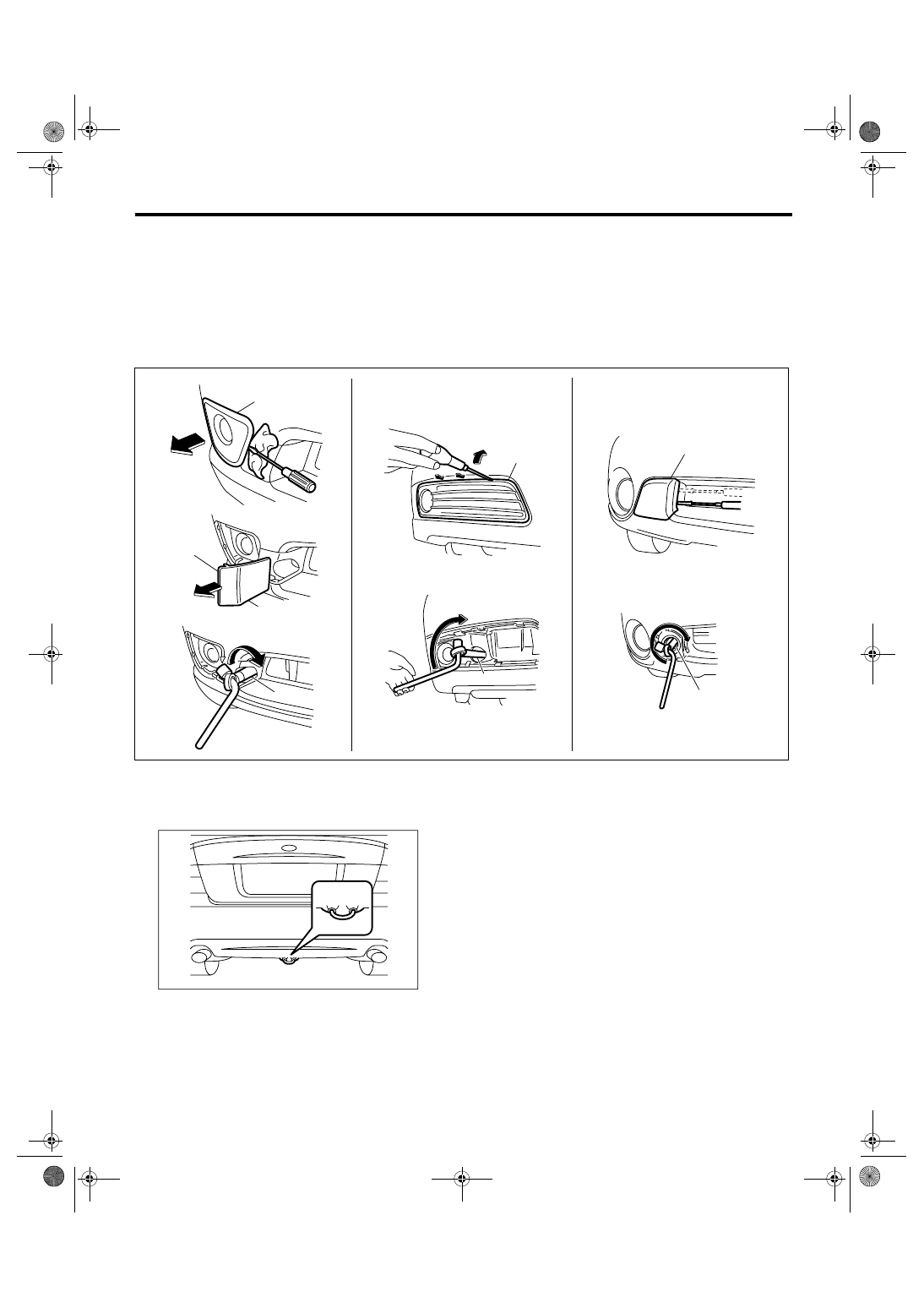

• FRONT

Remove the fog light cover (except for OUTBACK model) and hook cover, and then install the hook.

• REAR

(A)

Fog light cover (except for OUT-
BACK model)

(B)

Hook cover

(C)

Hook

NT-00087

(B)

(C)

(A)

(B)

(C)

(A)

(C)

NT-00078
