SsangYong Rexton. Manual - part 694





BODY’S MEASURING DIMENSION  9E-3

SSANGYONG  Y200

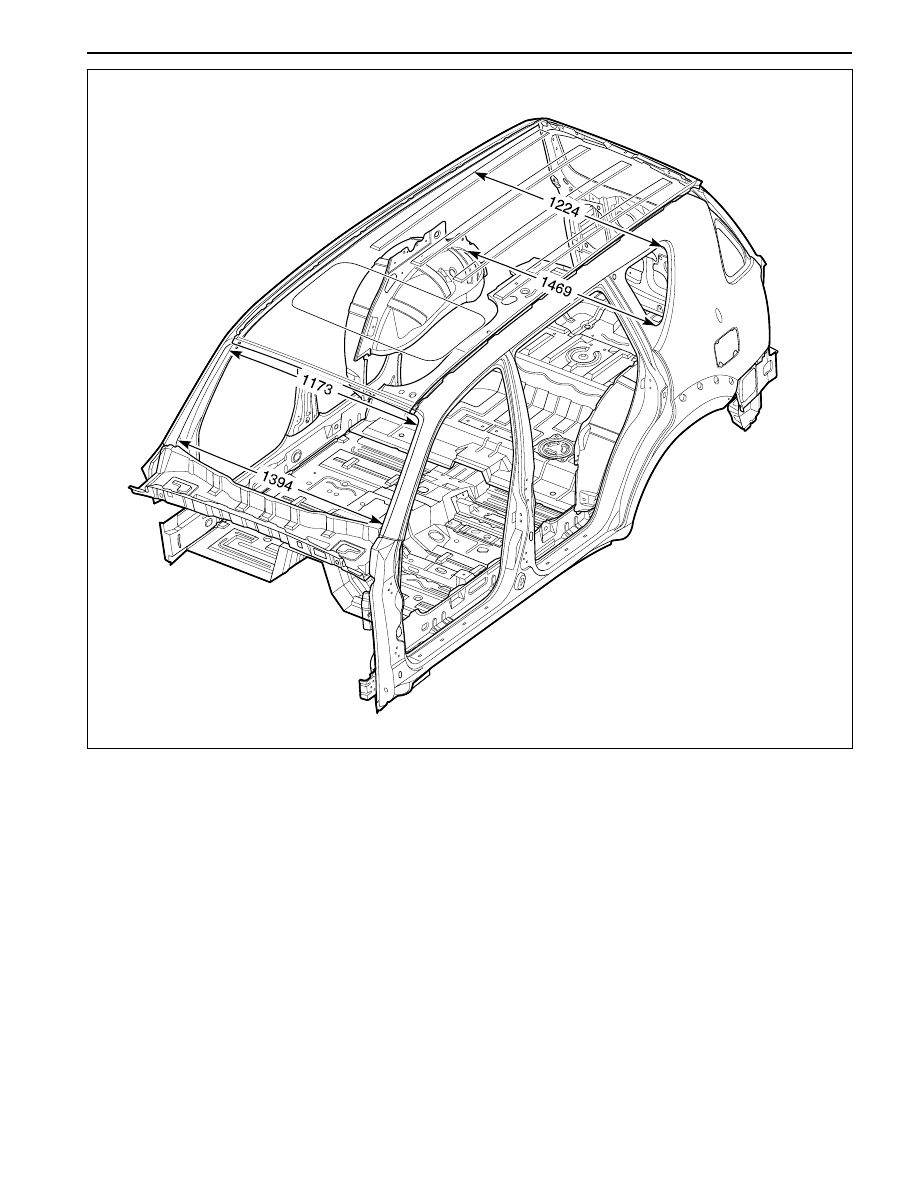

FRAME

YAD9E020

SSANGYONG  Y200

9E-4  BODY’S MEASURING DIMENSION

YAD9E030

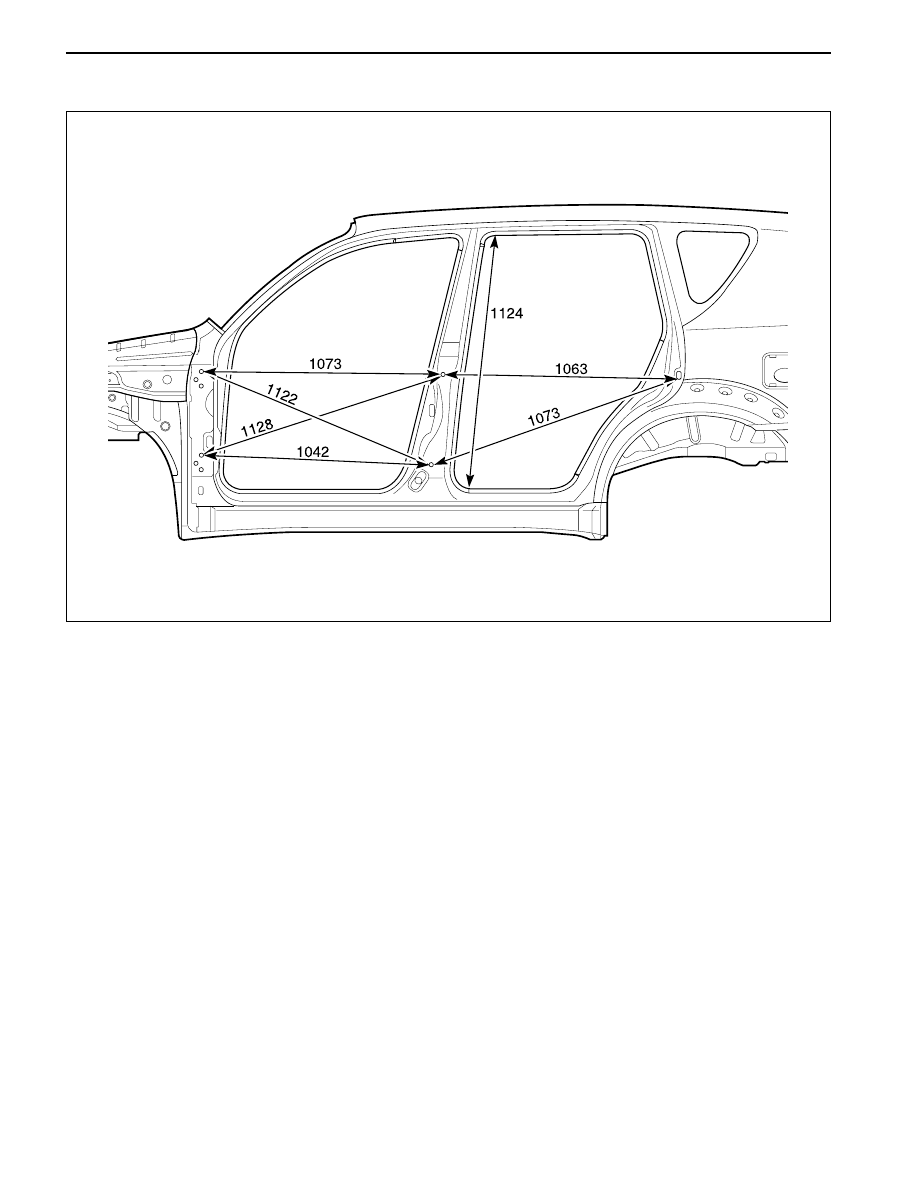

SIDE STRUCTURE COMPLETE

BODY’S MEASURING DIMENSION  9E-5

SSANGYONG  Y200

YAD9E040

SSANGYONG  Y200

9E-6  BODY’S MEASURING DIMENSION

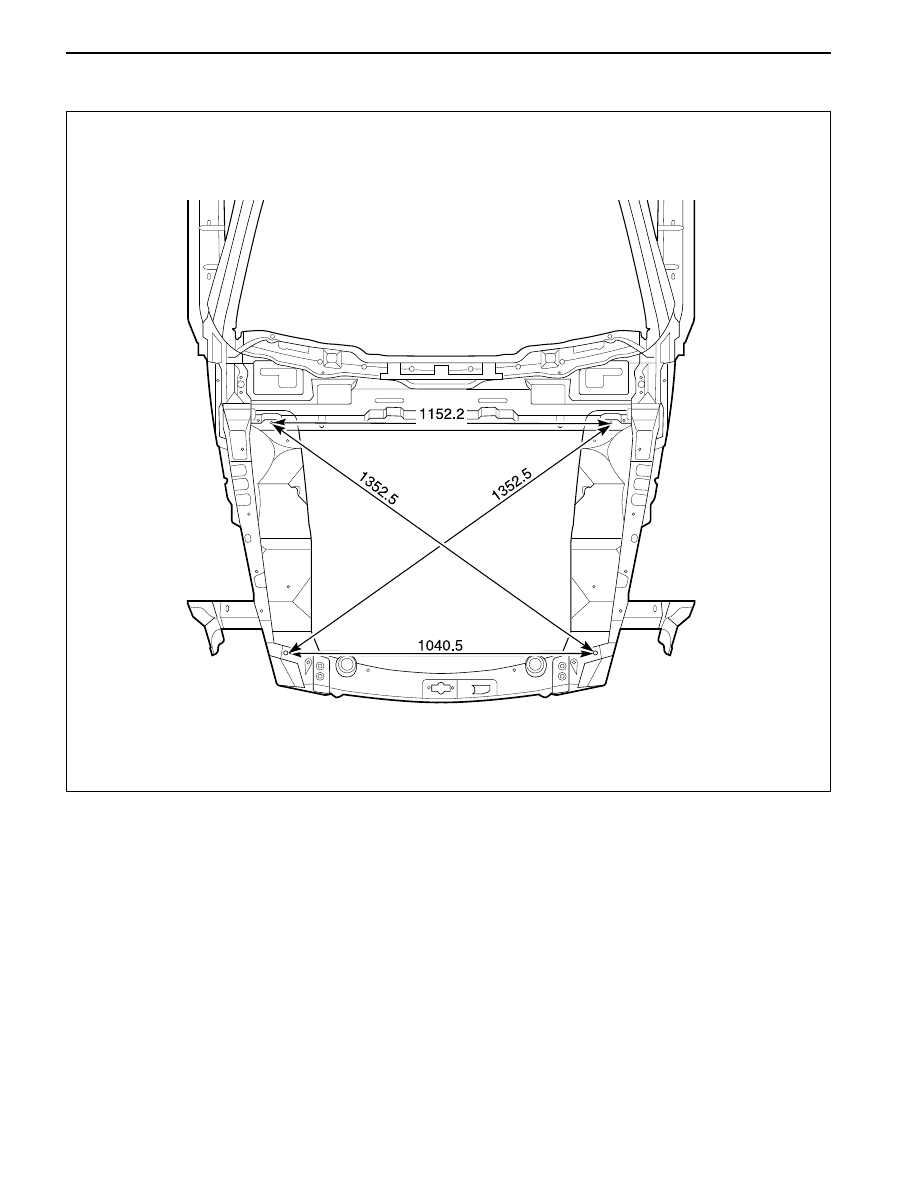

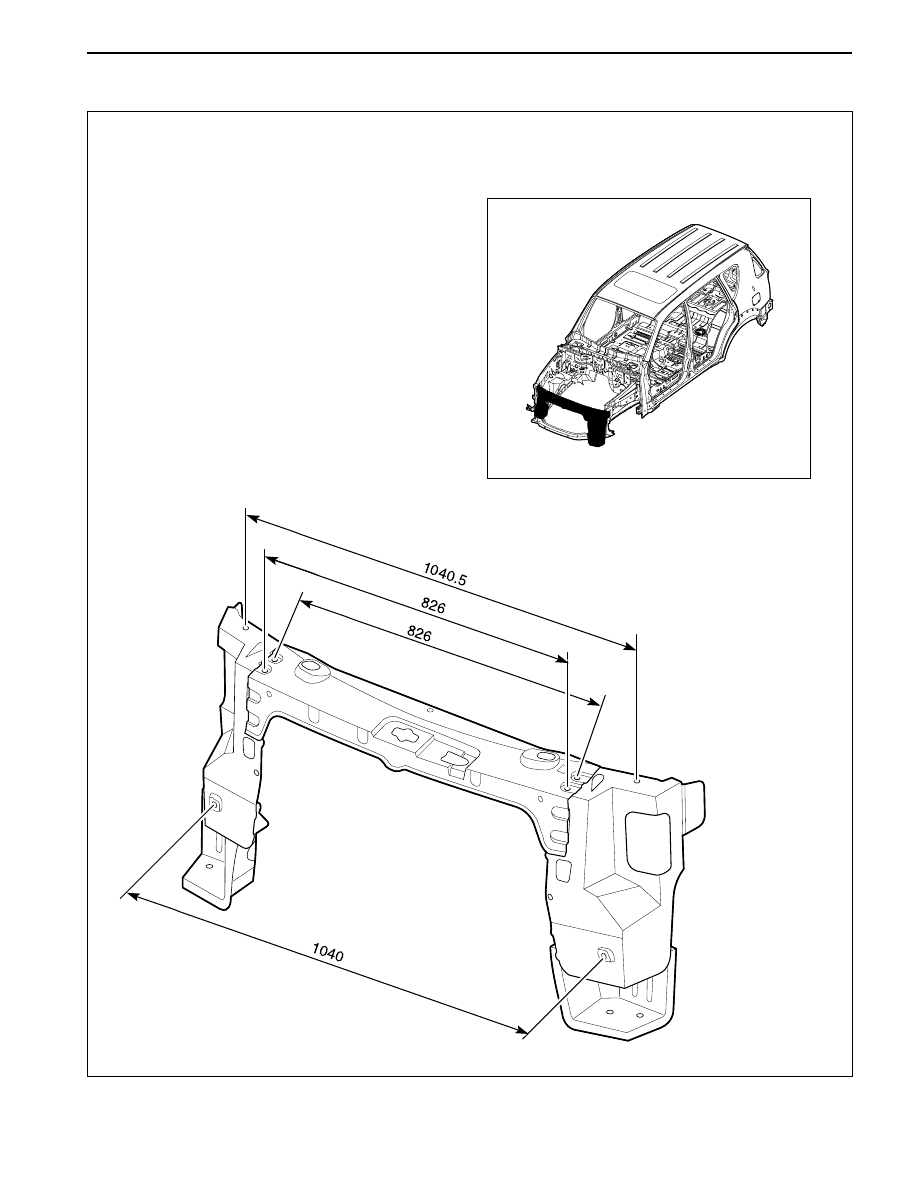

ENGINE ROOM

YAD9E050
