SSANGYONG  Y200

9D-86  BODY ELECTRICAL

YAD9D3G0

YAD9D3H0

YAD9D3J0

YAD9D3K0

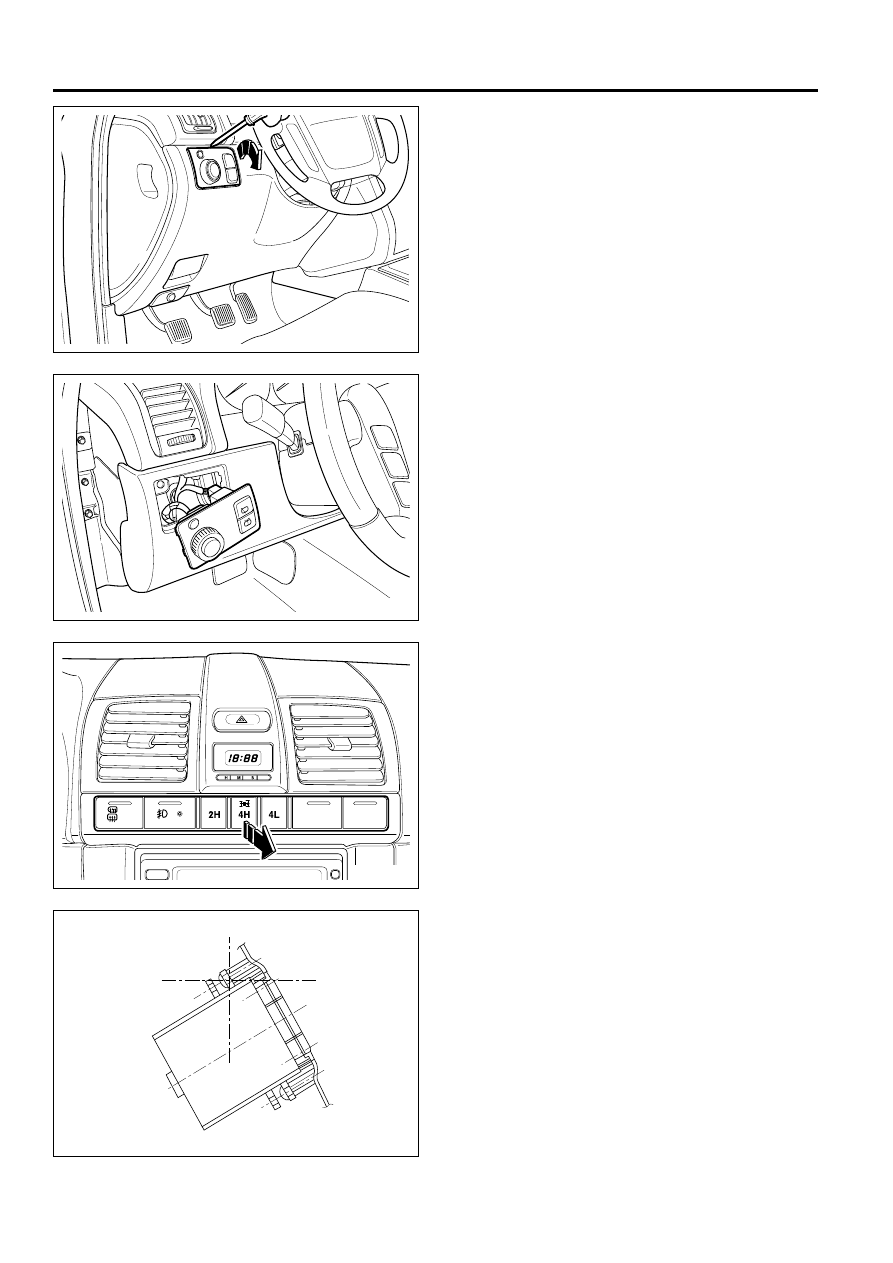

2. After disconnecting the connector, remove switch

assembly.

3. Install the reverse order of removal

Digital Watch

1. Remove the center panel

2. After releasing fixing screw from the panel, remove

the digital watch.

3. After digital watch is fixing on the panel, link the

connector, and then install panel on the panel of
IP.

Switch of Center IP

1. After panel of center IP is removed, each switch

can be separated.

2. After center panel is removed, disconnect

connector

3. Separate each switch from removed panel.

4. Install the reverse order of removal.

Notice: While each switch is checked, refer to the
following circuit, and then check whether apply
an electric current or not,

•

Switch of front fog lamp

REPAIR OF  THE SYSTEM

Switch of Outside Mirror

1. Remove upper section of switch (between IP and

section of ground ) with driver.

Notice: switch is attaching on the upper section

BODY ELECTRICAL  9D-87

SSANGYONG  Y200

YAD9D3L0

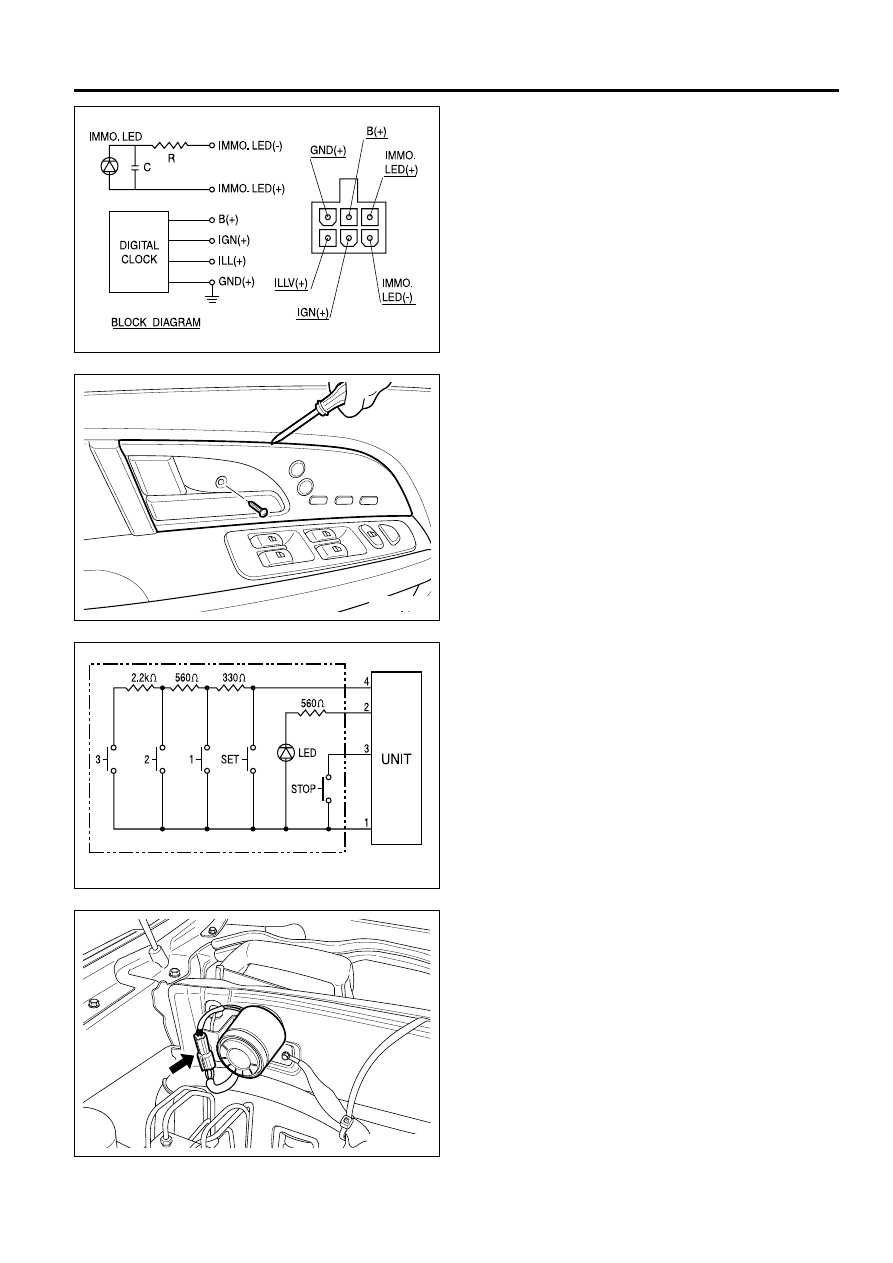

Circuit of Digital Watch and Connector

YAD9D3M0

YAD9D3N0

YAD9D3P0

Switch of Seat Memory

1. Release the fixing screw.

2. Using the (-) driver, like the left picture, separate

switch cover of seat memory.

3. After disconnecting the connector, remove the

switch.

4. Install the reverse order of removal.

Siren

1. After opening up the hood, disconnect the

negative terminal of battery.

2. Disconnect the connector (indicating arrow) of

siren.

3. After fixing bolt is released, remove the siren

4. Install the reverse order of removal.

Diagram of Switch Circuit

SECTION 9E

BODY’S MEASURING DIMENSION

TABLE OF CONTENTS

Body’S Measuring Dimension ............................. 9E-2

Under Body(Frame) ............................................. 9E-2

Frame .................................................................. 9E-3

Side Structure Complete ...................................... 9E-4

Engine Room ....................................................... 9E-6

Windshield And Rear Glass ................................. 9E-7

Tail Gate .............................................................. 9E-8

Chart Of Gap ....................................................... 9E-9

Under Coating ................................................... 9E-11

Body Mounting .................................................. 9E-12

SSANGYONG  Y200

9E-2  BODY’S MEASURING DIMENSION

BODY’S MEASURING DEMENSION

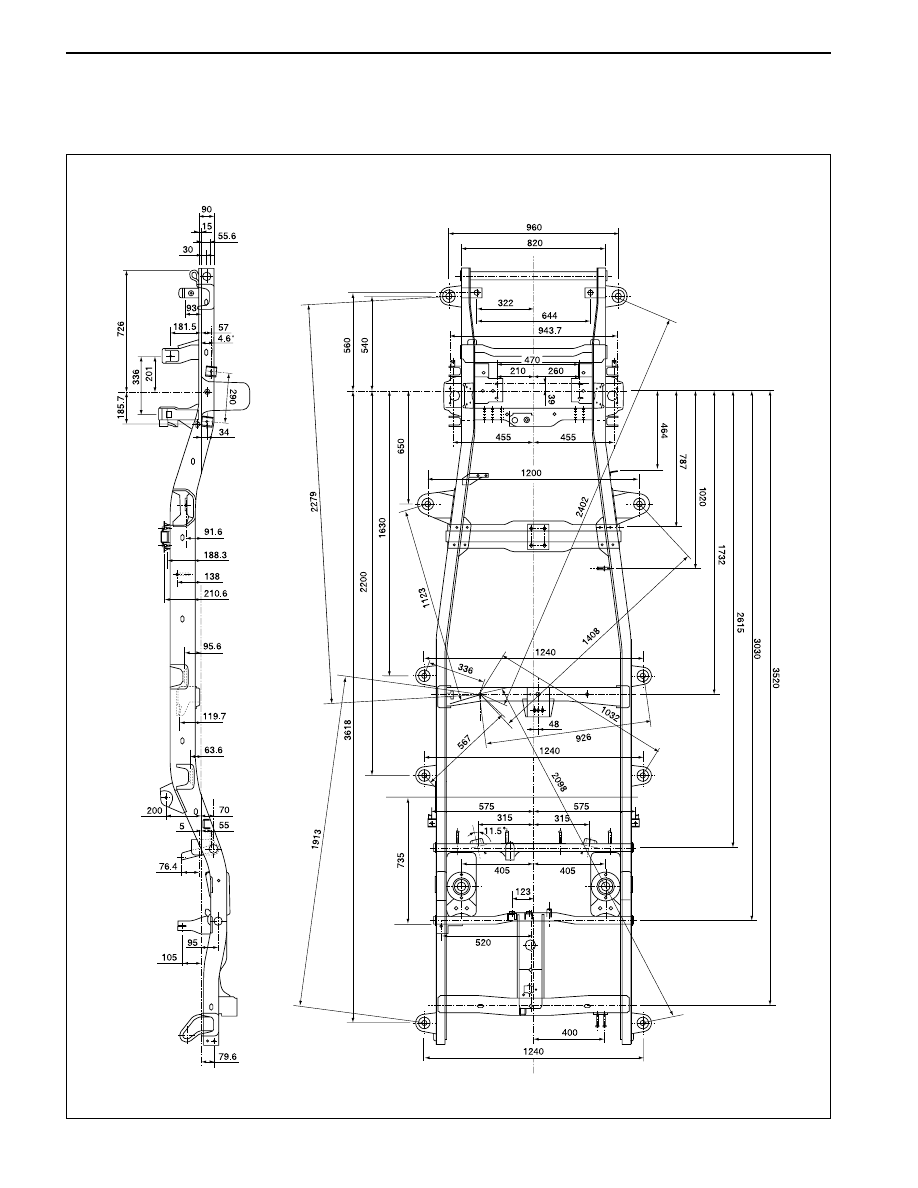

UNDER BODY(FRAME)

YAD9E010
