SsangYong Rexton. Manual - part 675

SSANGYONG  Y200

9D-14  BODY ELECTRICAL

1 Fuel Gauge
2 Speed Gauge
3 Turn Signal Lamp (Left)
4 Lamp of Operating of Brake or Flude
5 Lamp of Position And High Beam
6 Turn Signal Lamp (Right)
7 Speedometer Gauge
8 Speed Gauge
9 Temperature Gauge

10 Lamp of High Speed of 4WD
11 Lamp of Winter (Automatic Transmission)
12 Lamp of Low Speed of 4WD
13 Check Lamp of 4WD (Gasoline)
14 Power Lamp (Automatic Transmission)
15 Lamp of Engine Check (for Gasoline)
16 Warning Lamp of Seat Belt
17 Warning Lamp of Charge

18 Warning Lamp of Oil Pressure

 19 Lamp of Pre Heating

20 Lamp of Selector

Lever (Automatic Transmisson)

21 Button of Reset
22 Warning Lamp of Air Bag
23 Warning Lamp of ABS
24  Warning Lamp of EBD
25 Lamp of TCS
26 Warning Lamp of Door Opening
27 Lamp of Outside And Lamp of Heat Line of

Rear Glass

28 Warning Lamp of fuel refilling
29 Warning Lamp of Hazard
30 Connector of White Color
31 Colorless Connector (Auto)
32 Gray Connector

BODY ELECTRICAL  9D-15

SSANGYONG  Y200

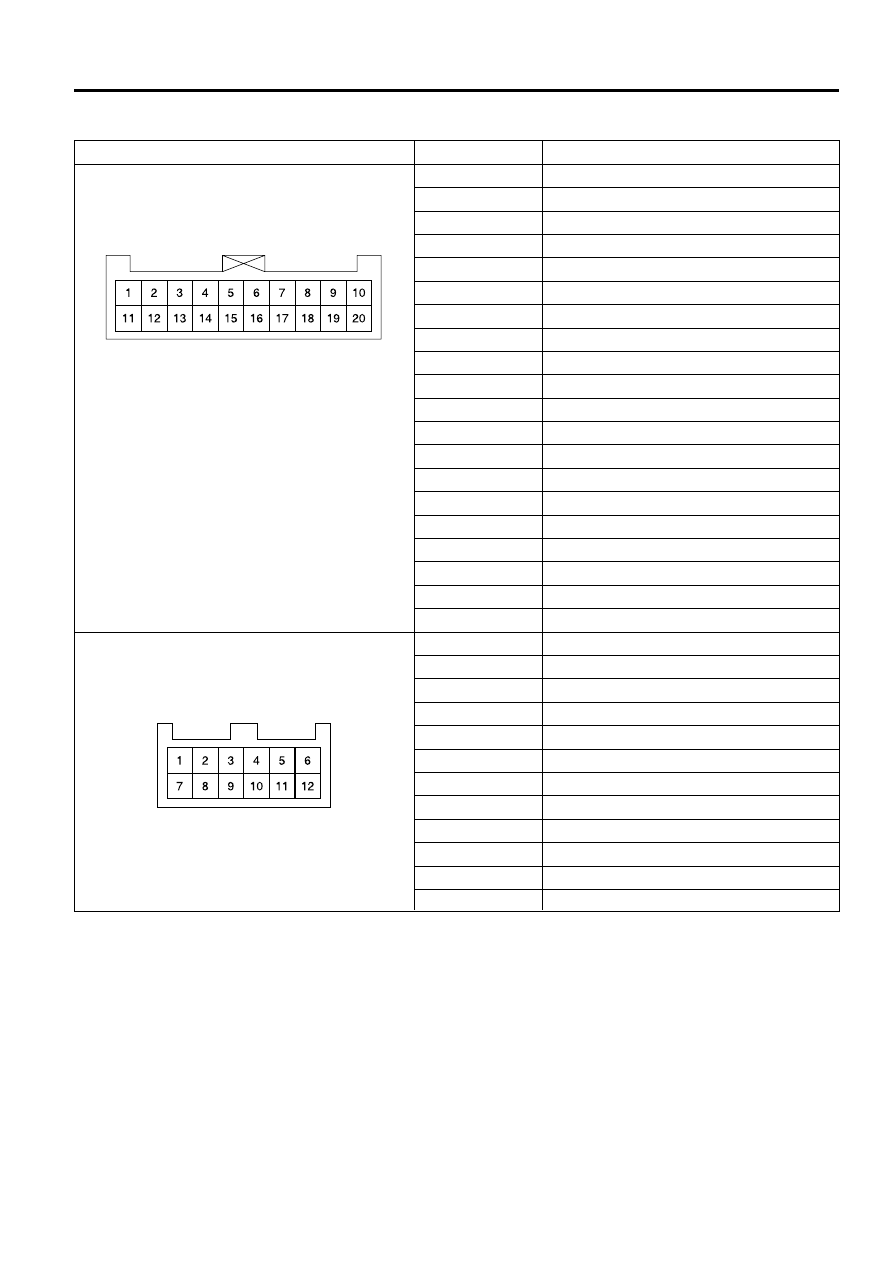

Component of Connector Pin

Layout of Connect

Color of connect : gray color

Number of Pin

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

C1

C2

C3

C4

C5

C6

C7

C8

C9

C10

C11

C12

Description

Opening of door

Oil pressure

Seat belt

Charging

ILL (-)

EBD

1GN (+), B

Ground2

ACC

B (+)

Checking of 4 WD (+)

Checking of 4 WD (-)

Low speed of 4 WD

ILL (+)

High speed of 4 WD

Turn signal lamp (Left)

High beam (Lamp of position)

Lamp of position

Turn signal lamp (Right)

Brake

Automatic transmission - D range

Automatic transmission - 3 range

Automatic transmission - 2 range

Automatic transmission - 1 range

-

-

Automatic transmission - R range

Automatic transmission - N range

Automatic transmission - NC

Automatic transmission - P range

Winter

Power

Color of connect

YAD9D210

YAD9D220

SSANGYONG  Y200

9D-16  BODY ELECTRICAL

Layout of Connect

Color of connect

Number of Pin

B1

B2

B3

B4

B5

B6

B7

B8

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

Description

Unit of tacometer

Speed sensor

Chime bell

Signal out of speed

-

-

ABS

Air bag

Engine check

TCS

Fuel sender

Temp sender

-

Gnd (ground1)

IGN (+), A

Emegency

-

Rear defogger

Pre - heat

-

YAD9D230

BODY ELECTRICAL  9D-17

SSANGYONG  Y200

YAD9D240

YAD9D250

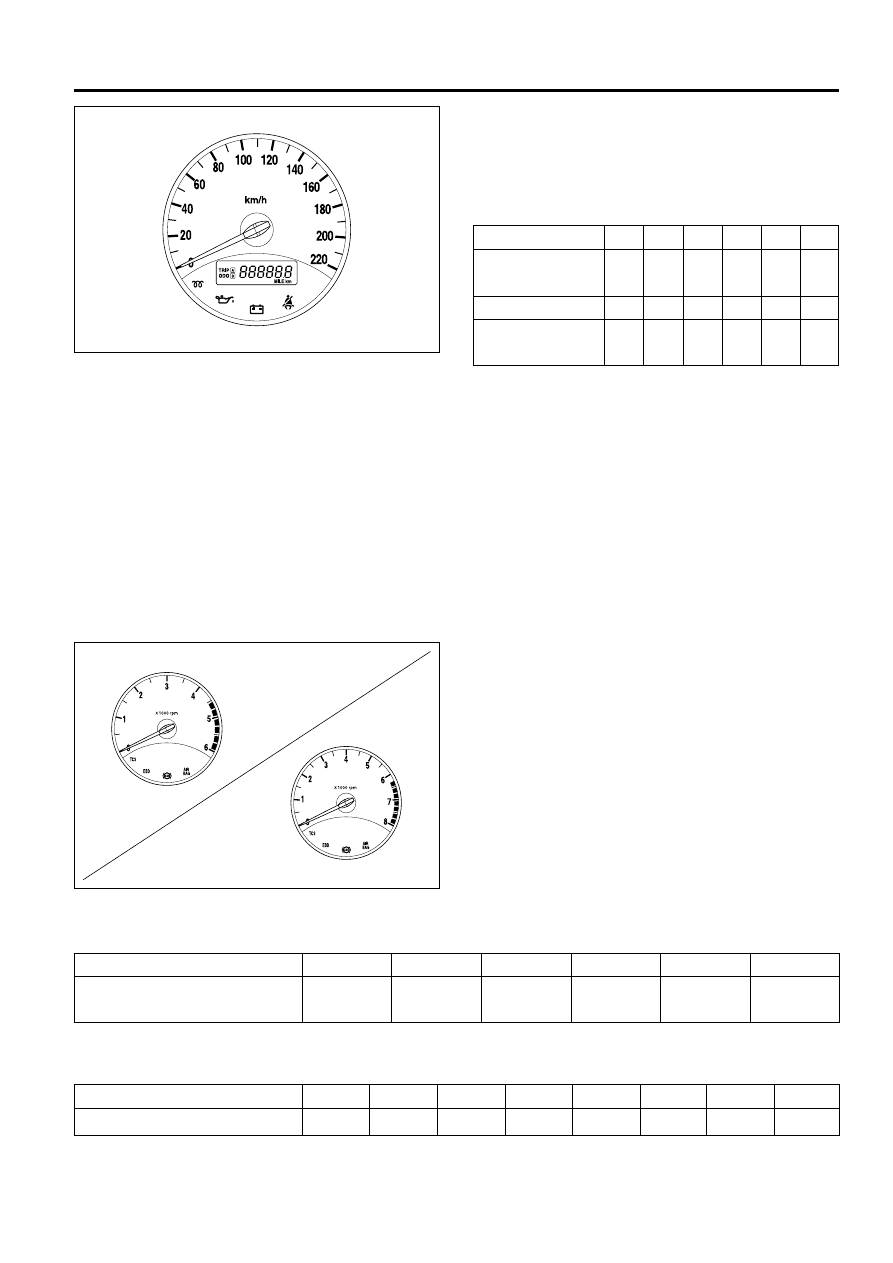

2. Check trembling of indicator of speed meter or

noise of unusual

3. Tap speed meter, and then remove hysteresis.

Notice: If tire is weared or out of specification of
air pressure, error allowed increase.

Standard of speed

Error of allowance

Standard of speed

Error of allowance

20

3

140

+5.5

+0.5

40

+4

0

160

+5.5

+0.5

60

+4

0

180

+6

+1

80

+5

0

200

+6

+1

100

+5

0

220

-

120

+5.5

+0.5

-

-

Gasoline vehicle

(rpm)

CHECK AND REPAIR

Speed Meter

1. Using tester of speed meter, check error of

allowance of speed meter and operation of
tacometer.

Tacometer

1. Connect tacometer of testing, start engine.

2. Comparing value indicated between tester and

tacometer, error is big enough, replace tacometer.

3. While tacometer is inspected, tap tacometer, and

then remove magnetic power.

Diesel vehicle

(rpm)

Standard of speed

Error of allowance

1000

± 100

2000

± 125

3000

± 150

4000

± 150

5000

± 150

6000

± 180

7000

± 180

8000

-

Standard of speed

Error of allowance

1000

+137

- 67

2000

+199

- 51

3000

+261

- 39

4000

+298

- 2

5000

+335

+35

6000

-
