SSANGYONG  Y200

9D-10  BODY ELECTRICAL

YAD9D140

YAD9D150

YAD9D160

CHECK AND ADJUST

Adjust Focus of Head Lamp (Aiming)

Beam adjusting equipment approved can adjust
accurately focus of head lamp.

This equipment should be operated by manufacturer’s
operation manual.

While focus of head lamp is arranged, condition of
vehicle keep air pressure of tire specified, except spare
tire and tool of OVM, every thing is unloaded, and
vehicle is parked on the even place.

If beam adjusting is not installed, focus of head lamp
can be arranged by using screen.

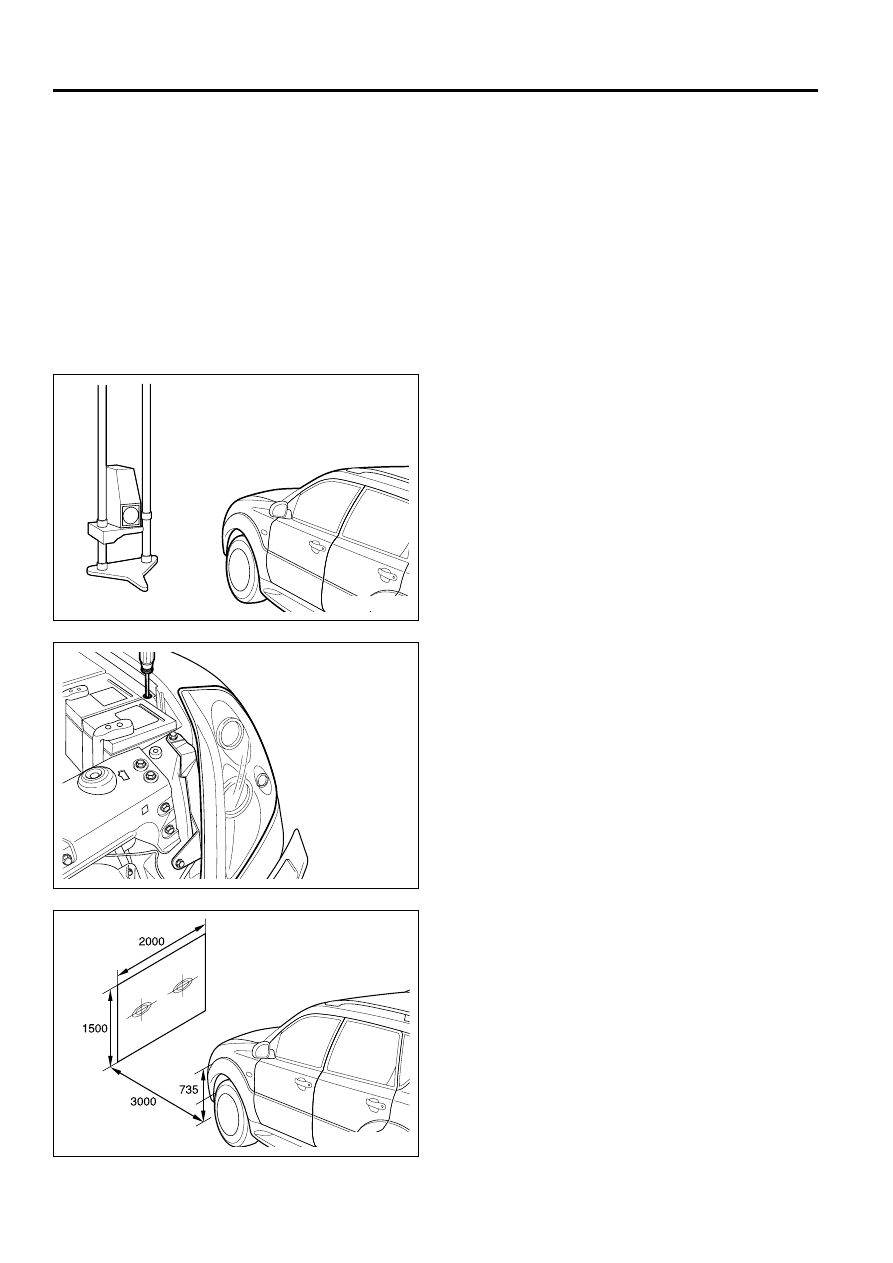

Using Beam Adjusting Equipment

1. Beam adjusting equipment should be arranged

with vehicle.

2. Switch on control lever of up and down, left and

right by the screw, arrange focus of head lamp.

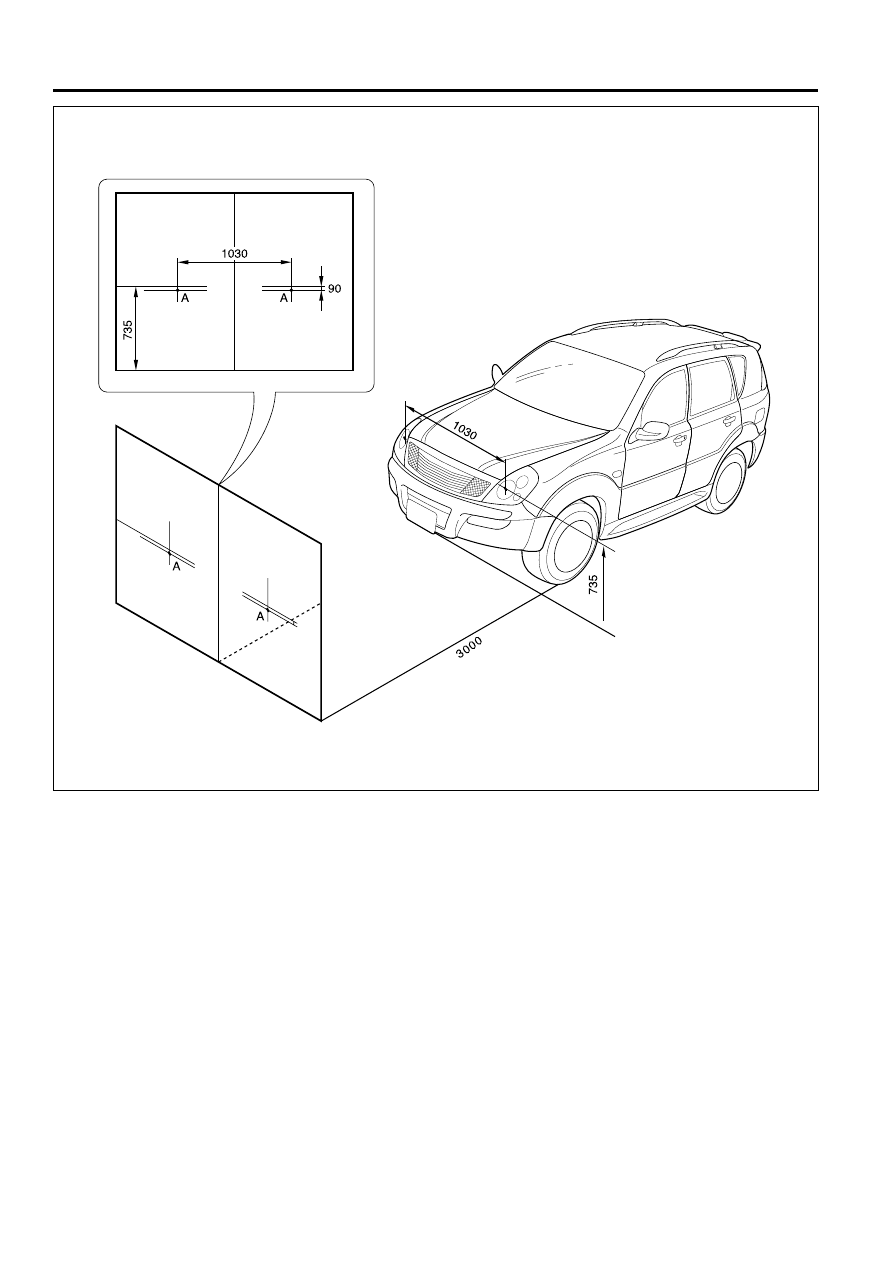

Arrange Focus of Head Lamp by Screen (Unit: mm)

1. After screen (2 m x 1.5 m) installs the verticalness

position of 3m of distance from the front head lamp
of vehicle, keep line of center between vehicle and
screen such as the right below picture.

BODY ELECTRICAL  9D-11

SSANGYONG  Y200

;;;

;;;

;;

;;

YAD9D170

YAD9D180

YAD9D150

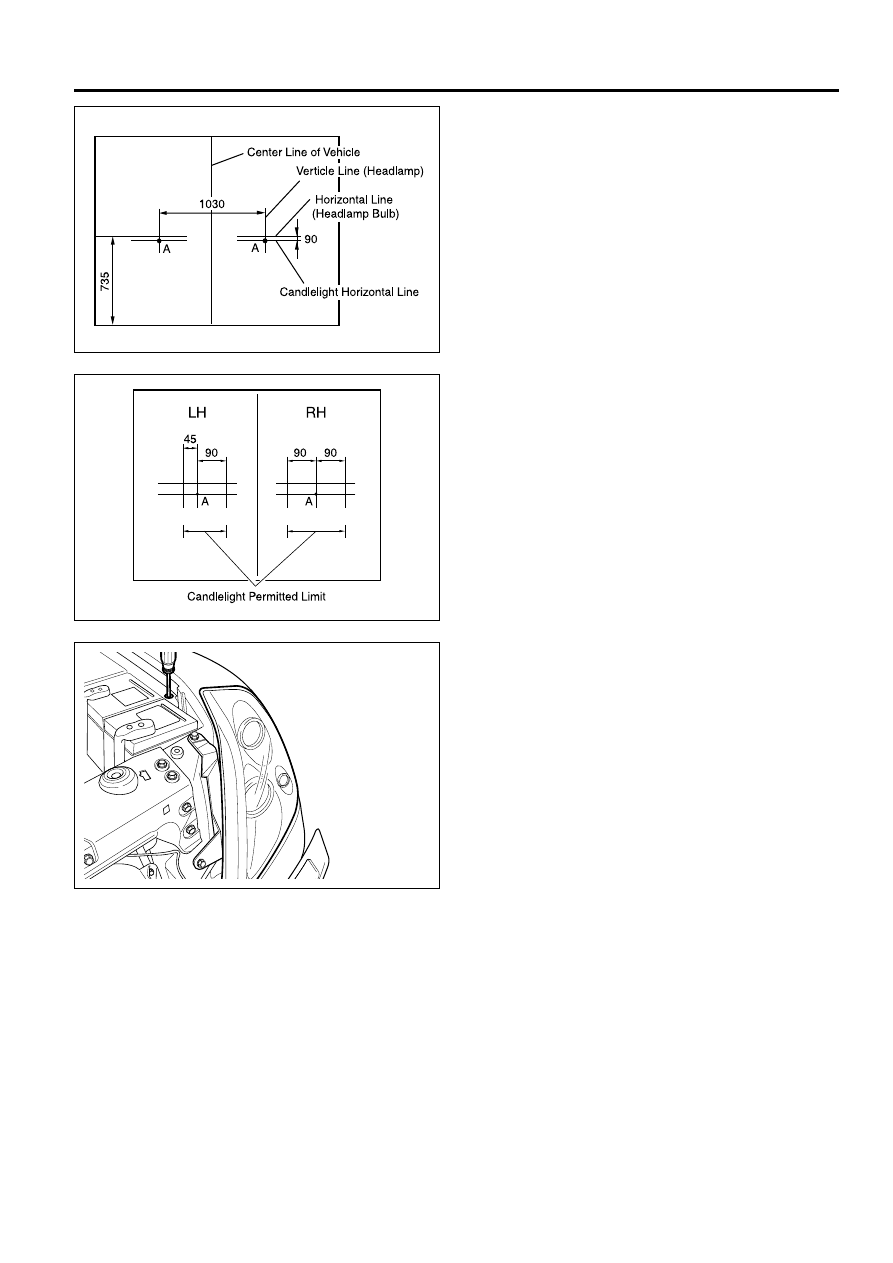

2. Keep line of center between through horizontal line

of center of head lamp and center of screen.

3. Keep engine R.P.M of 2000, and then switch head

lamp on, at this time focus of head lamp should
indicate position of “A” .

4. If focus of head lamp get out of specification, after

switching control lever of up and down, left and
right, arrange focus of head lamp.

SSANGYONG  Y200

9D-12  BODY ELECTRICAL

YAD9D190

BODY ELECTRICAL  9D-13

SSANGYONG  Y200

REPAIR OF EACH SYSTEM

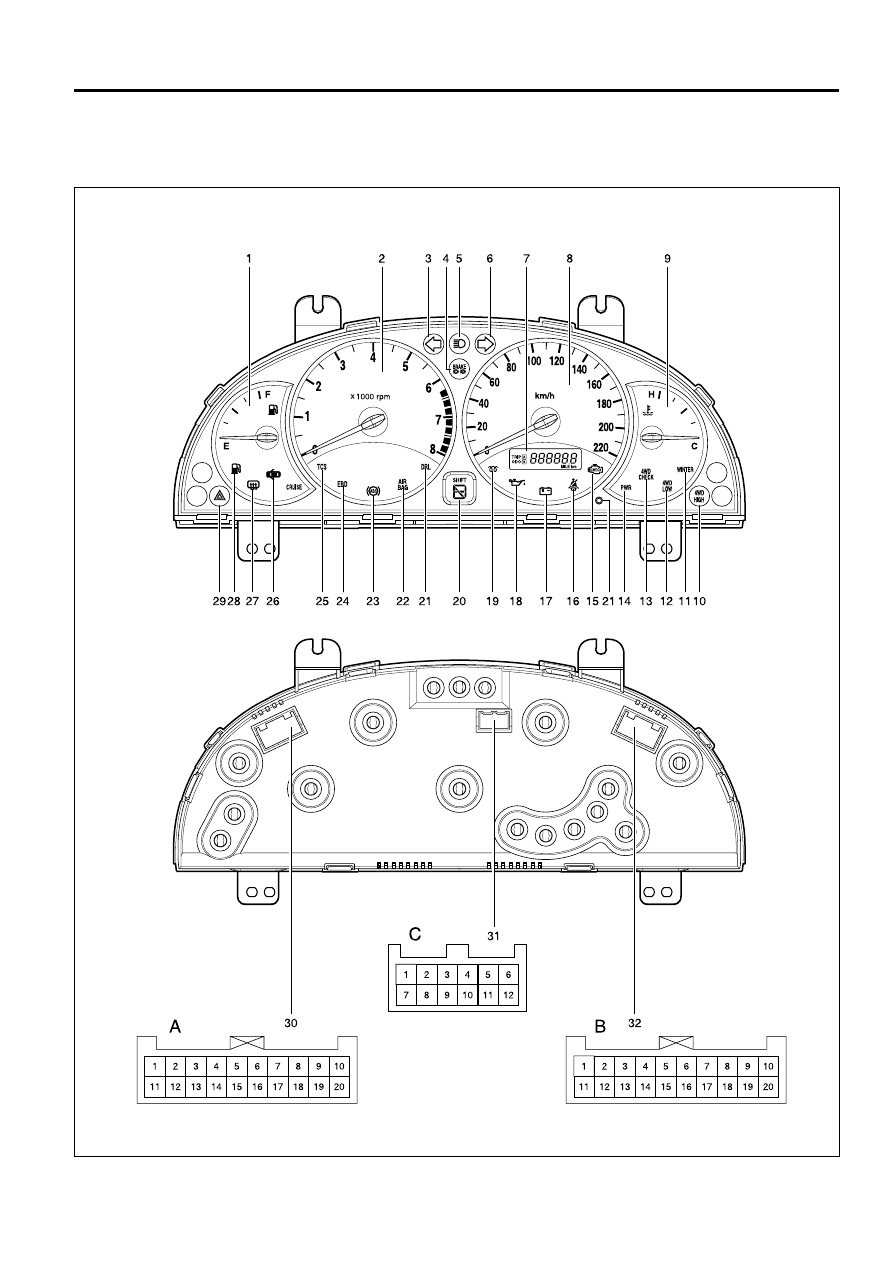

INSTRUMENT PANEL ASSEMBLY

YAD9D200
