7B-18  GENERAL HVAC SYSTEM

REPLACEMENT OF REFRIGERANT
CONNECTION

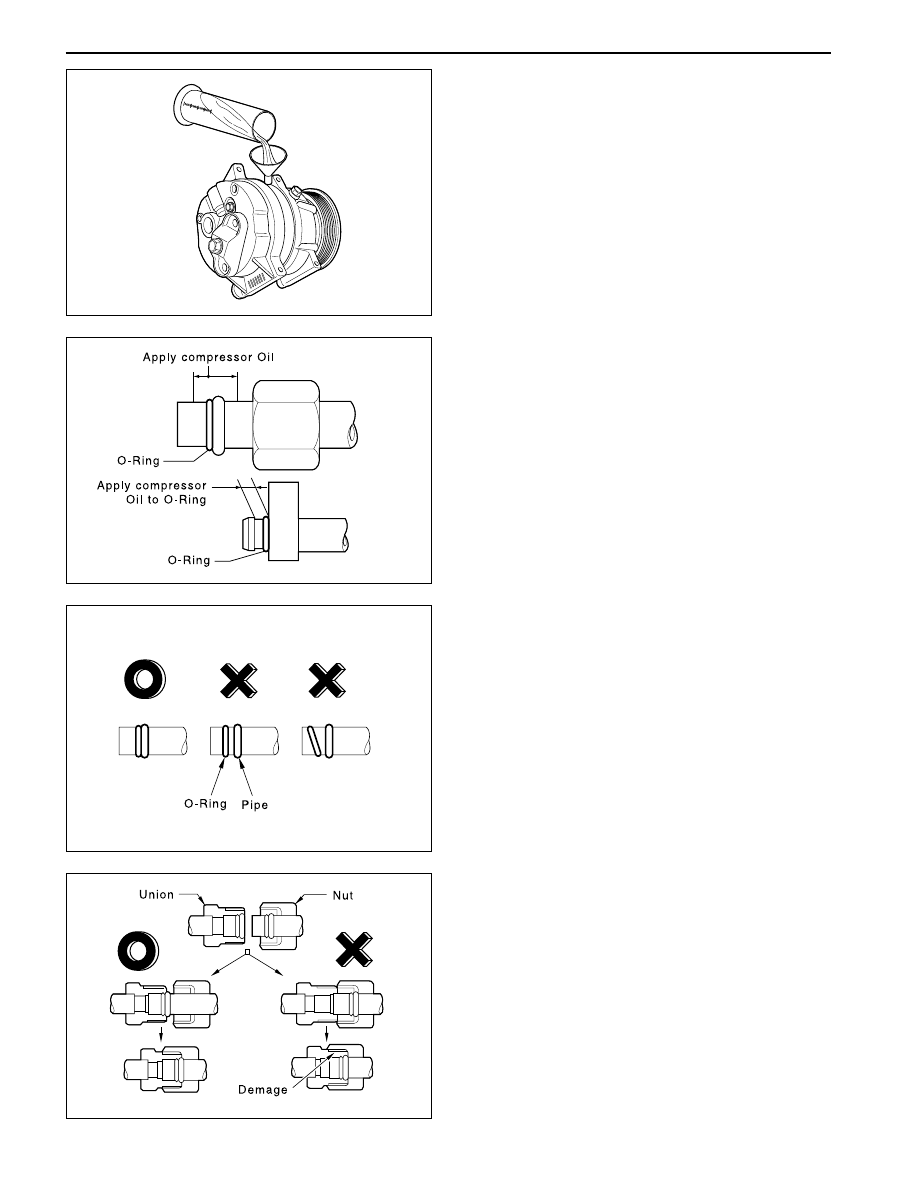

1. When connecting a O-ring type, apply compressor

oil to portions shown in illustration. Be careful not
to apply oil to threaded portion.

Notice: Use the approval compressor oil.

2. O-rings must be closely attached to inflated

portion of pipe and always replace used O-rings.

3. After inserting the pipe to the union, tighten the

nut by hand as much as possible and tighten the
nut with the specified torque.

3. Measure the amount of the discharged oil. If the

the amount of the discharged oil is below 70 cc, it
means the oil leak. Check the connections of the
system and repair or replace as needed.

4. Check the oil contamination and add the oil or

adjust the oil level.

Notice: For contaminating the oil by the dust or
the foreign material, charge the refrigerant in the
system and clean the receiver-drier.

YAD7B260

YAD7B270

YAD7B280

YAD7B290

GENERAL HVAC SYSTEM  7B-19

SSANGYONG  Y200

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

AIR FILTER (AUTO A/C)

Removal & Installation Procedure

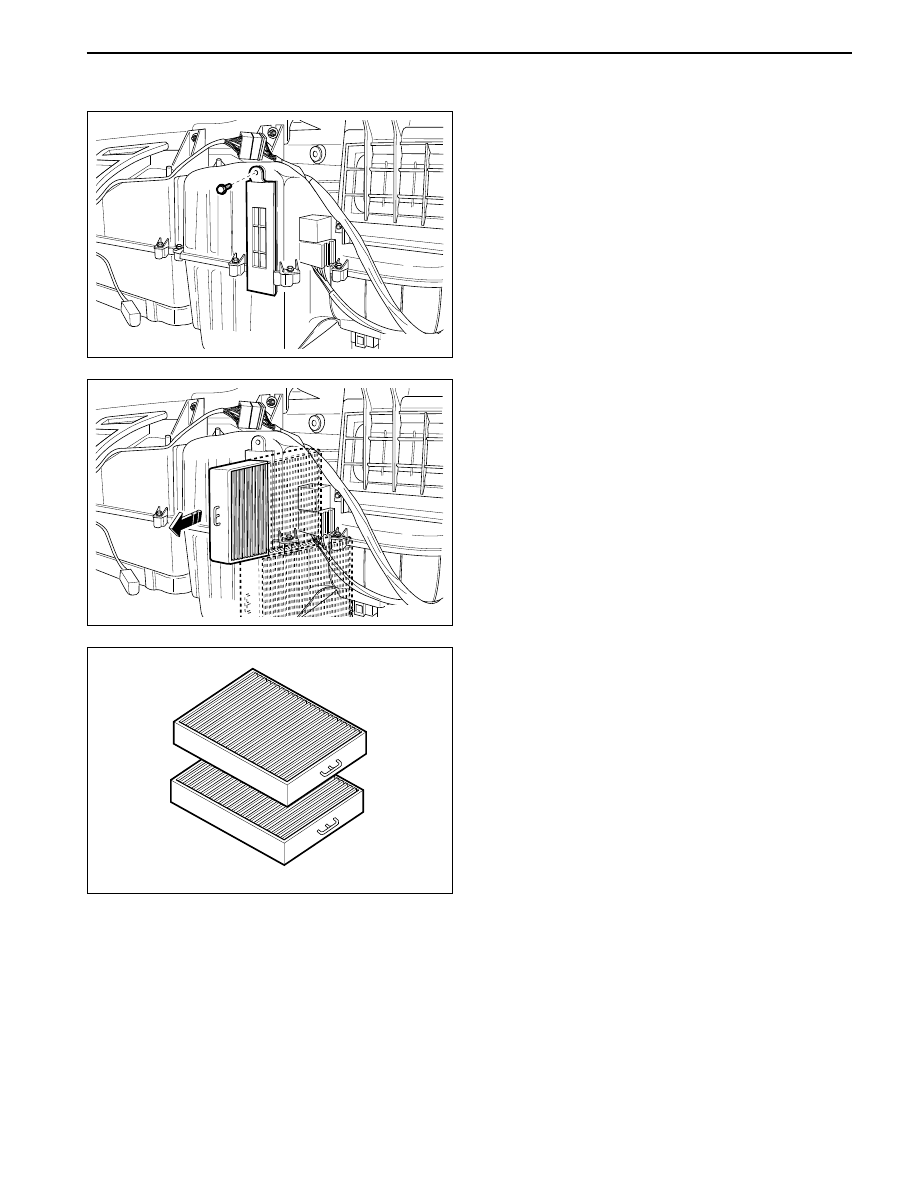

1. Remove the glove box.

2. Remove the lower bracket of crash pad.

3. Remove the air filter.

4. For replacing the air filter, verify that the flowing

direction mark of the air filter face toward the
evaporator core.

Notice: Installation should follow the removal
procedure in the reverse order.

YAD7B300

YAD7B310

YAD7B320

SSANGYONG  Y200

7B-20  GENERAL HVAC SYSTEM

RECEIVER-DRIER

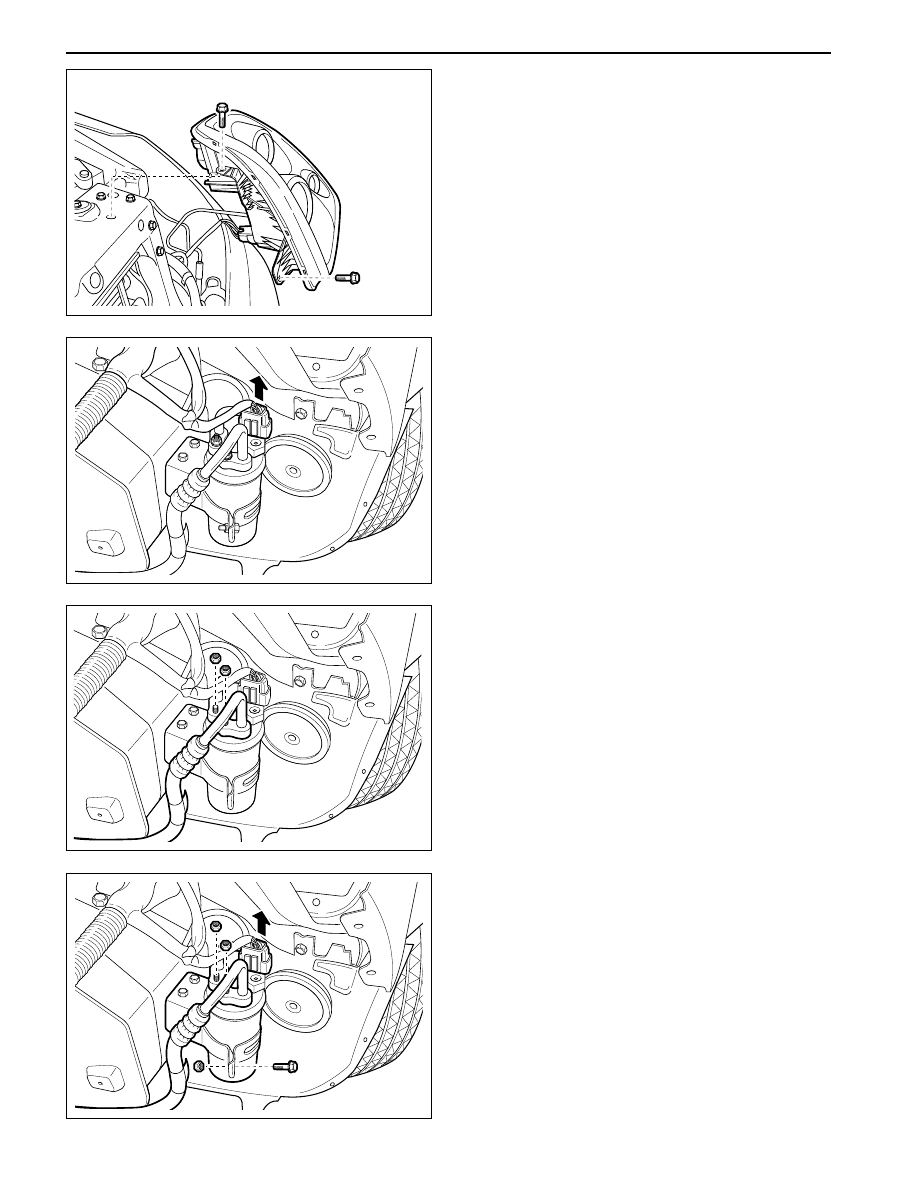

Removal & Installation Procedure

1. Discharge and recover the refrigerant from the

system.

2. Remove the head lamp assembly.

3. Disconnect refrigerant pressure sensor connector.

4. Remove the receiver-drier.

•

Remove two flange nuts.

•

Remove the O-ring

•

Remove the bracket bolt retaining the receiver-
drier and then remove the receiver-drier.

YAD7B340

YAD7B350

YAD7B360

YAD7B370

GENERAL HVAC SYSTEM  7B-21

SSANGYONG  Y200

5. Installation should follow the removal procedure

in the reverse order.

•

Tighten the two flange nuts.

•

Evacuate and recharge the A/C system.

Notice: Before installing, check the O-ring and
apply the compressor oil.

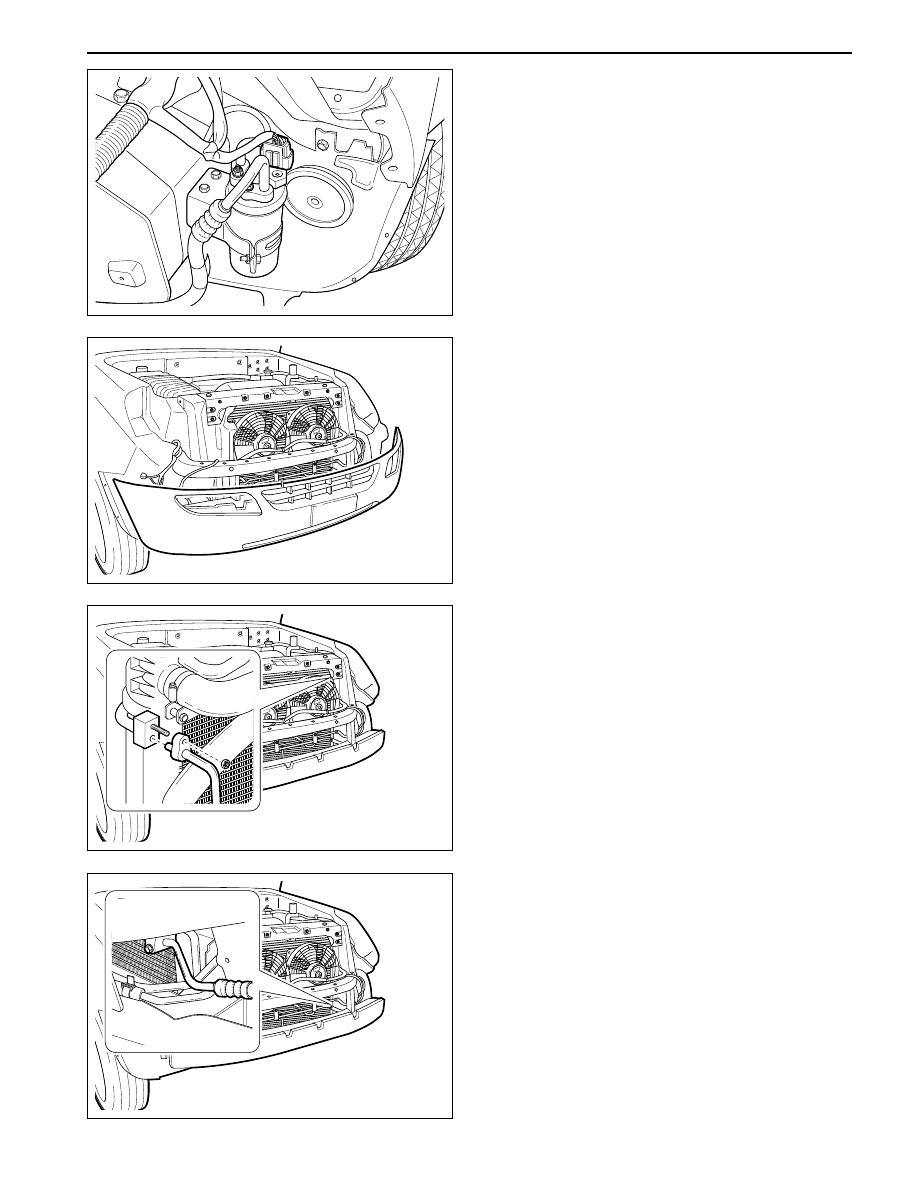

CONDENSER

Removal & Installation Procedure

1. Discharge and recover the refrigerant from the

system.

2. Remove the radiator grill and front bumper.

3. Remove the inlet pipe.

Remove the O-ring at the same time.

4. Remove the outlet pipe (at the bottom side) with

O-ring.

YAD7B380

YAD7B390

YAD7B400

YAD7B410
