SSANGYONG  Y200

6E-8  STEERING COLUMN

ON-VEHICLE SERVICE

STEERING COLUMN

Removal

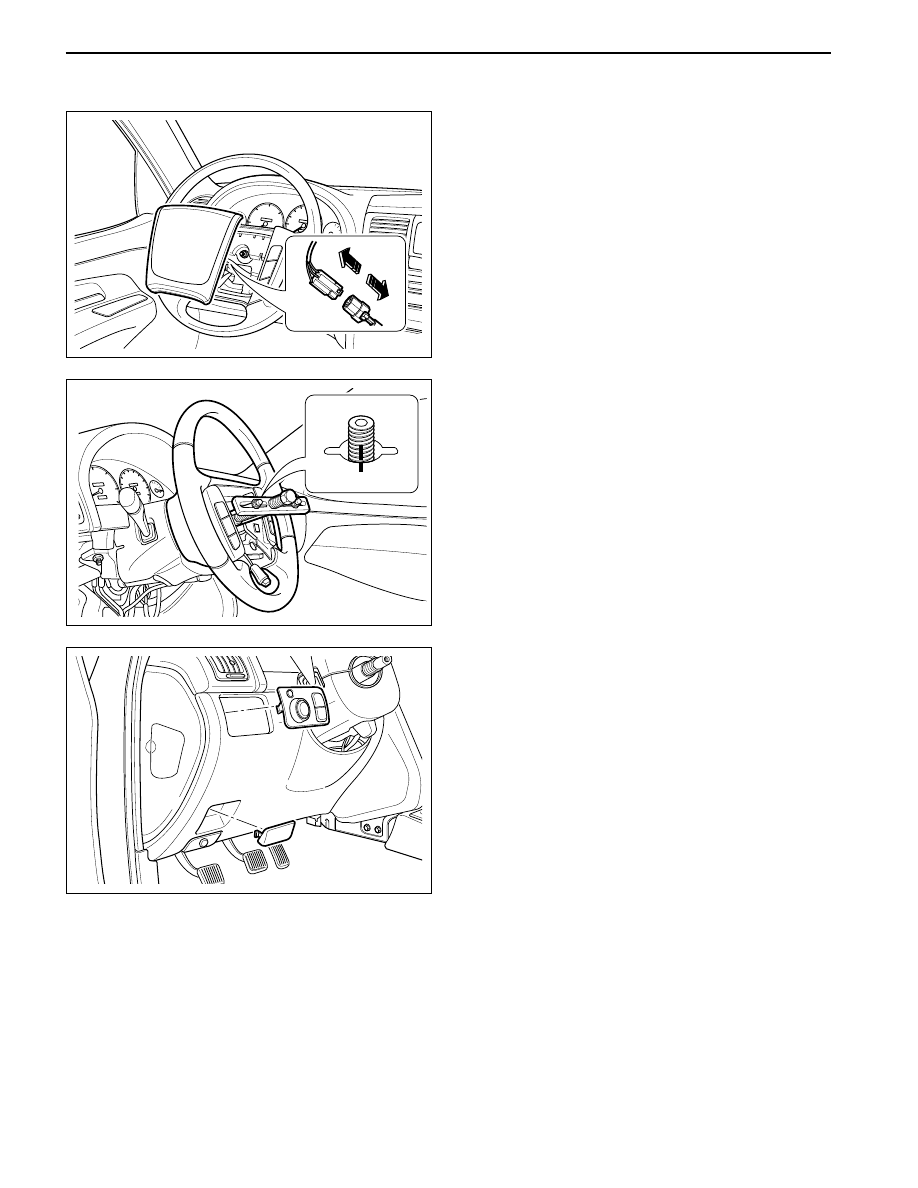

1. Disconnect the negative terminal of battery and

place the tires in front straight direction.

2. Untighten the fixing screw in the left/right of

steering wheel and remove the horn pad (airbag
module assembly) in the wheel.

At this time, remove the airbag module connector
simultaneously.

YAD6E080

YAD6E090

YAD6E070

3. Untighten the wheel fixing nuts and remove the

steering wheel using the special tool.

Notice:

•

When you remove the wheel, be sure to do
alignment mark in column shaft and wheel.

•

Remove the remote control switch connector
(airbag connector, horn connector)

4. Remove the fuel filler door release cable, hood

release cable, side mirror switch.

MAINTENANCE AND REPAIR

STEERING COLUMN  6E-9

SSANGYONG  Y200

YAD6E120

YAD6E130

YAD6E110

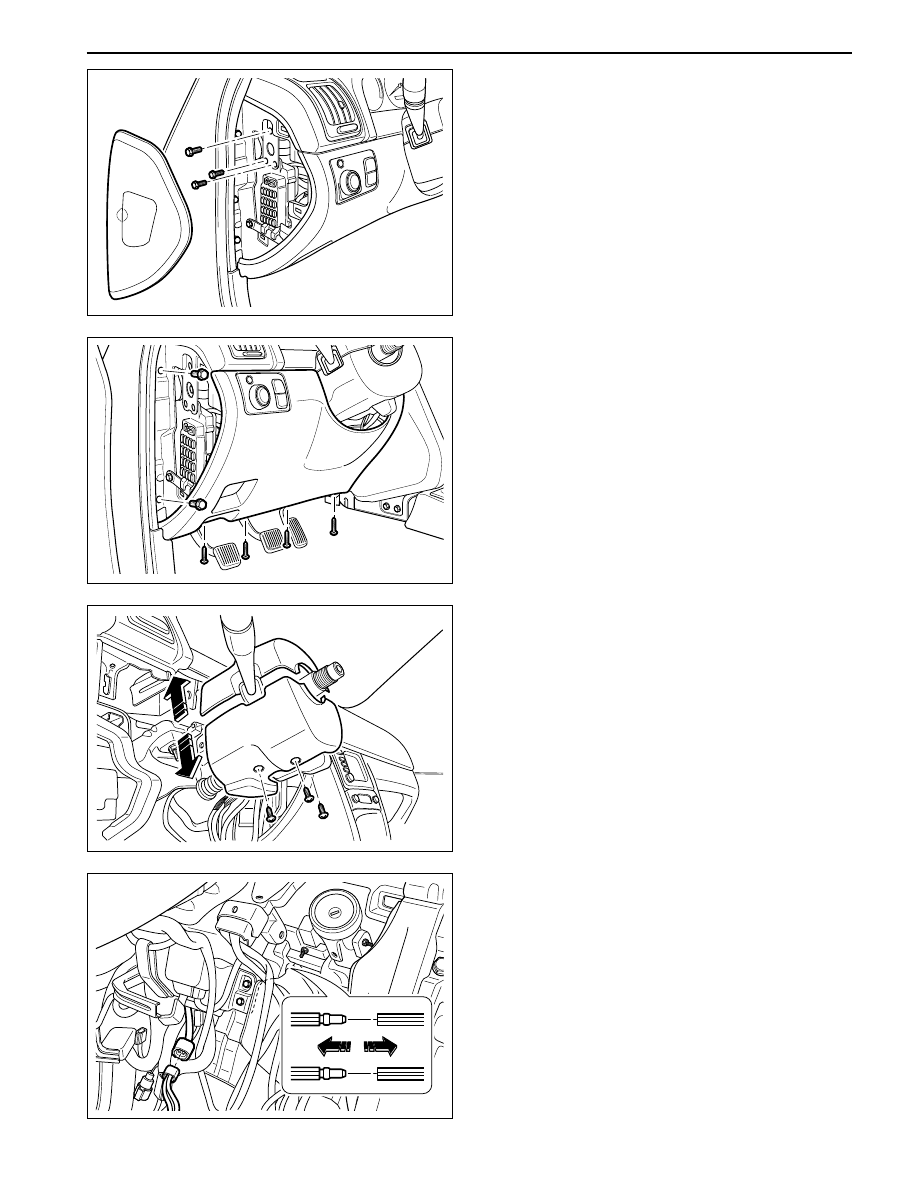

6. Untighten the side fixing bolts/screws of instrument

panel and then remove the panel.

7. Ntighten the column fixing bolts from the steering

column shaft and then remove the upper/lower
column cover.

8. Disconnect the connector connected with the

combination switch and the fuel cut vacuum hose.

Notice: Be sure to check the fuel cut hose because
the identification color is marked.

YAD6E100

5. Remove the instrument panel side cover and

untighten the fixing bolts of inner fuse box.

SSANGYONG  Y200

6E-10  STEERING COLUMN

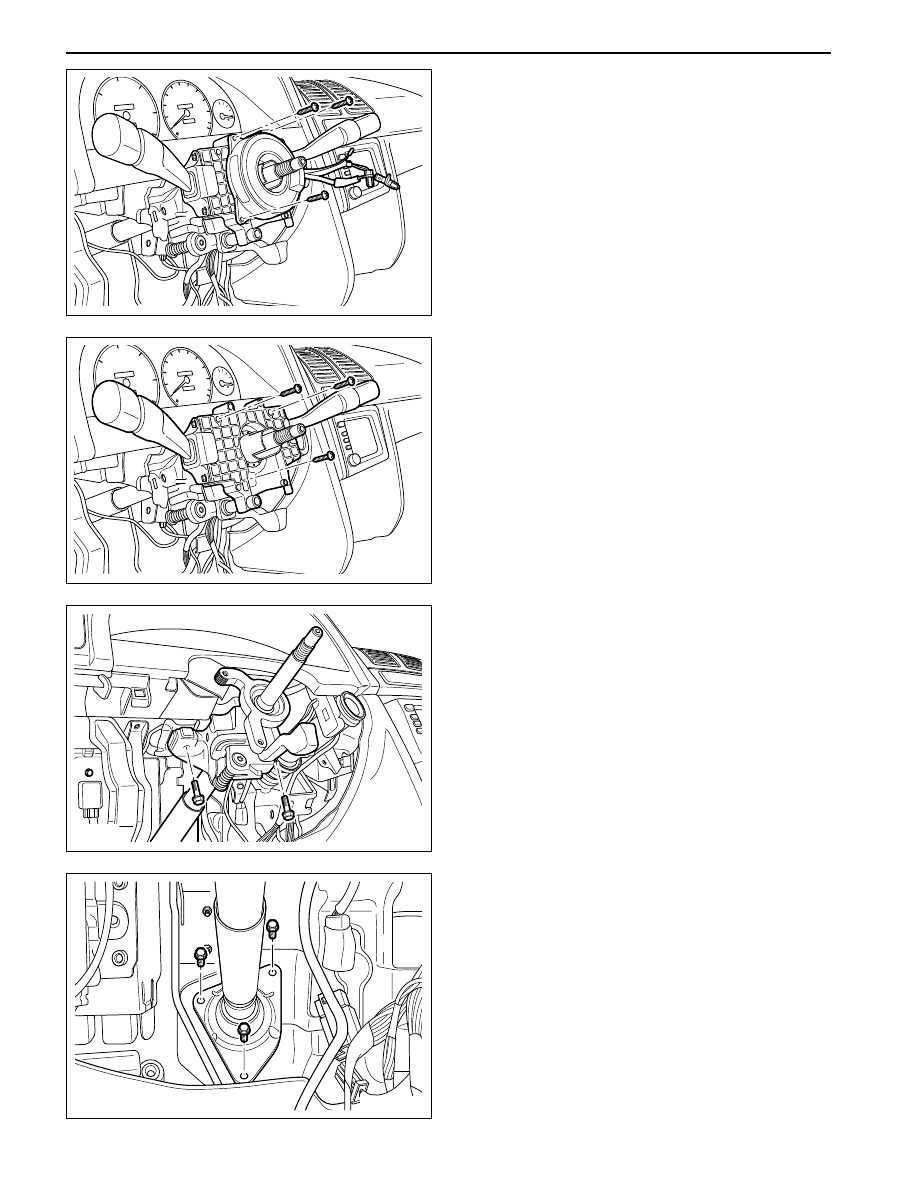

10. Remove the combination switch assembly from

the column shaft which the airbag module is
separated.

YAD6E150

YAD6E160

YAD6E170

11. Mark the assembly marking on the column shaft

and lower shaft and then untighten the upper fixing
bolt of column shaft.

12. Untighten the housing floor fixing bolts of steering

column shaft.

YAD6E140

9. Remove the contact coil from the steering column

shaft.

STEERING COLUMN  6E-11

SSANGYONG  Y200

B

A

1

2

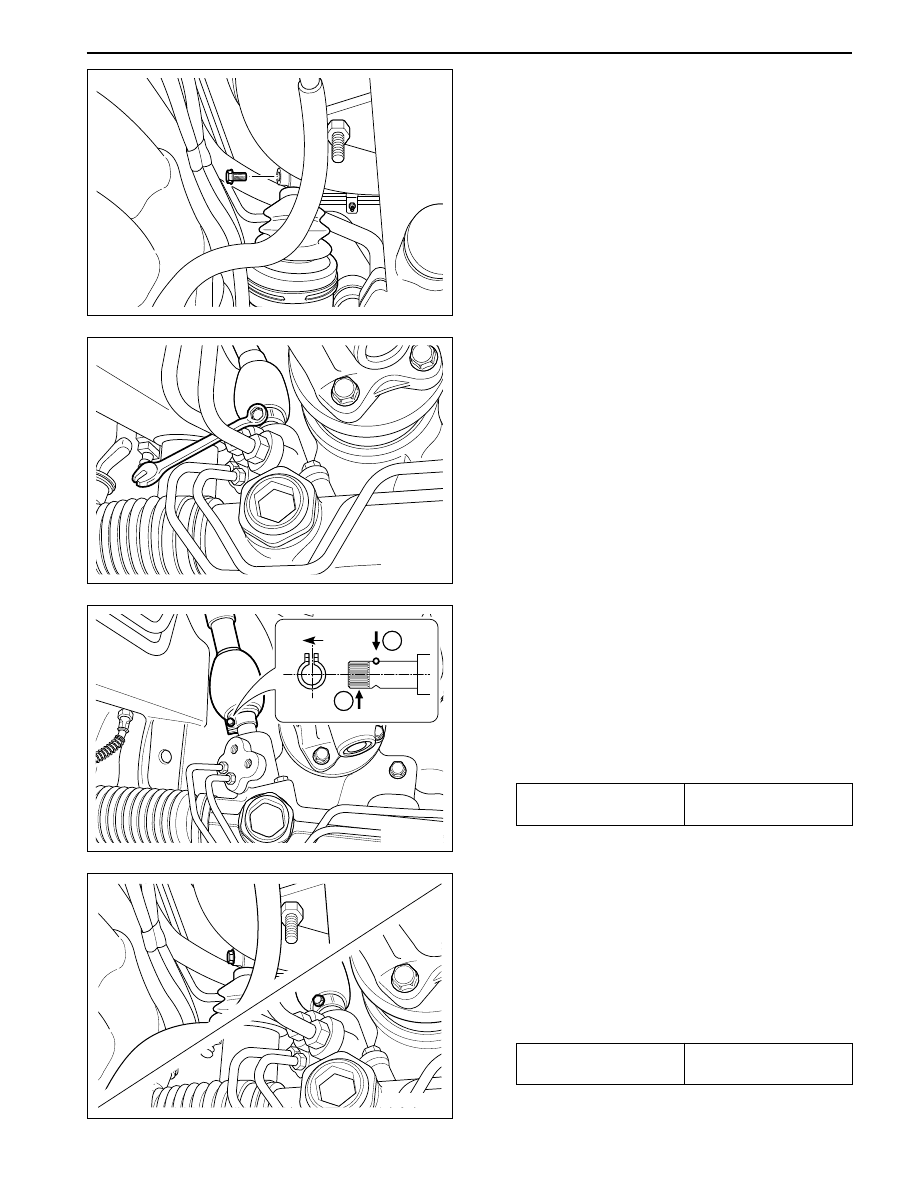

STEERING WHEEL & SHAFT

Removal

1. Remove the upper bolt of lower shaft.

2. Remove the bolt of lower shaft and steering gear

box coupling and then remove the lower shaft

Notice: Mark the assembly marking.

YAD6E190

YAD6E200

YAD6E210

Tightening Torque

30 - 40 N•m

(22 - 30 lb-ft)

Installation

1. Insert the lower shaft into the gear box (spline part)

and then tighten the blots as specified torque.

Notice:

•

Install the lower shaft to tighten the bolt in non-
spline part of upper spline part

•

Install to align the assembly marking

Installation Notice

2. Install the steering column shaft in the lower shaft

to align the assembly marking and then tighten
the bolt.

Notice:

•

Install the lower shaft to tighten the bolt in non-
spline part of upper spline part

•

Install to align the assembly marking

Installation Notice

Tightening Torque

30 - 40 N•m

(22 - 30 lb-ft)

YAD6E180

13. Untighten the upper fixing bolts (2EA) of steering

column shaft and then remove the steering column
assembly.
