SSANGYONG  Y200

6E-4  STEERING COLUMN

DIAGNOSTIC INFORMATION AND PROCEDURES

Loosened or Poor Tightening Steering Column Nut

Worn or Damaged Steering Shaft Bearing

Lossened or Poor Interm shaft Pinch Bolt

Worn or Damaged Steering Shaft Bearing

Inner Defect of Lock Cylinder

Inner Defect of Ignition Switch

Retightening

Replace steering column

Retightening

Replace steering column

Replace steering column

Replace ignition switch

Checks

Phenomena

Noise (When operating

the steering wheel)

Excessive Steering

Force

Poor Operating of

Ignition Switch

Action

STEERING COLUMN  6E-5

SSANGYONG  Y200

1

2

3

4

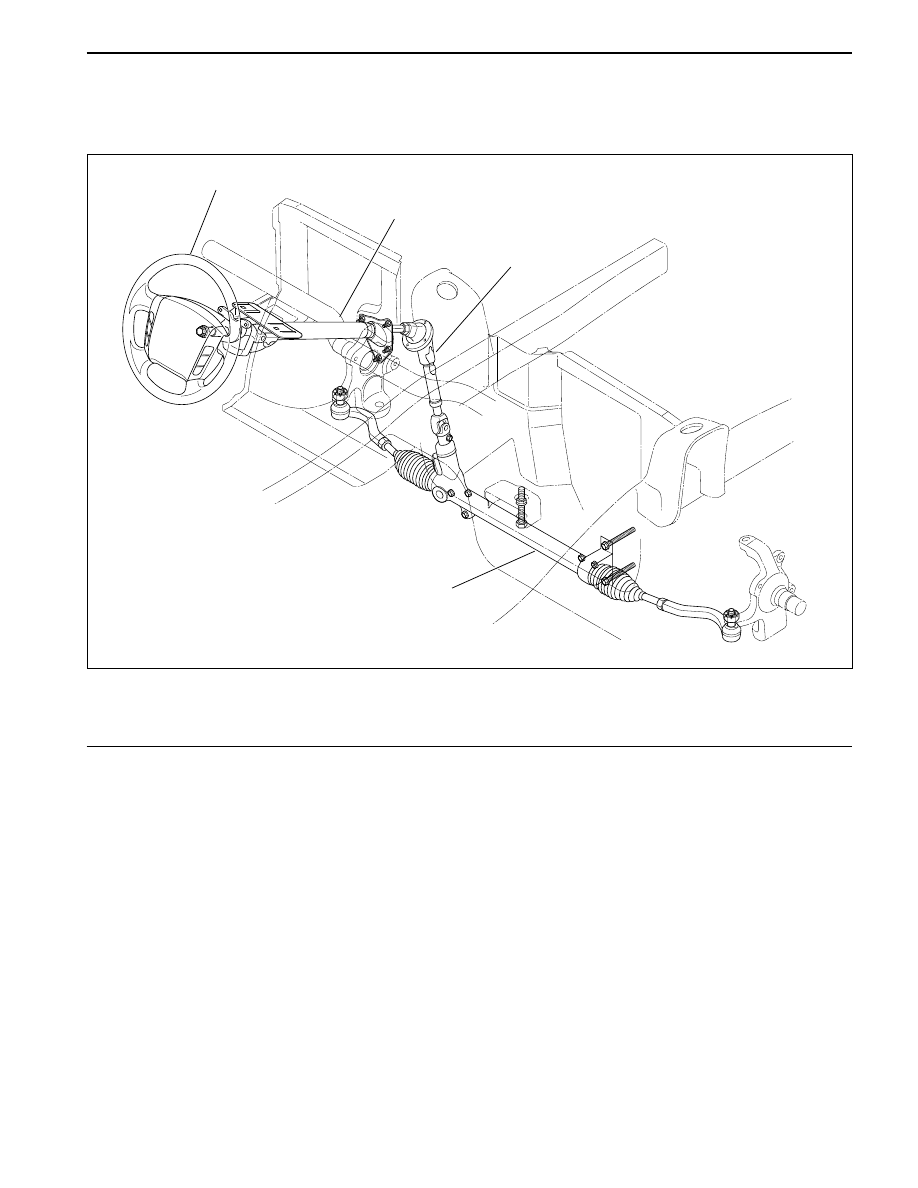

COMPONENT  LOCATOR

STEERING COLUMN ASSEMBLY

YAD6E040

1 Steering Wheel
2 Column Shaft Assembly

3 Lower Shaft Assembly
4 Steering Gear Assembly

SSANGYONG  Y200

6E-6  STEERING COLUMN

YAD6E050

Side

Rear

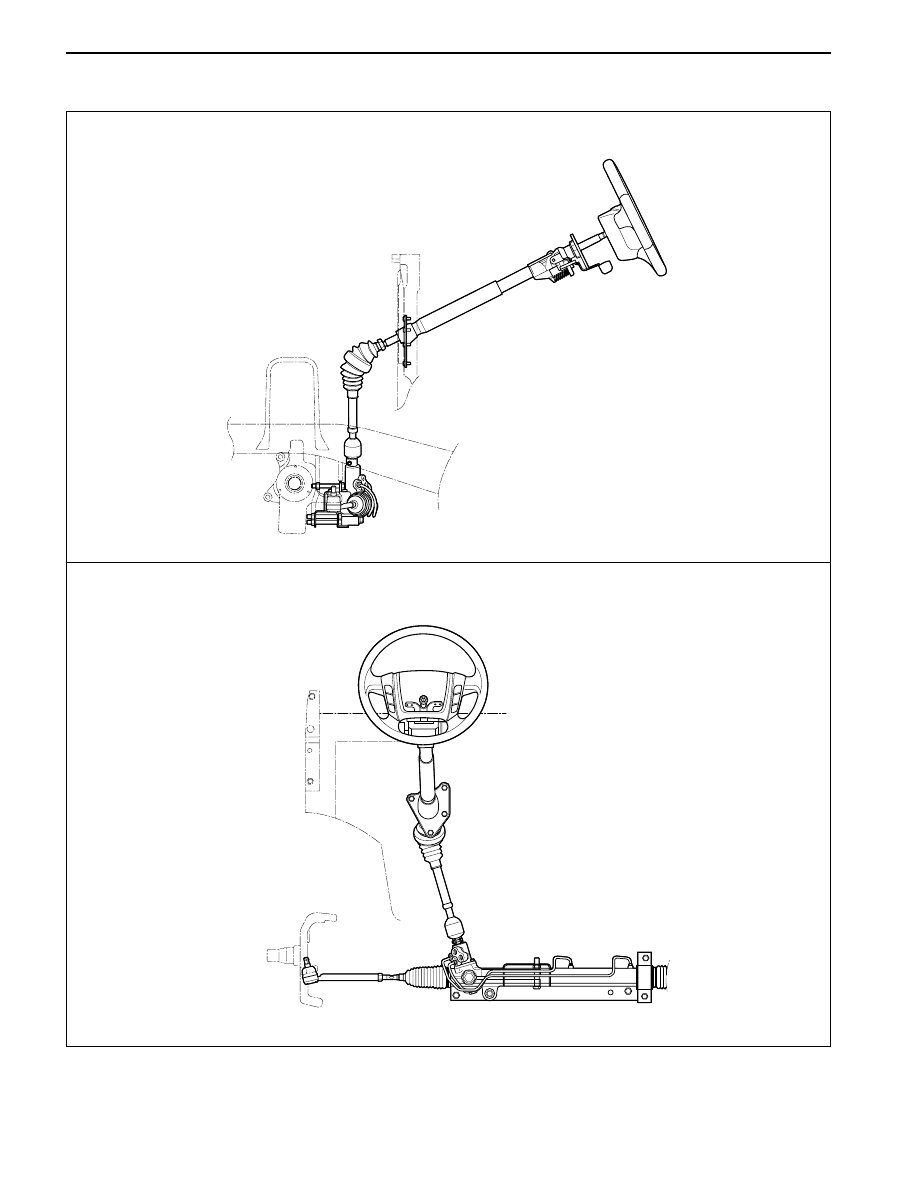

STEERING ASSEMBLY CROSS SECTION

STEERING COLUMN  6E-7

SSANGYONG  Y200

1

3

2

6

7

5

4

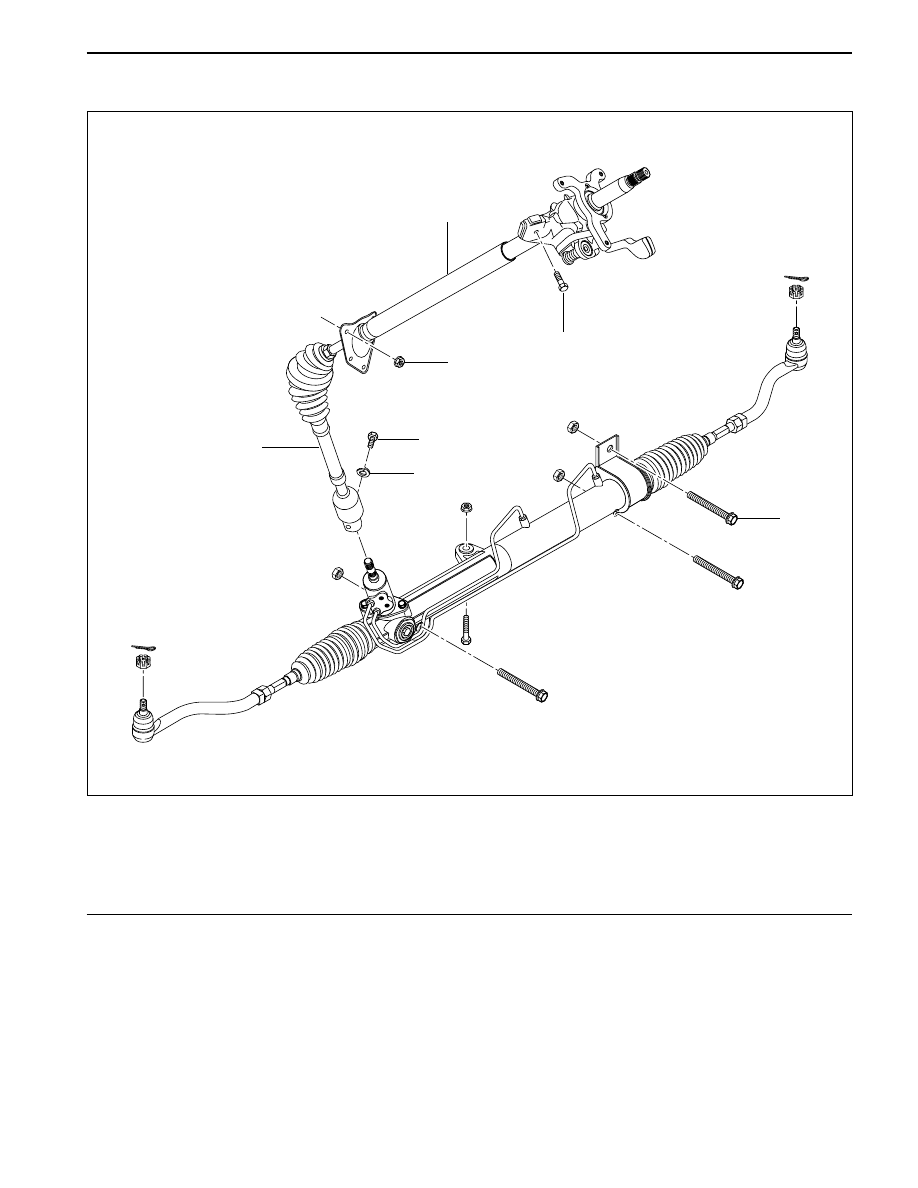

STEERING COLUMN & WHEEL

YAD6E060

1 Steering Column shaft
2 Lower Shaft
3 Bolt
4 Nut

5 Bolt
6 Washer
7 Bolt
