SsangYong Rexton. Manual - part 508

SECTION 4D

PARKING BRAKE

TABLE OF CONTENTS

Description and Operation ................................... 4D-2

Parking Brake ...................................................... 4D-2

Parking Brake Switch and Indicator ...................... 4D-2

Braking Inspection .............................................. 4D-2

Specifications ...................................................... 4D-3

Diagnostic Information and Procedure ............... 4D-4

Component Locator ............................................. 4D-5

Cross Sectional View ........................................... 4D-5

Parking Brake Lever and Cable ............................ 4D-6

Repair Instructions ................................................ 4D-7

On-Vehicle Service ............................................... 4D-7

Parking Brake ...................................................... 4D-7

SSANGYONG  Y200

4D-2  PARKING BRAKE

DESCRIPTION AND OPERATION

PARKING BRAKE

When the brake is firmly applied, the parking brake
should the vehicle with ample pedal travel remaining.
Check for frayed cables, rust, etc. or any condition
that may inhibit present (or future) free movement of
the parking brake lever assembly.

PARKING BRAKE SWITCH AND
INDICATOR

When the parking brake lever is pulled out with the
ignition ON, the parking brake indicator turns on via
lever switch.

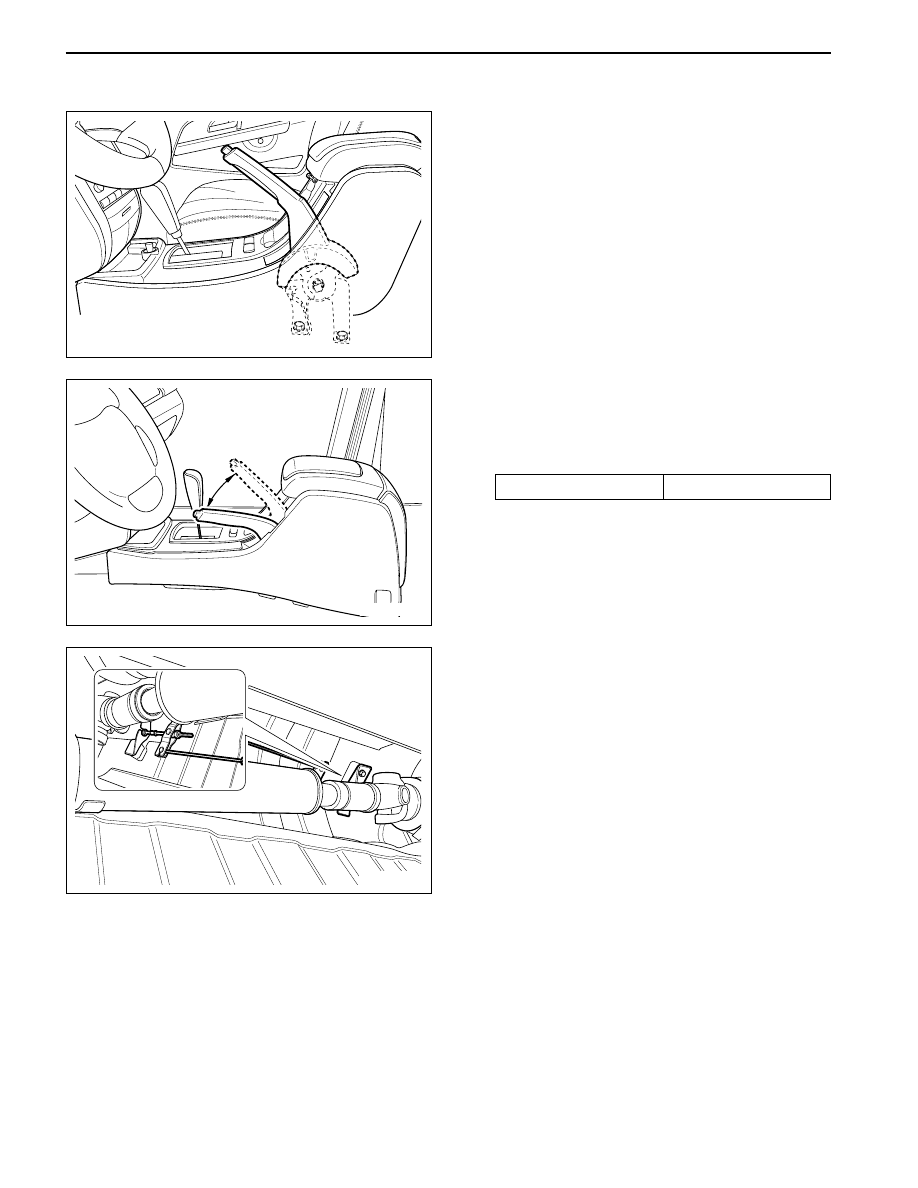

YAD4D010

BRAKING INSPECTION

Inspect the parking brake as following;

1. Count the number of the notch sounds on pulling

out the parking brake at 19kg force.

Specified Notch

5

4. If the braking force is not operated properly, check

the parking brake lever and cable and replace
them as needed.

2. If the notch number is over the specified value,

adjust the notch number by the parking brake
cable adjusting nut.

3. Check the parking brake force after adjusting the

specified value.

YAD4D030

YAD4D040

PARKING BRAKE  4D-3

SSANGYONG  Y200

Type

Operation

Mechanical Rear-Wheel Drive Internal Expanded

Manual

Parking Brake

SPECIFICATIONS

Application

Spec.

SSANGYONG  Y200

4D-4  PARKING BRAKE

Lining Wear, Hardening

Oil Or Water Contamination On The Lining

Brake Cable Sticked Or Damage

Excessive Pedal Travel

Inoperative Clearance Automatic Control System

Replace

Replace Or Repair

Replace

Notch Adjustment

Repair

Poor Braking

DIAGNOSTIC INFORMATION AND PROCEDURE

Symptom

Possible Cause

Action
