REAR AXLE 3D-9

SSANGYONG Y200

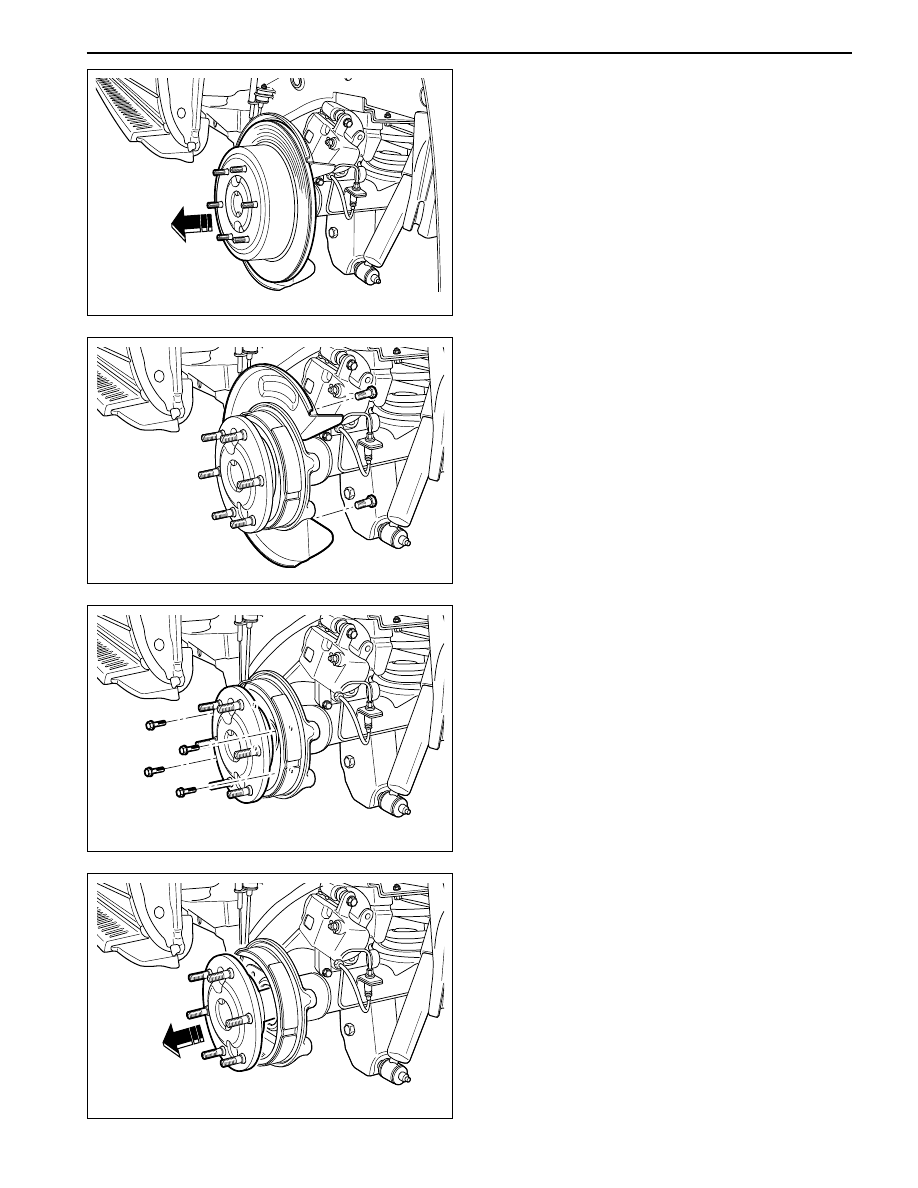

8. Remove the four fixing bolt of dust shield cover

and then pull out the dust shield cover.

YAD3D090

YAD3D100

YAD3D080

9. Remove the two plastic plug in the axle shaft

flange.

10. Remove the four fixing bolts & washers of axle

housing flange from the retainer plate.

11. Remove the rear axle drive shaft.

YAD3D070

7. Remove the brake disc.

SSANGYONG Y200

3D-10 REAR AXLE

YAD3D130

YAD3D140

YAD3D120

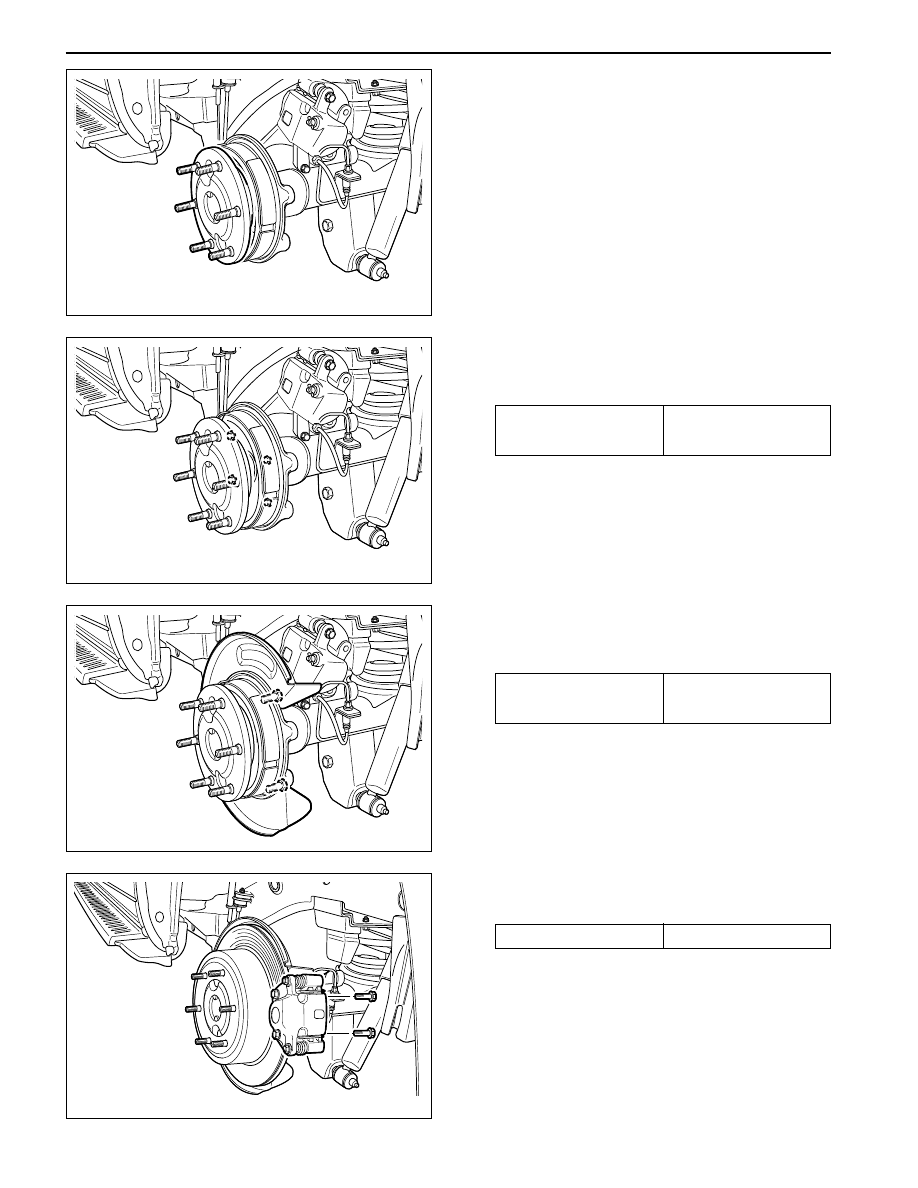

2. Tighten the flange fixing bolts and washers with

the retainer plate.

Installation Notice

3. Assemble the plastic plug n the rear axle flange

and install the dust shield.

Installation Notice

4. Install the brake disc and caliper assembly.

Installation Notice

5. Install the parking brake cable and tire.

50 - 65 N•m

(37 - 48 lb-ft)

Tightening torque

4 - 8 N•m

(35 - 71 lb-in)

Tightening torque

85 - 105 N•m

YAD3D110

Installation

Clean the detached axle shaft, check the damage or
wear.

1. After checking the spline & shaft of rear axle shaft,

assemble the shaft into the rear axle housing.

REAR AXLE 3D-11

SSANGYONG Y200

;;;;;;;

yyyyyyy

AXLE SHAFT ASSEMBLY
(WITH DRUM BRAKE)

Removal

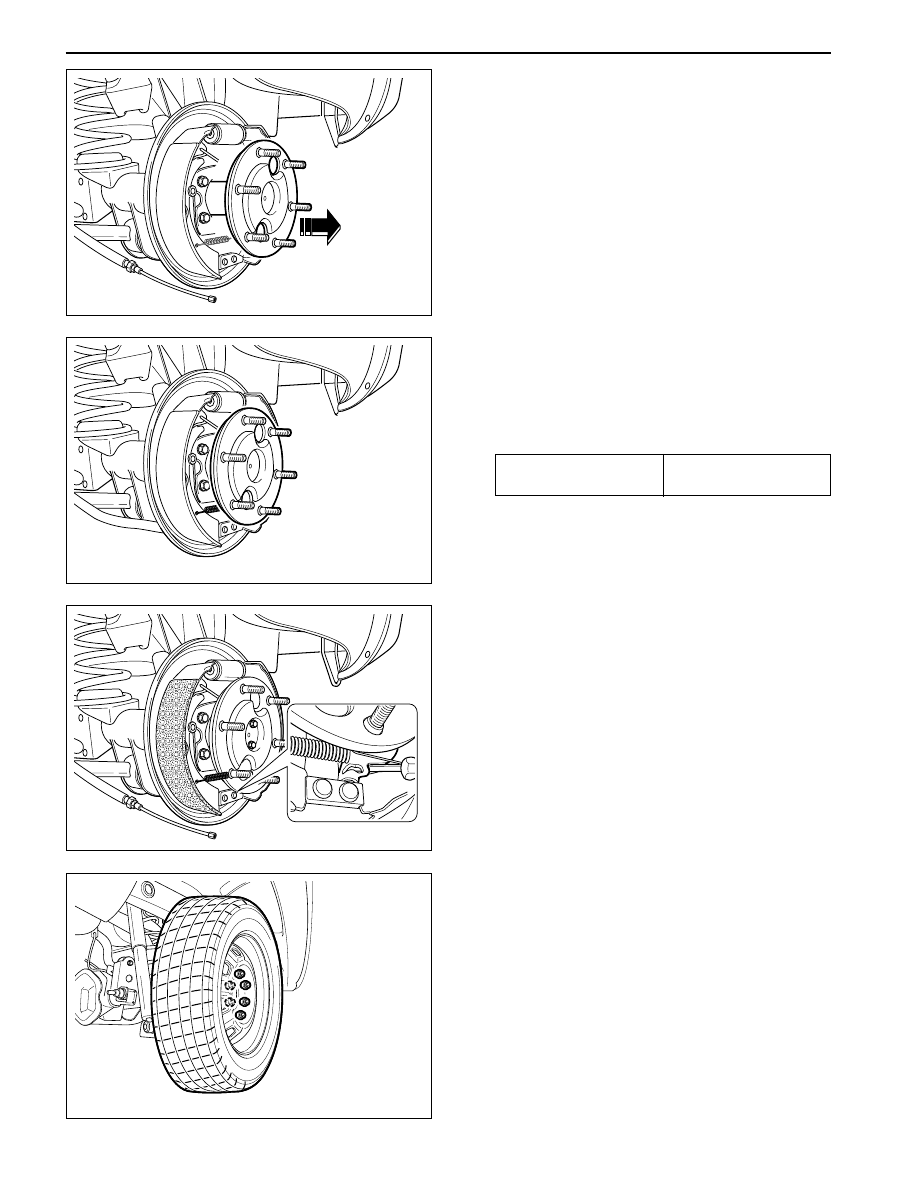

1. Release the parking brake.

2. Remove the tire.

YAD3D160

YAD3D170

YAD3D180

YAD3D190

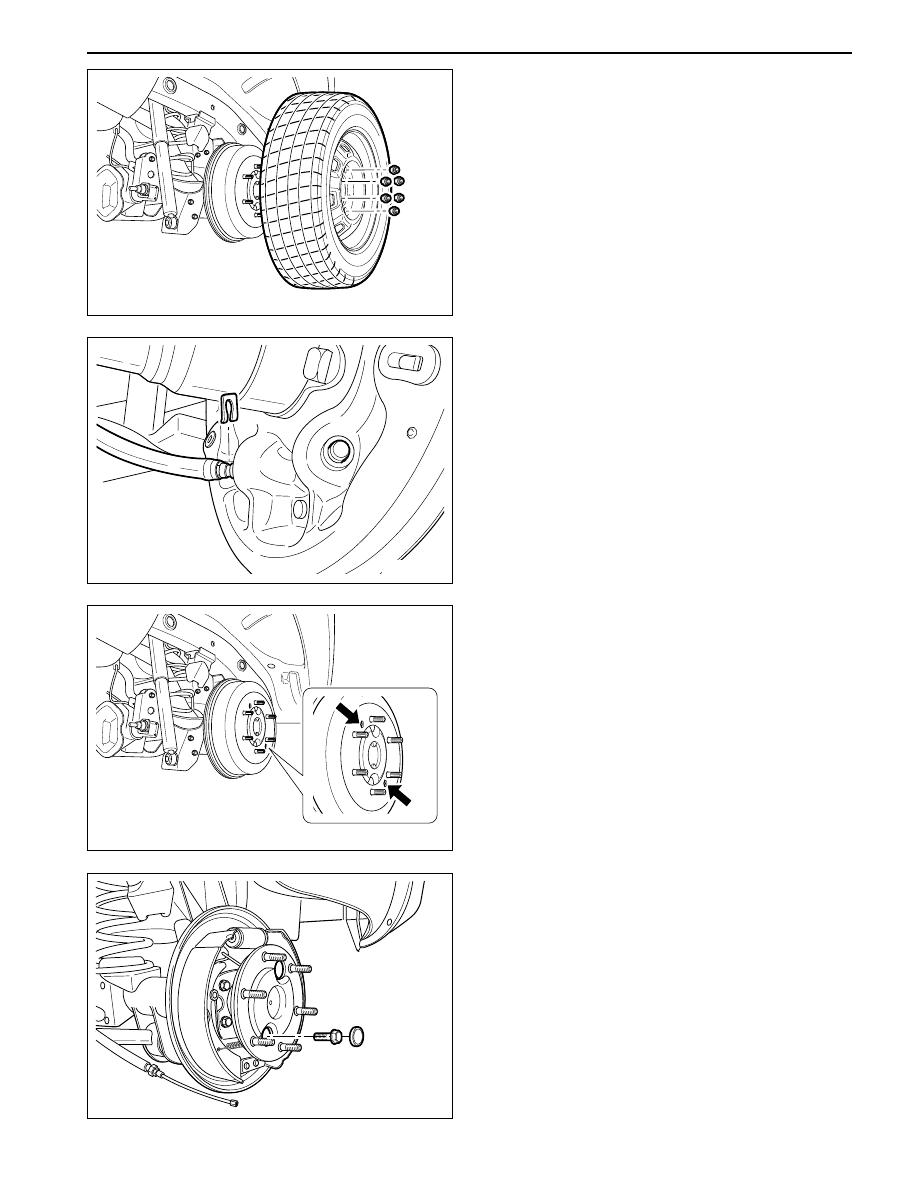

3. Remove the brake drum.

Notice: Insert the bolt into the ser vice hole, while
tightening the both side bolts uniformly, remove
the brake drum.

4. Remove the fixing pin of parking brake.

5. After detaching the cover of parking brake,

disconnect the cable.

6. After pulling out the two plastic plug of axle shaft

flange, remove the fixing nuts of inner bracket.

SSANGYONG Y200

3D-12 REAR AXLE

;;;;;;;

yyyyyyy

;;;;;;;

yyyyyyy

7. Remove the axle shaft.

YAD3D200

YAD3D210

YAD3D230

YAD3D220

Tightening Torque

50 - 65 N•m

(37 - 48 lb-ft)

Installation

1. Check the rear axle shaft.

2. Insert the rear axle shaft into the axle housing and

tighten the fixing nuts of axle shaft flange.

Installation Notice

3. Connect the brake cable and install the brake

drum.

4. Install the tire and test the braking force.
