REAR AXLE  3D-5

SSANGYONG  Y200

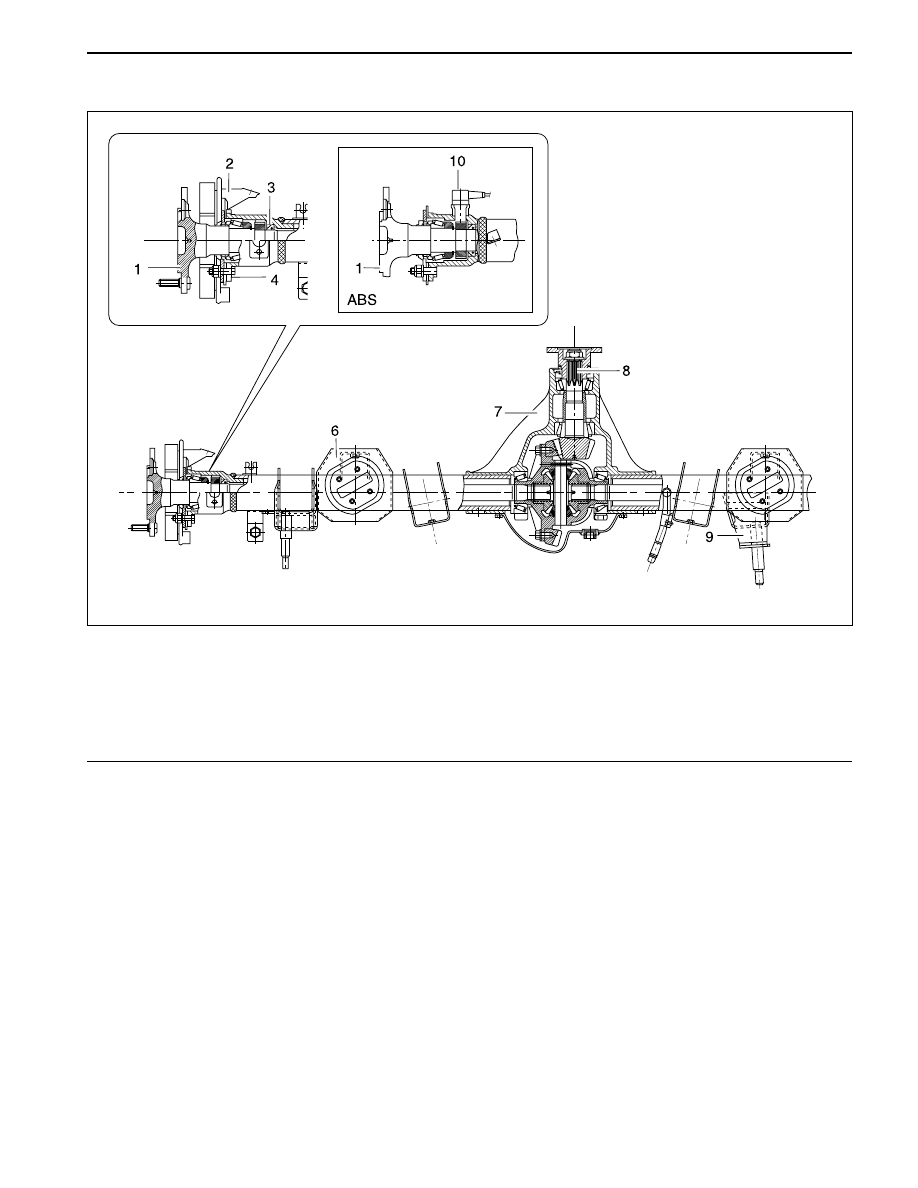

CROSS SECTIONAL VIEW

YAD3D020

1 Rear Axle Shaft Assembly
2 Bracket Assembly
3 Hub Oil Seal
4 Bolt
5 Axle Shaft Tube

6 Coil Spring Seat (Lower)
7 Caliper Assembly
8 Input Shaft/Flange
9 Rod Mounting Bracket

10 Wheel Speed Sensor

SSANGYONG  Y200

3D-6  REAR AXLE

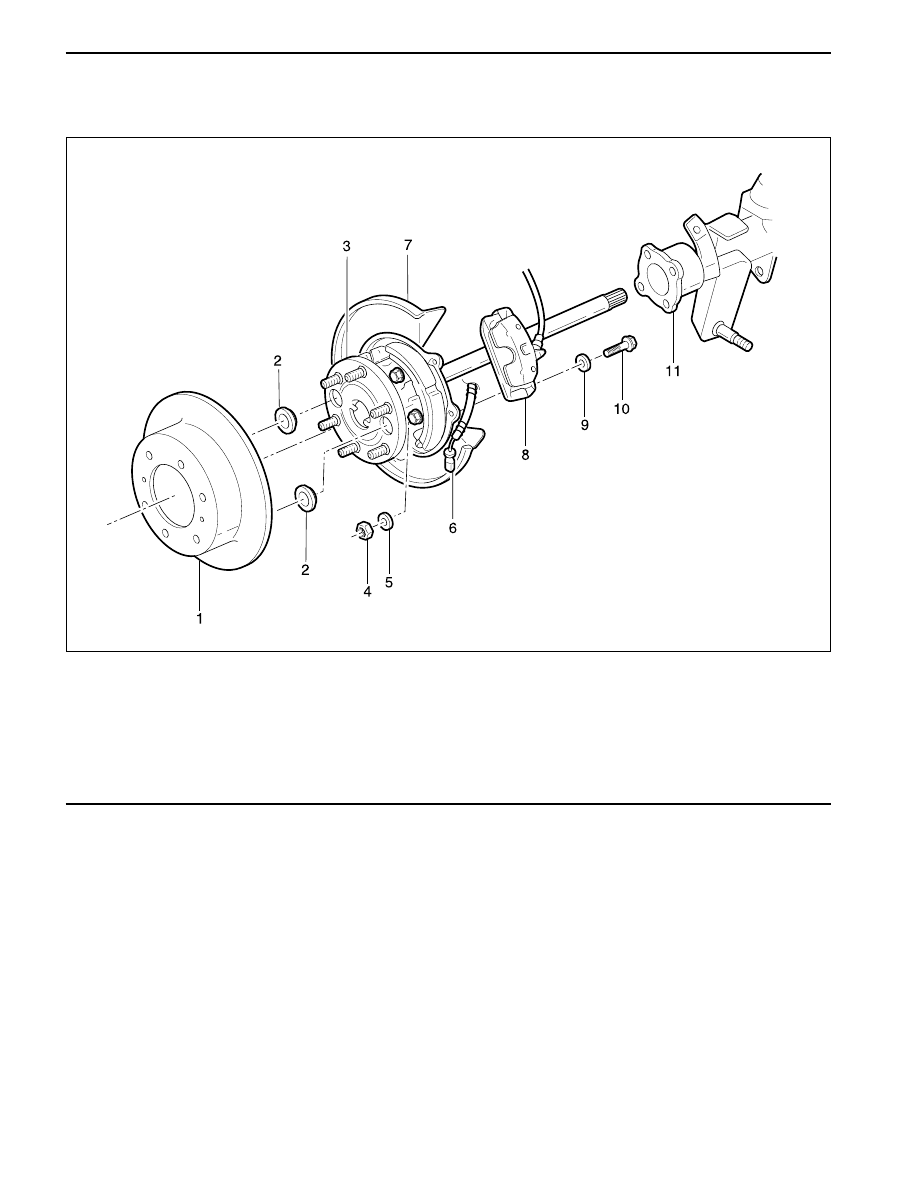

REAR AXLE SHAFT ASSEMBLY

With disc brake

YAD3D030

1 Brake Disc
2 Plug
3 Rear Axle Shaft
4 Nut
5 Washer
6 Parking Brake Cable

7 Parking Brake Lining & Back Plate Assembly
8 Brake Caliper Assembly
9 Spring Washer

10 Bolt
11 Rear Axle Housing

REAR AXLE  3D-7

SSANGYONG  Y200

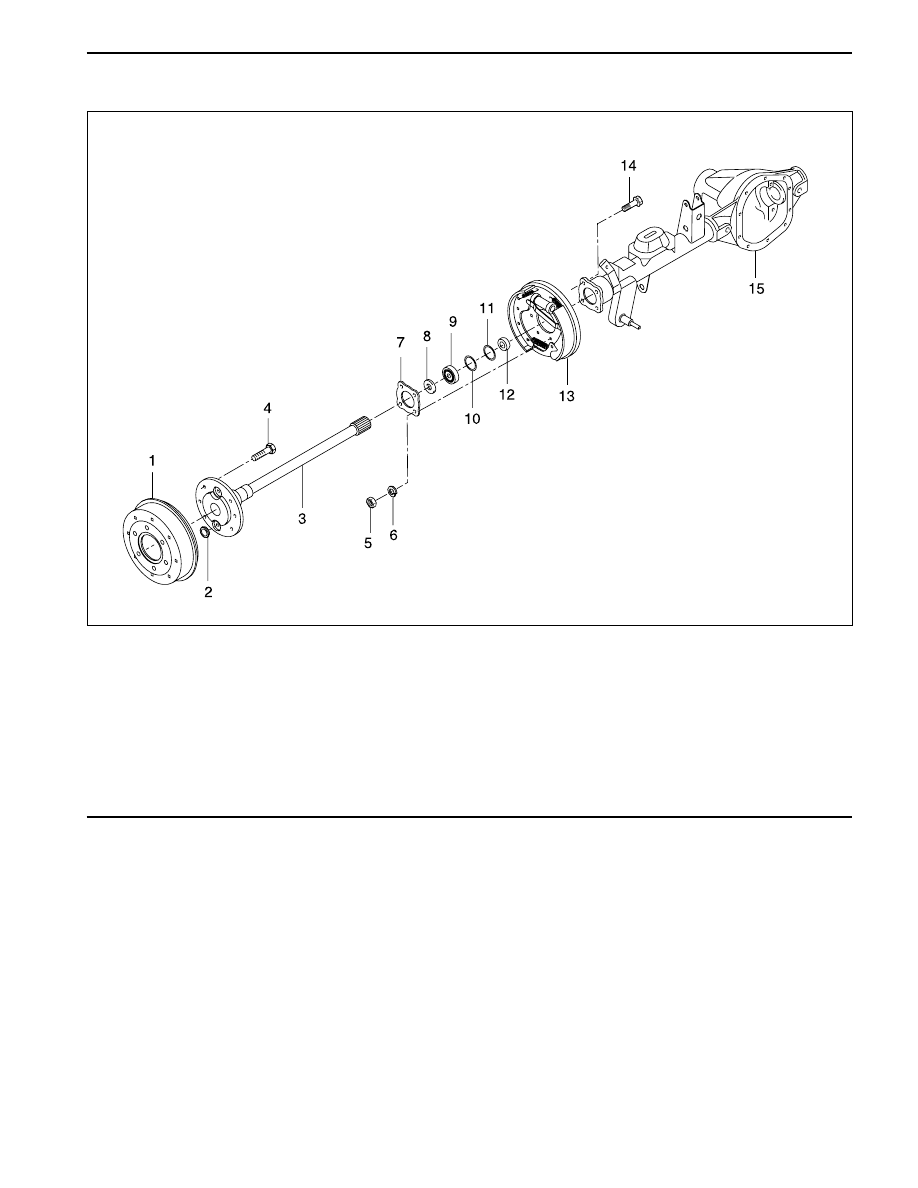

With drum brake

YAD3D150

1 Brake Drum
2 Plug
3 Rear Axle Shaft
4 Wheel Bolt
5 Nut
6 Washer
7 Retainer Plate
8 Oil Seal

9 Bearing

10 Snap Ring
11 Snap Ring
12 Oil Seal
13 Brake Shoe & Back Plate Assembly
14 Bolt
15 Rear Axle Housing

SSANGYONG  Y200

3D-8  REAR AXLE

ON-VEHICLE SERVICE

AXLE SHAFT ASSEMBLY
(WITH DISC BRAKE)

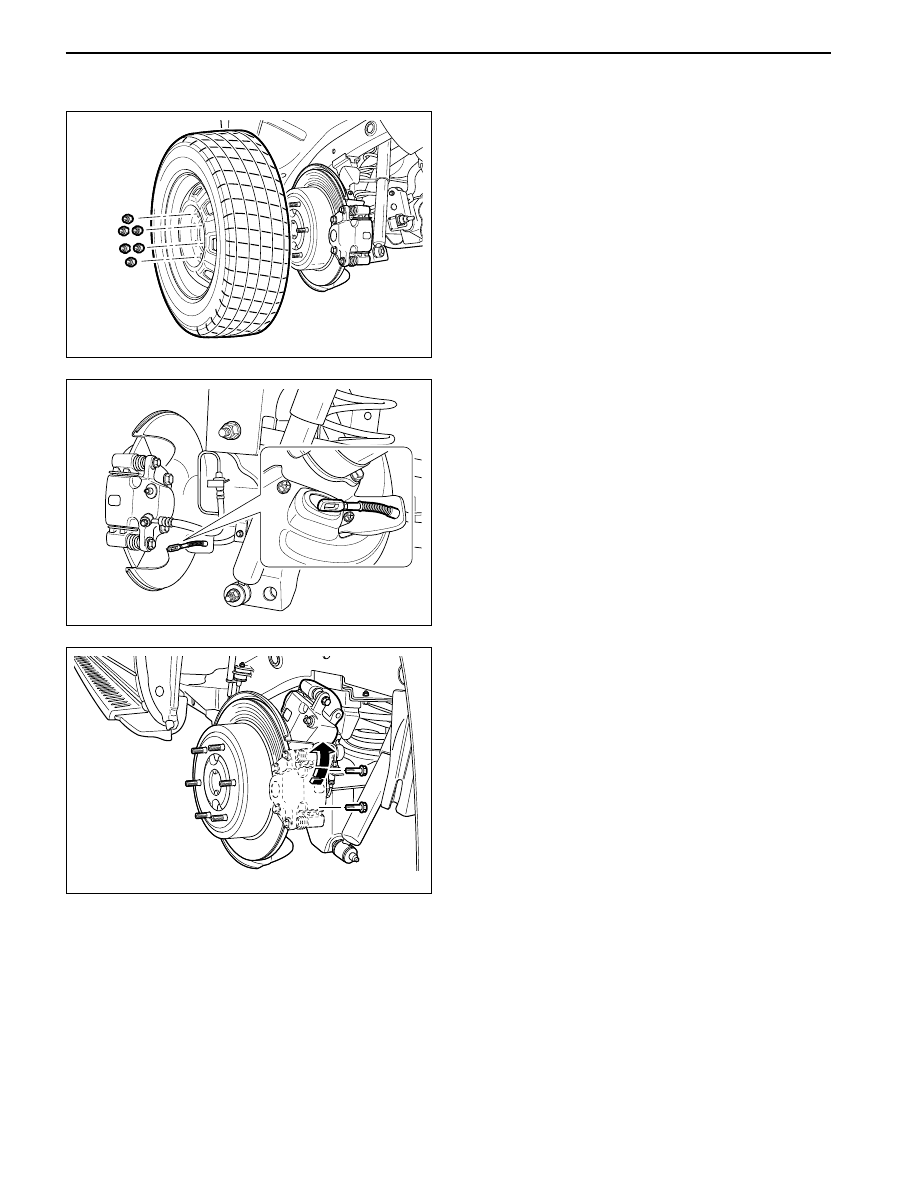

Removal

1. Remove the tire.

YAD3D040

YAD3D060

YAD3D050

2. Release the parking brake.

3. Remove the fixing pin of parking brake.

4. After detaching the parking brake lever, detach

the cable.

5. Remove the two fixing bolt of brake caliper.

Notice:  Be careful not to damage the brake oil
hose.

6. Remove the brake caliper assembly.

Notice: If replacing the brake pad only, remove the
upper fixing bolt of caliper pad and lower it.
