SECTION 3C

PROPELLER SHAFT

TABLE OF CONTENTS

General Description and Operation ..................... 3C-2

Specifications ...................................................... 3C-2

Diagnostic Information and Procedures .............. 3C-3

Component  Locator ............................................ 3C-4

Cross Sectional View ........................................... 3C-4

Propeller Shaft Assembly ..................................... 3C-5

Maintenance and Repair ..................................... 3C-6

On-Vehicle Service ................................................. 3C-6

Propeller Shaft Assembly ..................................... 3C-6

Unit Repair ............................................................ 3C-9

Propeller Shaft ..................................................... 3C-9

SSANGYONG  Y200

3C-2  PROPELLER SHAFT

Diesel + M/T•A/T + 4408 T/C

Gasoline + M/T•A/T + 4421 T/C

Diesel + M/T•A/T + 4408 T/C

Gasoline + M/T•A/T + 4421 T/C

Yoke & Spider Typed Universal Joint

Spider (Needle Roller Bearing)

2

2

3

Ø16.668

Within 0.4 mm

607.1 × Ø59.5 × Ø63.5

591.1 × Ø59.5 × Ø63.5

(585.2+569.5) × Ø59.5 × Ø63.5

(566.1+569.5) × Ø59.5 × Ø63.5

within 30 g·cm

Front Shaft

Rear Shaft

Structure

Joint Type

Number of Spider

Outer Diameter of Spider (mm)

Tube Run-out (After Installation)

Front Shaft Dimension (LXI.DXO.D)

Rear Shaft Dimension (LXI.DXO.D)

Unbalance Quantity (at 4,500 RPM)

SPECIFICATIONS

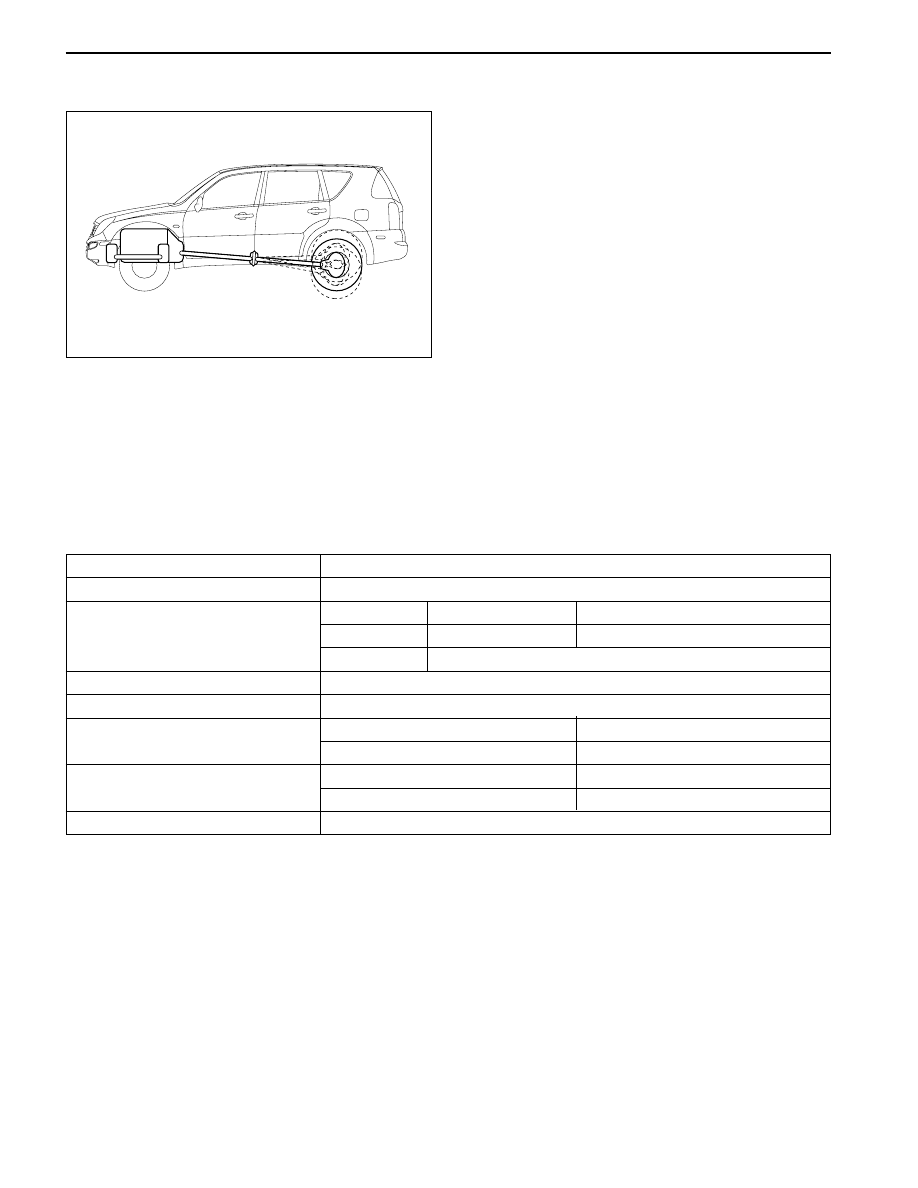

GENERAL DESCRIPTION AND OPERATION

The propeller shaft transfers the power through the
transmission and transfer case to the front/rear  axle
d i f f e r e n t i a l   c a r r i e r   ( f i n a l   r e d u c t i o n   f e a r ) .   I t   i s
manufactured by a thin rounded steel pipe to have the
strong resisting force against the torsion and bending.
Both ends of propeller shaft is connected with the
spider and  the center of propeller shaft is connected
w i t h   t h e   s p l i n e   b e c a u s e   t h e   h e i g h t / l e n g t h   o f
transmission and axle  is not constant. The rubber
bushing which wraps the center bearing is installed in
rear  propeller shaft. So the vibration and balance is
maintained constantly.

YAD3C010

Full Time T/C

Part Time T/C

PROPELLER SHAFT   3C-3

SSANGYONG  Y200

DIAGNOSTIC INFORMATION AND PROCEDURES

Incorrect Assembly of Sliding Joint

Bending of Propeller Shaft

Poor Symmetry (Left/Right) of Universal Joint Snap Ring

Loosened Yoke connection bolt

Worn or Damaged Universal Joint Bearing

Separation of Universal Joint Snap Ring

Loosened Yoke connection part

Warn sliding Joint Spline pant

Insufficient Grease

Adjust

Replace

Adjust

Tightening

Replace

Adjust/Replace

Tightening

Replace

Replenish

Checks

Phenomena

Vibration

Noise

Action

SSANGYONG  Y200

3C-4  PROPELLER SHAFT

COMPONENT  LOCATOR

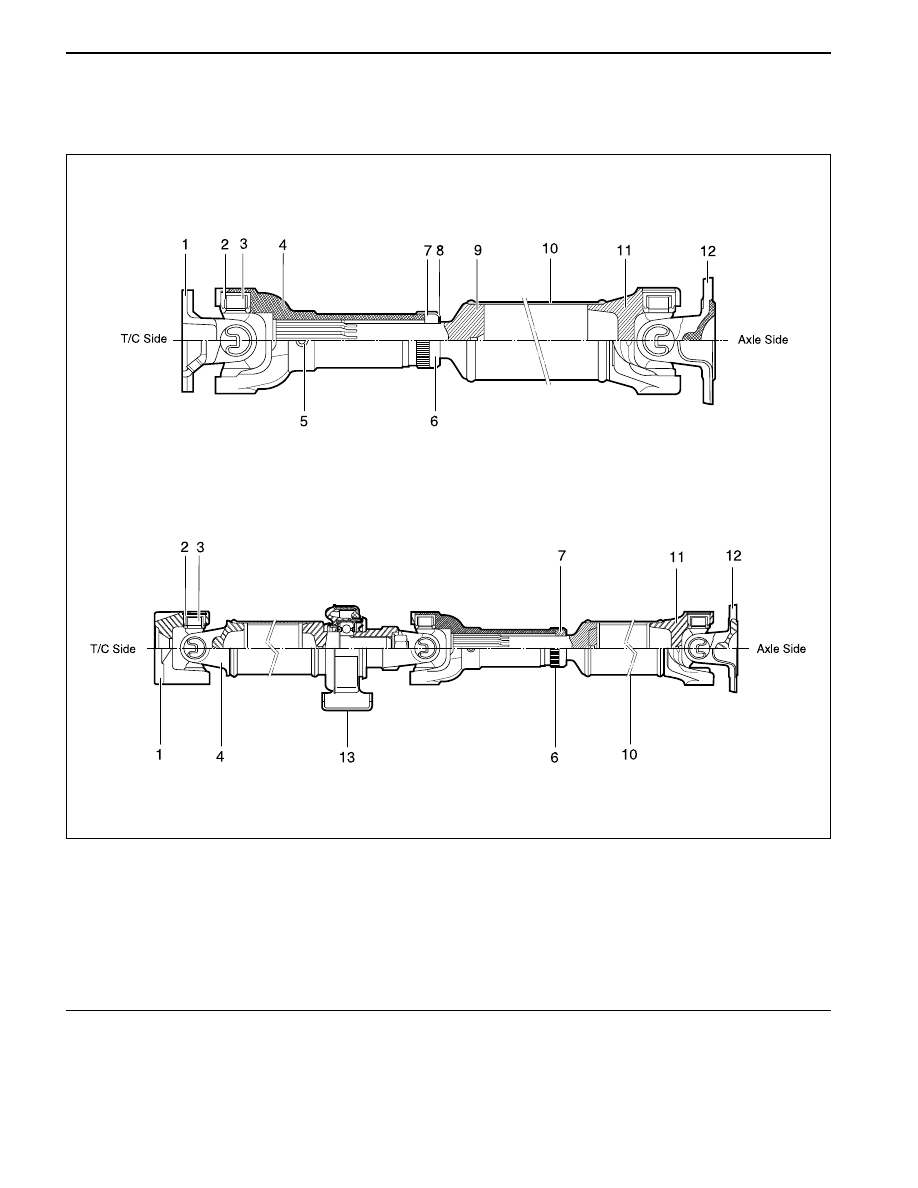

CROSS SECTIONAL VIEW

YAD3C020

1 Flange Yoke
2 Journal Bearing Cap
3 Cross Shaft Journal
4 Slip Yoke Assembly
5 Grease Nipple
6 Dust Cap
7 Oil Seal

8 Split Washer
9 Slip Tube Shaft

10 Tube
11 Tube Yoke
12 Flange Yoke
13 Center Bearing

Rear Propeller Shaft

Rear Propeller Shaft
