1F3-64  DIESEL ENGINE CONTROLS

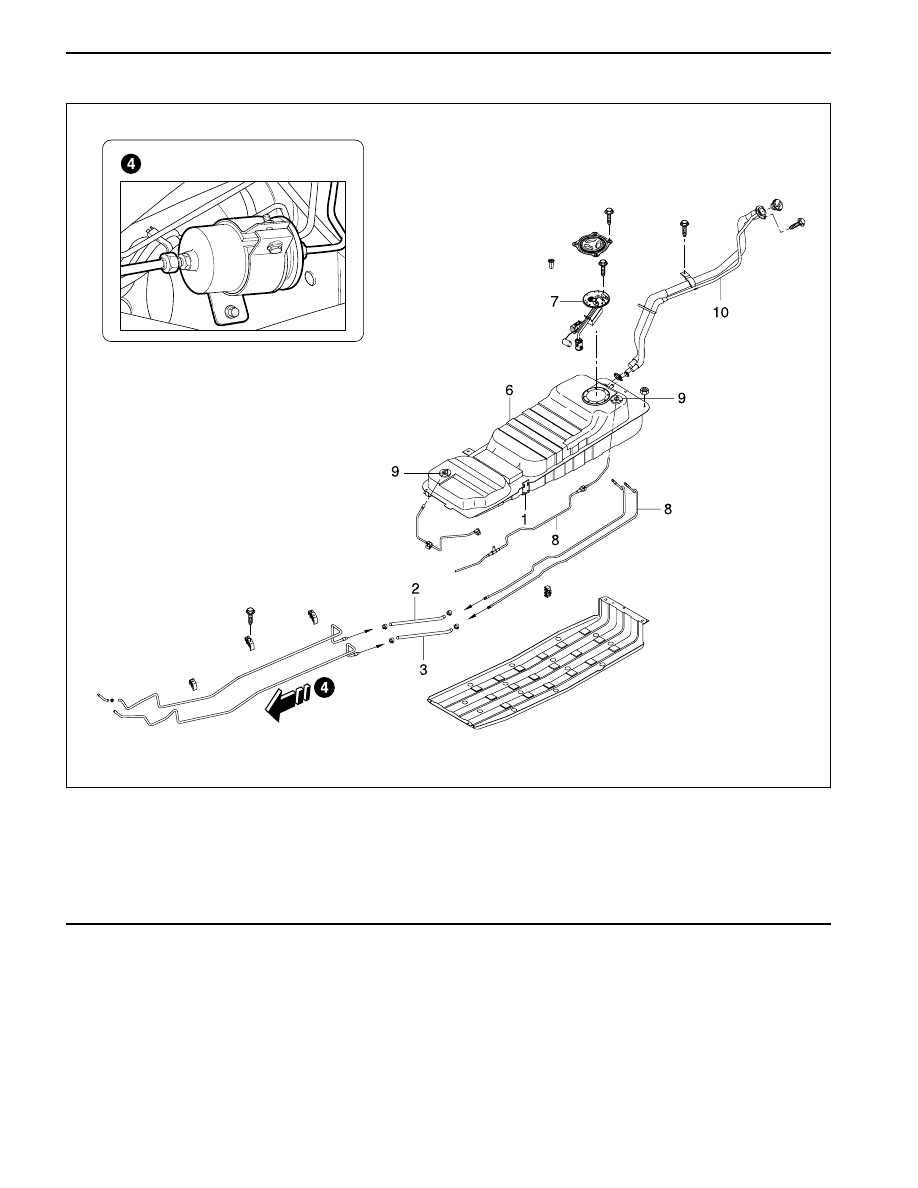

FUEL TANK

YAD1FDB0

1 Fuel Tank Mounting Bracket
2 Fuel Return Line
3 Fuel Supply Line
4 Fuel Filter
6 Fuel Tank

7 Fuel Pump
8 Fuel Tank Rear Pipe
9 Fuel Tank Air Cap

10 Fuel Filler Assembly

DIESEL ENGINE CONTROLS  1F3-65

SSANGYONG  Y200

YAD1FDC0

YAD1FDD0

YAD1FDE0

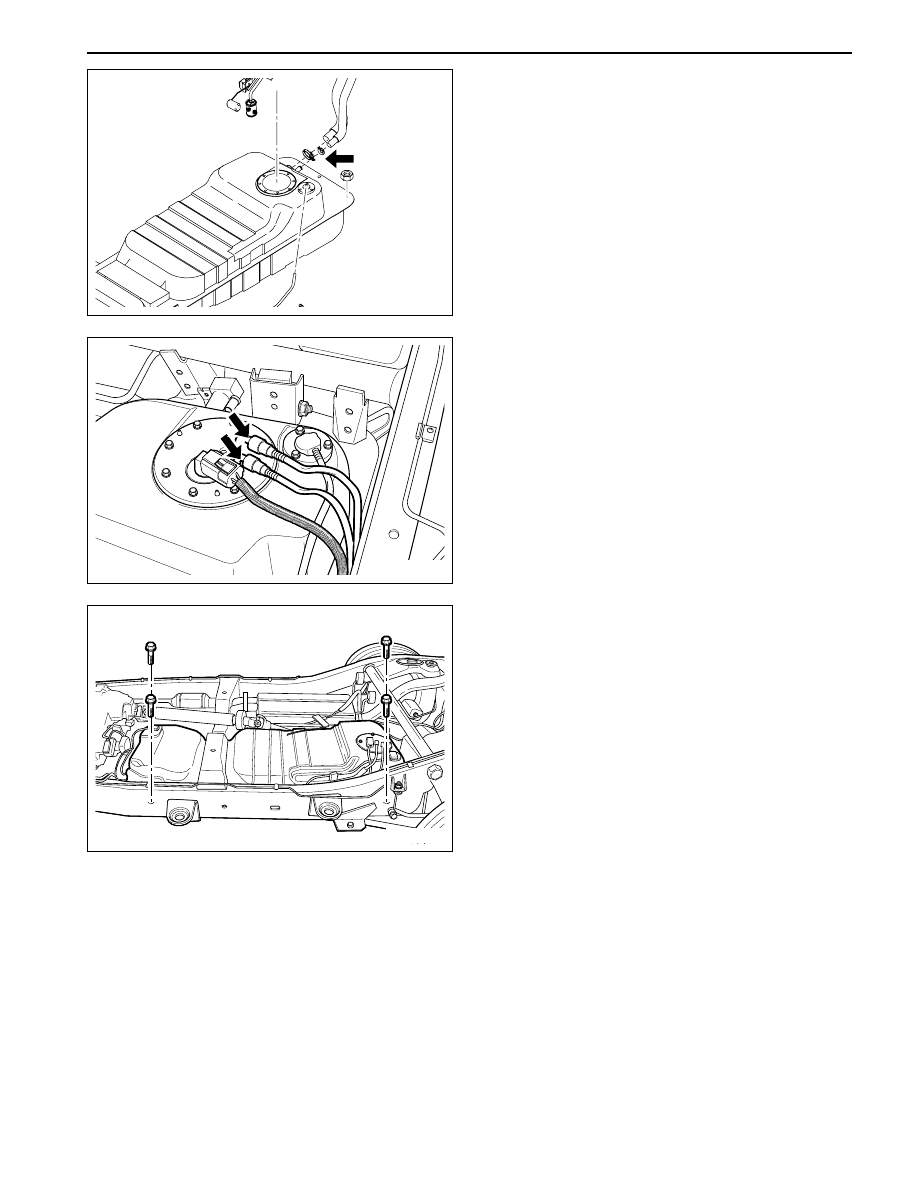

Removal & Installation Procedure

Caution: The fuel system is under pressure. To avoid
fuel spillage and the risk of personal injury or fire,
it is necessary to relieve the fuel system pressure
before disconnecting the fuel lines.

1. Disconnect the negative battery cable.

2. Disconnect the fuel filler hoses.

7. Remove the fuel pump moumting bolts and

bracket.

8. Carefully lower the fuel tank.

9. Installation should follow the removal precedure

in the reverse order.

3. Put aside the floor carpet to remove the fuel pump

access cover.

4. Remove the fuel pump access cover.

5. Disconect the fuel return and supply line.

6. Disconnect the fuel pump wiring connector.

SSANGYONG  Y200

1F3-66  DIESEL ENGINE CONTROLS

SPECIFICATIONS

GENERAL SPECIFICATIONS

Fuel Distribution Type

Number of Cylinders

Mounting Type

Drive Type

Flange Stroke

Flange Outside Diameter

Rack Movement

Max. Speed

Injected Fuel Quantity / Stroke

Lubrication Type

Individual Injection Type (Same Number of Cylinder and Plunger)

5 Cylinder

End Flange Mounting

Inside Chain Connected with Camshaft

7 mm

5.5 mm

21 mm

2,500 rpm

35 mm

3

 / Stroke

Sump Lubrication Type (Connected with Engine Oil Passage)

DIESEL ENGINE CONTROLS  1F3-67

SSANGYONG  Y200

FASTENER  TIGHTENING SPECIFICATIONS

Application

Camshaft Sprocket Bolt

Chain Tensioner

Cylinder Head Cover Bolt

Fuel Feed Line (at Fuel Injection Pump)

Fuel Injection Nozzle

Fuel Injection Pipe

Fuel Injection Pump Mounting Bolt

(at the Timing Cast Cover)

Fuel Injection Pump Supporting Bracket Bolt

Fuel Line Bolt (at Fuel Filter)

Fuel Pressure Line (at Fuel Pump)

Fuel Return Line (at Fuel Injection Pump)

Injection Timing Device Bolt

Nozzle Tensioning Nut

Screw Plug

Vacuum Pump Mounting Bolt

N • m

25 + 90°

80

10

13

35 - 40

18

23

23

13

13

13

46

80

30

10

Lb - Ft

18 + 90°

59

-

10

26 - 30

13

17

17

10

10

10

34

59

22

-

Lb - In

-

-

89

-

-

-

-

-

-

-

-

-

-

-

89
