1F3-40  DIESEL ENGINE CONTROLS

YAD1FBT0

YAD1FBU0

YAD1FBV0

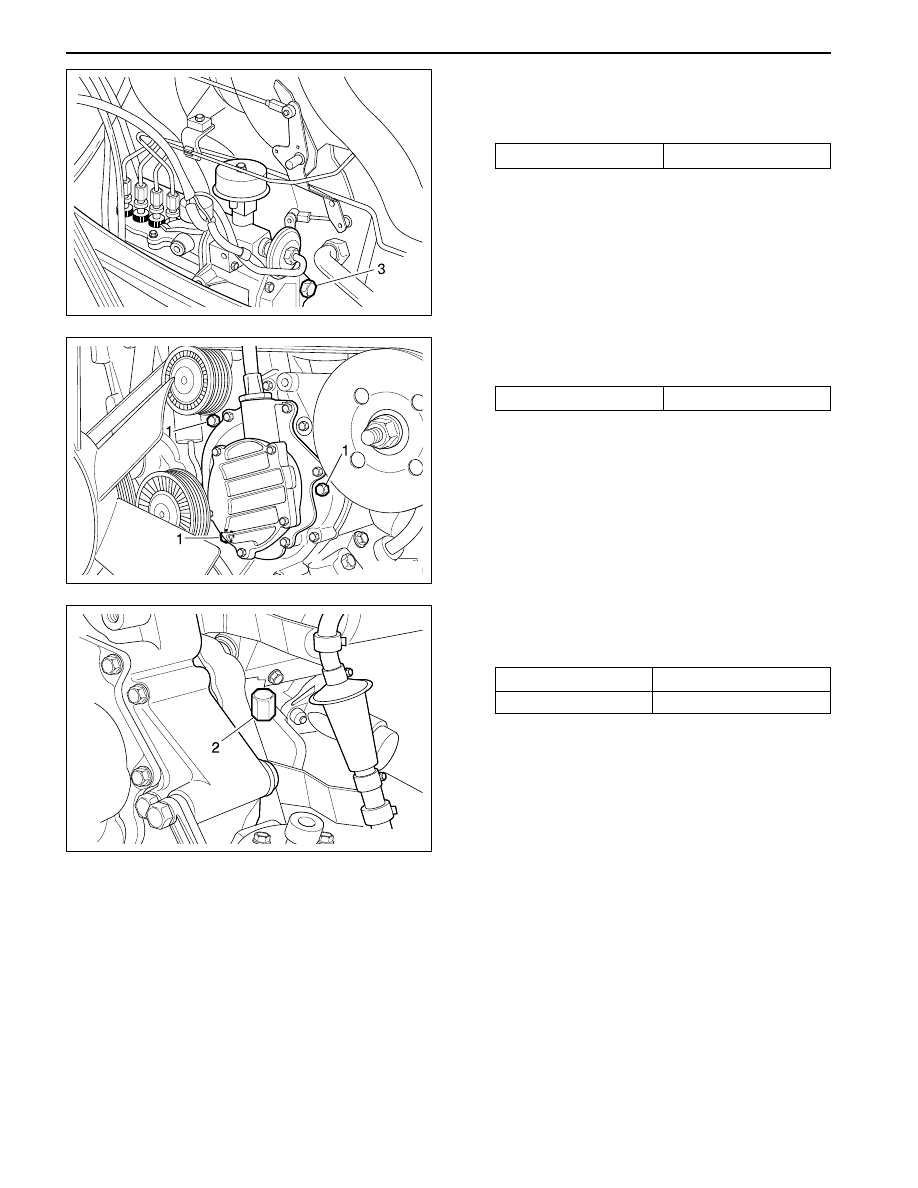

Adjustment Procedure

1. Remove the bolt (3) at the supporting bracket.

Installation Notice

3. Run the engine at idle speed.

4. Turn the adjusting screw (2) until the specification

(15° ± 1° ATDC) is indicated on the digital tester.

2. remove the bolts (1) at the timing case cover.

Installation Notice

Tightening Torque

23 N•m (17 lb-ft)

Tightening Torque

23 N•m (17 lb-ft)

To the Right

To the Left

Start of Delivery Retarded

Start Delivery Advanced

DIESEL ENGINE CONTROLS  1F3-41

SSANGYONG  Y200

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

VACUUM PUMP

Preceding Work: Removal the poly V-belt

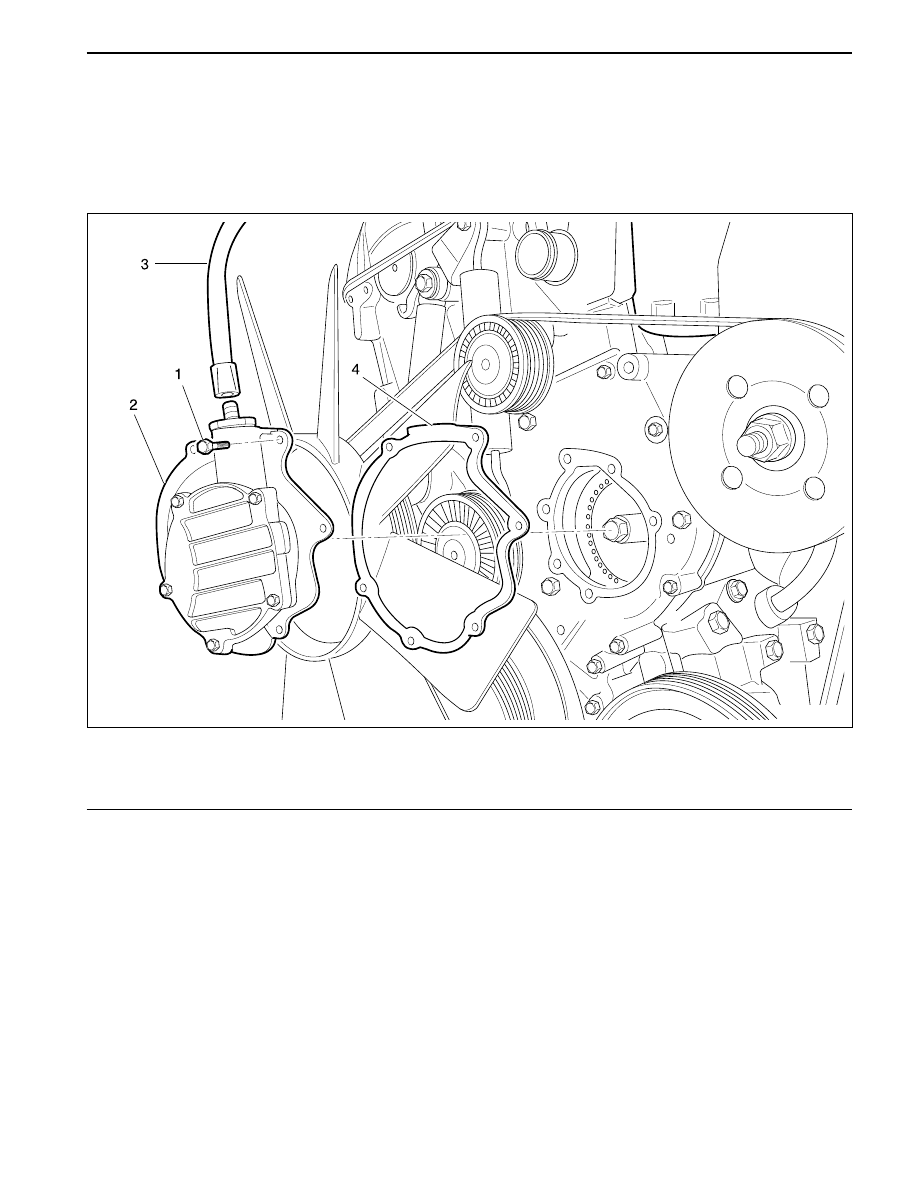

YAD1FBX0

1 Bolt ........................................... 10 N•m (89 lb-in)
2 Vacuum Pump

3 Vacuum Line
4 Gasket ................................................... Replace

SSANGYONG  Y200

1F3-42  DIESEL ENGINE CONTROLS

YAD1FBY0

YAD1FBZ0

YAD1FC00

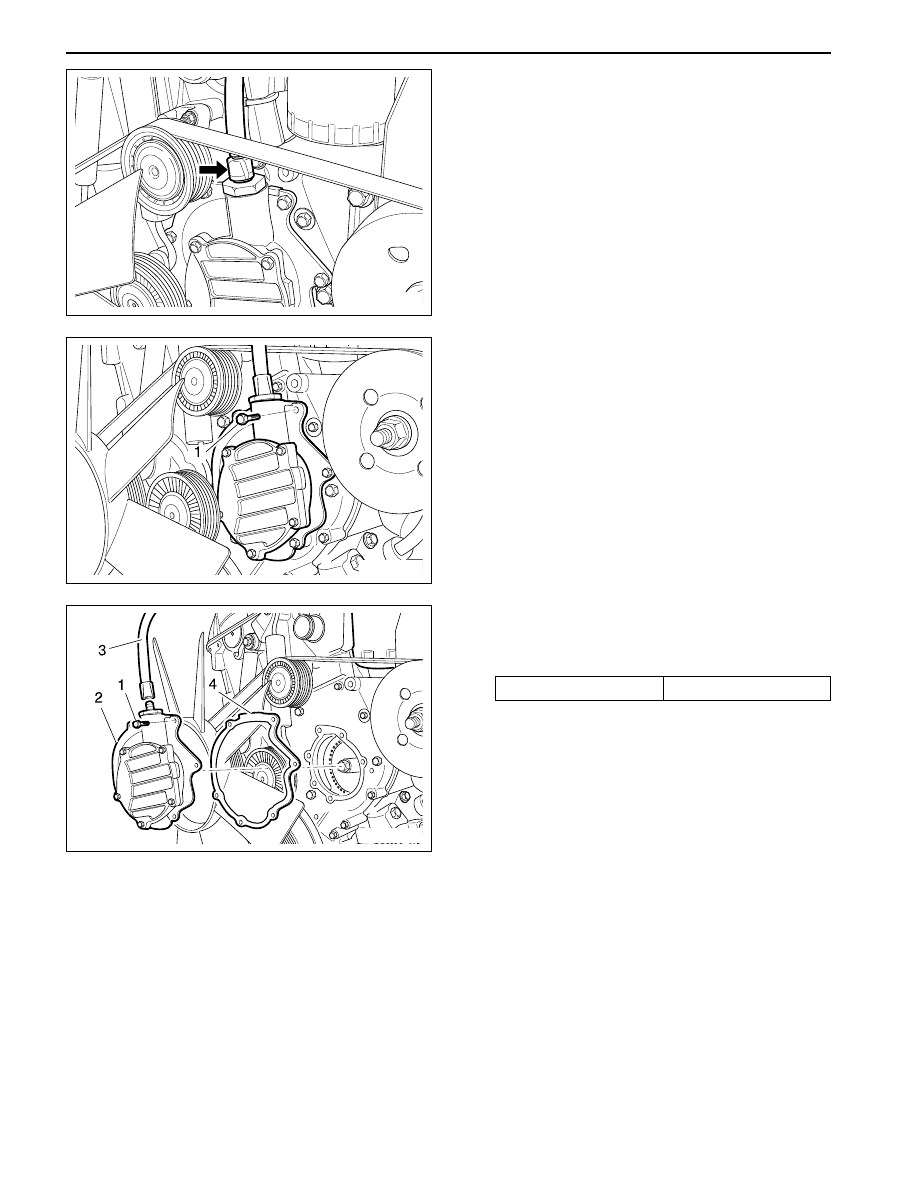

Removal & Installation Procedure

1. Remove the vacuum line.

2. Remove the bolts (1) evenly.

Notice:  If necessary, rotate the engine until the
pressure on the tappet of the vacuum pump is
released.

3. Remove the vacuum pump (2).

4. Install the vacuum pump (2).

Installation Notice

Clean the gasket residues of sealing surface of
vacuum pump and replace the gasket (5).

5. Connect the vacuum line.

Tightening Torque

10 N•m (89 lb-in)

DIESEL ENGINE CONTROLS  1F3-43

SSANGYONG  Y200

VACUUM UNIT REPLACEMENT

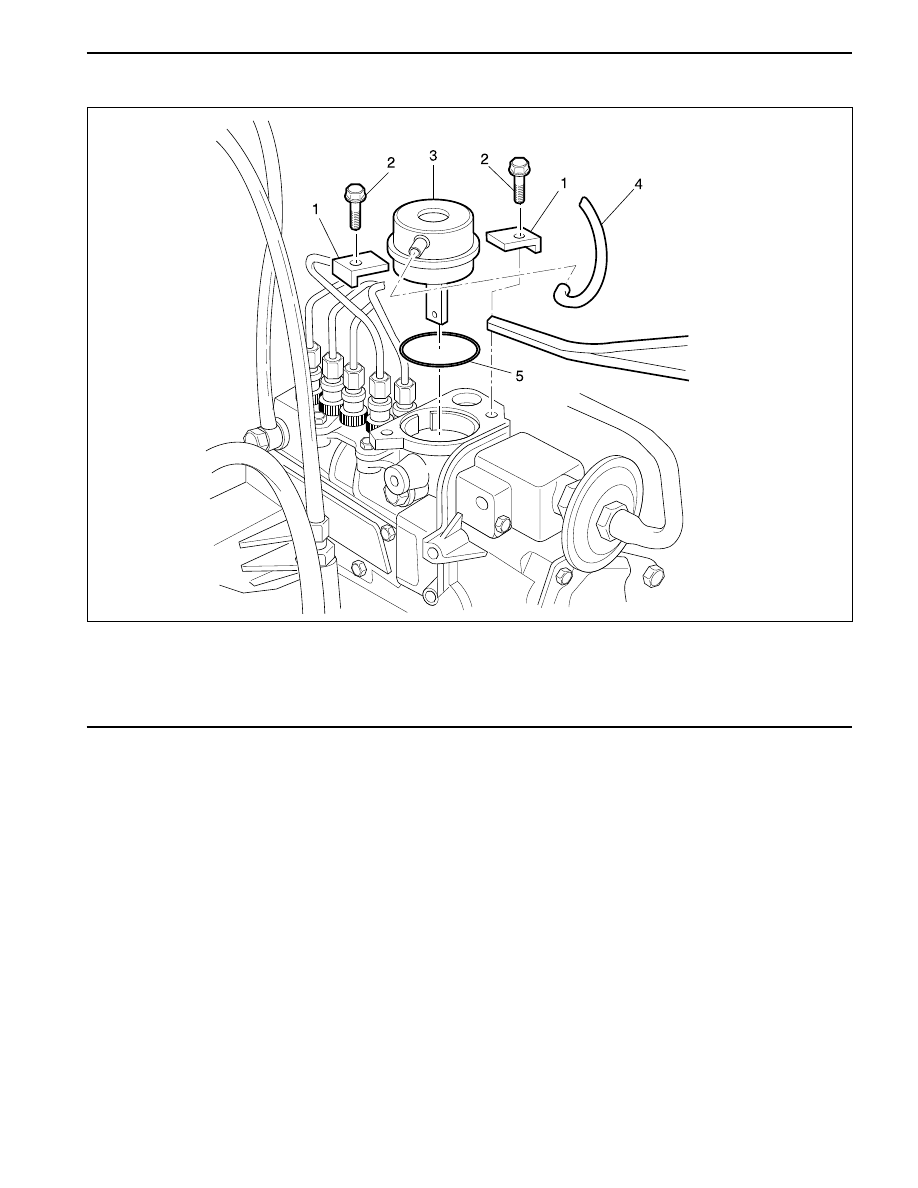

YAD1FC10

1 Bracket
2 Bolt
3 Vacuum Unit

4 Vacuum Line
5 Seal ........................................................ Replace
