SSANGYONG  Y200

1F3-32  DIESEL ENGINE CONTROLS

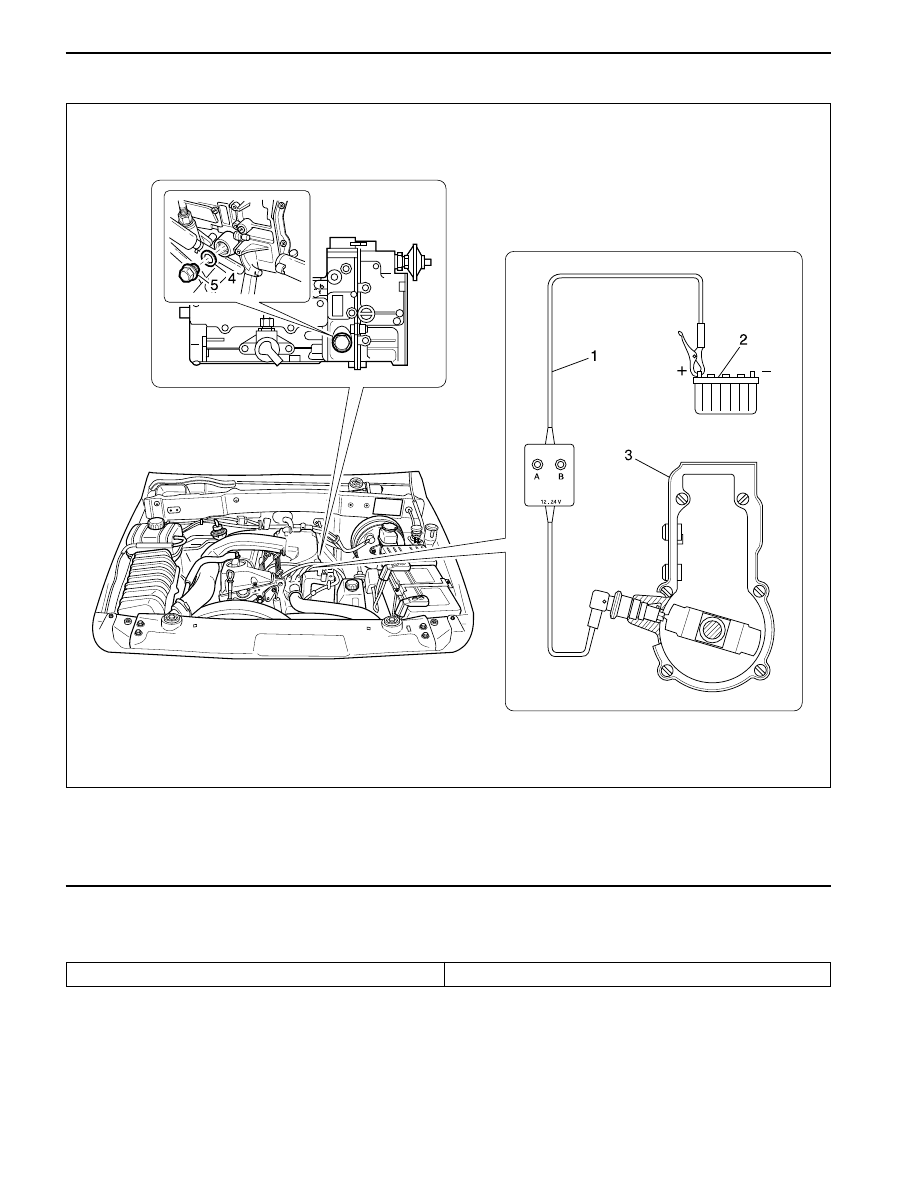

Position Sensor, RIV Method

YAD1FBG0

Service Data

4 Seal ........................................................ Replace
5 Screw Plug ............................... 30 N•m (22 lb-ft)

1 Position Sensor
2 Battery
3 Fuel Injection Pump

Start of Delivery (RIV)

ATDC 14° - 16°

DIESEL ENGINE CONTROLS  1F3-33

SSANGYONG  Y200

10

20

30

40

0 T

YAD1FBH0

YAD1FBJ0

YAD1BC10

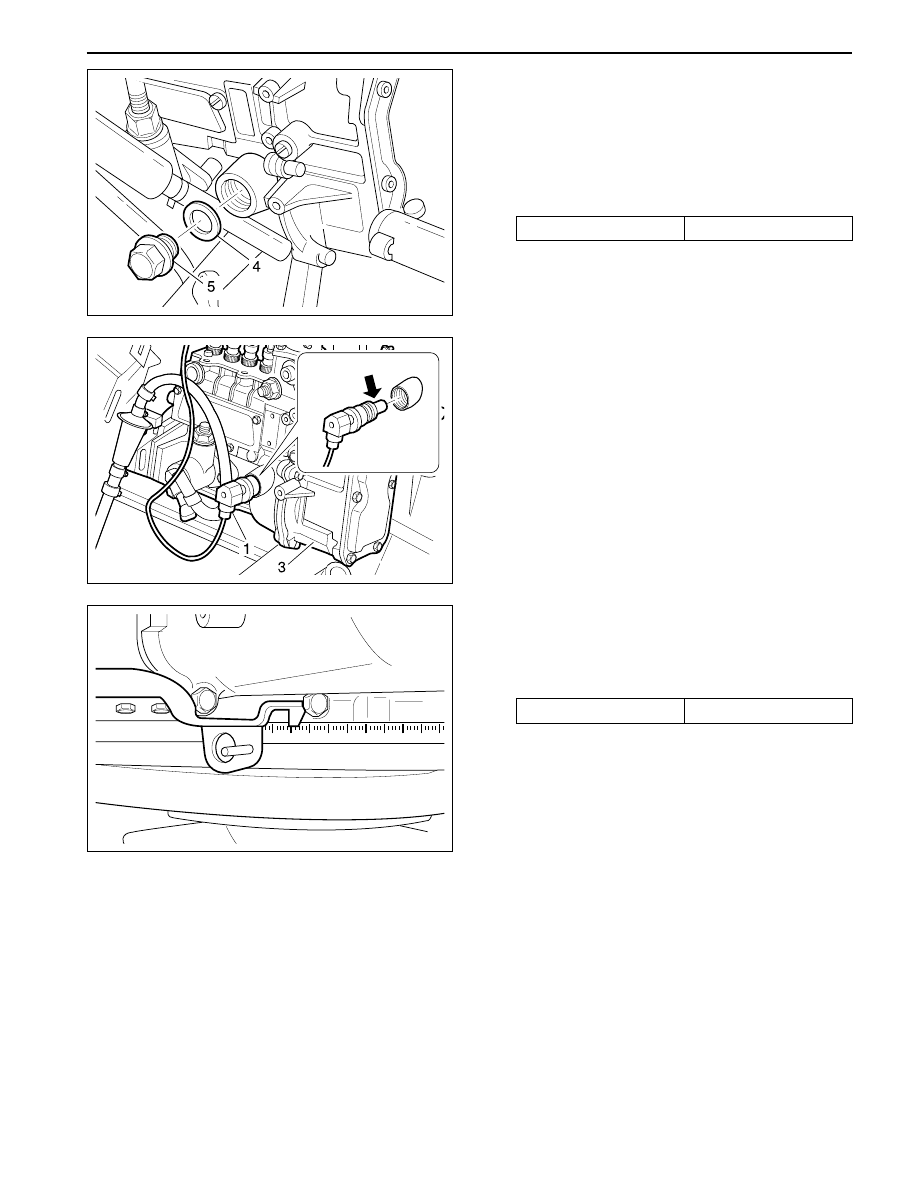

Tools Required

617 589 08 21 00

Position Sensor

Test Procedure

1. Remove the screw plug (5) and seal (4) and collect

oil in a suitable vessel.

Installation Notice

4. Rotate the crankshaft by hand (in direction of

engine rotation) until the lamp ‘B’ lights up.
Rotate the crankshaft carefully further until both
lamps ‘A and B’ come on. In this position, check
the Rl value  on the crankshaft vibration damper.

2. Install the position sensor 617 589 08 21 00 (1)

into the governor housing of the injection pump to
be the guide pin of the position sensor facing up.

3. Connect the battery terminal of position sensor

617 589 08 21 00 (1) to positive terminal (+) of
battery.

Notice: If only lamp ‘A’ lights up, repeat the test
and if out of specification, adjust start of delivery.

Tightening Torque

30 N•m (22 lb-ft)

Specification

ATDC 14° - 16°

SSANGYONG  Y200

1F3-34  DIESEL ENGINE CONTROLS

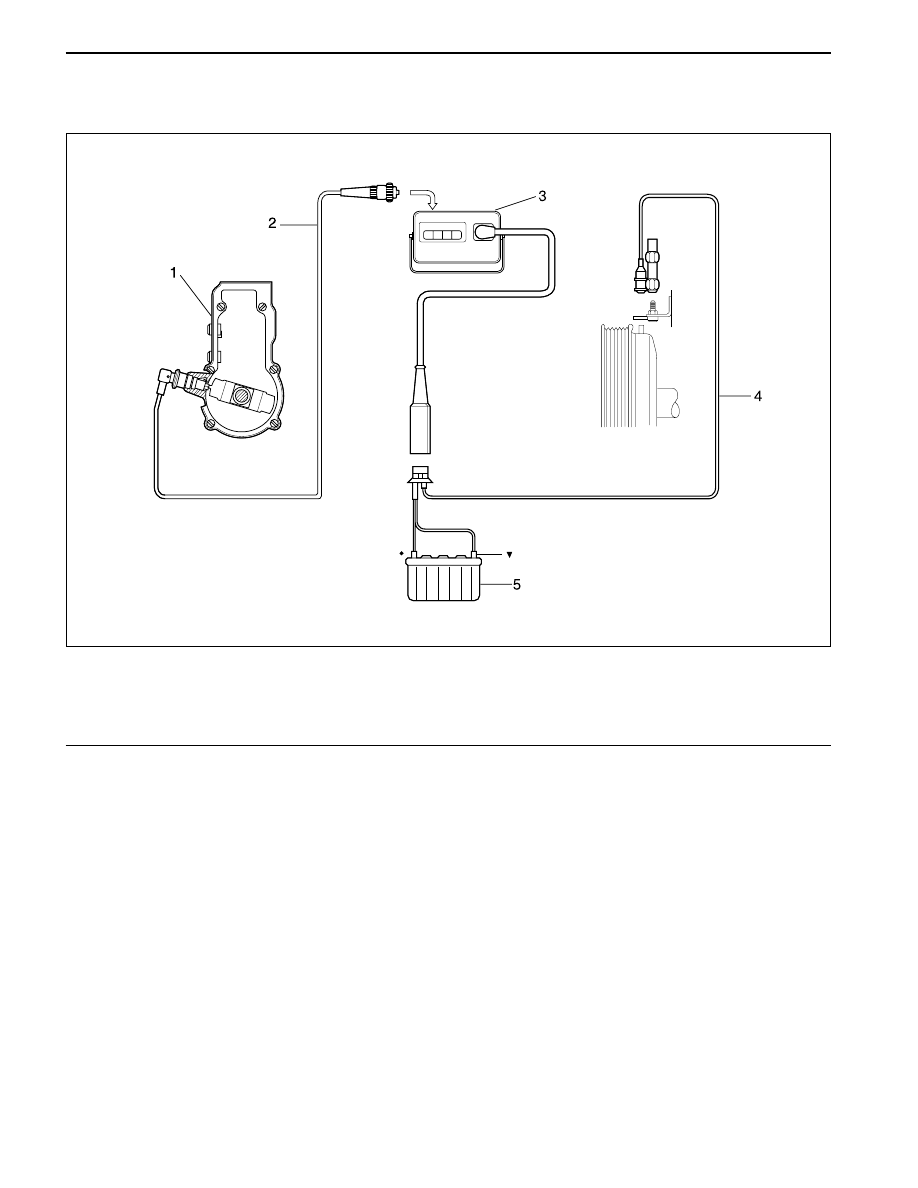

Digital Tester, RIV Method

(Connection Diagram for Testers Without Adapter)

1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester

4 TDC Pulse Generator
5 Battery

YAD1FBF0

DIESEL ENGINE CONTROLS  1F3-35

SSANGYONG  Y200

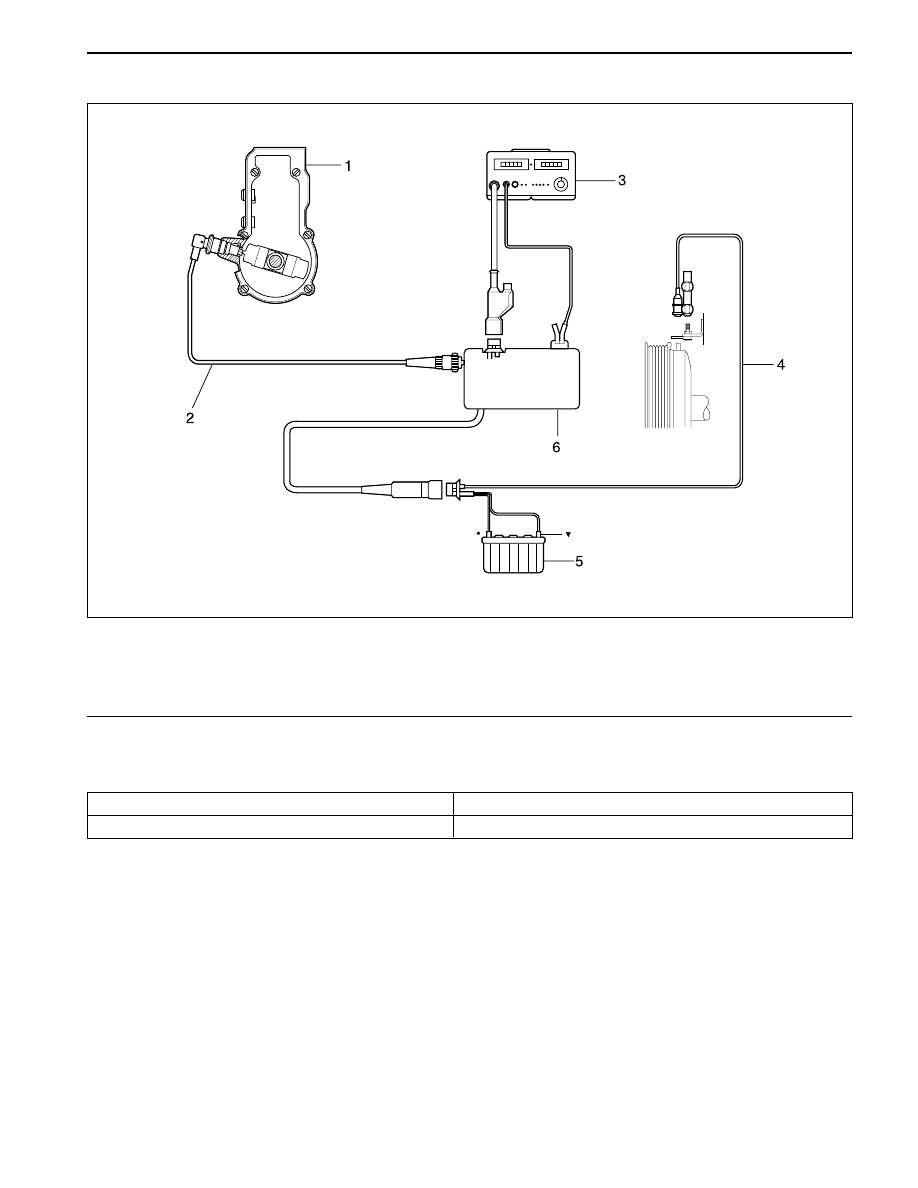

(Connection Diagram for Testers With Adapter)

YAD1FBK0

1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester

4 TDC Pulse Sender Unit
5 Battery
6 Rl Pulse Generator

Service Data

ATDC 14°  - 16°

720 - 820 rpm

Start of Delivery (RIV)

Idle Speed
