SSANGYONG Y200

1F3-12 DIESEL ENGINE CONTROLS

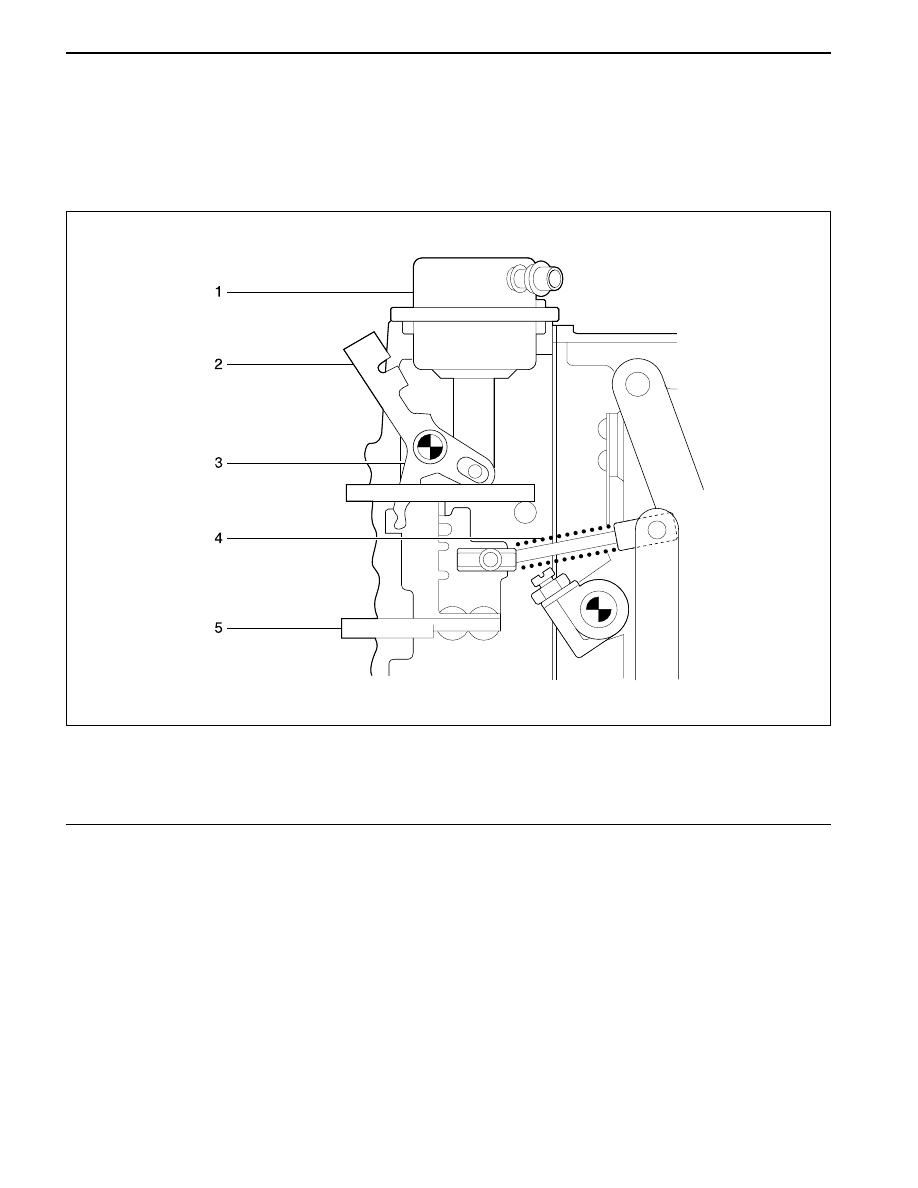

1 Pneumatic Shut-Off Device
2 Shut-Off Lever for Manual Operation
3 Stop Lever

PNEUMATIC SHUT-OFF DEVICE
(PNAB)

To shut off the engine, the key in the steering lock is
turned to “stop”. This applies vacuum to the shut-off
device diaphragm which pulls the control rack to the
stop setting.

YAD1FAK0

4 Spring-Loaded Strap
5 Control Rack

This device can only be installed on vehicle which are
equipped with a vacuum pump.

DIESEL ENGINE CONTROLS 1F3-13

SSANGYONG Y200

;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;

YAD1FAL0

EXHAUST GAS RECIRCULATION
(EGR) VALVE

The Exhaust Gas Recirculation (EGR) system is the
device to lower the NOx (oxides of nitrogen) emission
level caused by high combustion temperature.

Because the combustion process of the diesel engine
always needs excessive air, the exhaust gas contains
large amount of NOx.

The EGR valve restricts NOx generation by recirculating
some amount of the exhaust gas into the combustion
chamber to reduce the combustion temperature.

But the recirculated gas results in reduced charging
efficiency of mixture so that the engine performance
drops down. Because of this fact, EGR valve is tuned
to operate in the area where oxidized substances are
generated much.

•

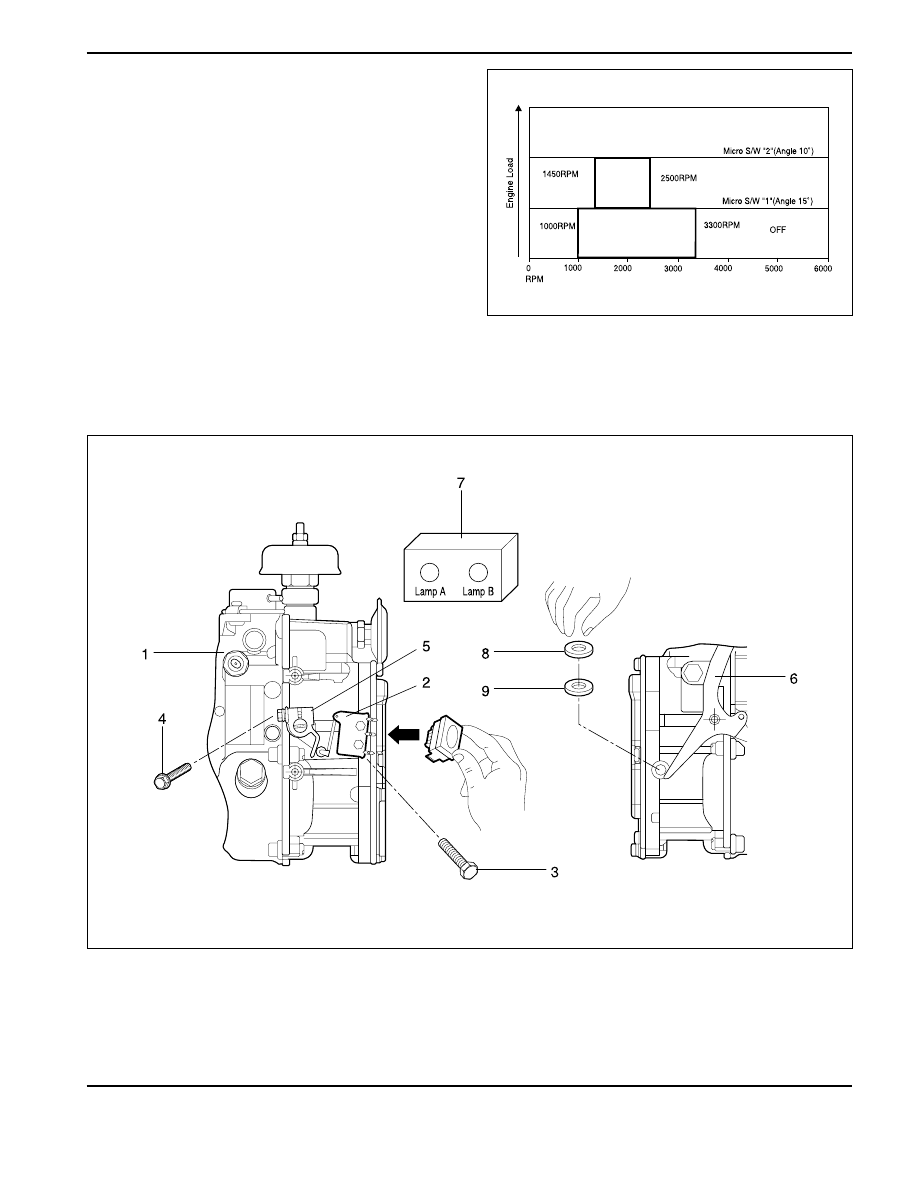

Condition of working the EGR valve

- 100 seconds after starting the engine

- More than 200 RPM

YAD1FAM0

1 Injection Pump
2 Micro Switch
3 Bolt
4 Screw ....................................... 5 N•m (44 lb-in)
5 Cam

6 Lever
7 Micro Switch
8 Adjusting Disc “A” Setting Indicator (10 inch)
9 Adjusting Disc “B” Setting Indicator (11 inch)

SSANGYONG Y200

1F3-14 DIESEL ENGINE CONTROLS

EGR Micro Switch Setting Procedure

Tools Required

617 589 08 21 01

Micro switch Setting Device.

In turbo equipped vehicle, the timing of injection pump must be adjusted after repairing or replacement as
follows:

1. Hold the injection with clamp (special) on the work bench.

2. Install the micro switch setting device 017 589 08 21 01 in the injection pump.

3. Adjust and fix the lever (6) at 10° ± 1 °

4. Insert the harness into the micro switch setting device 617 589 08 21 01.

5. Install the cam on the injection pump when the both lamps are “on”.

6. Install the screw.

7. At this moment, loosen the clamp and insert the adjusting disc “A” to the lever and check again.

8. If the lamp “A” is “on”, the setting is correct, thus, timing of injection pump is OK.

If the both lamps are “on”, perform the setting as above procedure.

DIESEL ENGINE CONTROLS 1F3-15

SSANGYONG Y200

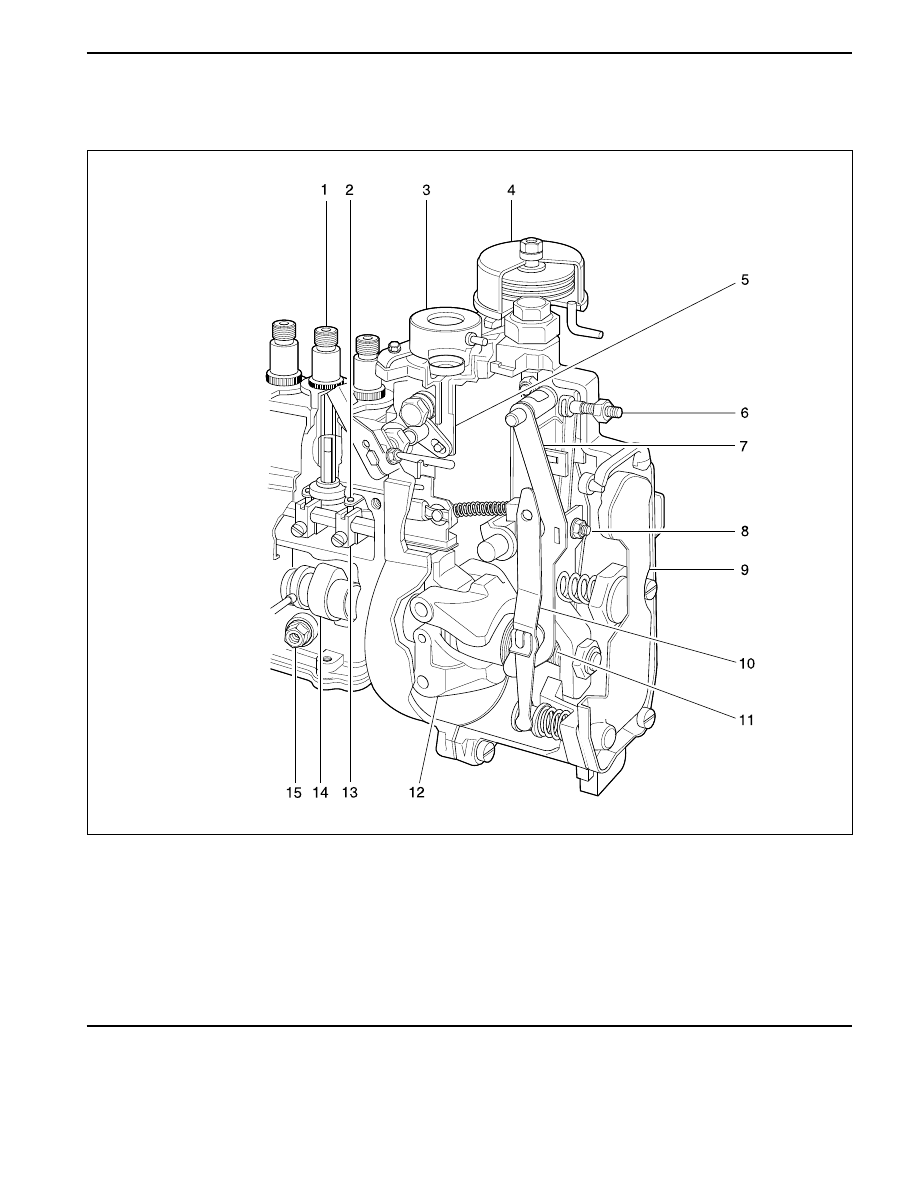

COMPONENT LOCATOR

FUEL INJECTION PUMP

1 Delivery Valve Holder
2 Control Lever
3 Engine Stop Unit
4 Idle Speed Adjustment (ALDA)
5 Stop Lever
6 Adjusting Screw for Idle Speed
7 Guide Lever
8 Adjusting Screw for Auxiliary Idle Speed

YAD1FAN0

9 Governor Assembly

10 Hinge Lever
11 Spring Retainer (Torque Control)
12 Fly Weight
13 Clamping Piece
14 Plunger Driving Cam
15 Fuel Pump Driving Cam
