DIESEL ENGINE MECHANICAL  1B3-123

SSANGYONG  Y200

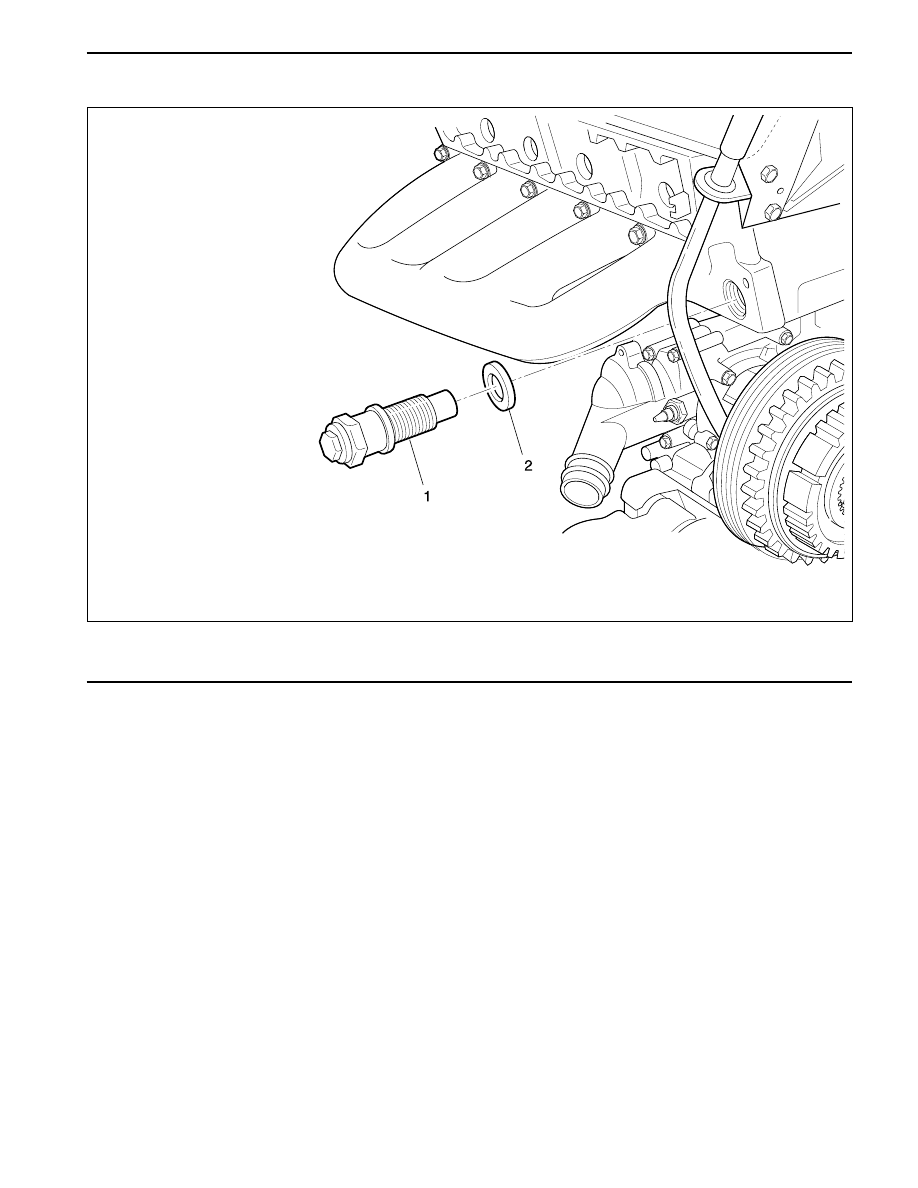

CHAIN TENSIONER

1 Chain Tensioner ....................... 80 N•m (59 lb-ft)

2 Seal ........................................................ Replace

YAD1BHU0

SSANGYONG  Y200

1B3-124  DIESEL ENGINE MECHANICAL

Notice: Always install the chain tensioner to be filled with oil.

Place the chain tensioner in engine oil up to over the collar on the hexagon head with the thrust pin facing up.
Slowly push down the thrust pin as far as the stop 7~10 times with the aid of a press or a column drill.

YAD1BHV0

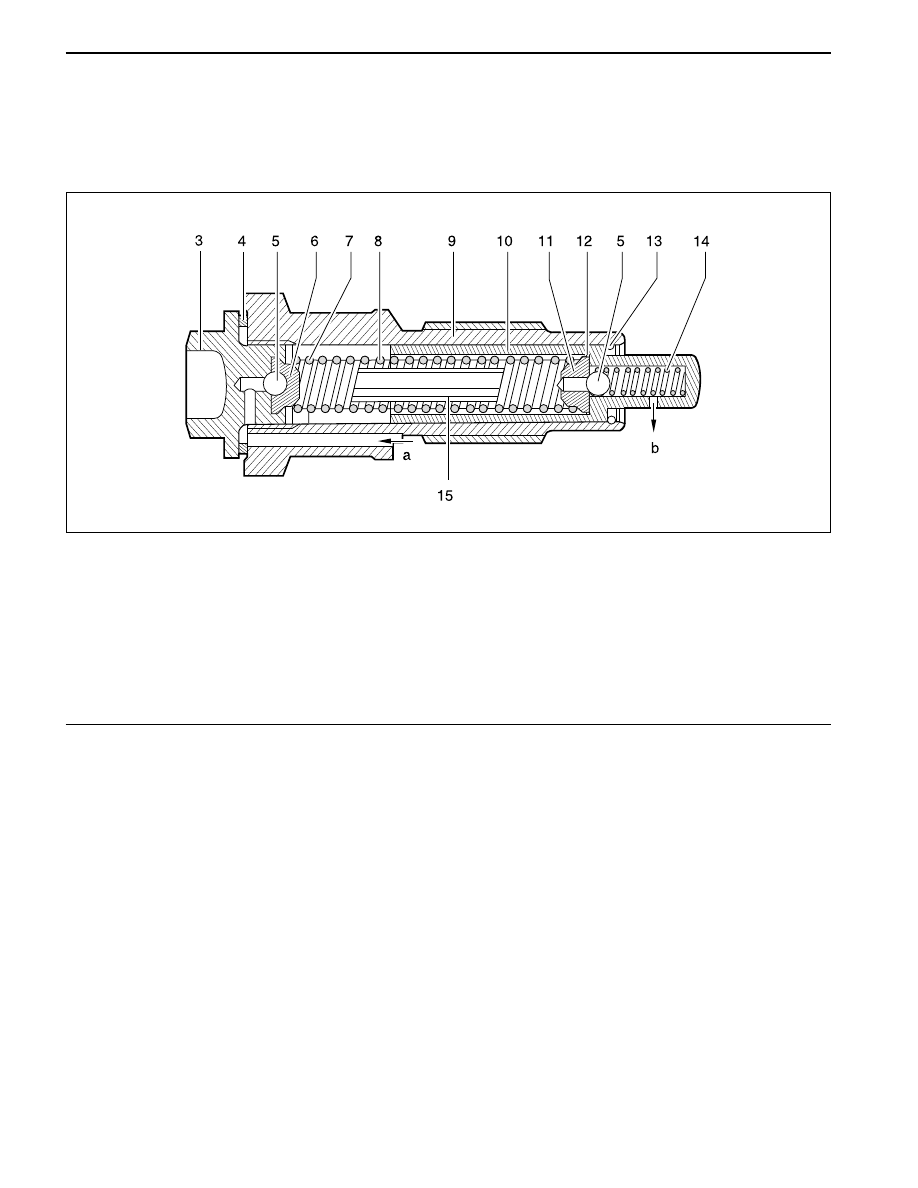

3 Screw Plug
4 Aluminum Gasket
5 Ball
6 Ball Guide
7 Compression Spring
8 Compression Spring
9 Housing

10 Thrust Pin

11 Valve Disc
12 O-Ring
13 Snap Ring
14 Compression Spring
15 Filler

a Feed Bore from Cylinder Head

b To Oil Pan

Faulty chain tensioners should be replaced completely.

DIESEL ENGINE MECHANICAL  1B3-125

SSANGYONG  Y200

LUBRICATION SYSTEM

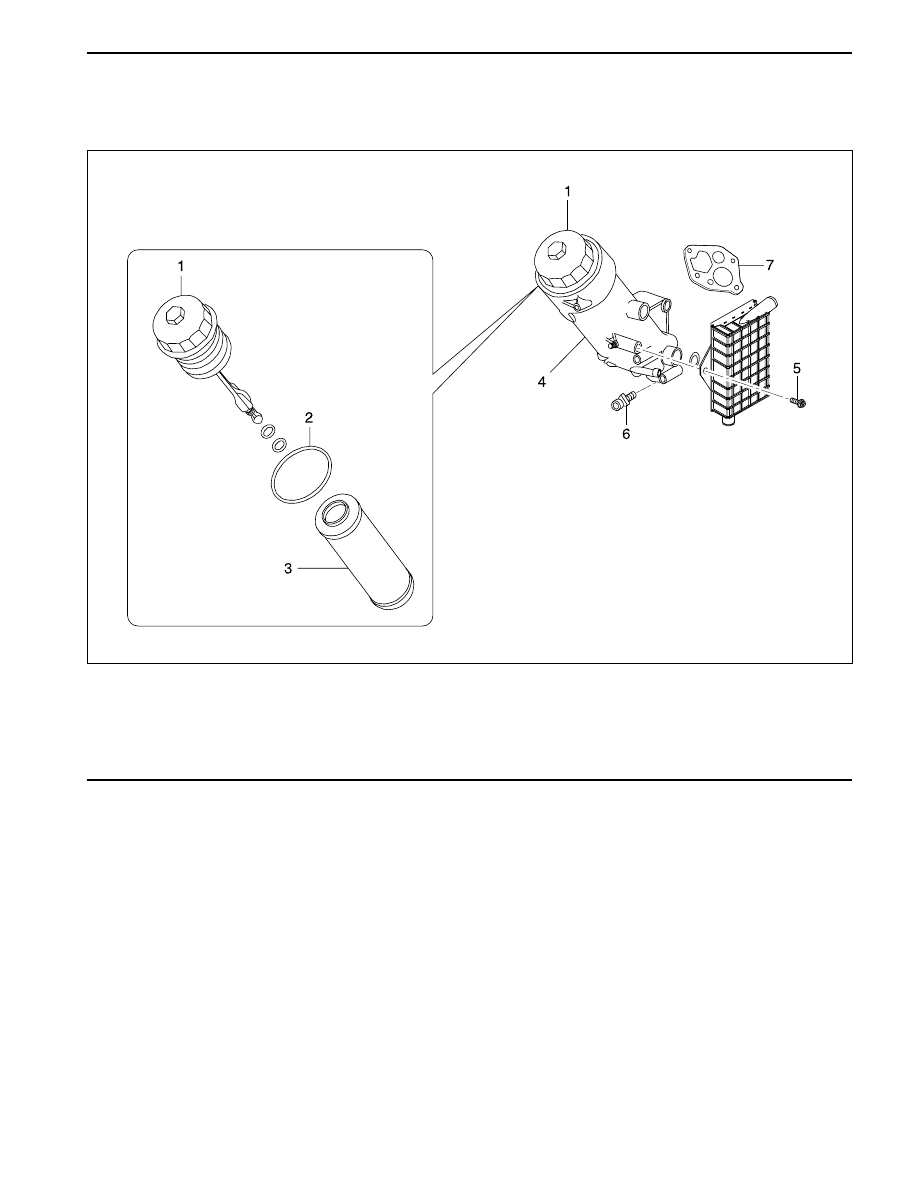

OIL FILTER

YAD1BHW0

1 Housing Cap ............................ 25 N•m (18 lb-ft)
2 O-Ring .................................................... Replace
3 Oil Filter ............... Element replace if necessary
4 Oil Filter Housing

5 Bolt ........................................... 25 N•m (18 lb-ft)
6 Oil Pressure Switch
7 Gasket

SSANGYONG  Y200

1B3-126  DIESEL ENGINE MECHANICAL

YAD1BHX0

YAD1BHY0

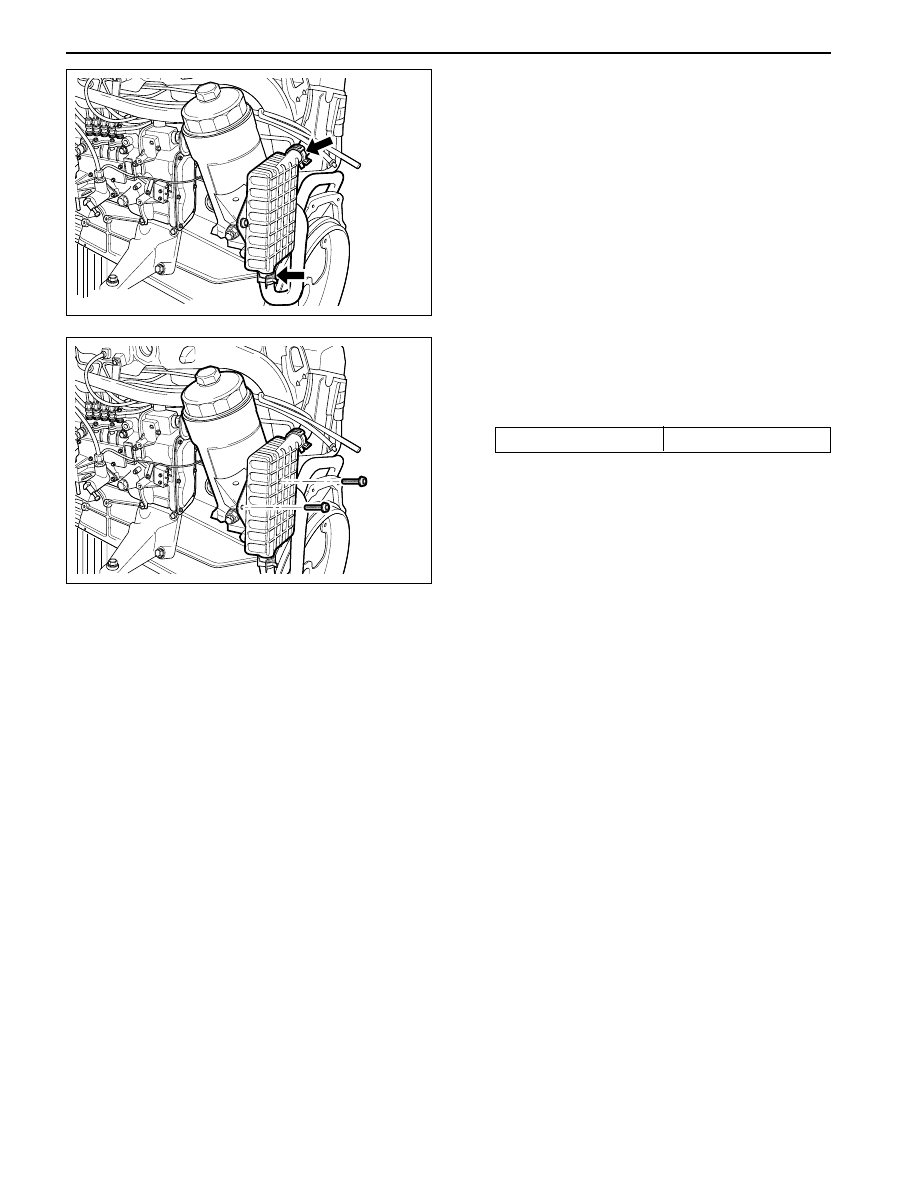

Removal & Installation Procedure

1. Disconnect the oil cooler inlet and outlet hoses.

4. Clean the sealing surface.

5. Installation should follow the removal procedure

in the reverse order.

2. Remove the oil pressure switch line.

3. Remove the oil filter housing bolts and oil filter

housing.

Installation Notice

Tightening Torque

25 N•m (18 lb-ft)
