M161 ENGINE MECHANICAL  1B2-95

SSANGYONG  Y200

YAD1B8A0

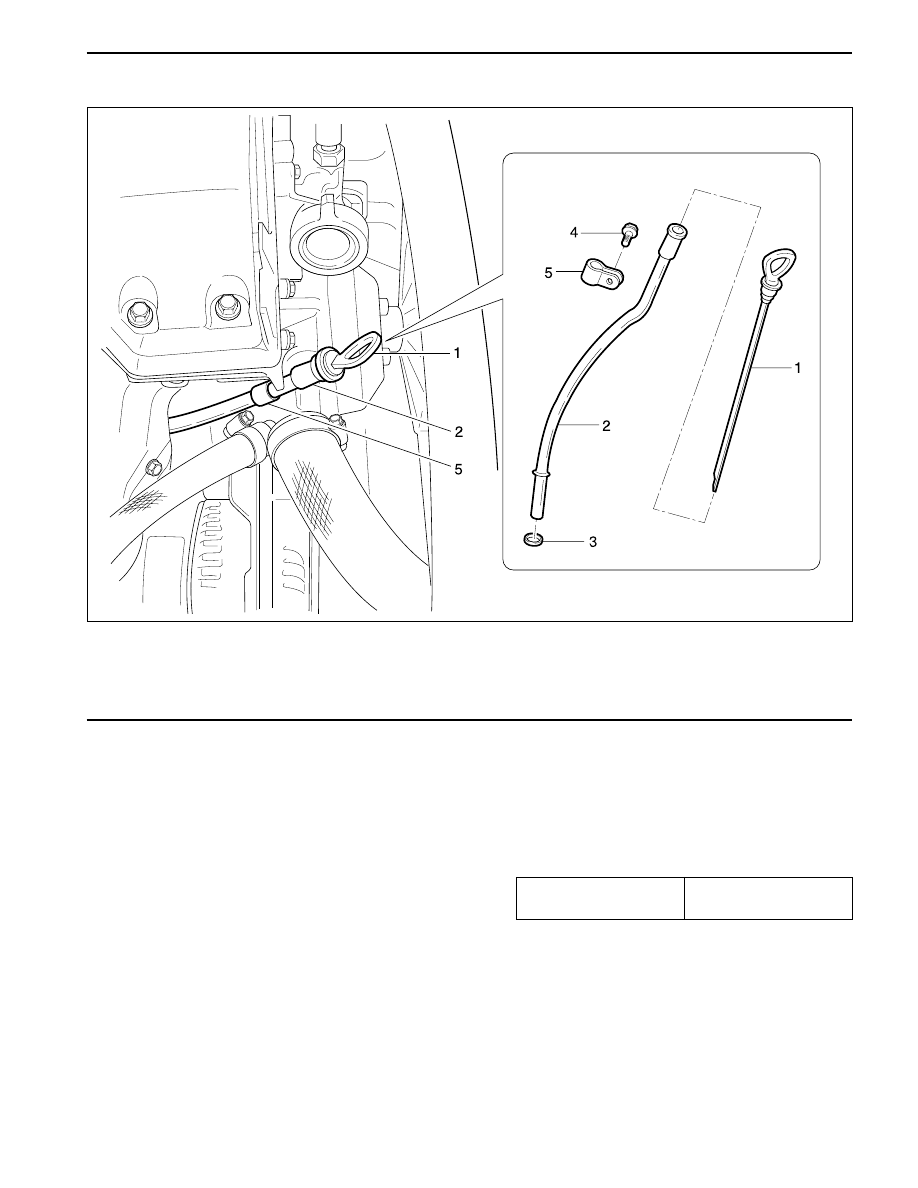

OIL DIPSTICK GUIDE TUBE

Removal & Installation Procedure

1. Pull out the oil dipstick level gauge (1).

2. Unscrew the bolt (4) and remove the oil dipstick

guide tube (2).

Installation Notice

1 Oil Dipstick Level Gauge
2 Oil Dipstick Guide Tube
3 O-Ring

4 Bolt (M6 X 16, 1 piece)

.................................... 9 - 11 N•m (80 - 97 lb-in)

5 Clamp

It is very hard to remove the oil dipstick guide
tube without special tool. If it is not necessary,
do not remove the guide tube.

3. Installation should follow the removal procedure

in the reverse order.

4. Check for leaks by starting the engine.

Tightening Torque

9 - 11 N•m

(80 - 97 lb-ft)

SSANGYONG  Y200

1B2-96  M161 ENGINE MECHANICAL

YAD1B8B0

UNIT REPAIR

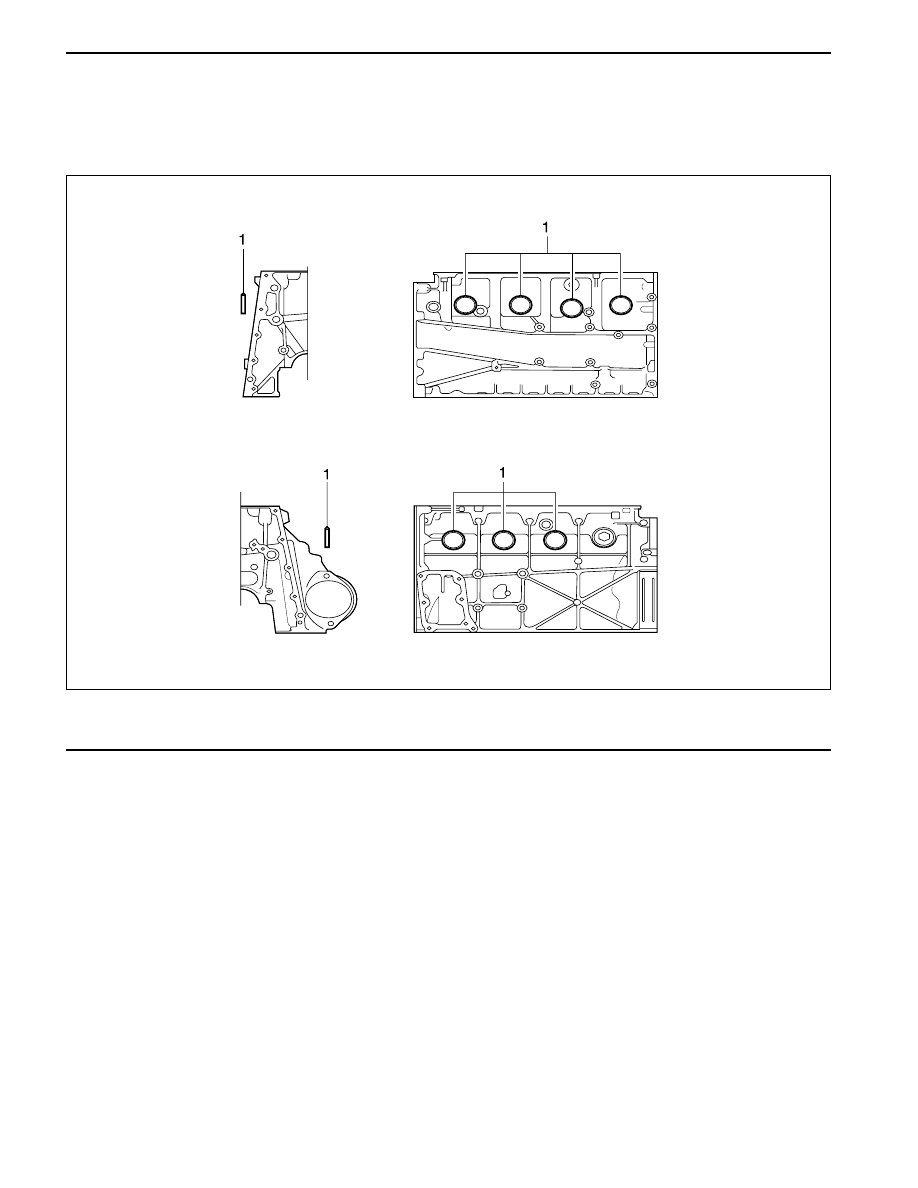

CORE PLUGS IN CRANKCASE

Preceding Work:

Draining of the coolant

1 Core Plug ............................................... Replace

M161 ENGINE MECHANICAL  1B2-97

SSANGYONG  Y200

Tools Required

102 589 00 15 00 Drift

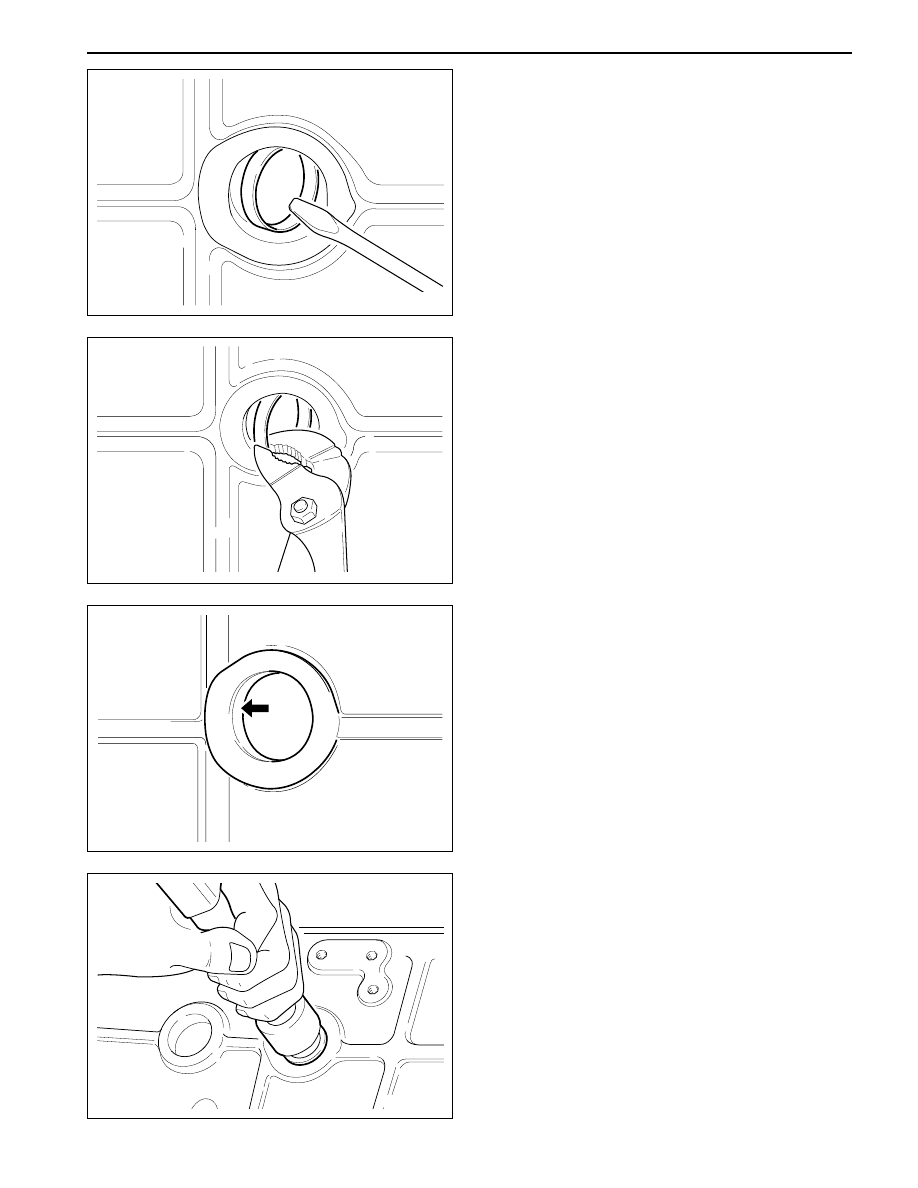

Replacement Procedure

1. Remove the intake and exhaust manifolds.

2. Pull back the core plug until the end of one side

comes out using the screw driver.

YAD1B3Z0

YAD1B4A0

YAD1B4B0

YAD1B4C0

5. Press in new plug using a drift.

Notice:  Wait for about 45 minutes before filling
the coolant so that the Loctite 241 hardens.

6. Warm up the engine and check the coolant for

leaks.

4. Clean the sealing surface and apply Loctite 241.

3. Pull out the plug carefully using a pliers.

SSANGYONG  Y200

1B2-98  M161 ENGINE MECHANICAL

Piston Type to be Used

A or X

A, X or B

X or B

X + 5

X + 10

YAD1B8C0

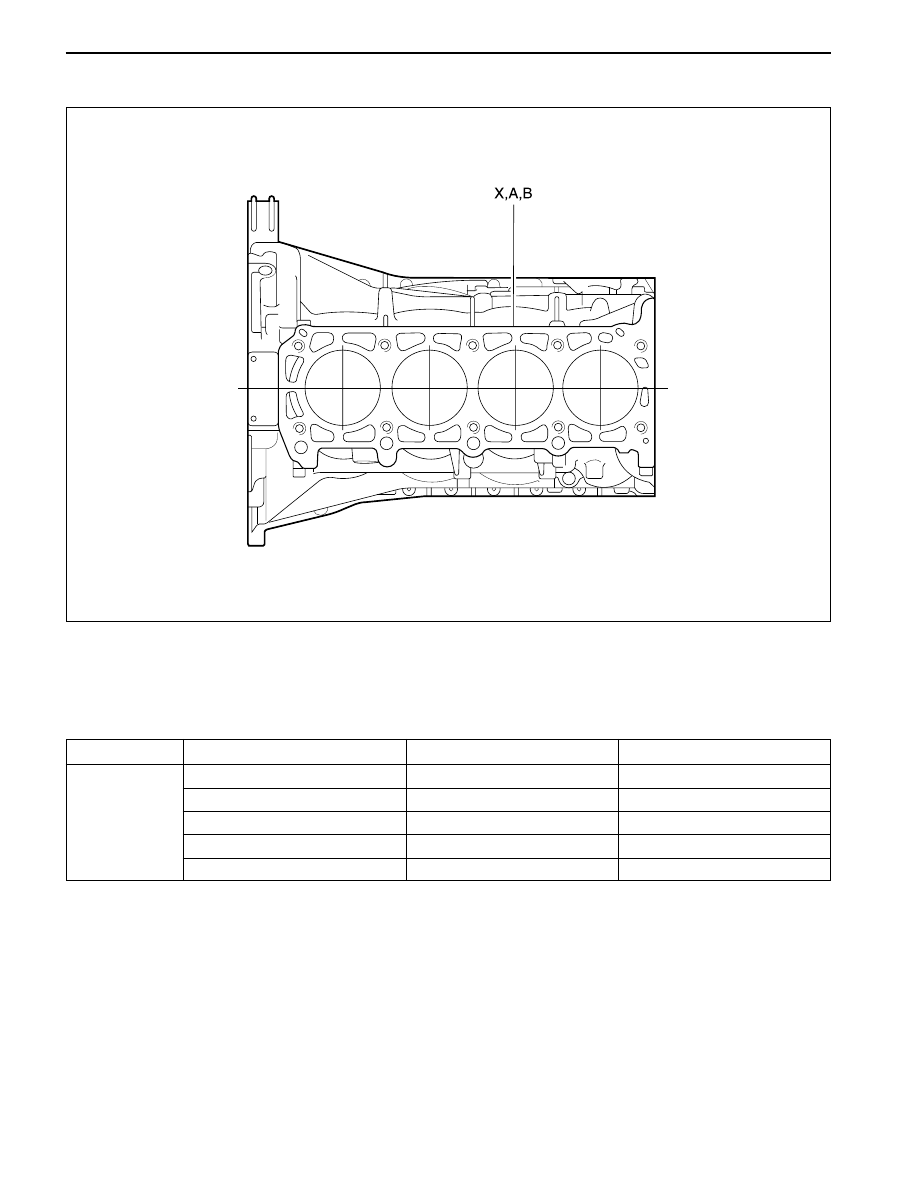

CYLINDER BORE

Group Code Letter and Cylinder Bore Size

Engine

E23

 Group Code Letter of Cylinder

A

X

B

X + 5

X + 10

 Cylinder Bore Size (mm)

φ

90.906 -

φ

90.912

φ

90.906 -

φ

90.912

φ

90.912 -

φ

 90.918



φ

90.950 -

φ

 90.968

φ

 91.000 -

φ

91.018
