M161 ENGINE MECHANICAL  1B2-87

SSANGYONG  Y200

YAD1B7Q0

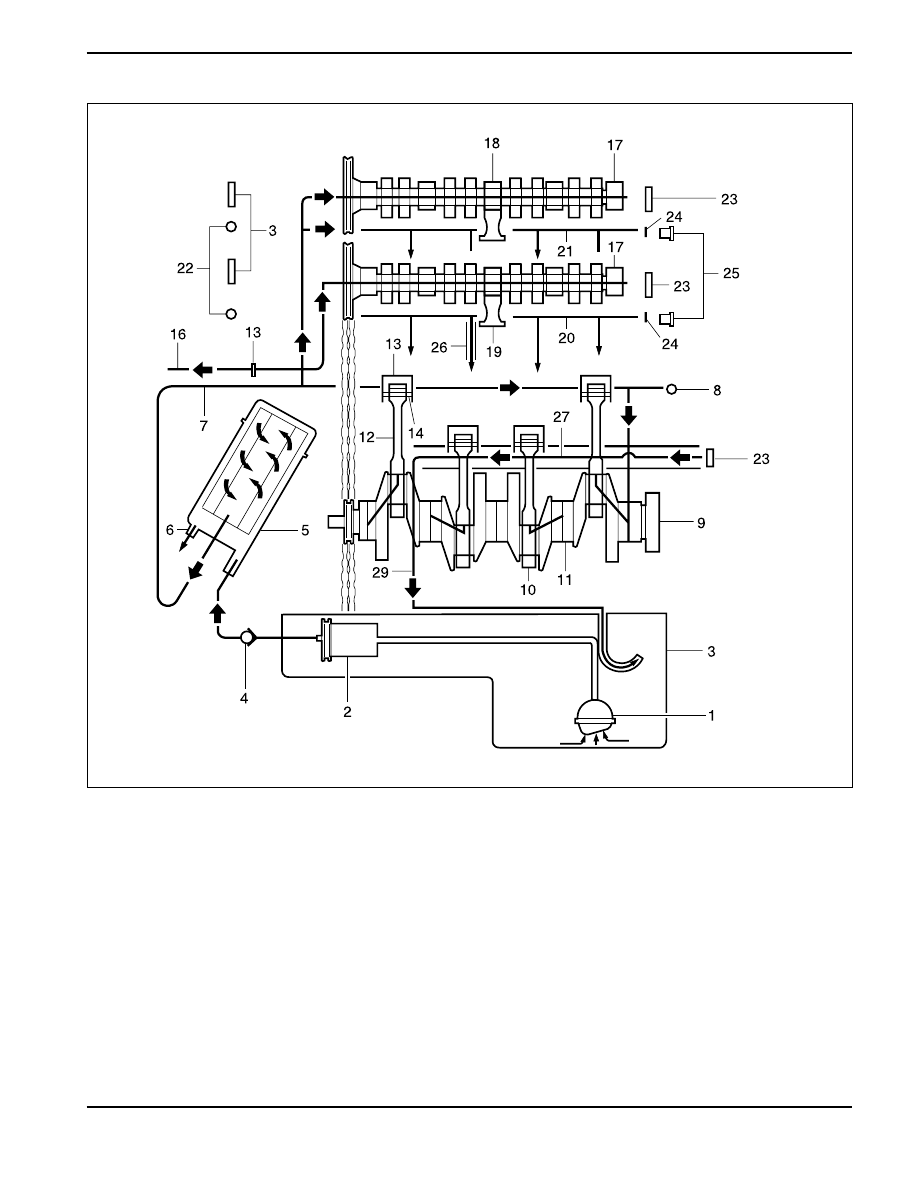

Oil Circulation

1 Oil Strainer
2 Oil Pump
3 Oil Pan
4 Oil Non-Return Valve
5 Oil Filter
6 Oil Filter Bypass Valve
7 Main Oil Gallery
8 Closing Ball (

φ

15 mm)

9 Crankshaft

10 Connecting Rod Bearing
11 Crankshaft Bearing
12 Connecting Rod
13 Piston
14 Oil Spray (Piston Crown Area)
15 Non-Return Valve (Crankcase)

16 Oil Supply (To Chain Tensioner)
17 Camshaft
18 Cam Bearing
19 Valve
20 Oil Gallery (Supply Oil to Intake Tappet)
21 Oil Gallery (Supply Oil to Exhaust Tappet)
22 Ball (

φ

 8 mm)

23 Camshaft Plug
24 Seal
25 Screw Plug
26 Oil Return Gallery

(Cylinder Head and Crankcase)

27 Oil Return Gallery (Crankcase)
28 End Cover (

φ

 20 mm)

29 Oil Return Pipe

SSANGYONG  Y200

1B2-88  M161 ENGINE MECHANICAL

YAD1B7R0

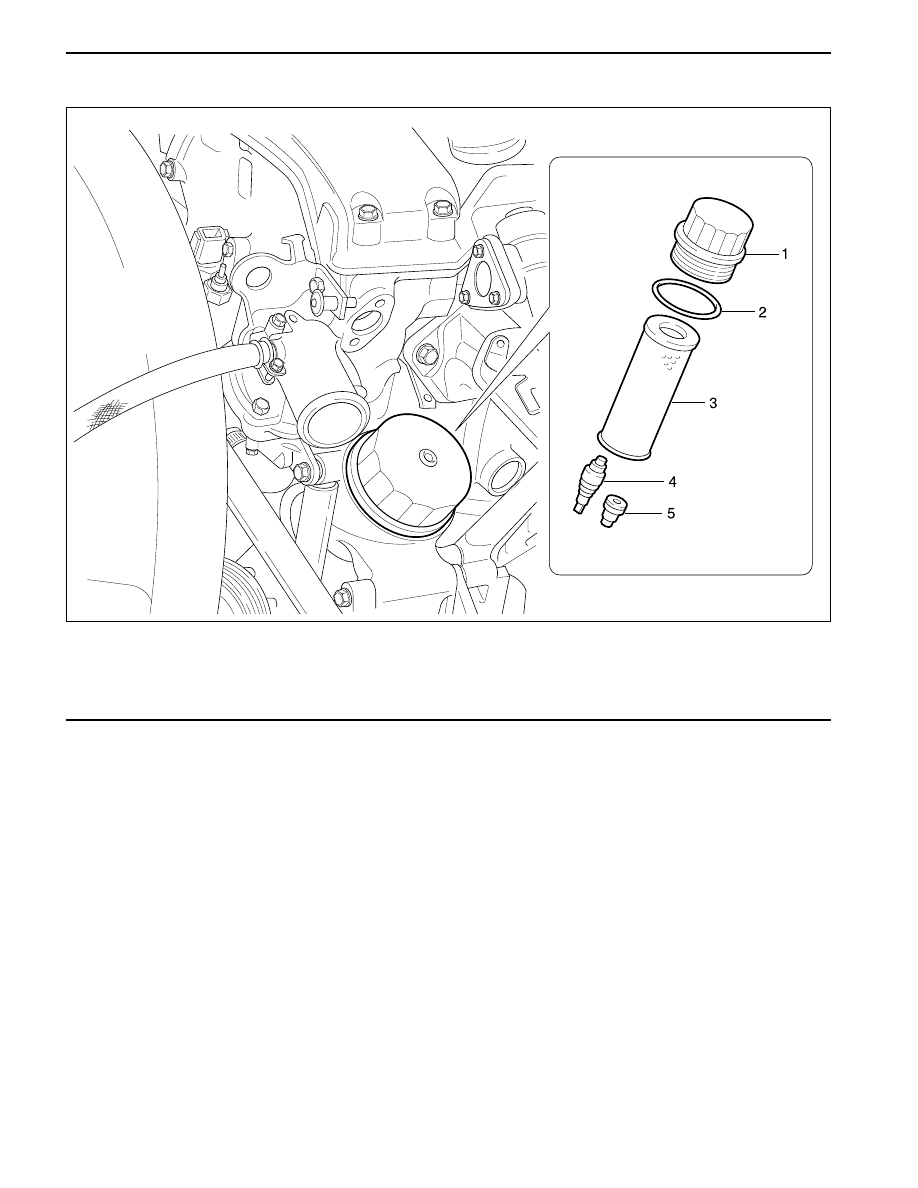

ENGINE OIL AND OIL FILTER ELEMENT

1 Oil Filter Cover 25 N•m (18 lb-ft)
2 O-Ring Replace
3 Oil Filter Element

4 Oil Drain Plug
5 Oil Filter Bypass Valve

M161 ENGINE MECHANICAL  1B2-89

SSANGYONG  Y200

YAD1B7S0

YAD1B7T0

Tools Required

103 589 02 09 00 Oil Filter Remover

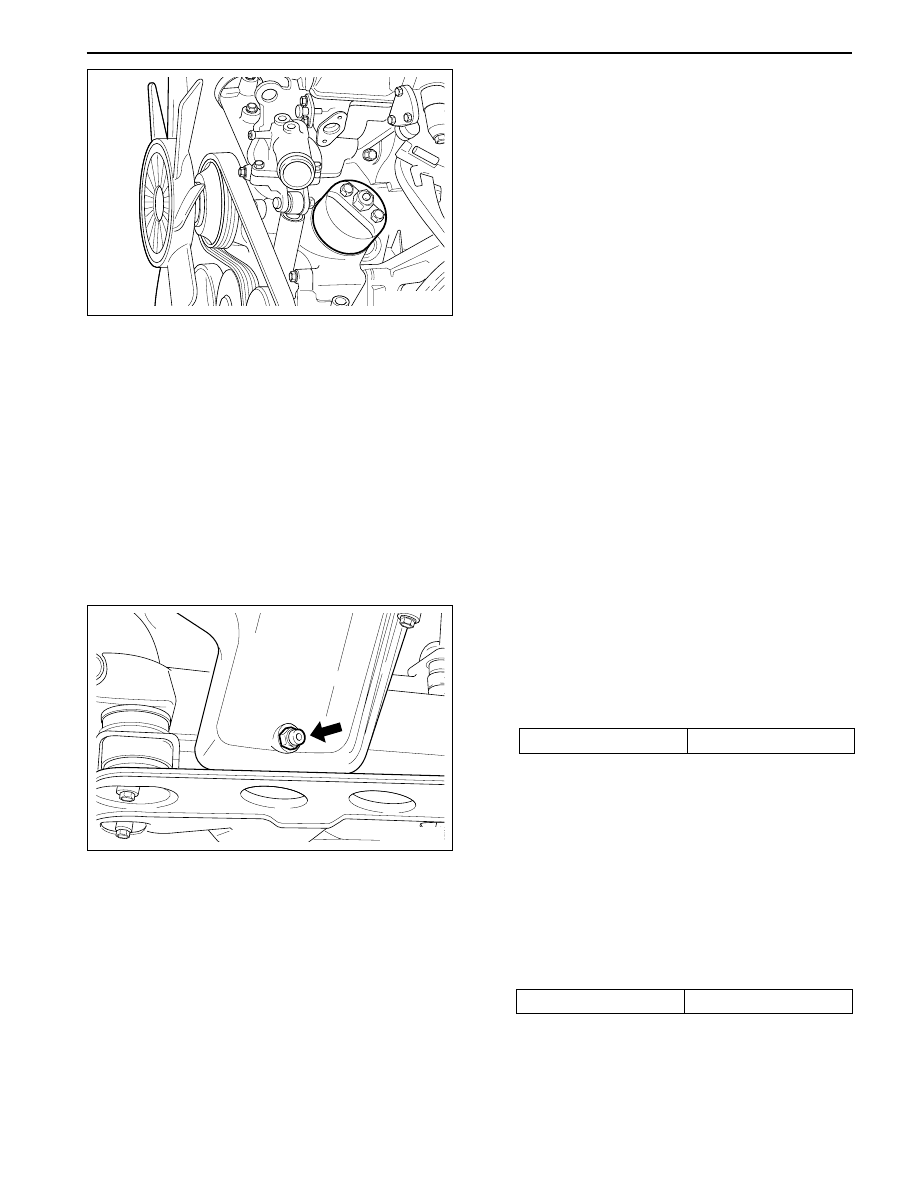

Replacement Procedure

1. Install the oil filter remover 103 589 02 09 00 on

the oil filter cover.

Notice:  Make the screw cover removable by
tightening  the bolt at the side of the oil filter
remover 103 589 02 09 00.

2. Install the wrench to the upper bolt in the oil filter

remover 103 589 02 09 00 and remove the oil cover
by turning it.

3. Remove the oil filter element.

Notice: Work with a cloth under the vehicle when
removing the oil filter element to not drain the oil.

4. Remove the drain plug and drain the engine oil.

Notice: Leave the oil filler cap open to ease the
engine oil discharge.

5. Tighten the engine oil drain plug after cleaning it.

Installation Notice

Replace the seal washer with new one.

6. Replace the O-ring in the oil filter cover with new

one.

Notice: Apply the engine oil to the O-ring.

7. Insert new oil filter element into the oil filter

housing.

8. Temporarily tighten the oil filter cover. Install the

Oil filter remover 103 589 02 09 00, and then
completely tighten it.

Installation Notice

Tightening Torque

25 N•m (18 lb-ft)

Tightening Torque

25 N•m (18 lb-ft)

SSANGYONG  Y200

1B2-90  M161 ENGINE MECHANICAL

9. Fill up engine oil through the engine oil filler

opening (3).

10. Check for oil leaks at normal engine temperature

after starting the engine.

11. Stop the engine and wait 5 minutes.

Check the oil level and fill up as specified if neces-
sary.
