M162 ENGINE MECHANICAL  1B1-23

SSANGYONG  Y200

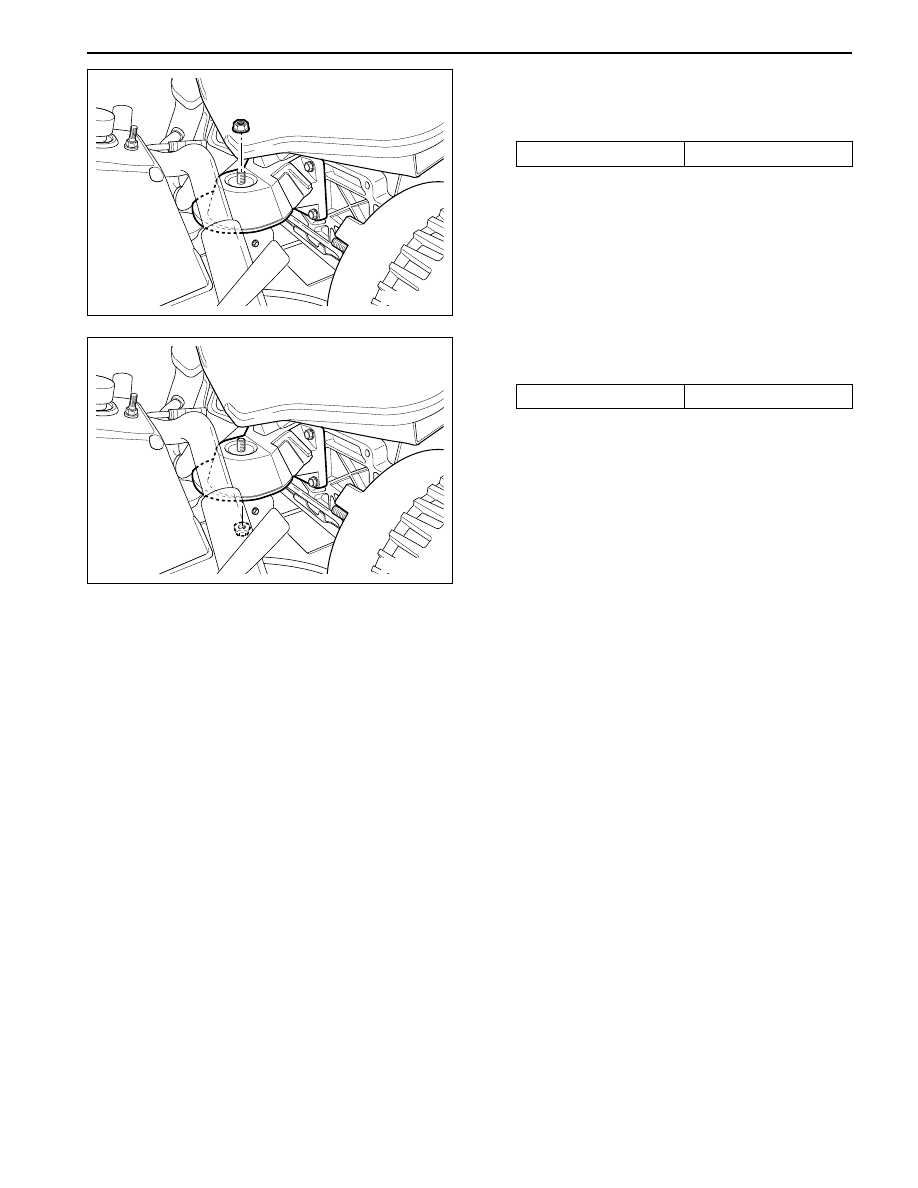

Removal and Installation Procedure

1. Unscrew the upper engine mounting nut.

Installation Notice

Tightening Torque

70  N•m (52 lb-ft)

Tightening Torque

38  N•m (28 lb-ft)

2. Unscrew the lower engine mounting nut.

Installation Notice

3. Remove the hydraulic engine mounting insulator.

Notice: If the insulator is spotted with oil, replace
the hydraulic insulator asseambly.

4. Installation should follow the removal procedure in

the reverse order.

YAD1B310

YAD1B320

SSANGYONG  Y200

1B1-24  M162 ENGINE MECHANICAL

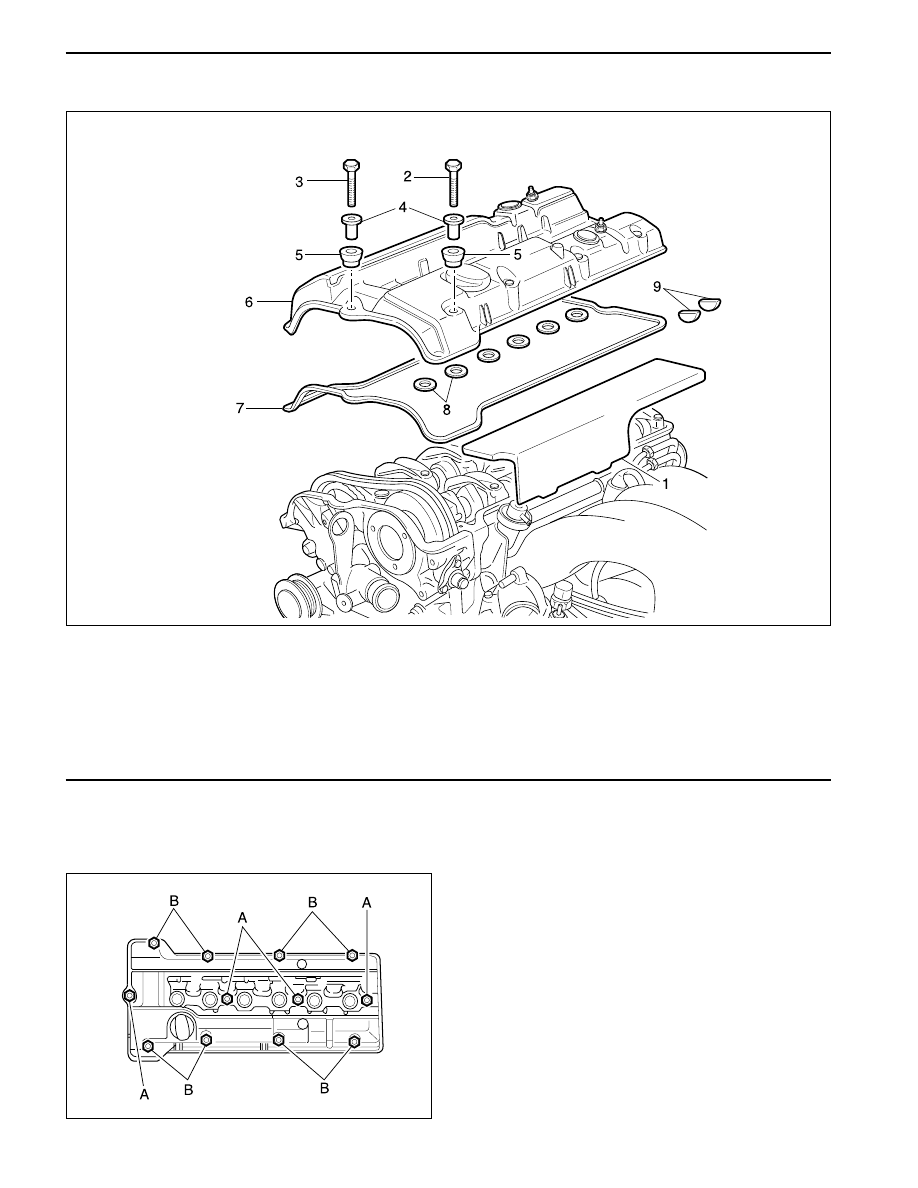

CYLINDER HEAD COVER

1 Ignition Cable Dust Cover
2 Bolt (M6 x 65, 8 pieces)

....................................... 9-11 N•m (80-97 lb-in)

3 Bolt (M6 x 50, 4 pieces)

....................................... 9-11 N•m (80-97 lb-in)

4 Spacer Sleeve

5 Thrust Piece
6 Cylinder Head Cover
7 Gasket .................................................... Replace
8 Spart Plug Hole Seal ............................. Replace
9 Camshaft Seal ....................................... Replace

Composition of The Cylinder Head Cover
Bolts

A. M6 x 50, 4 Pieces - Bolts + Washers

B. M6 x 65, 8 Pieces - Bolts + Washers

YAD1B450

YAD1B460

M162 ENGINE MECHANICAL  1B1-25

SSANGYONG  Y200

2. Remove the spark plug cover.

Installation Notice

4. Unscrew all the bolts (2,3) and remove the head

cover and the gasket.

Installation Notice

Replace the gasket with a new one if necessary.

5. Installation should follow the removal procedure in

the reverse order.

6. Check for oil leaks by operating the engine.

3. Remove the spark plug connector and ignition

cable.

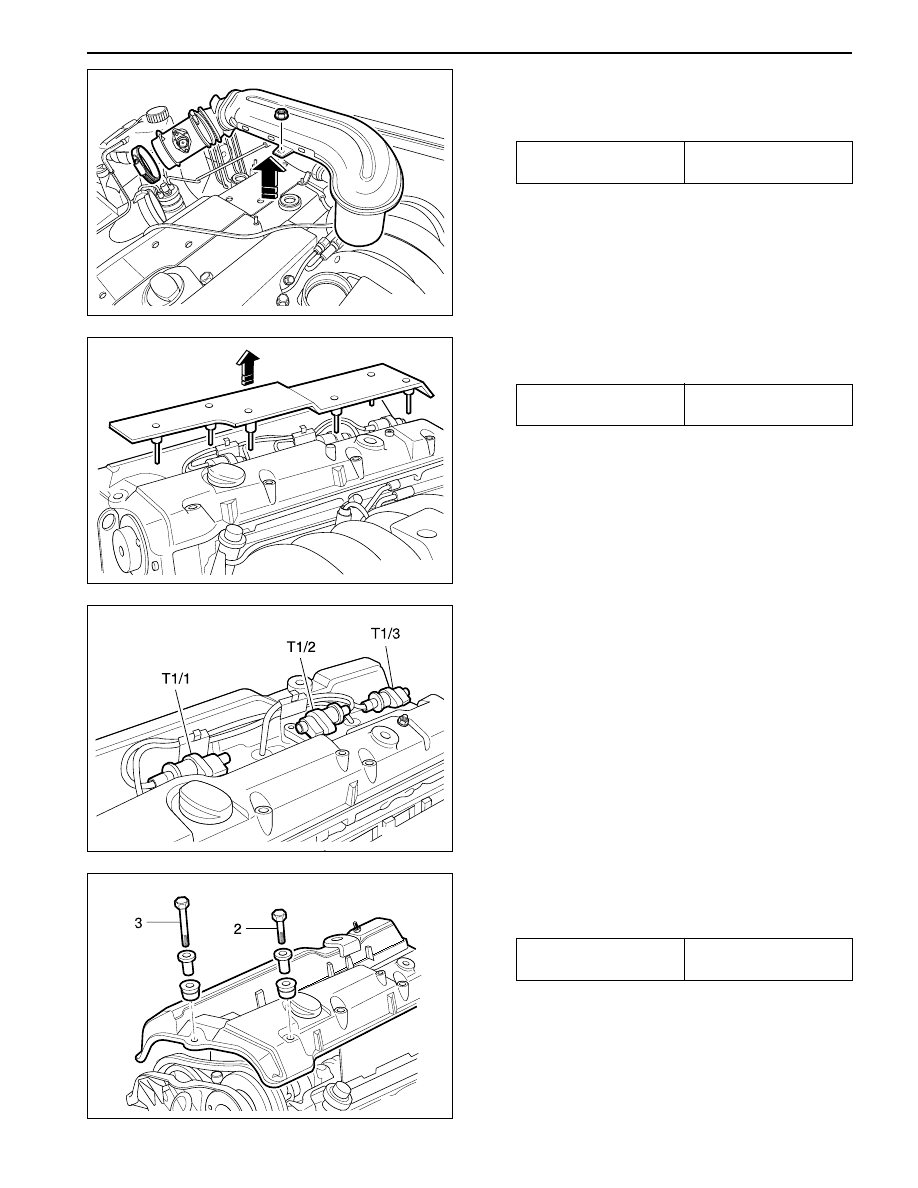

Removal & Installation Procedure

1. Remove the intake air duct.

Installation Notice

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

Unscrew the seven (M6 x 60) bolts and remove
the spark plug cover.

YAD1B470

YAD1B480

YAD1B490

YAD1B500

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

SSANGYONG  Y200

1B1-26  M162 ENGINE MECHANICAL

Removal & Installation Procedure

1. Remove the camshaft actuator.

Installation Notice

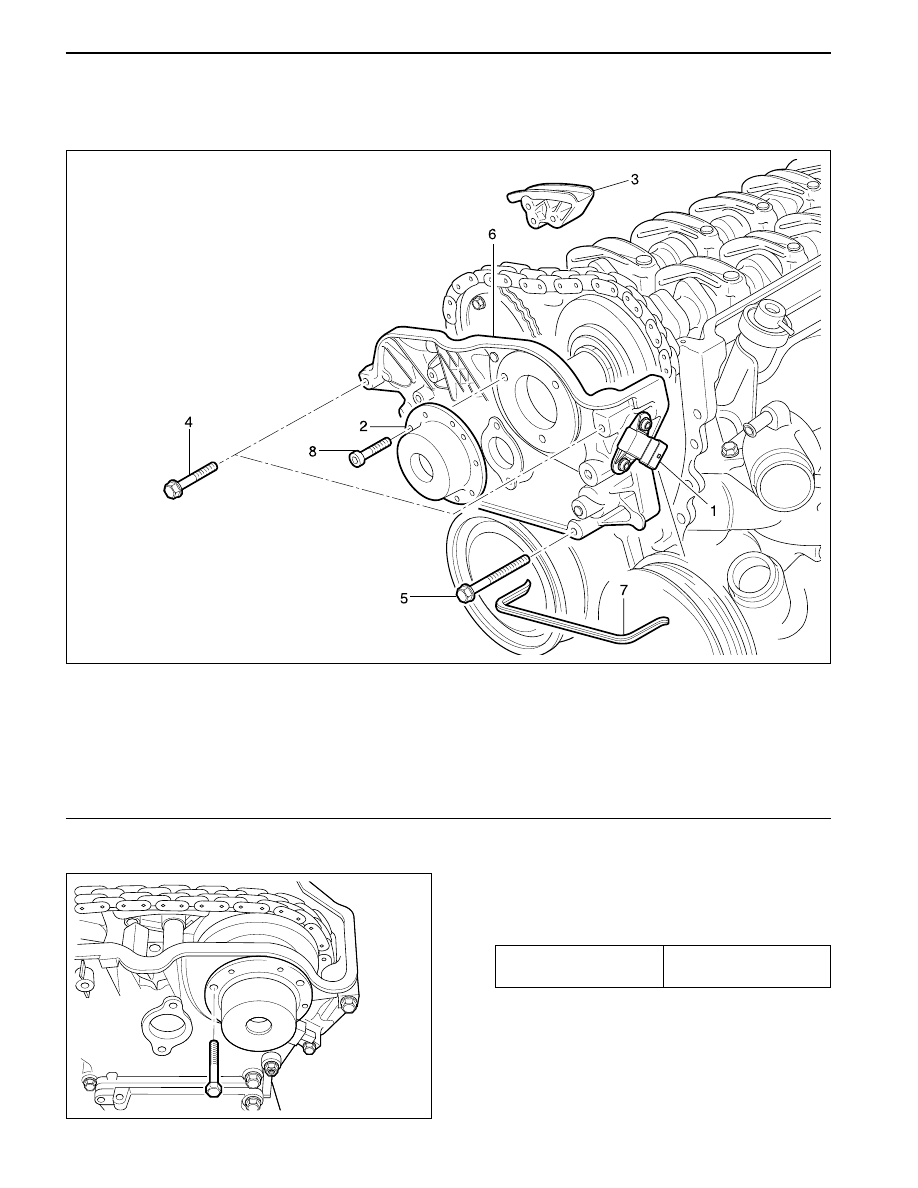

CYLINDER HEAD FRONT COVER

Preceding Work : Removal of cylinder head cover

Removal of coolant connection fitting

1 Camshaft Position Sensor
2 Camshaft Actuator
3 Upper Guide Rail
4 Bolt (M6 x 60, 3 pieces)

........................... 22.5-27.5 N•m (16.6-20.3 lb-ft)

5 Bolt (M8 x 80, 3 pieces)

........................... 22.5-27.5 N•m (16.6-20.3 lb-ft)

6 Front Cover
7 Rubber Gasket ...................................... Replace
8 Bolt (M6 x 16, 3 pieces)

......................................... 9-11 N•m (80-97 lb-in)

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

YAD1B510

YAD1B520
