SSANGYONG  REXTON XDi(RHD)

5-124  ELECTRICAL WIRING DIAGRAMS

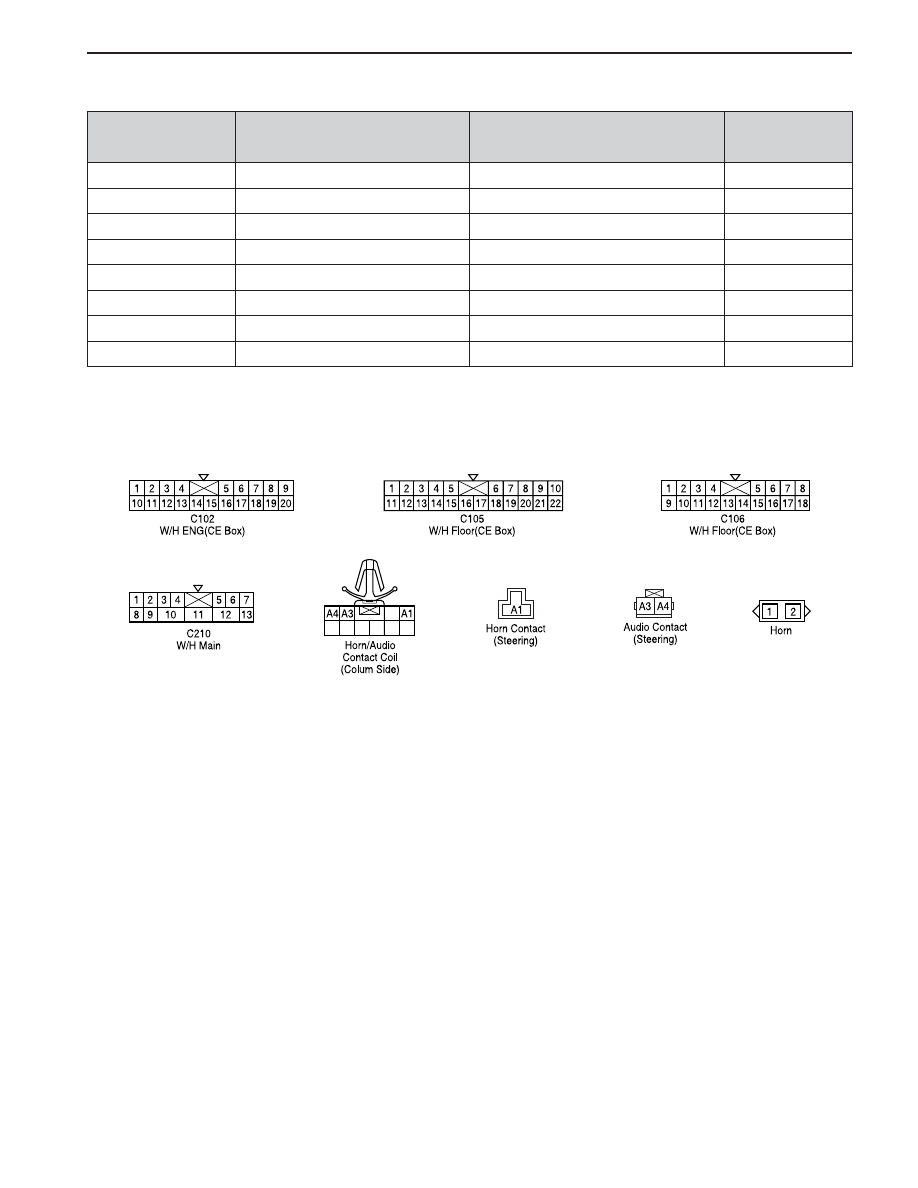

31. HORN CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-125

SSANGYONG  REXTON XDi(RHD)

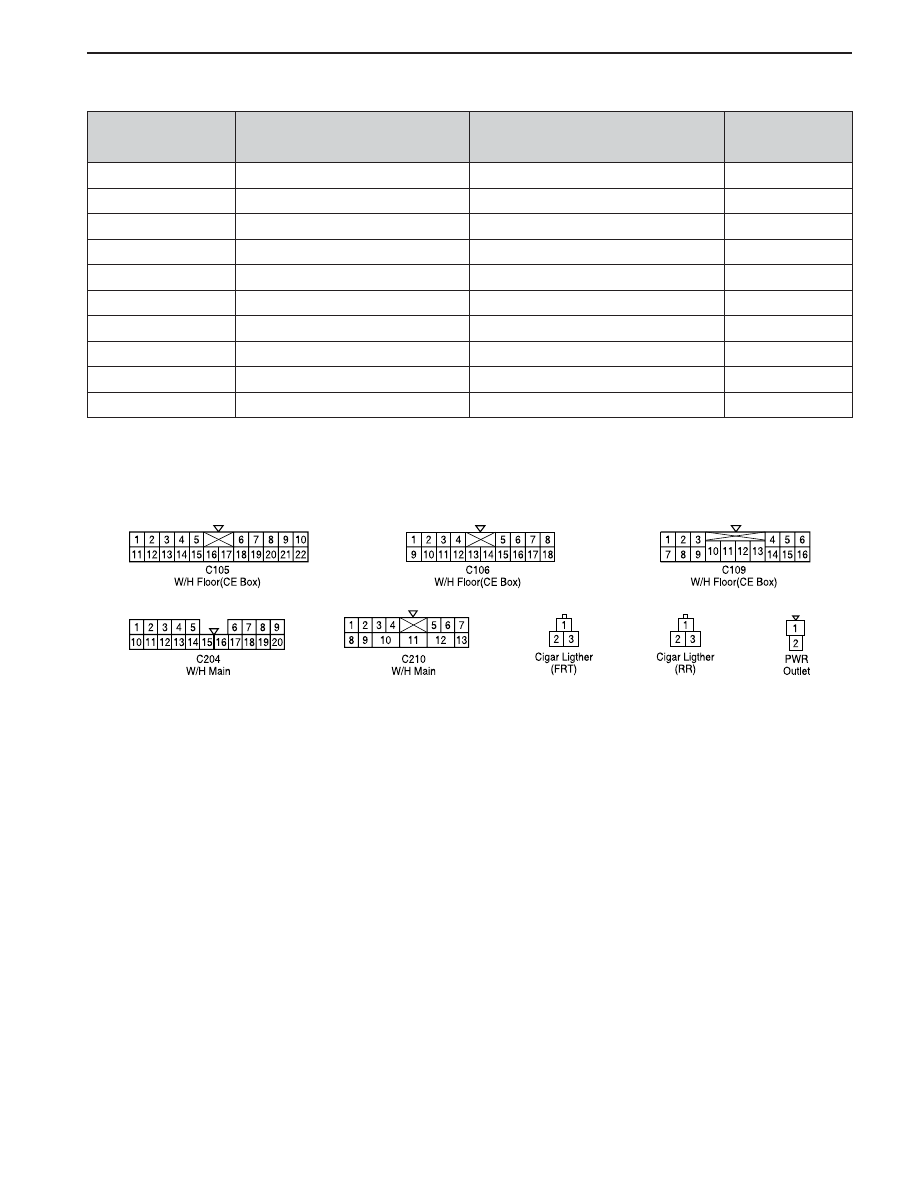

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Main - Floor(LH)

W/H Main

W/H Engine

W/H Engine

W/H Main

C102(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C210(13Pin, Green)

S204(14Pin, Black)

G102

G105

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Behind the Left the FATC

Center BATT

Behind the Right Head Lamp

Inside Driver Side Cowl PNL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-126  ELECTRICAL WIRING DIAGRAMS

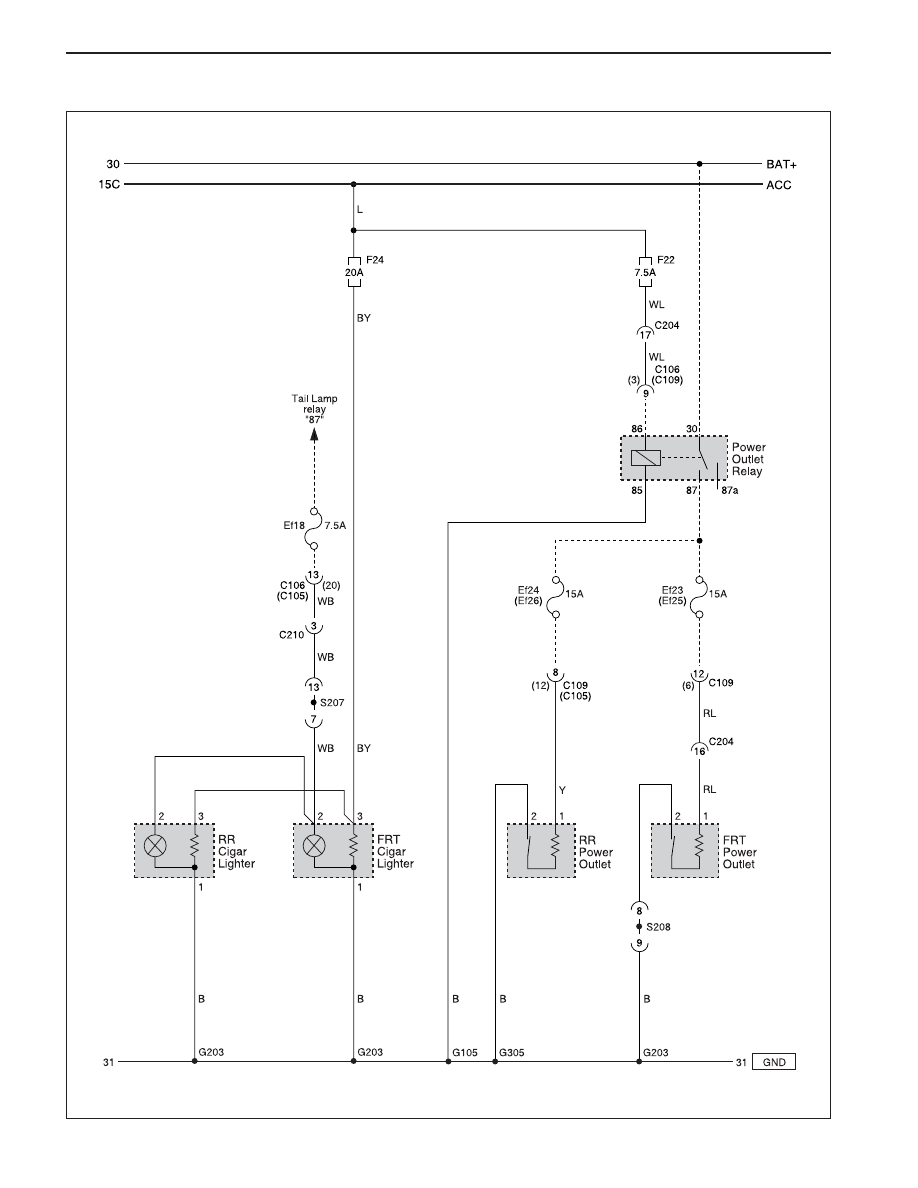

32. CIGAR LIGHTER CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-127

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Engine - Main(LH)

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Floor

C105(22Pin, White)

C106(18Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

C210(13Pin, Green)

S207(14Pin, Black)

S208(14Pin, Black)

G105

G203

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Behind the Right the FATC

Behind the Right the FATC

Behine the Right Head Lamp

Under the Seat Heating SW

Behind the Quarter Grass #1

Tail Lamp

W/H Air Bag

Remark

Connector Position
