5-120  ELECTRICAL WIRING DIAGRAMS

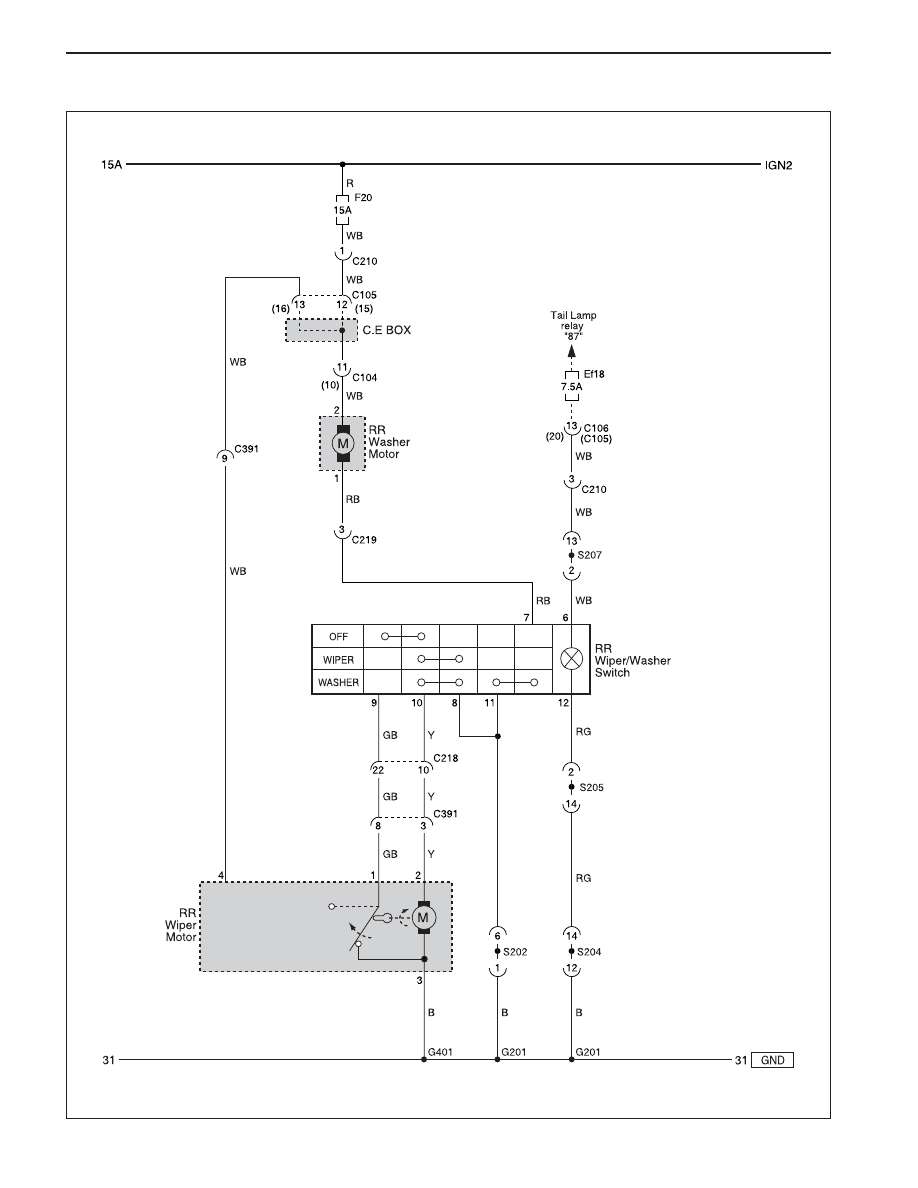

29. REAR GLASS WIPER & WASHER CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-121

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

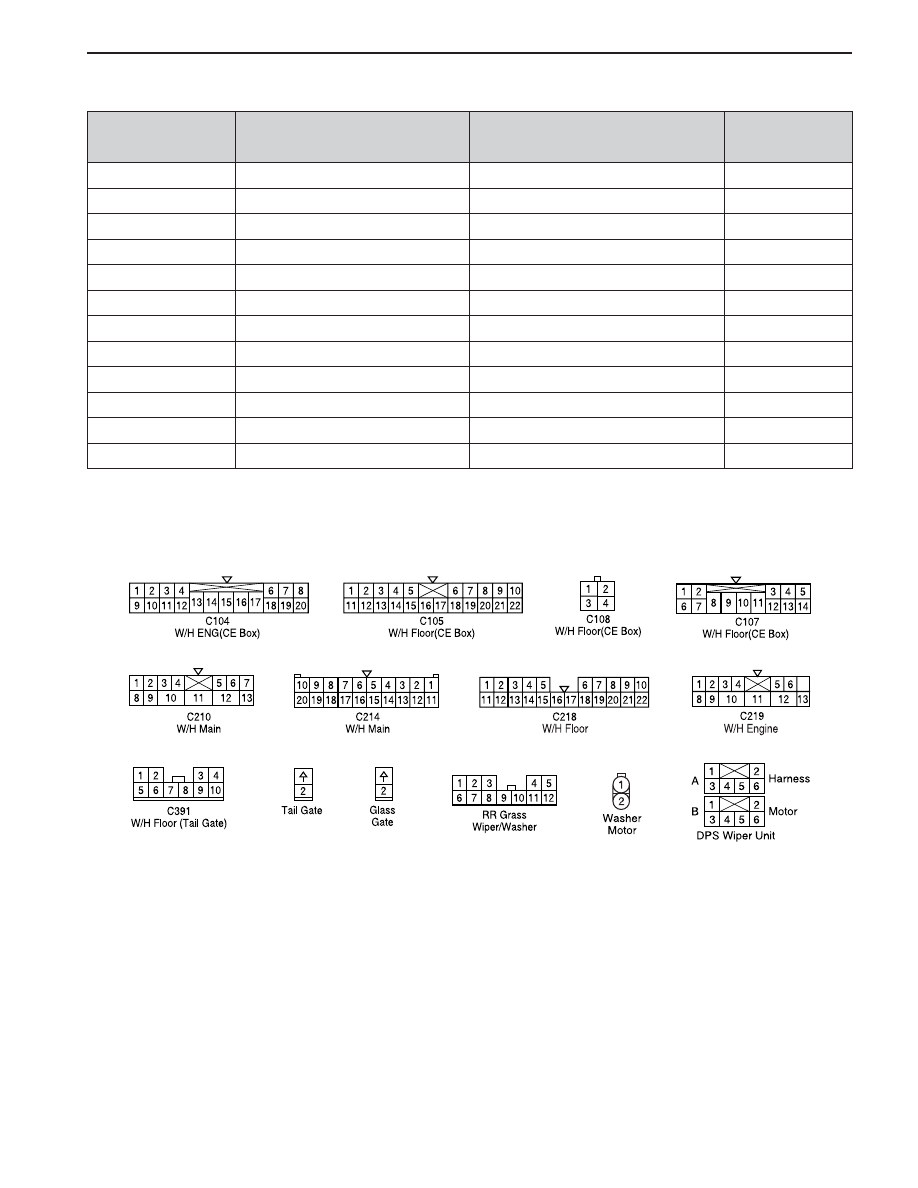

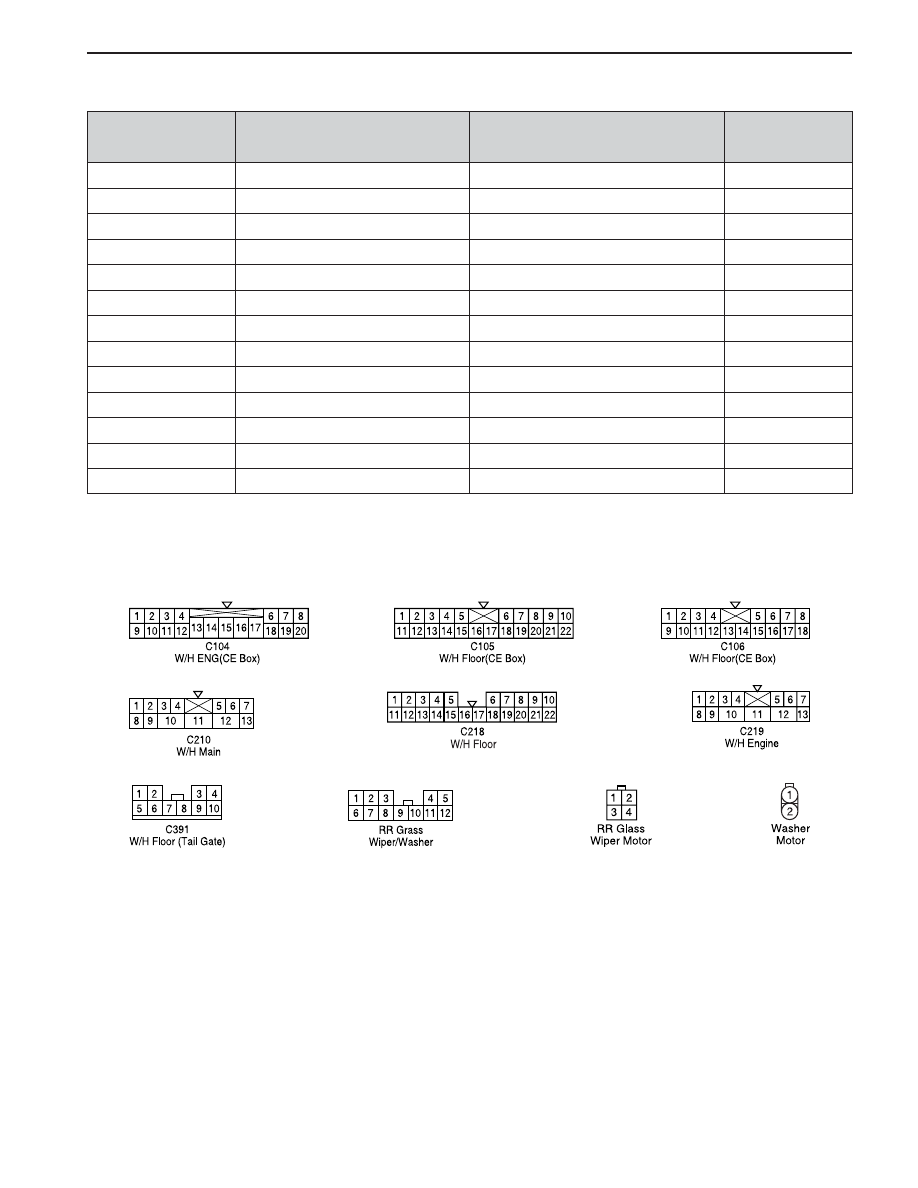

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine - Main(LH)

Main - Floor(RH)

Engine - Main(RH)

Floor - Tail Gate

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Tail Gate

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C210(13Pin, Green)

C218(22Pin, Yellow)

C219(13Pin, Green)

C391(10Pin, White)

S202(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

G201

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Inside Driver Side Cowl PNL

Center the Tail Gate

GND

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-122  ELECTRICAL WIRING DIAGRAMS

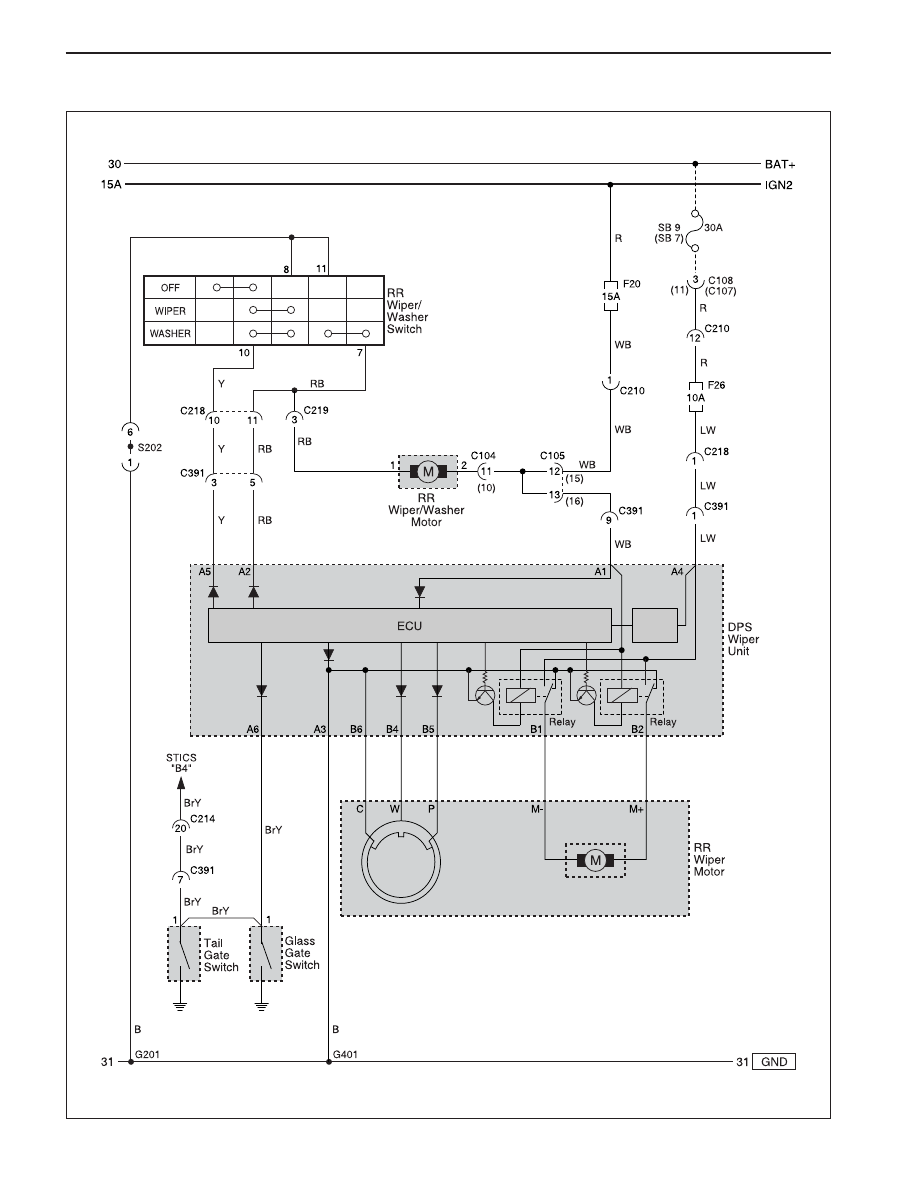

30. REAR GLASS DPS WIPER & WASHER CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-123

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Engine - Main(LH)

Main - Floor(RH)

Main - Floor(RH)

Engine - Main(RH)

Floor - Tail Gate

W/H Main

W/H Main

W/H Floor

C104(20Pin, White)

C105(22Pin, White)

C107(14Pin, White)

C108(4Pin, Colorless)

C210(13Pin, Green)

C214(20Pin, Black)

C218(22Pin, Yellow)

C219(13Pin, Green)

C391(10Pin, White)

S202(14Pin, Black)

G201

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Inside Driver Side Cowl PNL

Center the Tail Gate

Remark

Connector Position
