SsangYong Rexton. Manual - part 201

SSANGYONG  REXTON XDi(RHD)

5-108  ELECTRICAL WIRING DIAGRAMS

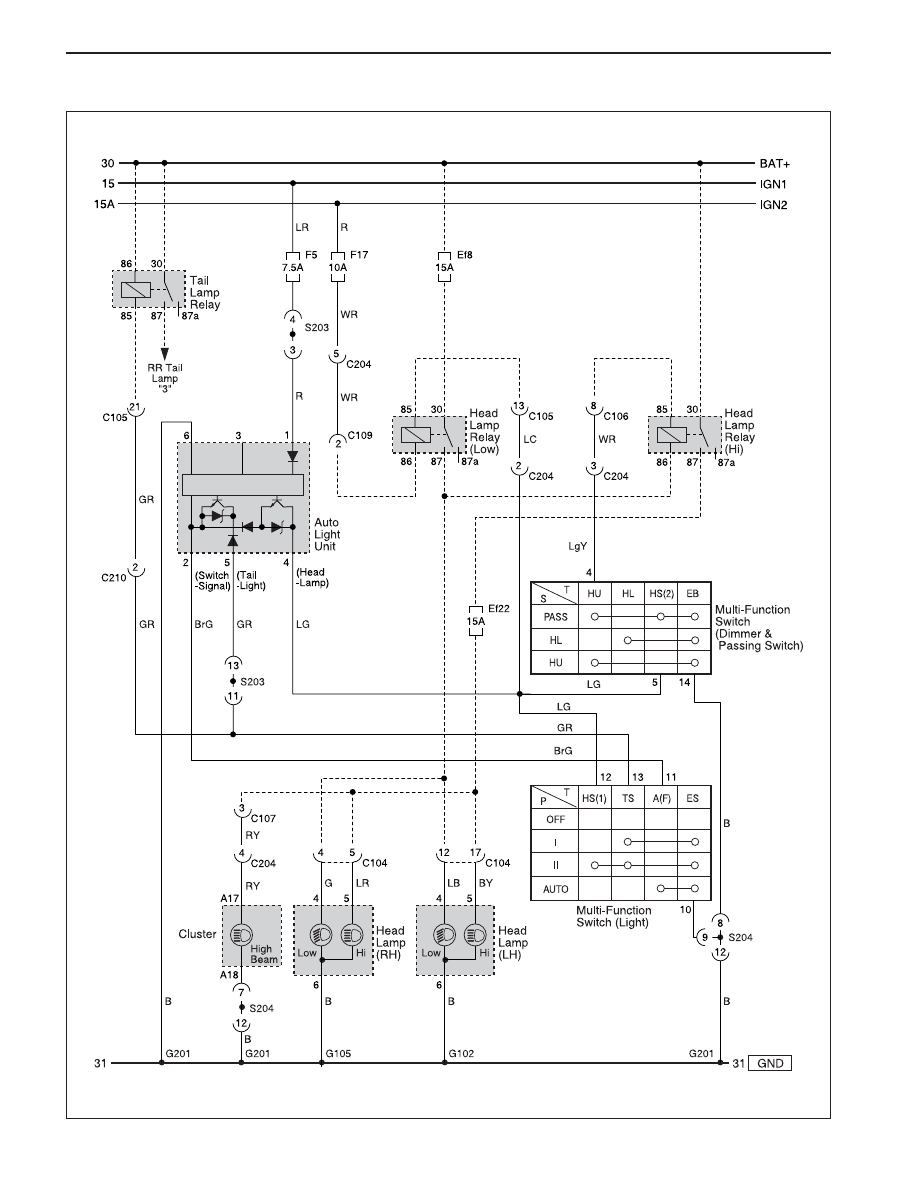

2) 2003 MODEL ~

ELECTRICAL WIRING DIAGRAMS  5-109

SSANGYONG  REXTON XDi(RHD)

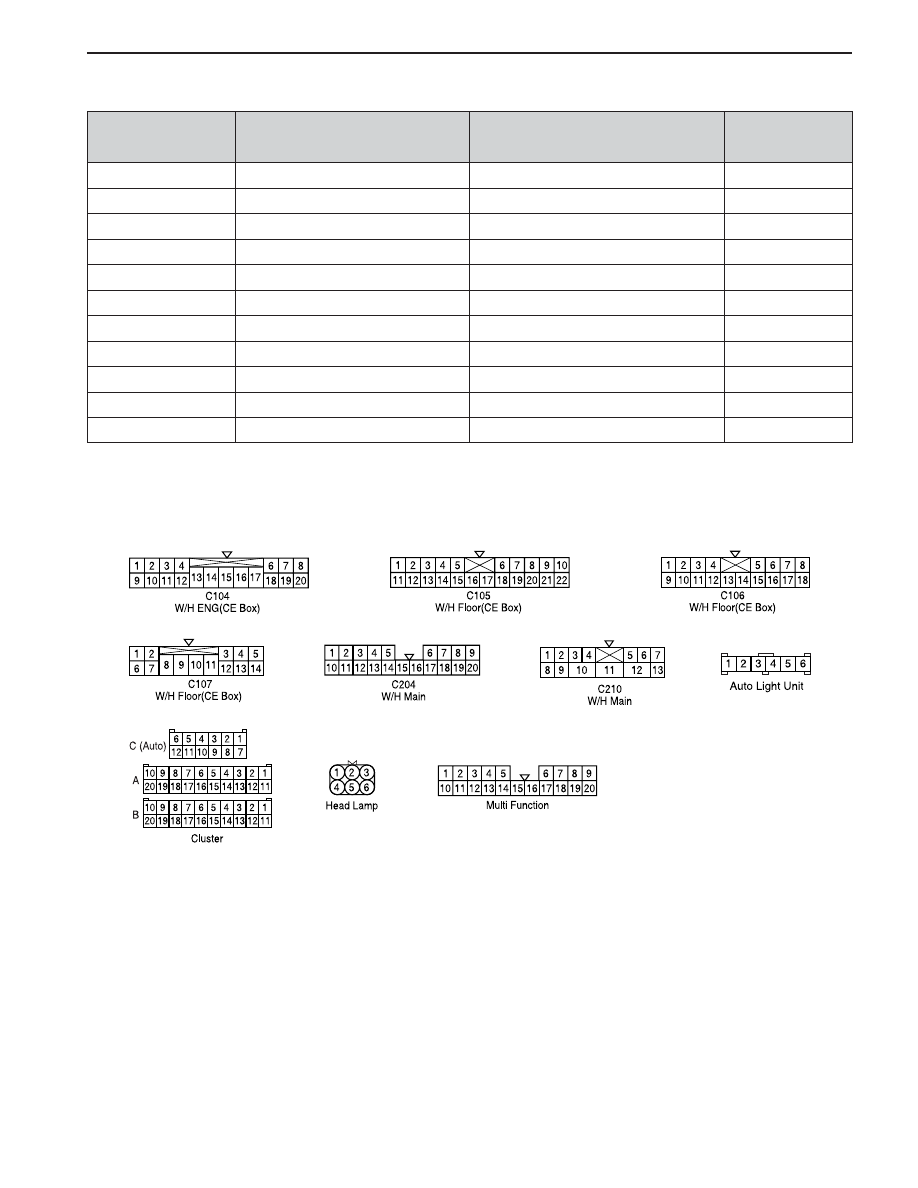

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Main - Floor(LH)

Engine - Main(LH)

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C204(20Pin, Black)

C210(13Pin, Green)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G105

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-110  ELECTRICAL WIRING DIAGRAMS

27. STICS

1)  ~ 2002 MODEL

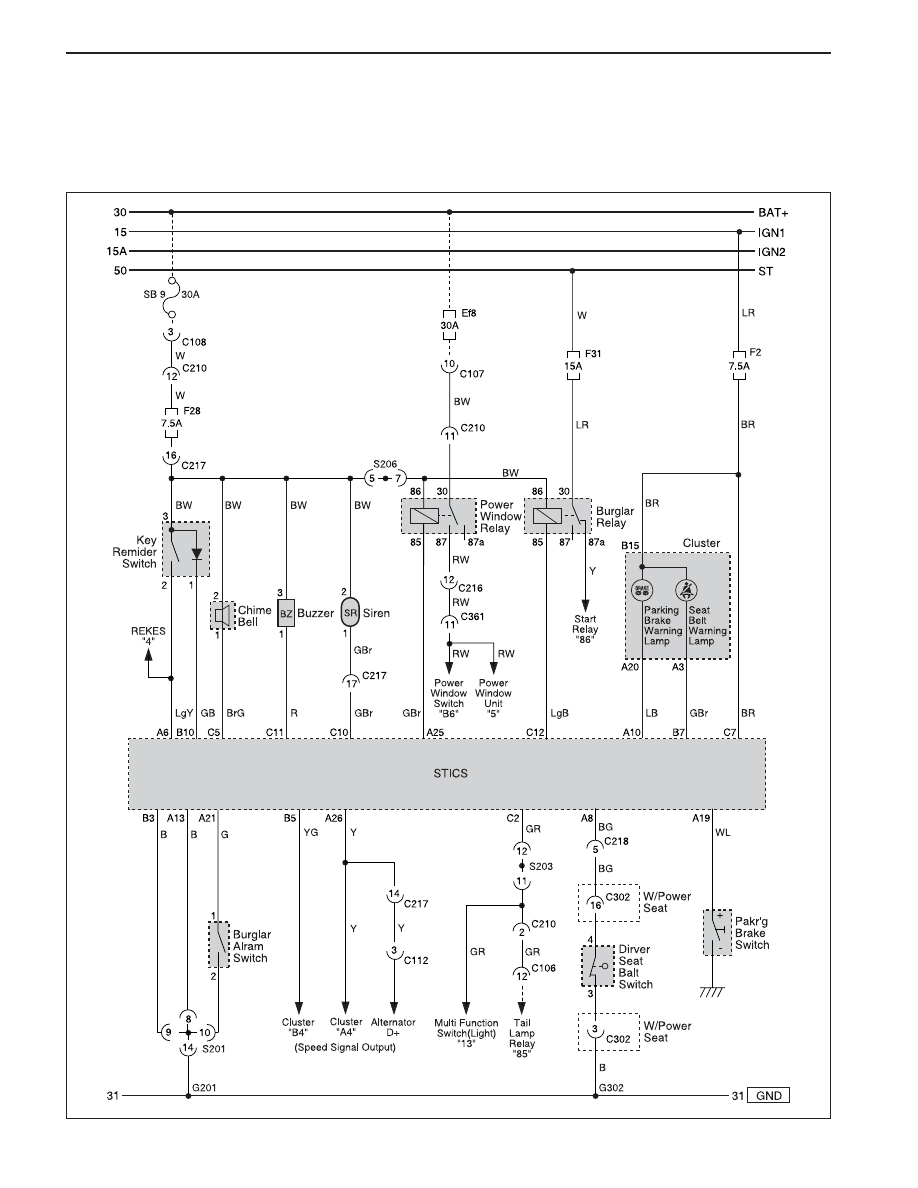

(1) POWER SUPPLY, GND, CHIME BELL, BUZZER, WARNING LAMP(PARKING BRAKE, SEAT

BELT) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-111

SSANGYONG  REXTON XDi(RHD)

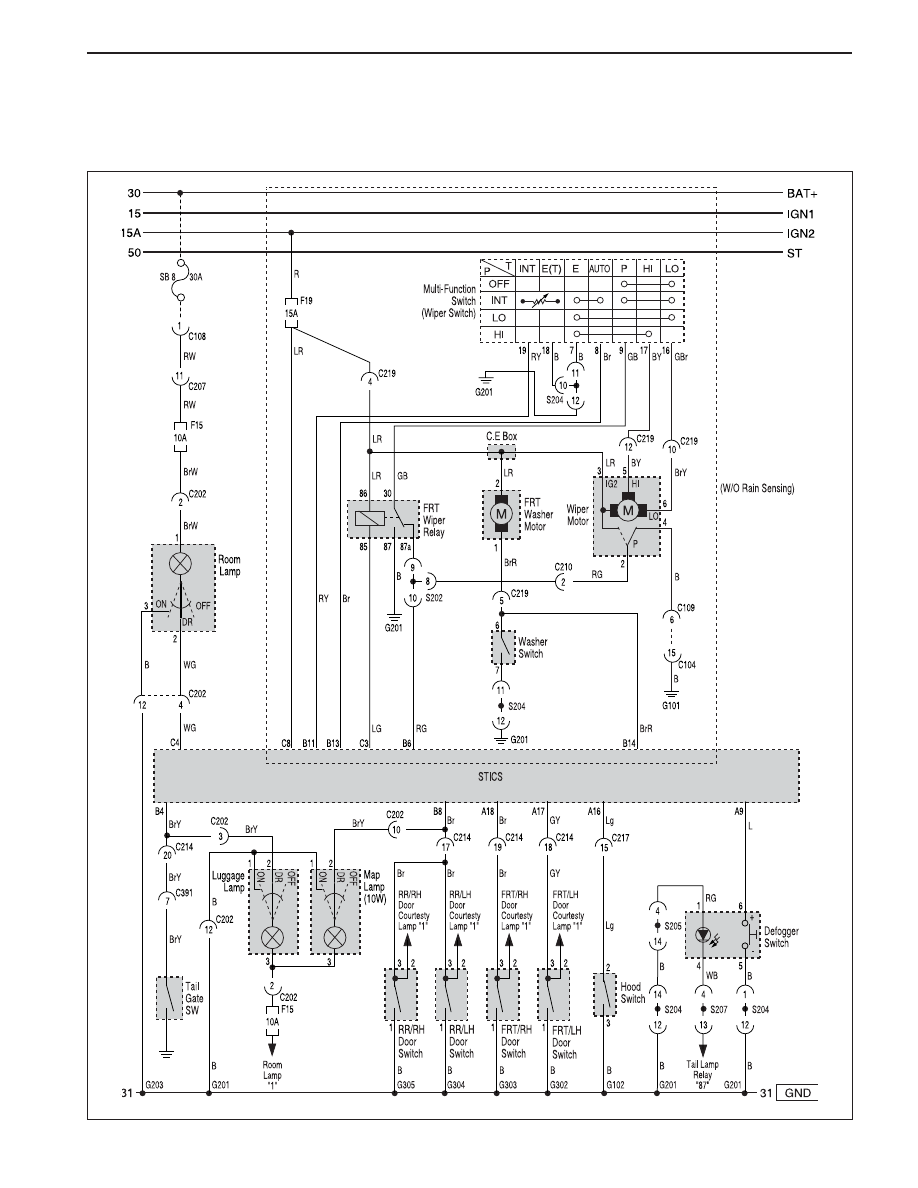

(2) FRT WIPER, DR SWITCH, LAMP(ROOM, MAP) CIRCUIT
