SsangYong Rexton. Manual - part 200

SSANGYONG  REXTON XDi(RHD)

5-104  ELECTRICAL WIRING DIAGRAMS

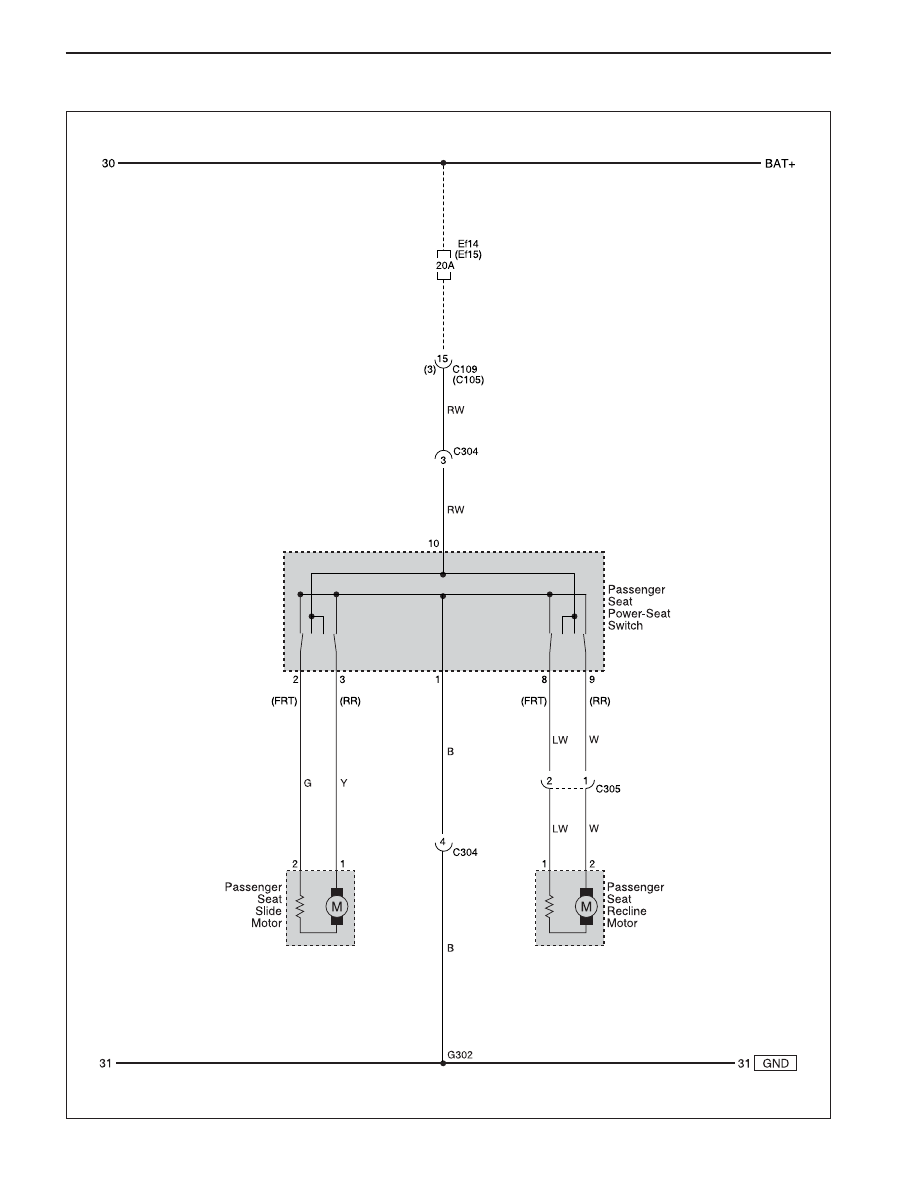

25. PASSENGER POWER SEAT CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-105

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

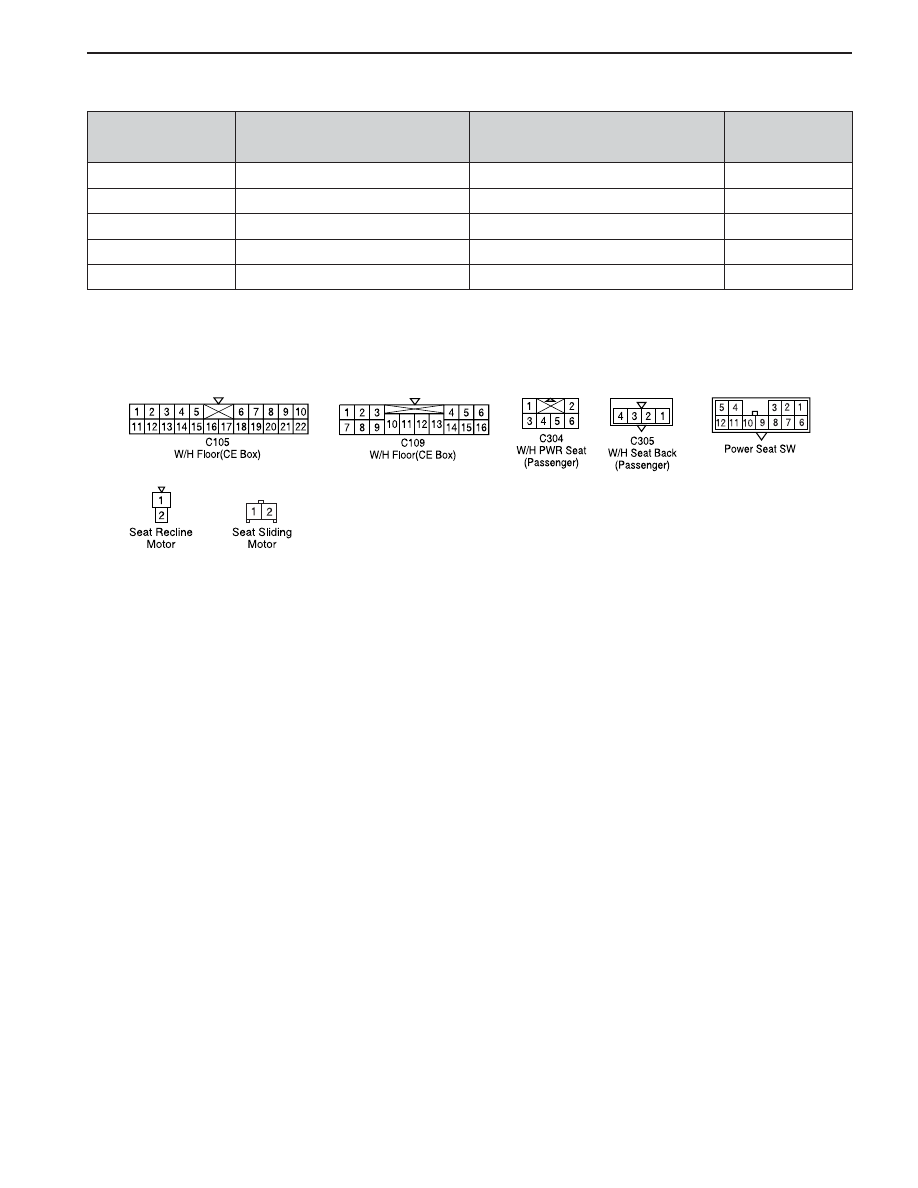

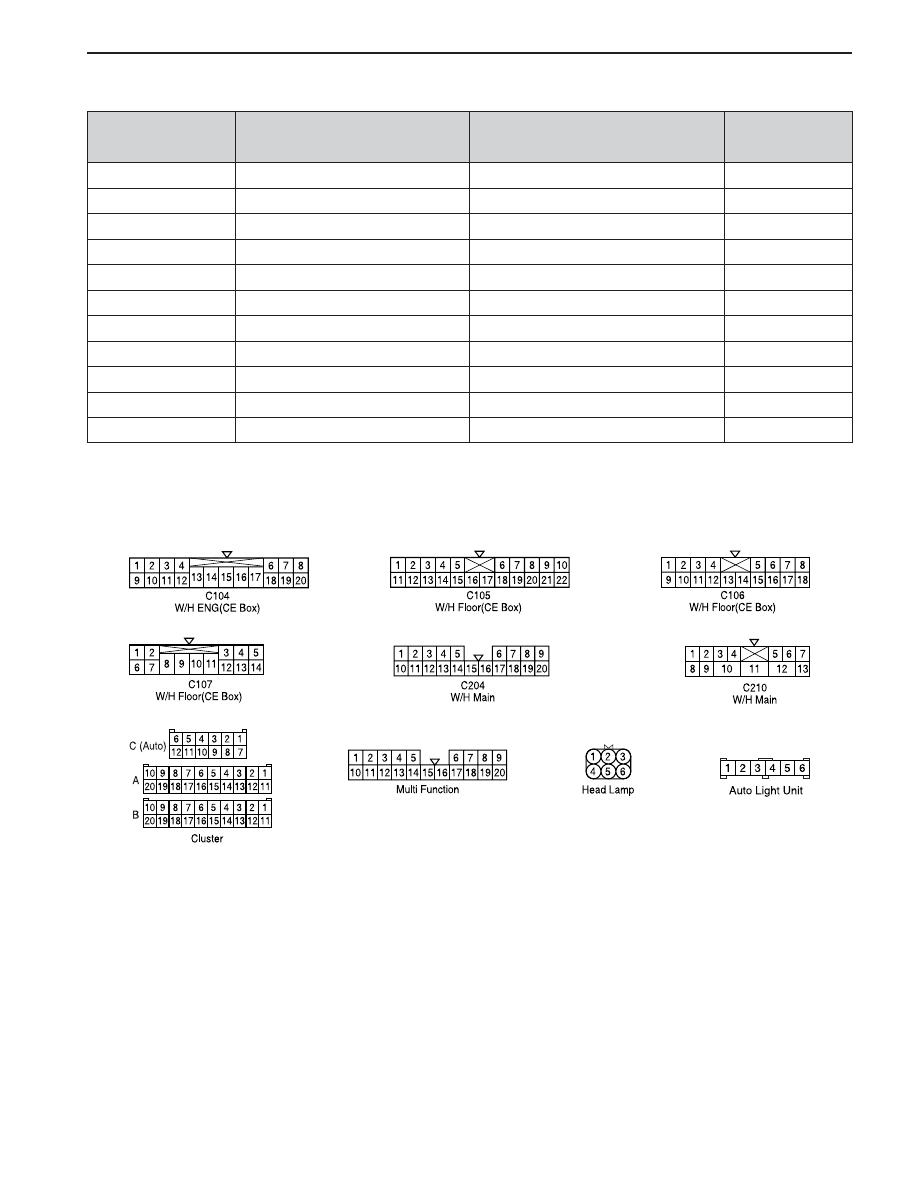

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(M) - Engine

Floor - Co-Driver Seat

Co-Driver Seat - Seat Back

W/H Floor

C105(22Pin, White)

C109(16Pin, White)

C304(6Pin, White)

C305(4Pin, White)

G302

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Under the Co-Driver Seat

Under the Co-Driver Seat

Under Driver Seat

Power Seat

Power Seat

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-106  ELECTRICAL WIRING DIAGRAMS

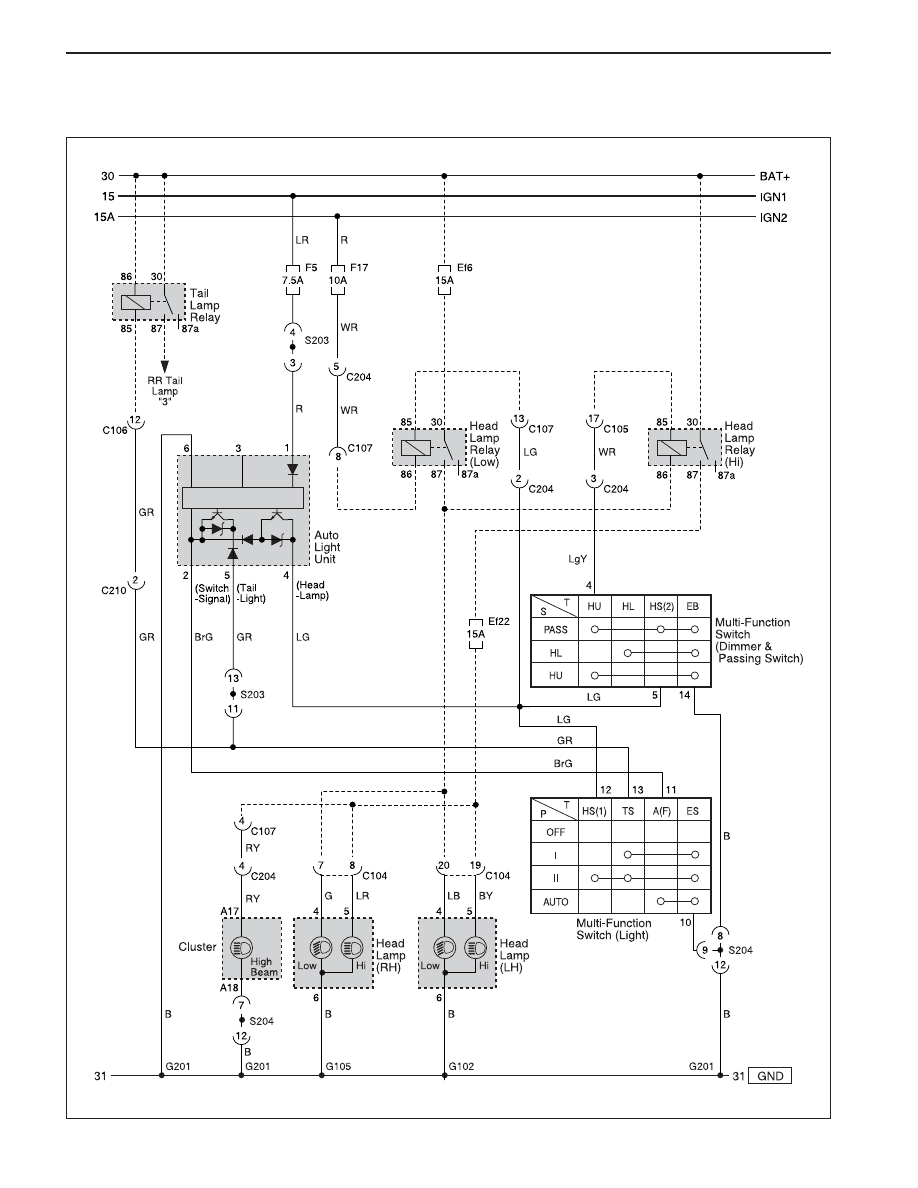

26. AUTO LIGHT CONTROL CIRCUIT

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-107

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Main - Floor(LH)

Engine - Main(LH)

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C204(20Pin, Black)

C210(13Pin, Green)

S203(14Pin, Black)

S204(14Pin, Black)

G102

G105

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

GND

Remark

Connector Position
