SsangYong Rexton. Manual - part 194

SSANGYONG  REXTON XDi(RHD)

5-80  ELECTRICAL WIRING DIAGRAMS

3) XDi

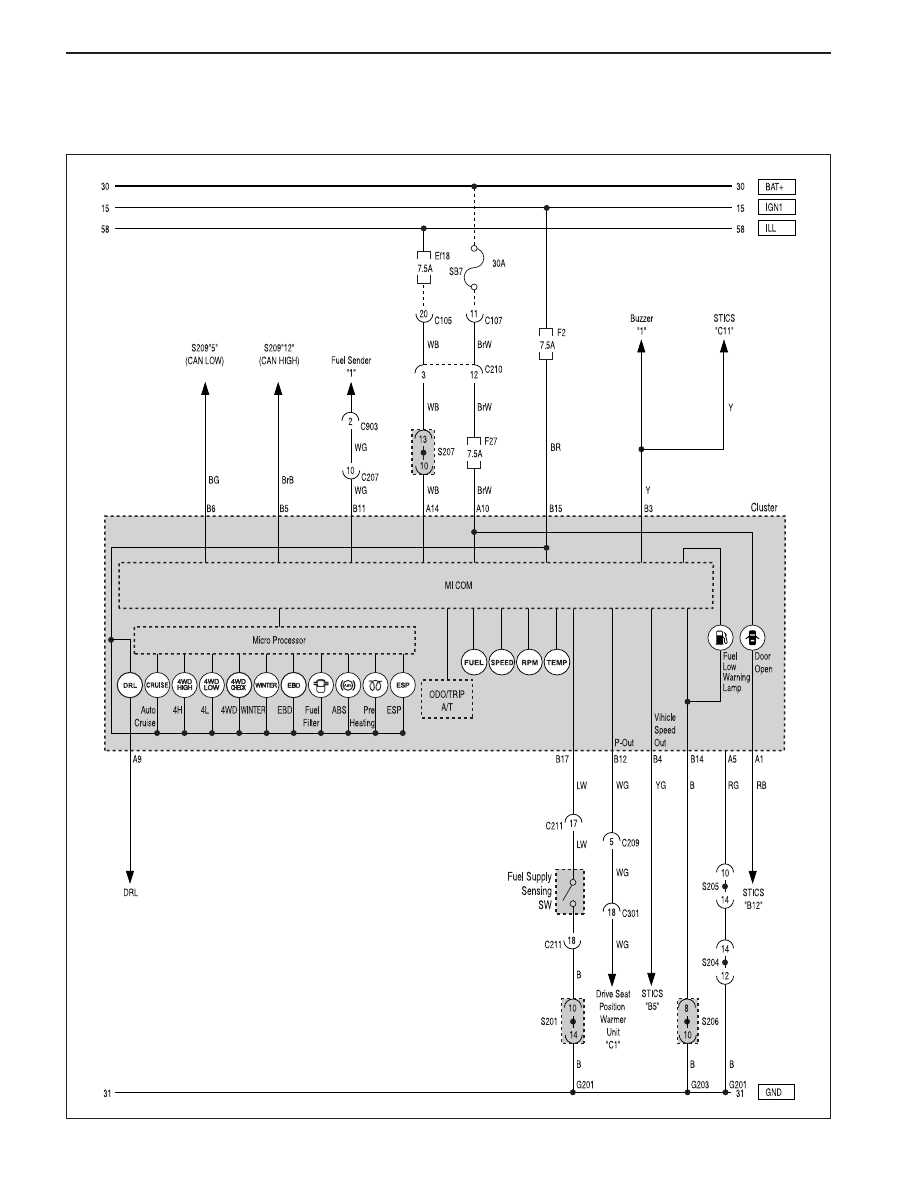

(1) GAUGE(SPEED, RPM, FUEL, TEMP), WARNING(FUEL, DR OPEN, FUEL FILTER, ABS/

ESP)

ELECTRICAL WIRING DIAGRAMS  5-81

SSANGYONG  REXTON XDi(RHD)

(2) WARNING(BAT CHANGE OIL, BRAKE, EGR CHECK, AIR BAG, SSPS, SEAT BELT), TURN

SIGNAL DEFOGGER

SSANGYONG  REXTON XDi(RHD)

5-82  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

C106(18Pin, White)

C107(14Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C111(2Pin, Black)

C112(4Pin, Black)

C112(2Pin, Black)

C113(12Pin, Black)

C113(40Pin, Black)

C113(42Pin, Black)

C204(20Pin, Black)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, Black)

C211(18Pin, White)

C212(6Pin, White)

C215(14Pin, White)

C216(18Pin, White)

C217(20Pin, Black)

C903(6Pin, Black)

C903(2Pin, Black)

S203(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S206(14Pin, Black)

S207(14Pin, Black)

S208(14Pin, Black)

S209(14Pin, Black)

S302(14Pin, Black)

G201

G203

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Engine - Pre-Heating

Engine - Alternator

Engine - Alternator

Engine - Engine Control

Engine - Engine Control

Engine - Engine Control

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Air Bag

Engine - Main(RH)

Main - Floor(RH)

Engine - Main(RH)

Floor - Fuel Sender

Floor - Fuel Sender

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Main

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

RR Pre-Heating Unit

Under the Coolant Reserve Tank

Under the Coolant Reserve Tank

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Behind the Cluster(Inside Dash PNL)

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

Behind the Left FATC

Under Driver Seat

Inside Driver Side Cowl PNL

Under the Seat Heating SW

DSL

DSL

GSL

DSL

GSL

XDi

A/T

XDi

ABS, ABD

GSL

DSL

GND

GND

Tail Lamp

XDi

W/H Air Bag

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-83

SSANGYONG  REXTON XDi(RHD)

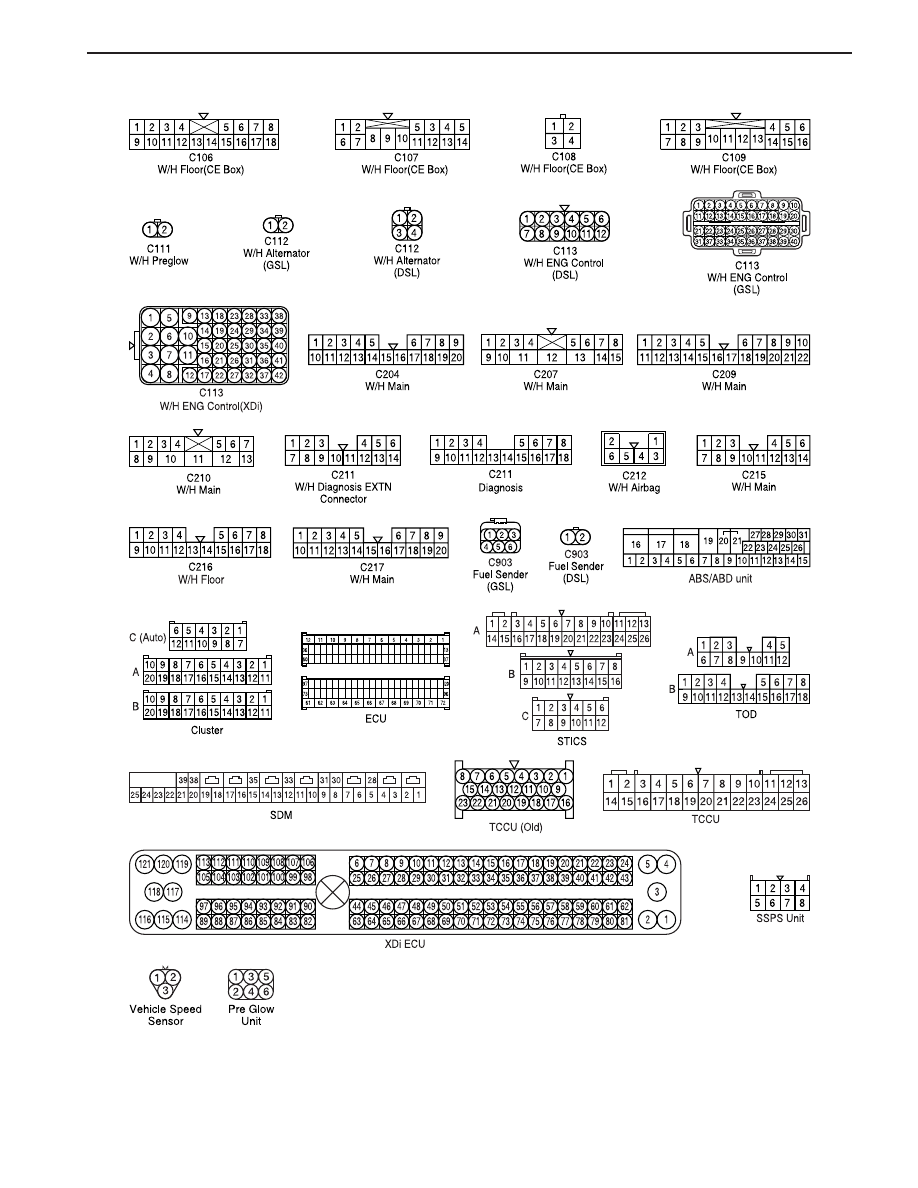

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
