SSANGYONG  REXTON XDi(RHD)

5-76  ELECTRICAL WIRING DIAGRAMS

16. CLUSTER

1)  ~ 2002 MODEL

(1) POWER SUPPLY, GROUND, LAMP(FUEL LOW WARNING, 4H, 4L) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-77

SSANGYONG  REXTON XDi(RHD)

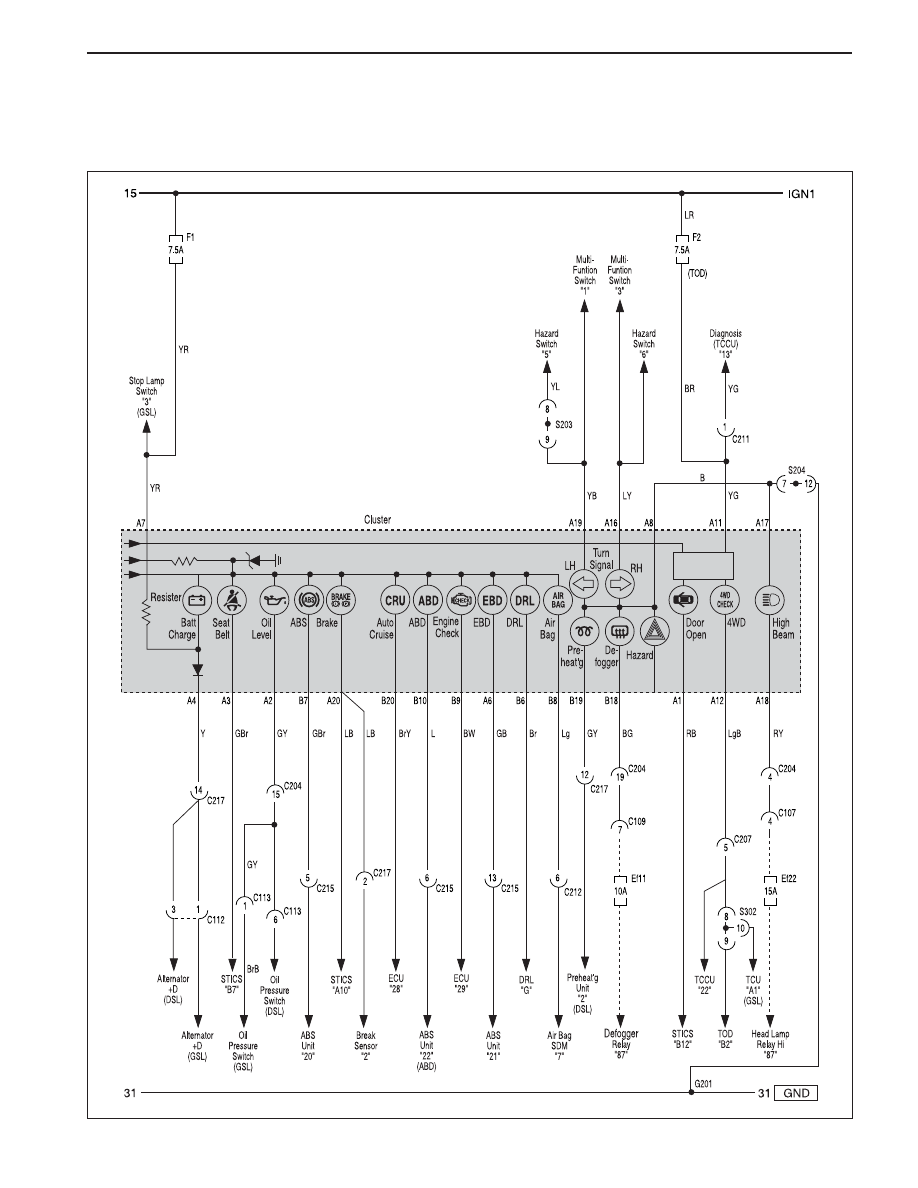

(2) WARNING LAMP, DEFOGGER CIRCUIT

SSANGYONG  REXTON XDi(RHD)

5-78  ELECTRICAL WIRING DIAGRAMS

2) 2003 MODEL ~

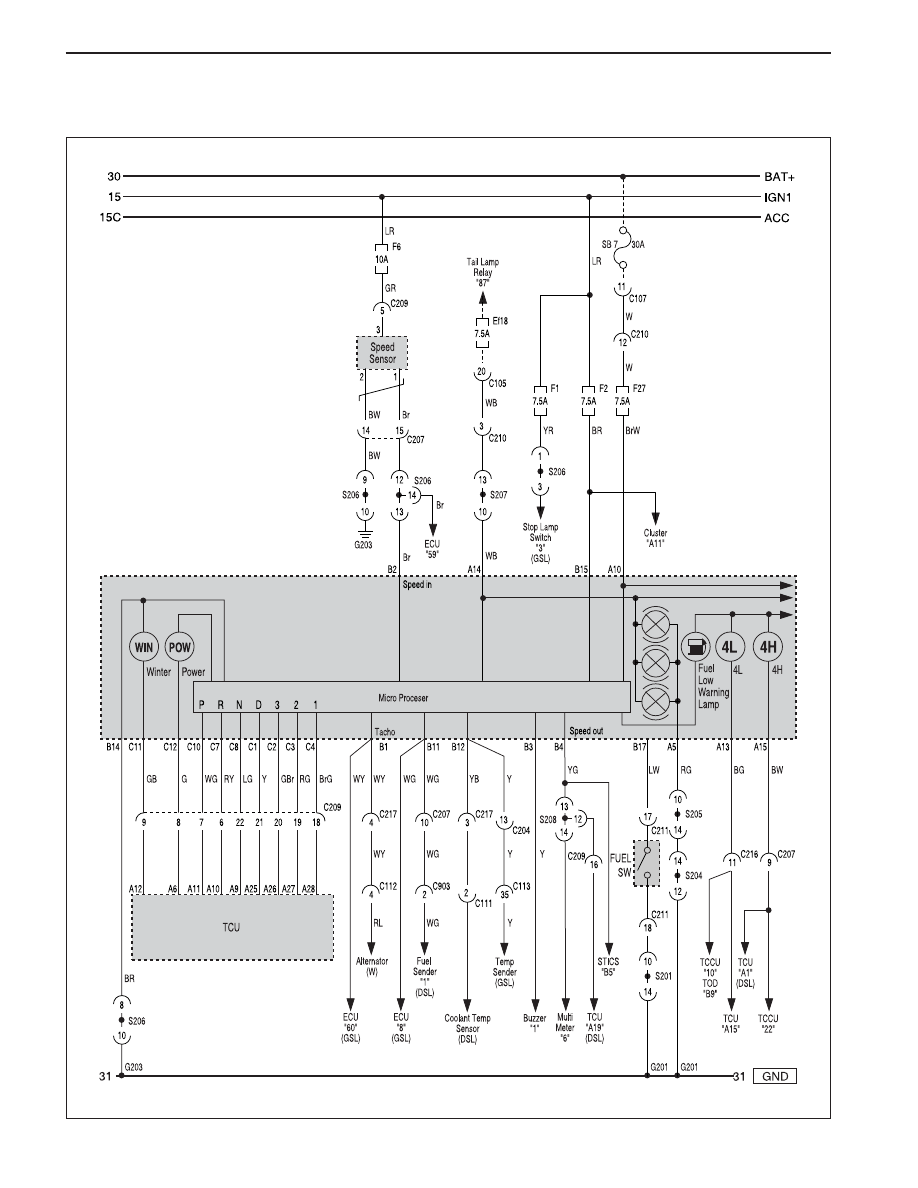

(1) POWER SUPPLY, GROUND, LAMP(FUEL LOW WARNING, 4H, 4L) CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-79

SSANGYONG  REXTON XDi(RHD)

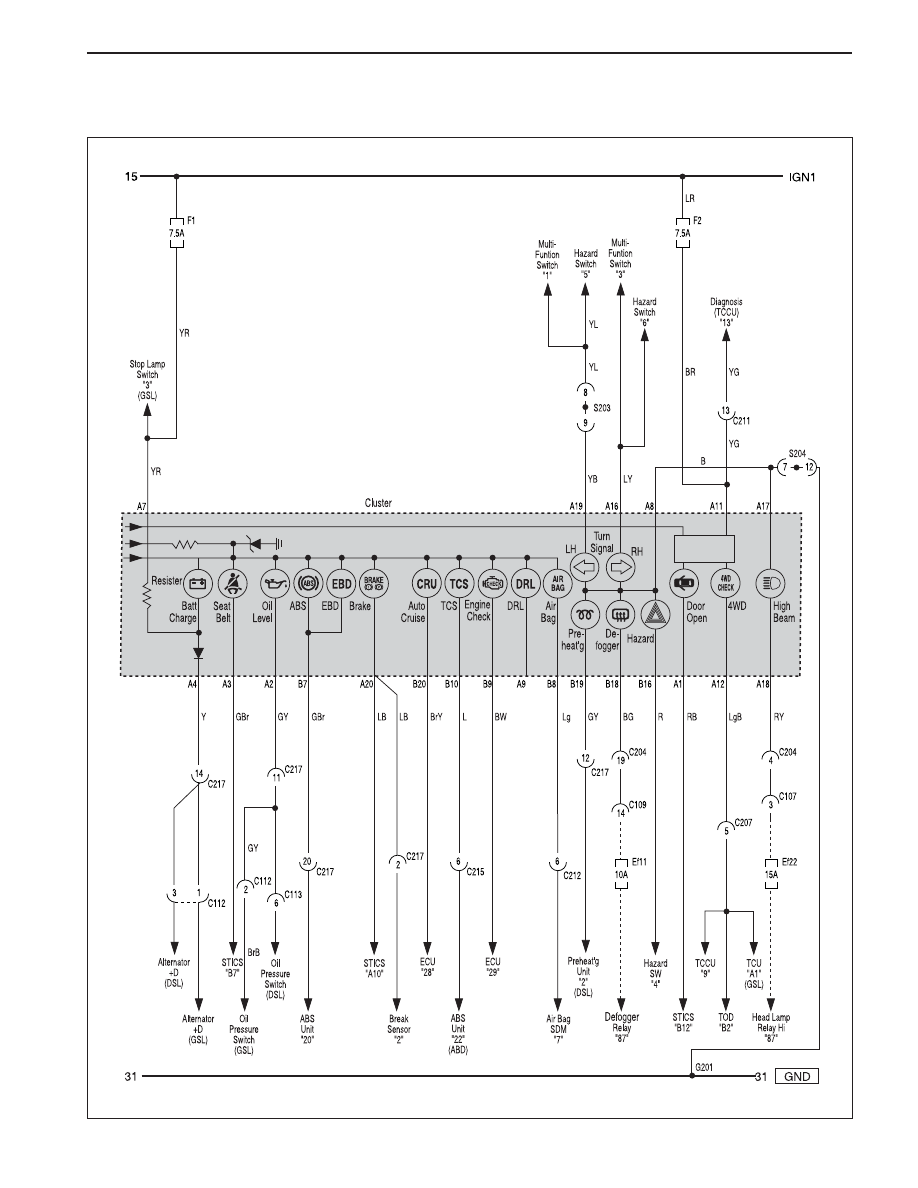

(2) WARNING LAMP, DEFOGGER CIRCUIT
