SSANGYONG  REXTON XDi(RHD)

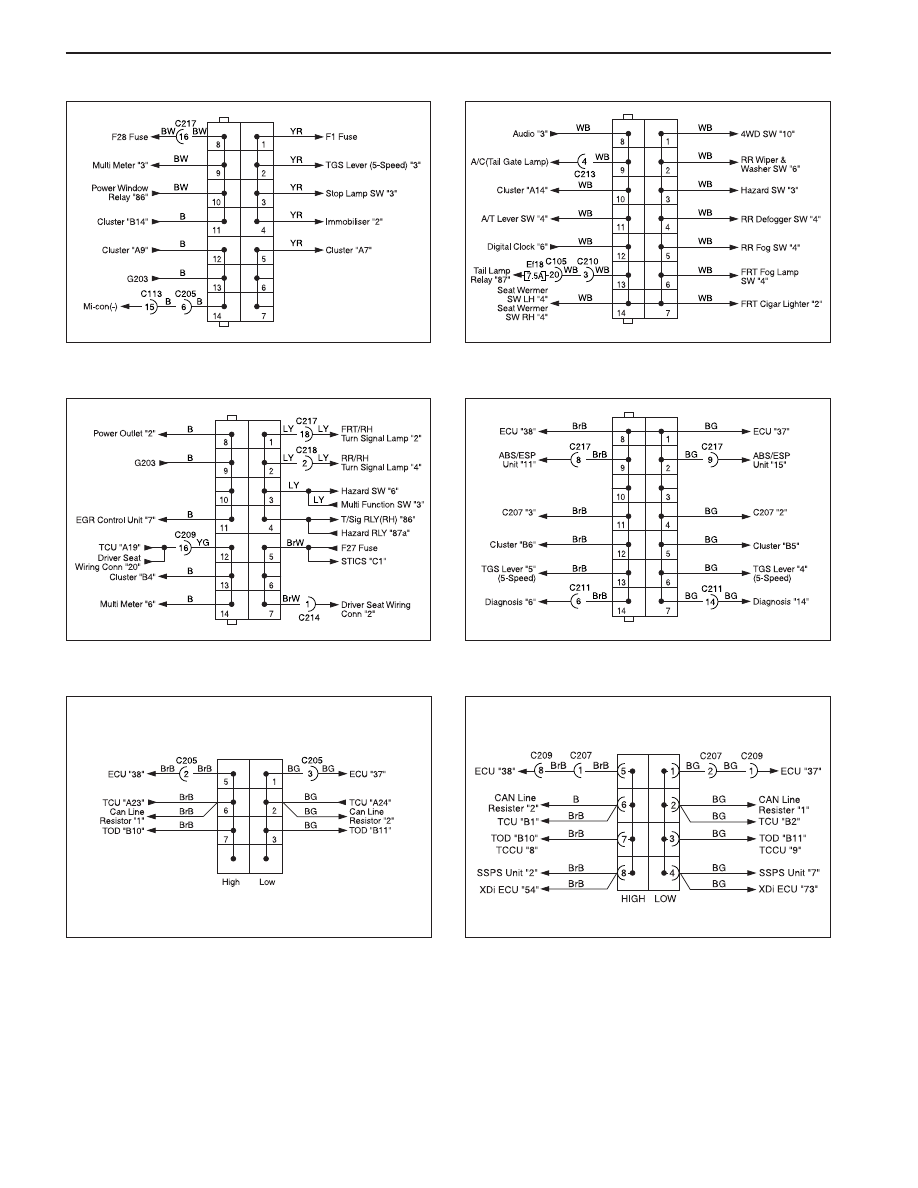

2-26  POSITION OF CONNECTORS AND GROUNDS

• S301

• S206(XDi)

• S208

• S207

• S209(XDi)

• S301A







POSITION OF CONNECTORS AND GROUNDS  2-27

SSANGYONG  REXTON XDi(RHD)

5. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

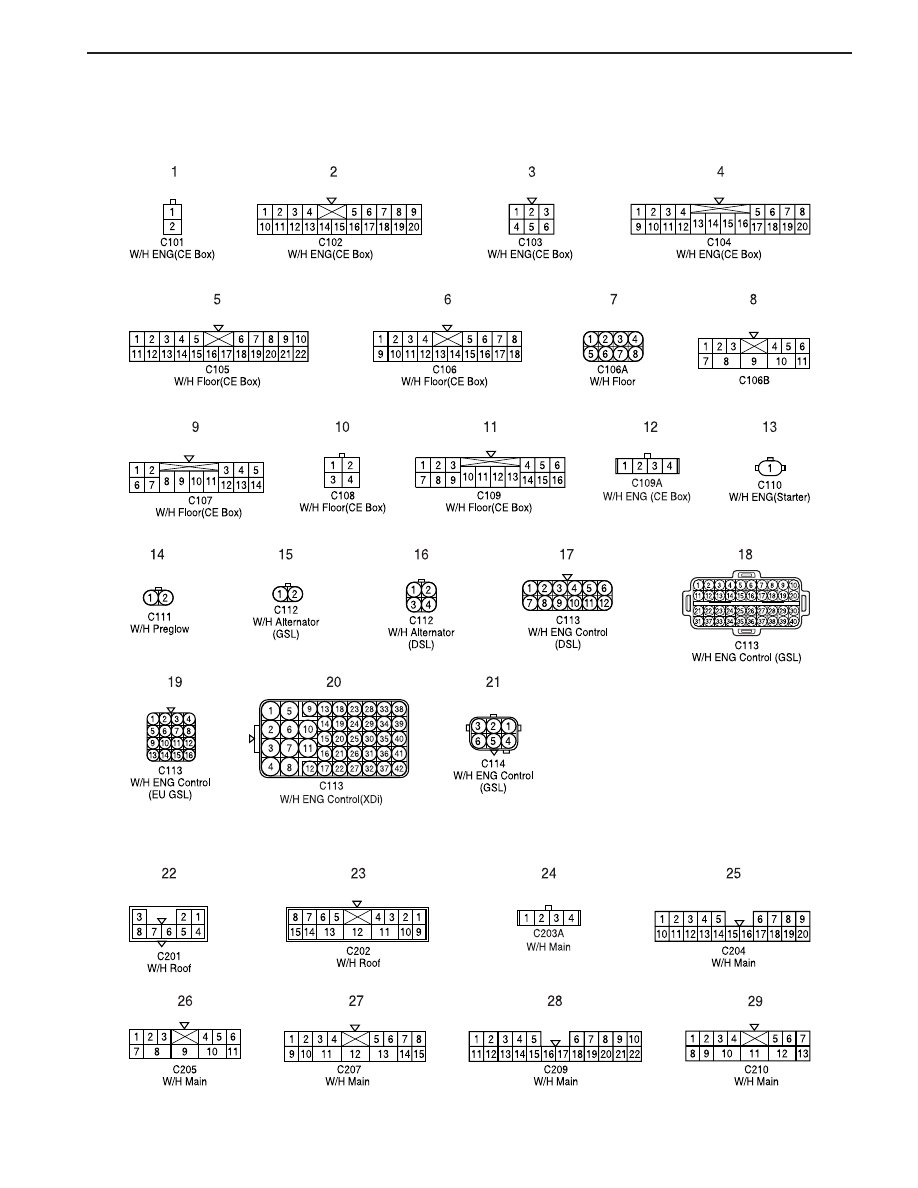

1) C101 ~ C114

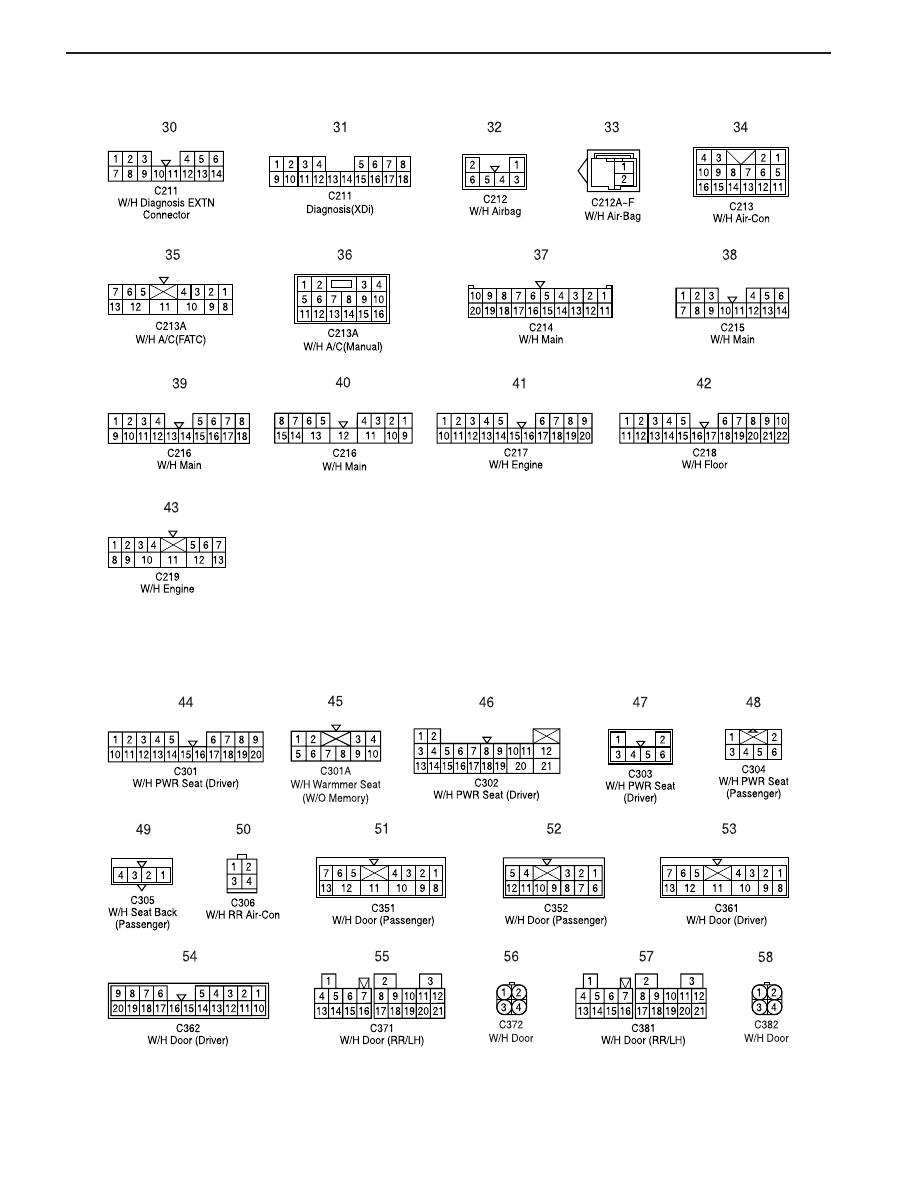

2) C201 ~ C219

SSANGYONG  REXTON XDi(RHD)

2-28  POSITION OF CONNECTORS AND GROUNDS

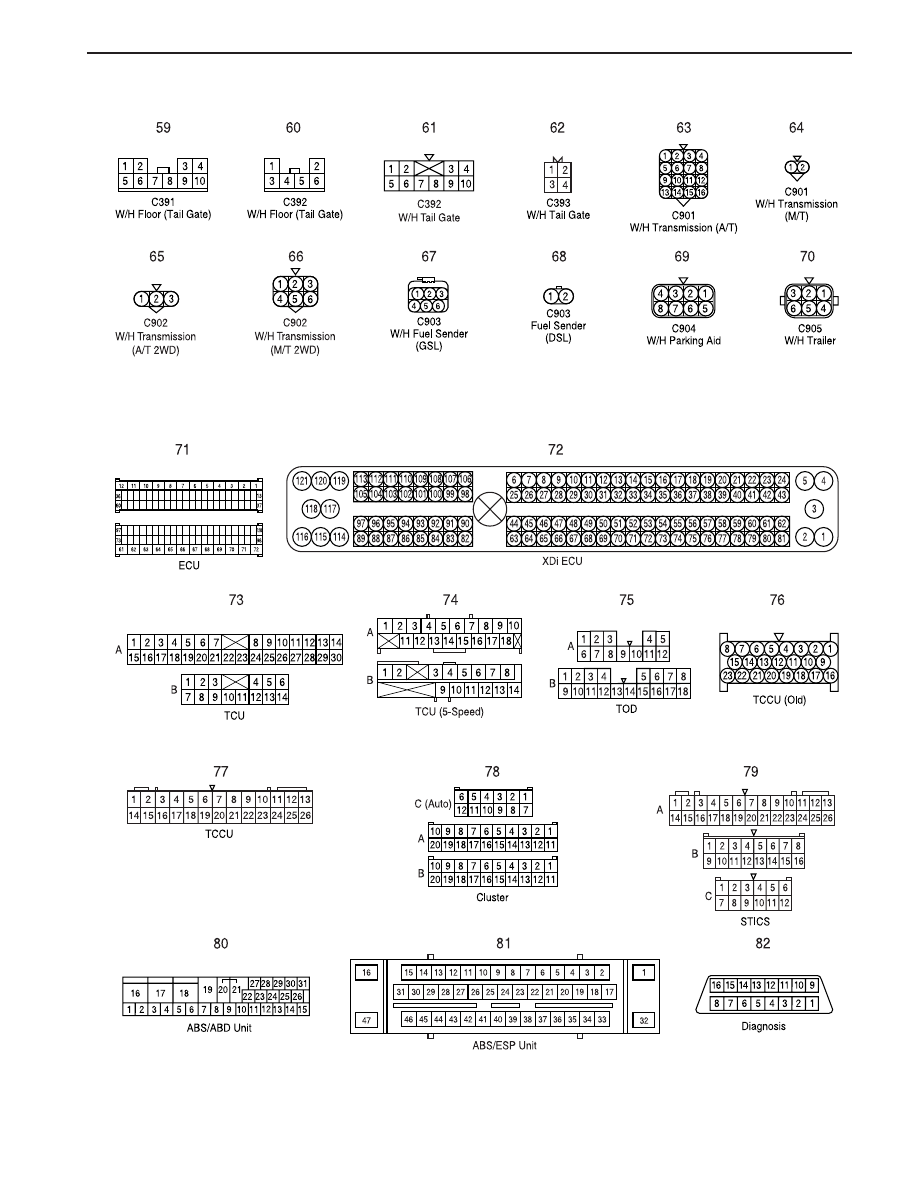

3) C301 ~ C905

POSITION OF CONNECTORS AND GROUNDS  2-29

SSANGYONG  REXTON XDi(RHD)

4) CONTROL UNIT
