SSANGYONG  REXTON XDi(RHD)

2-22  POSITION OF CONNECTORS AND GROUNDS

11) SPLICE PACK

(1) ~ 2002 MODEL

• S101

• S103

• S201

• S102

• S202

POSITION OF CONNECTORS AND GROUNDS  2-23

SSANGYONG  REXTON XDi(RHD)

• S207

• S206

• S205

• S208

• S204

• S203

SSANGYONG  REXTON XDi(RHD)

2-24  POSITION OF CONNECTORS AND GROUNDS

• S302

(2) 2003 MODEL, (W/ XDi) ~

• S101

• S102

• S103

• S301

POSITION OF CONNECTORS AND GROUNDS  2-25

SSANGYONG  REXTON XDi(RHD)

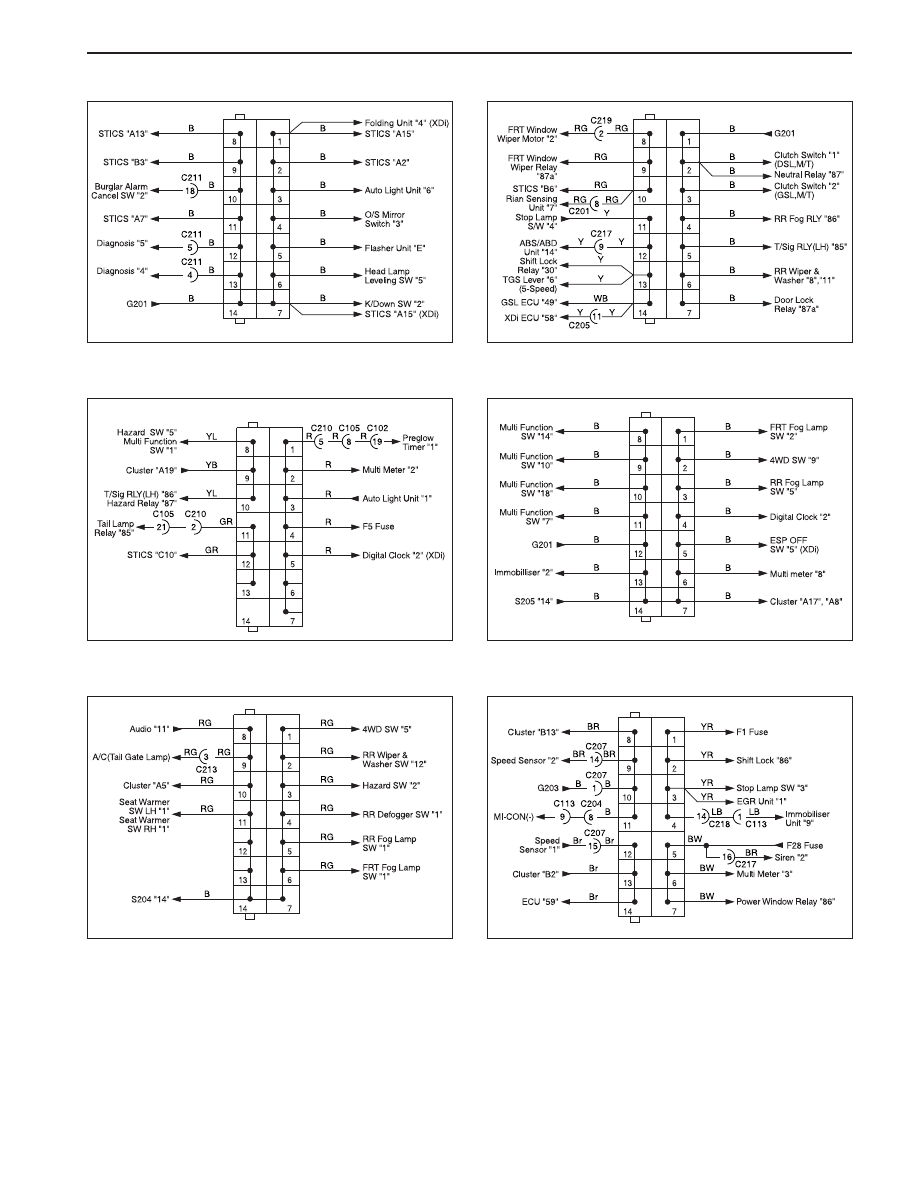

• S201

• S202

• S203

• S206

• S205

• S204
