SSANGYONG  REXTON XDi(RHD)

2-2  POSITION OF CONNECTORS AND GROUNDS

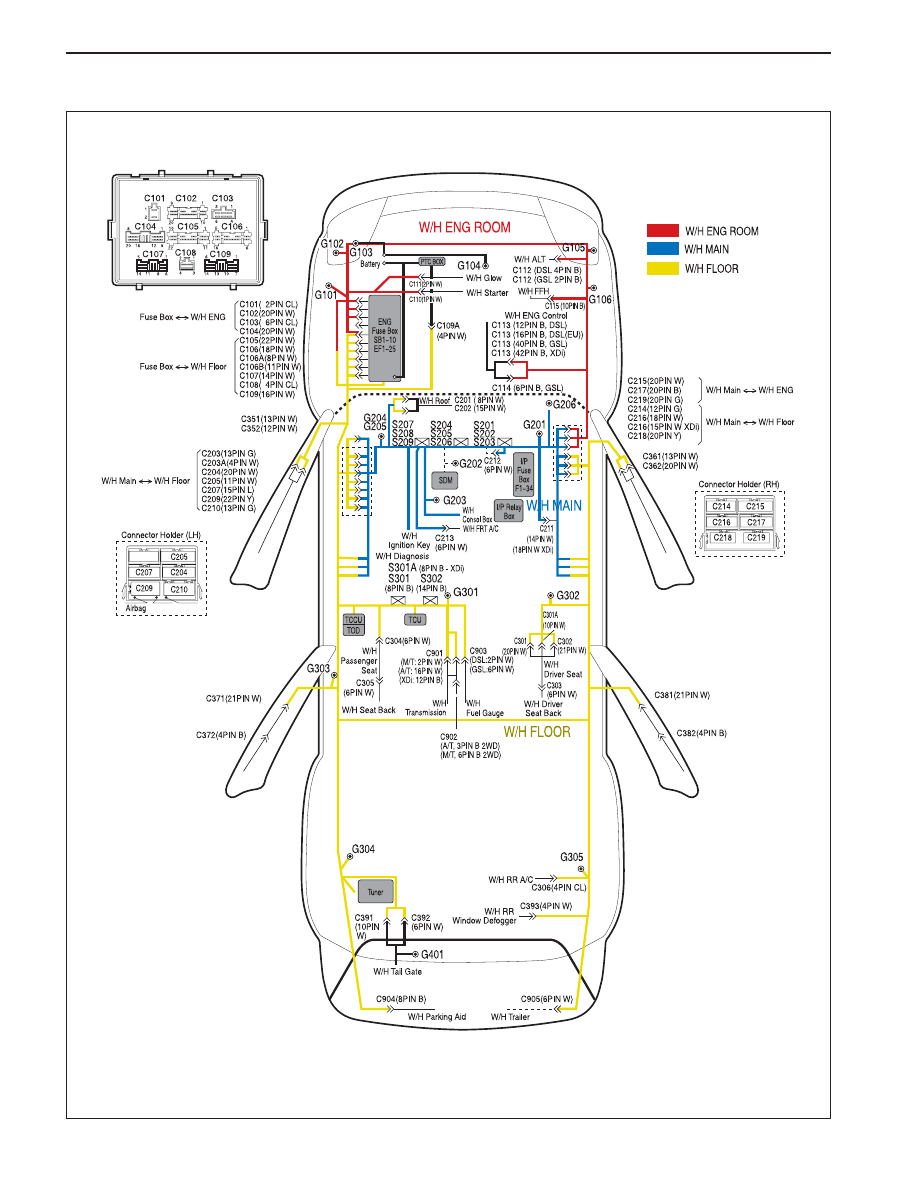

1. POSITION OF CONNECTOR, GROUND & SPLICE PACK

POSITION OF CONNECTORS AND GROUNDS  2-3

SSANGYONG  REXTON XDi(RHD)

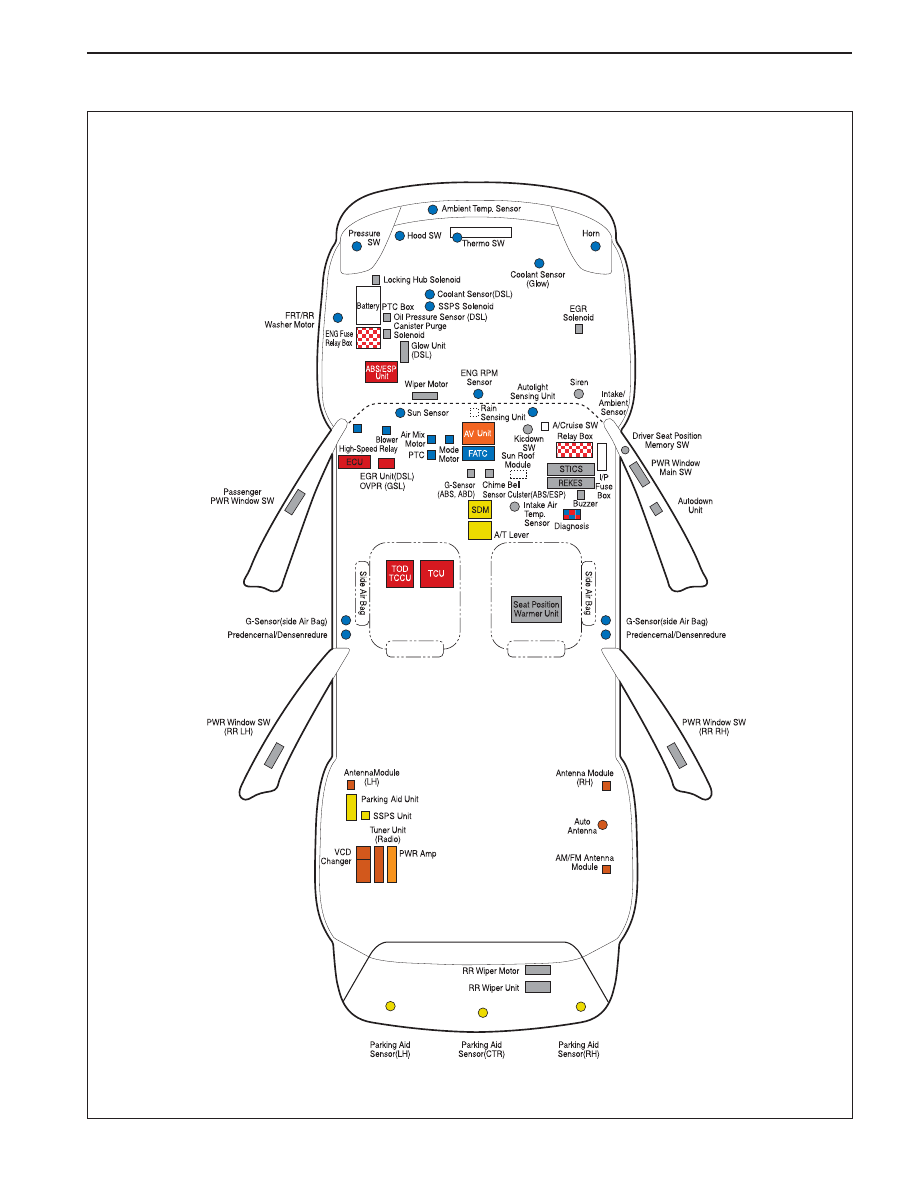

2. COMPONENTS LOCATION

SSANGYONG  REXTON XDi(RHD)

2-4  POSITION OF CONNECTORS AND GROUNDS

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(A) - Engine

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(C) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Control - Engine

Engine Control - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Engine - PTC BOX

Engine - Starter “ST”

Engine - Pre-Heating

Engine - Alternator

Engine - Alternator

Engine - Engine Control

Engine - Engine Control

Engine - Engine Control

Engine - Engine Control

Engine - Engine Control

Main - Roof

Main - Roof

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Air-Bag

Main - Air-Con

W/H Air Bag - W/H Blower

Main - Floor(RH)

C101(2Pin, Colorless)

C102(20Pin, White)

C103(6Pin, Colorless)

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C106A(8Pin, White)

C106B(11Pin, White)

C107(14Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C109A(4Pin, White)

C110(1Pin, Gray)

C111(2Pin, Black)

C112(4Pin, Black)

C112(2Pin, Black)

C113(12Pin, Black)

C113(40Pin, Black)

C113(16Pin, Black)

C113(42Pin, Black)

C114(6Pin, Black)

C201(8Pin, White)

C202(15Pin, White)

C203A(4Pin, White)

C204(20Pin, Black)

C205(11Pin, White)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, White)

C211(18Pin, White)

C212(6Pin, White)

C213(16Pin, White)

C213A(13Pin, White)

C214(20Pin, Black)

3. CONNECTOR, GROUND & SPLICE PACK INFORMATION

1) CONNECTOR

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Engine Room Fuse Box

Under the Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

FRT Pre-Heating Unit

RR Pre-Heating Unit

Under the Coolant Reserve Tank

Under the Coolant Reserve Tank

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Right Engine Room Dash PNL

Under the I/P Fuse Box

Under the I/P Fuse Box

Under the I/P Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Behind the Cluster(Inside Dash PNL)

Inside Dash PNL

Inside Dash PNL

Inside Driver Side Cowl PNL

EGR

XDi

XDi

DSL

DSL

GSL

DSL

GSL

DSL(EU)

XDi

GSL

XDi

A/T

XDi

XDi

Remark

Connector Position

POSITION OF CONNECTORS AND GROUNDS  2-5

SSANGYONG  REXTON XDi(RHD)

Connector Number

(Pin Number, Color)

Engine - Main(RH)

Main - Floor(RH)

Main - Floor(RH)

Engine - Main(RH)

Main - Floor(RH)

Engine - Main(RH)

Floor - Driver Seat

Floor - Driver Seat

Floor - Driver Seat

Driver Seat - Seat Back

Floor - Co-Driver Seat

Co-Driver Seat - Seat Back

Floor - RR Air Con

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Driver Door

Floor - Driver Door

Driver Door - Door Extention

Floor - RR Left Door

RR LH Door - Door Extention

Floor - RR Right Door

RR RH Door - Door Extention

Floor - Tail Gate

Floor - Tail Gate

Floor - Tail Gate

Floor - RR Defogger

Floor - T/M

Floor - T/M

Floor - T/M

Floor - T/M

Floor - T/M

Floor - Fuel Sender

Floor - Fuel Sender

Floor - Parking Aid

Floor - Trailer

C215(14Pin, White)

C216(15Pin, White)

C216(18Pin, White)

C217(20Pin, Black)

C218(22Pin, Yellow)

C219(13Pin, Green)

C301(20Pin, White)

C301A(10Pin, White)

C302(21Pin, White)

C303(6Pin, White)

C304(6Pin, White)

C305(4Pin, White)

C306(4Pin, Colorless)

C351(13Pin, White)

C352(12Pin, White)

C361(13Pin, White)

C362(20Pin, White)

C363(13Pin, White)

C371(21Pin, White)

C372(4Pin, Black)

C381(21Pin, White)

C382(4Pin, Black)

C391(10Pin, White)

C392(6Pin, White)

C392(10Pin, White)

C393(4Pin, White)

C901(16Pin, Black)

C901(2Pin, Black)

C901(12Pin, Black)

C902(6Pin, Black)

C902(3Pin, Black)

C903(6Pin, Black)

C903(2Pin, Black)

C904(8Pin, Black)

C905(6Pin, White)

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under the Driver Seat

Under the Driver Seat

Under the Driver Seat

Under the Driver Seat

Under the Co-Driver Seat

Under the Co-Driver Seat

Right Side 3rd Seat

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under Left “B” Filler

Inside RR LH Door PNL

Under Right “B” Filler

Inside RR RH Door PNL

Inside the Left Side Cover the Tail Gate

Inside the Left Side Cover the Tail Gate

Inside the Left Side Cover the Tail Gate

Inside the Upper the Tail Gate

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Under the T/C(Under the Floor)

Under the T/C(Under the Floor)

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Inside the Left RR Bumper

Inside the Left RR Bumper

ABS, ABD

Power Seat

Seat Warmer

Power Seat

Power Seat

Power Seat

Power Seat

A/C

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

A/T

M/T

XDi

M/T 2WD

A/T 2WD

GSL

DSL

Parking Aid

Remark

Connecting Wiring

Connector Position
