DI10-21

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10058

Y220_10057

Y220_10059

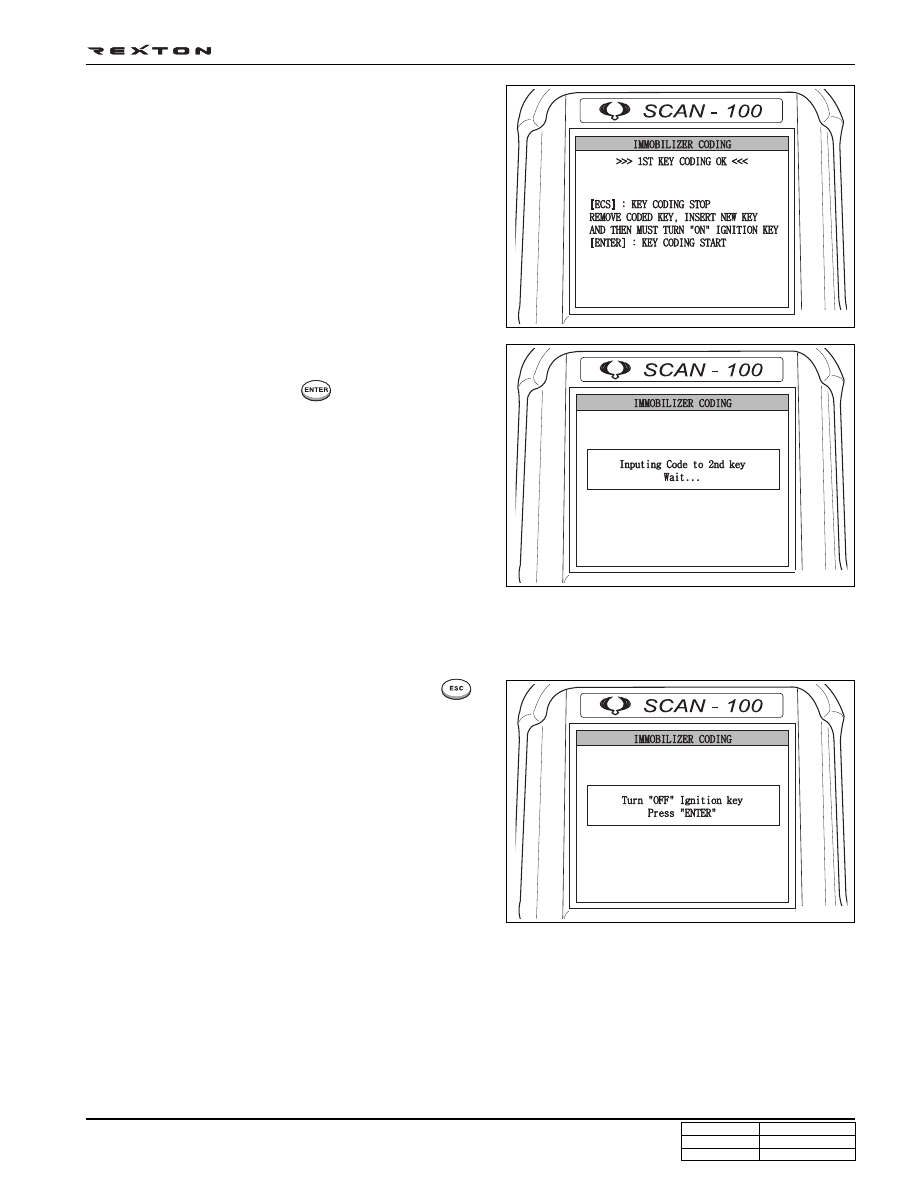

11. If the password is valid, an immobilizer coding is started.

12. If you want to code for additional keys, remove the first

key from key switch and insert the second key. Turn it
to “ON” position and press “

” to proceed.

13. You can code up to five keys with same manner.

14. When the immobilizer coding is completed, press “

”.

The completion message as shown in figure appears.

DI10-22

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10060

Y220_10061

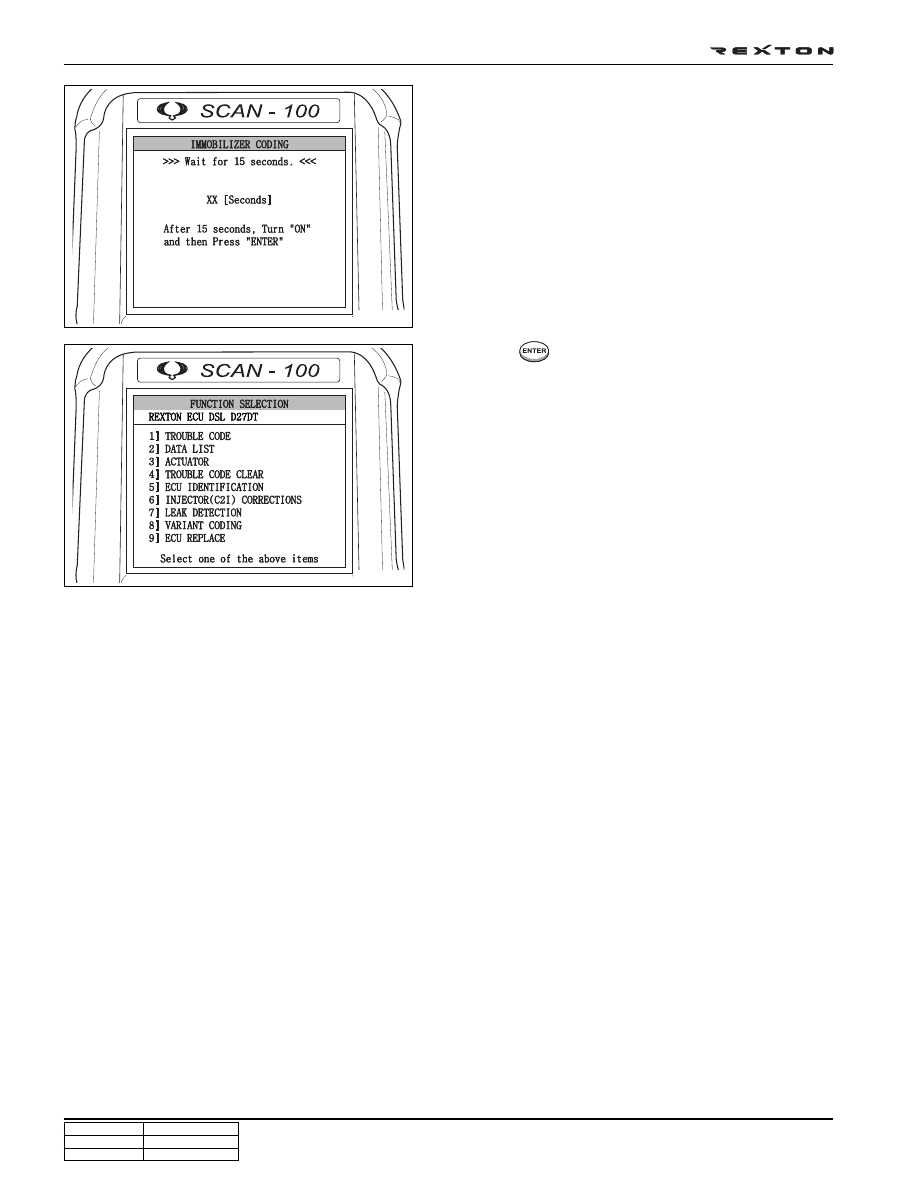

15. When you turn the ignition key to “OFF” position, the

message screen as shown in figure is displayed. Wait
for 15 seconds and turn the ignition key to “ON” position.

16. Press “

” to return to “MAIN MENU” screen.

DI10-23

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

TROUBLE DIAGNOSIS TABLE

INDEX OF DTC ..................................................... 10D-24, 71

Trouble diagnosis table ......................................... 10D-27

Trouble diagnosis procedures ............................... 10D-75

DI10-24

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

INDEX OF DTC

P0102

P0103

P0100

P0344

P0341

P0219

P0336

P0372

P1107

P1108

P1105

P0562

P0563

P0560

P0109

P0106

P0107

P0108

P0105

P1106

P1109

P0571

P1572

P1571

P1286

P1287

P1288

P1289

P1292

P1293

P1294

P1295

P1290

P1291

Low HFM Sensor Signal (Circuit Open) .......... DI10-27

High HFM Sensor Signal (Circuit Short) .......... DI10-27

Air Mass Flow (HFM) Malfunction .................. DI10-28

Cam Position Sensor Malfunction ..................  DI10-28

Cam Position Sensor Malfunction

(Poor Synchronization) .................................. DI10-28

Too Small Clearance of Crank Angle Sensor .. DI10-28

Too Large Clearance of Crank Angle Sensor . DI10-29

Crank Angle Sensor Malfunction .................... DI10-29

Barometric Sensor Circuit Short/GND Short ... DI10-29

Barometric Sensor Circuit Short ..................... DI10-29

Barometric Sensor Circuit Short ..................... DI10-29

Low Battery Voltage ...................................... DI10-30

High Battery Voltage ...................................... DI10-30

Battery Voltage Malfunction ........................... DI10-30

Low Booster Pressure Sensor Signal ............ DI10-31

High Booster Pressure Sensor Signal ............ DI10-31

Booster Pressure Sensor Open/GND Short ... DI10-32

Booster Pressure Sensor Short ..................... DI10-32

Supply Voltage Fault to Booster

Pressure Sensor ............................................ DI10-33

Booster Pressure Sensor Malfunction ........... DI10-33

Booster Pressure Sensor Initial Check Fault .  DI10-34

Brake Pedal Switch Fault ............................... DI10-34

Brake Lamp Signal Fault ................................. DI10-35

Brake Lamp Signal Fault ................................. DI10-35

Low Resistance for Injector #1 wiring harness . DI10-35

High Resistance for Injector #1 wiring harness .. DI10-36

Low Resistance for Injector #2 wiring harness . DI10-36

High Resistance for Injector #2 wiring harness .. DI10-36

Low Resistance for Injector #4 wiring harness . DI10-37

High Resistance for Injector #4 wiring harness .. DI10-37

Low Resistance for Injector #5 wiring harness . DI10-37

High Resistance for Injector #5 wiring harness .. DI10-38

Low Resistance for Injector #3 wiring harness . DI10-38

High Resistance for Injector #3 wiring harness .. DI10-38

P0704

P1115

P0118

P0117

P0115

P0685

P1405

P1406

P1480

P1481

P1482

P1526

P1527

P1528

P0325

P0330

P1611

P1612

P1618

P1619

P0263

P0266

P0272

P0275

P0269

P0201

P0202

P0204

P0205

Clutch switch malfunction .............................  DI10-38

Coolant Temperature Sensor Malfunction ....... DI10-39

Coolant Temperature Sensor

Malfunction - Short ........................................ DI10-39

Coolant Temperature Sensor

Malfunction - Open ........................................ DI10-40

Supply Voltage Fault to Coolant

Temperature Sensor ...................................... DI10-40

Main Relay Malfunction .................................. DI10-40

EGR Solenoid Valve Short Malfunction - Short .. DI10-40

EGR Solenoid Valve Malfunction - Short ........ DI10-40

Condenser Fan #1 Circuit Malfunction - Open . DI10-41

Condenser Fan #1 Circuit Malfunction - Short . DI10-41

Condenser Fan #1 Circuit Malfunction -

Short to Ground ............................................. DI10-41

Condenser Fan #2 Circuit Malfunction - Open . DI10-41

Condenser Fan #2 Circuit Malfunction - Short . DI10-41

Condenser Fan #2 Circuit Malfunction -

Short to Ground ............................................. DI10-41

Accelerometer #1 (Knock Sensor)

Malfunction .................................................... DI10-42

Accelerometer #2 (Knock Sensor)

Malfunction .................................................... DI10-42

Injector Bank #1 Malfunction - Low Voltage ... DI10-42

Injector Bank #1 Malfunction - High Voltage ... DI10-43

Injector Bank #2 Malfunction - Low Voltage ... DI10-43

Injector Bank #2 Malfunction - High Voltage ..  DI10-43

Injector #1 Balancing Fault ............................. DI10-44

Injector #2 Balancing Fault ............................. DI10-44

Injector #4 Balancing Fault ............................. DI10-44

Injector #5 Balancing Fault ............................. DI10-44

Injector #3 Balancing Fault ............................. DI10-44

Injector #1 Circuit Open .................................. DI10-44

Injector #2 Circuit Open .................................  DI10-44

Injector #4 Circuit Open .................................. DI10-45

Injector #5 Circuit Open .................................. DI10-45
