Injector Coding (C2I)

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

Notice

If the injector/ECU has been replaced or the injector system
defective is suspected, go to C2I Coding item and check
the injector and coded injector C2I value.

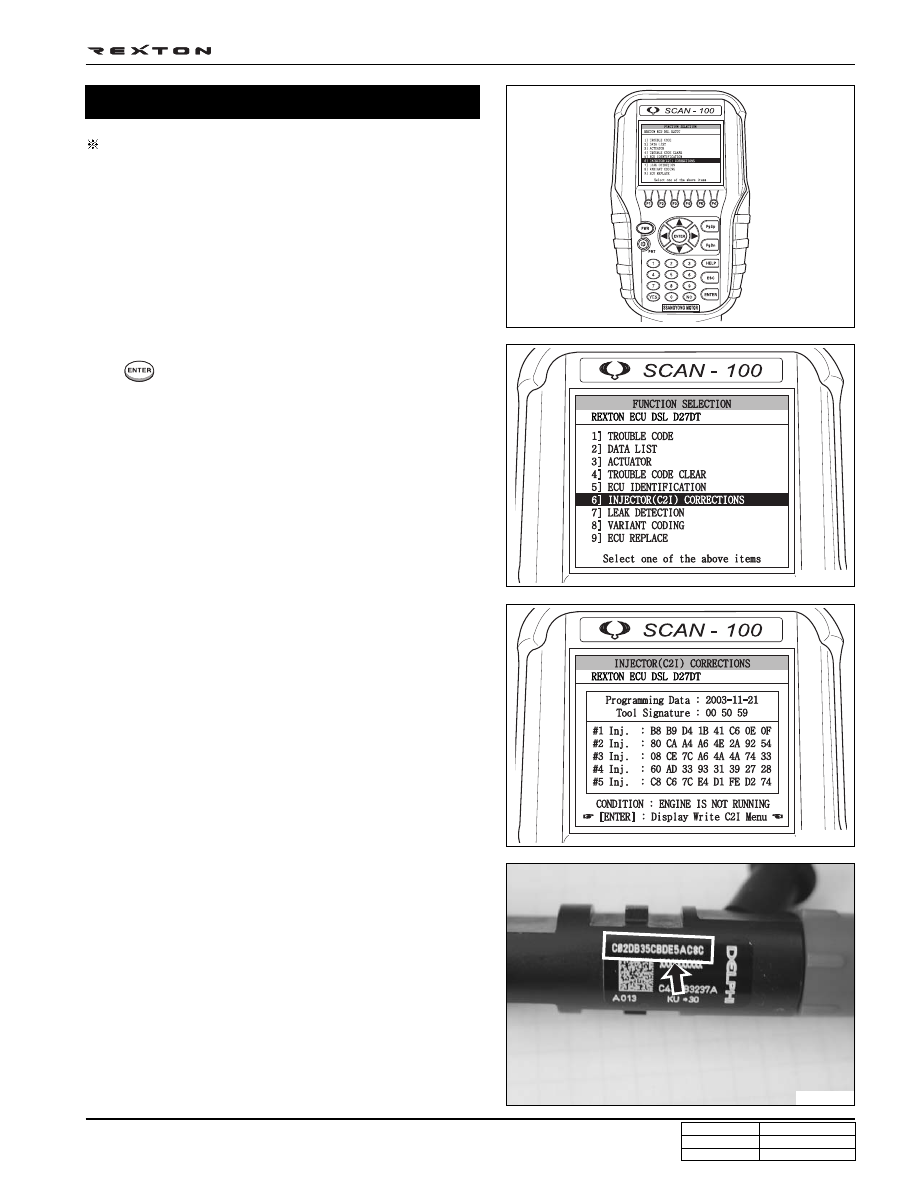

1. Select “6] INJECTOR (C2I) CORRECTIONS” and press

“

” in “FUNCTION SELECTION” screen.

2. The “INJECTOR (C2I) CORRECTIONS” screen that shows

current C2I coding values of #1 to #5 injector is displayed.

3. If you replaced the ECU, enter the C2I value of the relevant

injector.

Note

•

The C2I value of replacing injector is recorded in
the label.

•

C2I coding number: 16 digits (ex, B1 B9 D4 1B 43
C6 0E 4F)

DI10-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10035

Y220_10036

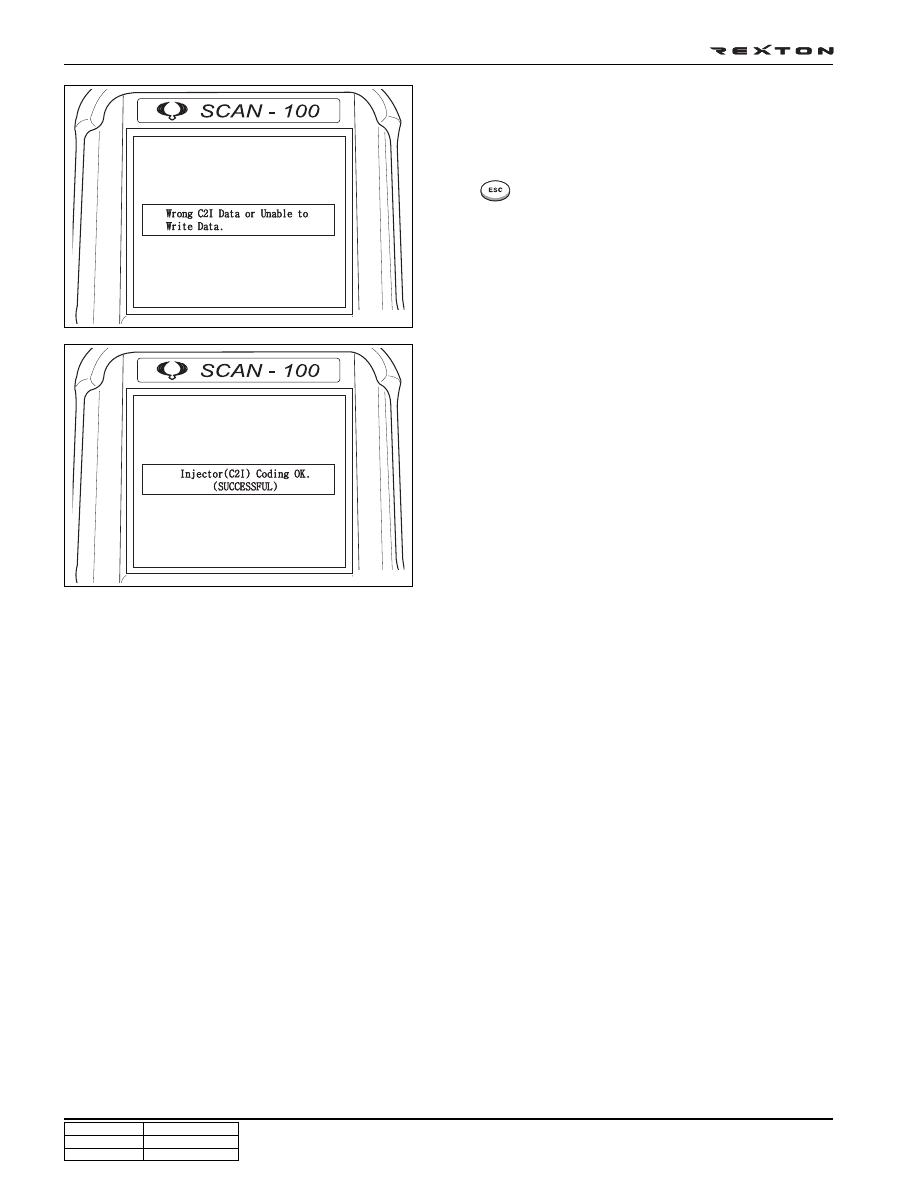

3-1. If you enter the invalid C2I value of the relevant injector,

the message as shown in figure appears with alarm sound.

Note

If you want to go back to previous screen, press
“

” key. You can see the previous C2I value.

3-2. If you enter the valid C2I value of the relevant injector, the

message as shown in figure appears with alarm sound.

DI10-15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10037

Y220_10038

Y220_10040

Leak Detection

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

Note

This item is for checking the high fuel pressure after the
IMV supply line of HP pump in DI engine fuel system. If
you still suspect that the fuel pressure system is defective
even after no trouble is detected, perform the fuel pressure
test again by using a fuel pressure tool kit.

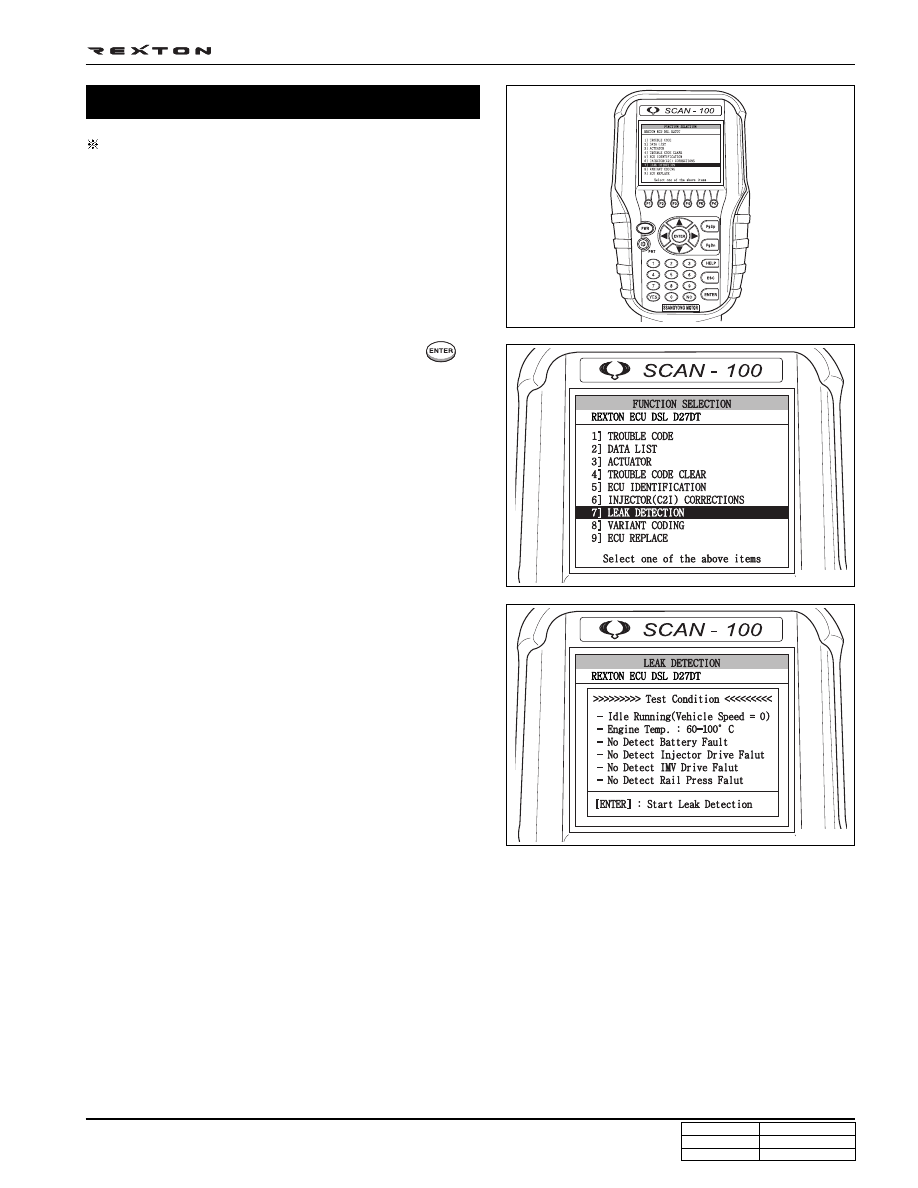

1. Select “7] LEAK DETECTION” and press “

” in

“FUNCTION SELECTION” screen.

2. The “LEAK DETECTION” screen that shows the checking

conditions as shown in figure is displayed.

DI10-16

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10041

Y220_10042

Y220_10043

Y220_10044

Variant Coding

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

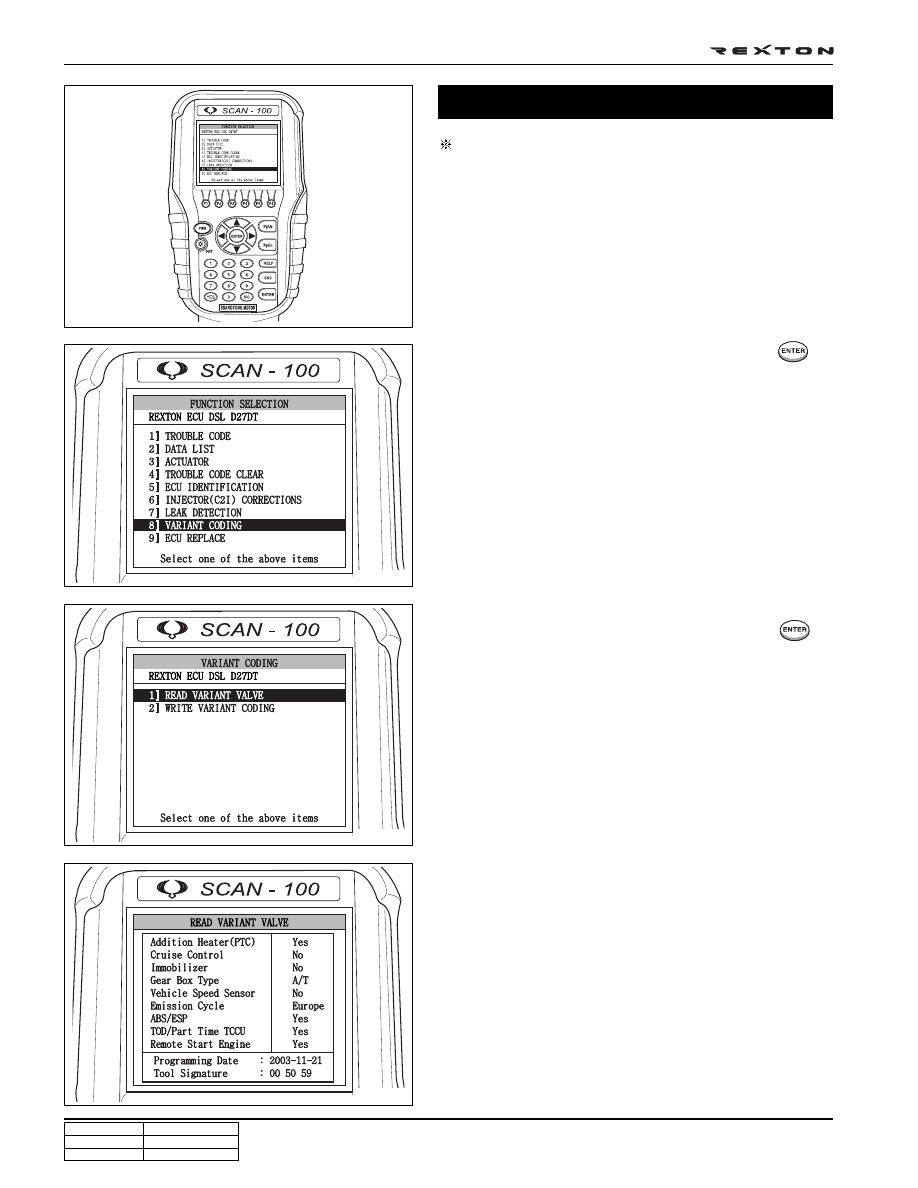

1. Select “8] VARIANT CODING” and press “

” in

“FUNCTION SELECTION” screen.

2. When the “VARIANT CODING” screen is displayed,

select “1] READ VARIANT VALUE” and press “

”.

3. The “VARIANT CODING” screen that shows currently

equipped devices is displayed.
