Fuel Supply Rails

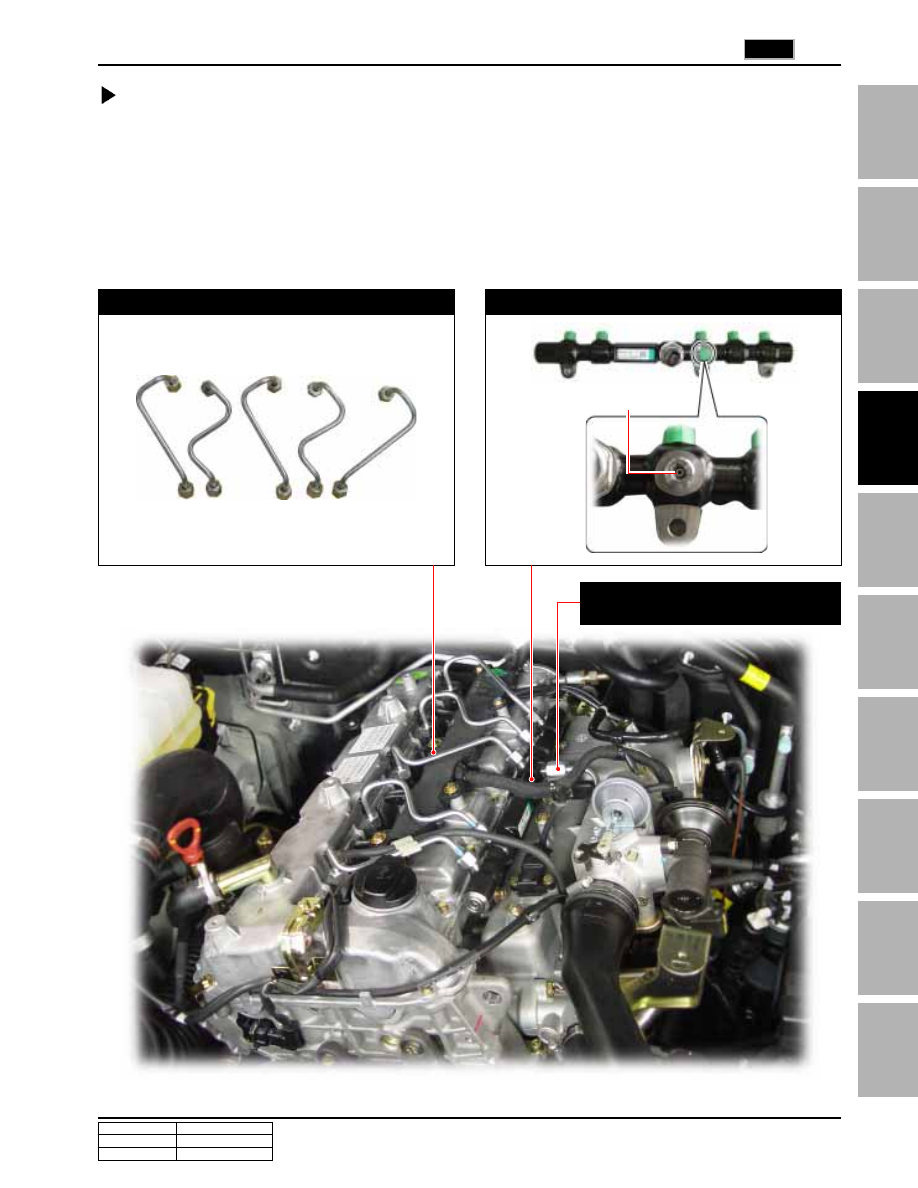

For the D27DT engine with CDPF, the fuel rail with larger diameter and the damping orifice is installed. The fuel rail
with larger diameter is installed as the post injection for CDPF is added to injection processes (pilot injection and
main injection). The diameter of the fuel rail is increased due to the increased amount of fuel injected for post
injection to burn the soot in CDPF.
As the amount of fuel supplied is increased, the orifices are installed on the fuel intake side of common rail and on
the fuel supply side of HP pump to prevent the fuel pulsation.
Fuel Supply Pipe (Common Rail -Injector): Increase
in I.D and O.D
Fuel Supply Pipe (HPP-Common Rail)
: Increase in I.D and O.D
Common Rail (with Orifice)
Damping orifice
