SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 480

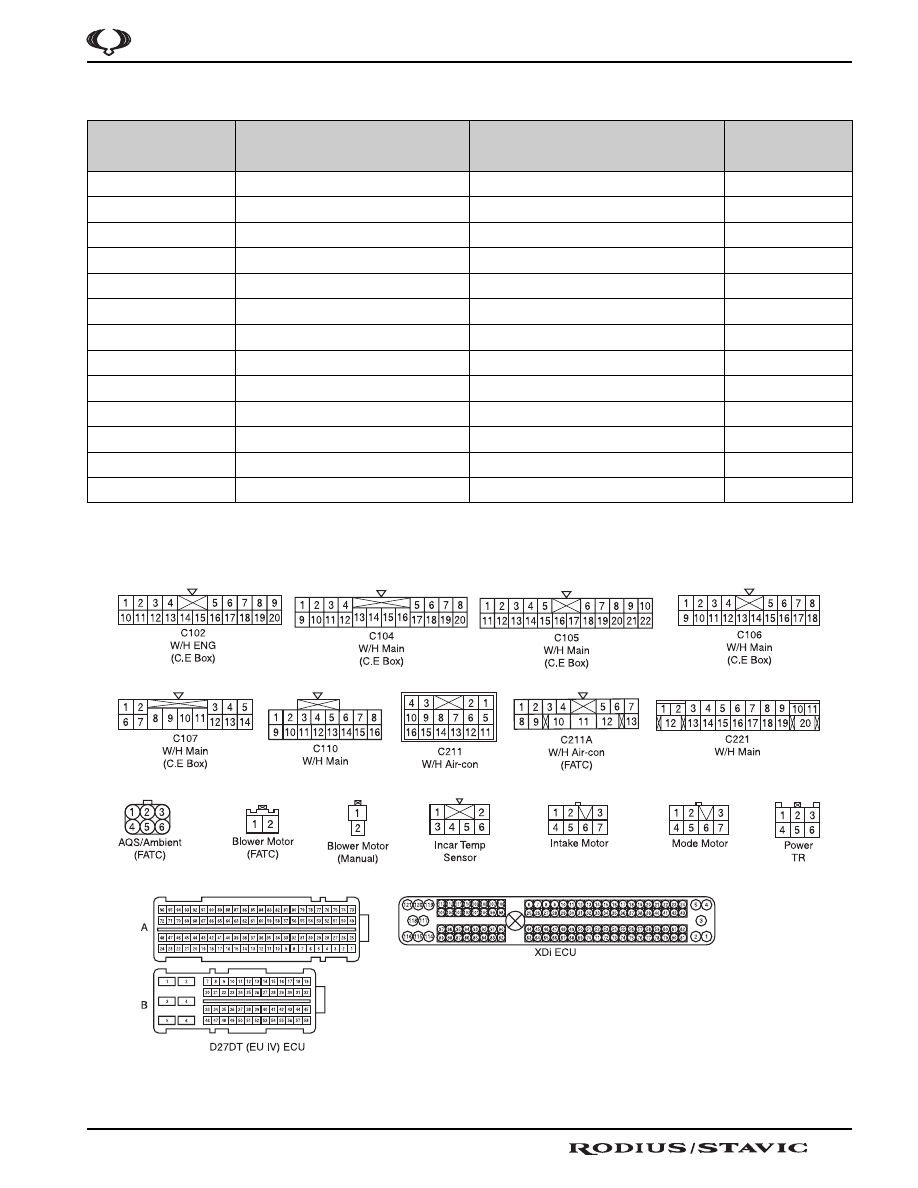

Wiring Diagram for Power Supplies 5-45

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Main

Engine - Main

Main - W/H Air-Bag

W/H Air-Bag - W/H Blower

Main - Floor (RH)

W/H Main

W/H Engine

W/H Main

C102 (20Pin, White)

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C110 (16Pin, White)

C211 (16Pin, White)

C211A (13Pin, White)

C221 (20Pin, Gray)

S204 (14Pin, Black)

G102

G104

G204

Connecting Wiring

Harness

Engine Room Fuse Box

RR A/V Unit

RR Glove Box

Inside Passenger Side Cowl PNL

Under the Relay Box RR Center the Cluster

Behind the Washer Tank

Behind the Air Cliner Housing

W/H Main

Remark

Connector Position

FATC

Power Seat (Seat Warmer)

ILL

5-46 Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

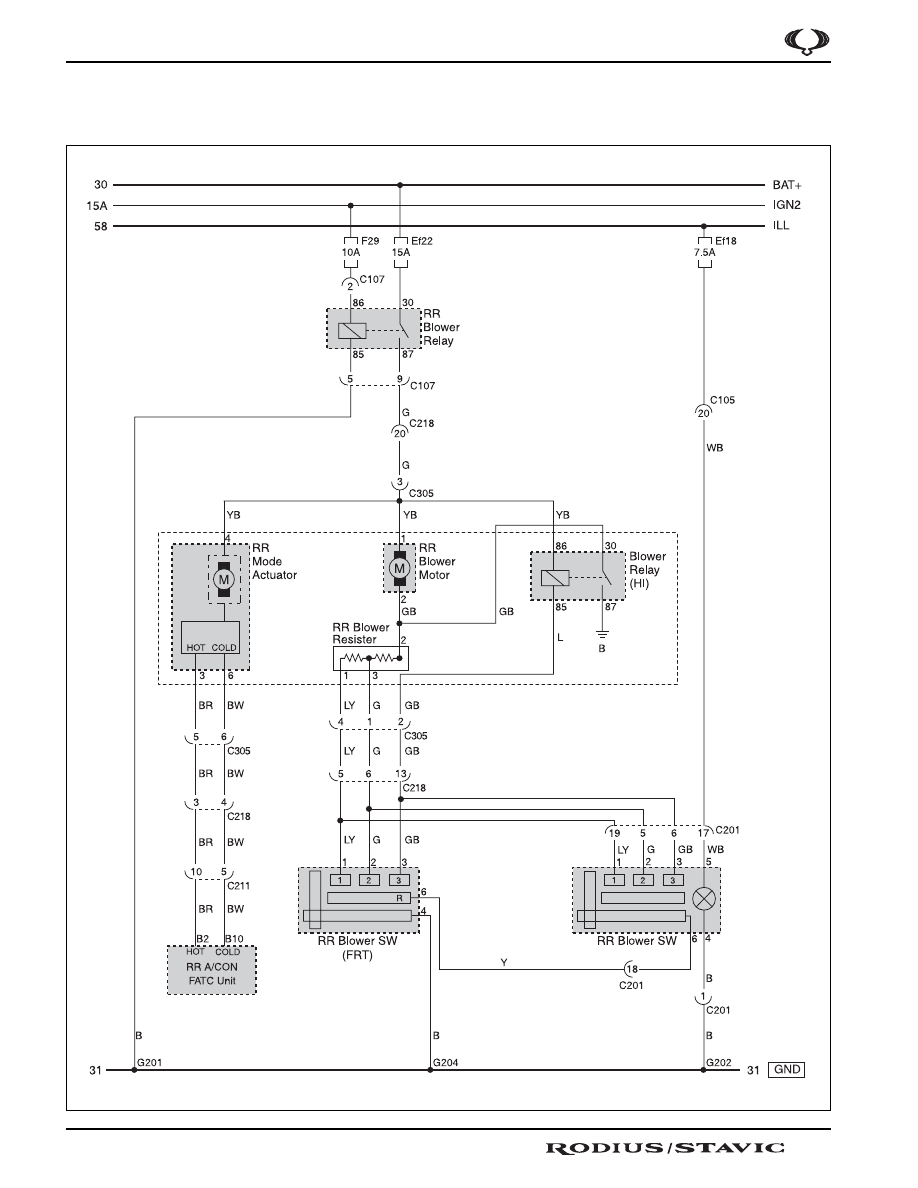

3) RR AIR CON (BLOWER, MODE ACTUATOR)

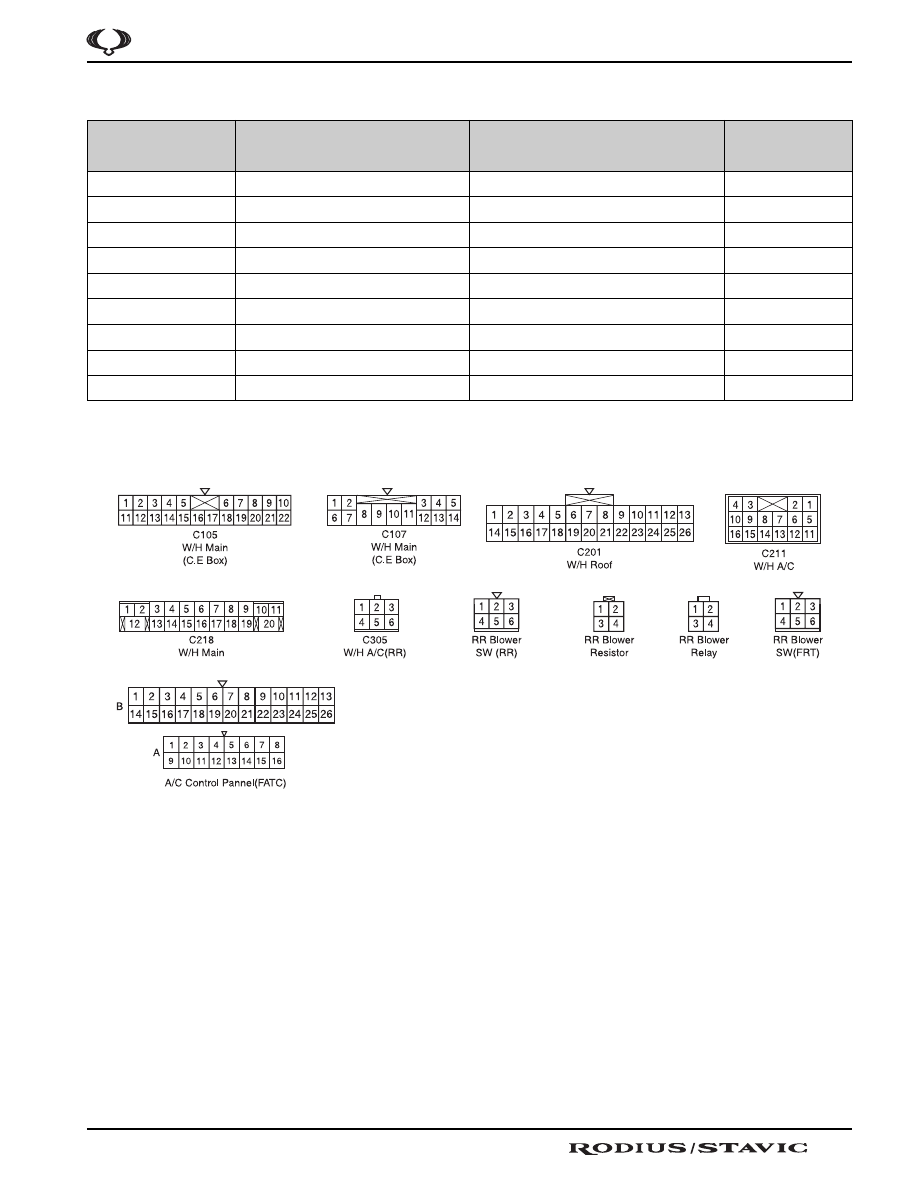

Wiring Diagram for Power Supplies 5-47

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Main

Main - Roof

Main - W/H Air-Bag

Main - Floor (RH)

Floor (RH) - RR A/C

W/H Main

C105 (22Pin, White)

C107 (14Pin, White)

C201 (26Pin, White)

C211 (16Pin, White)

C218 (20Pin, Red)

C305 (6Pin, Colorless)

G201

G202

G204

Connecting Wiring

Harness

Engine Room Fuse Box

RR Parking Brake

RR A/V Unit

Inside Passenger Side Cowl PNL

RR Right Quarter Trim

Inside Driver Side Cowl PNL

RR TGS Lever

Remark

Connector Position

Dual A/C

5-48 Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

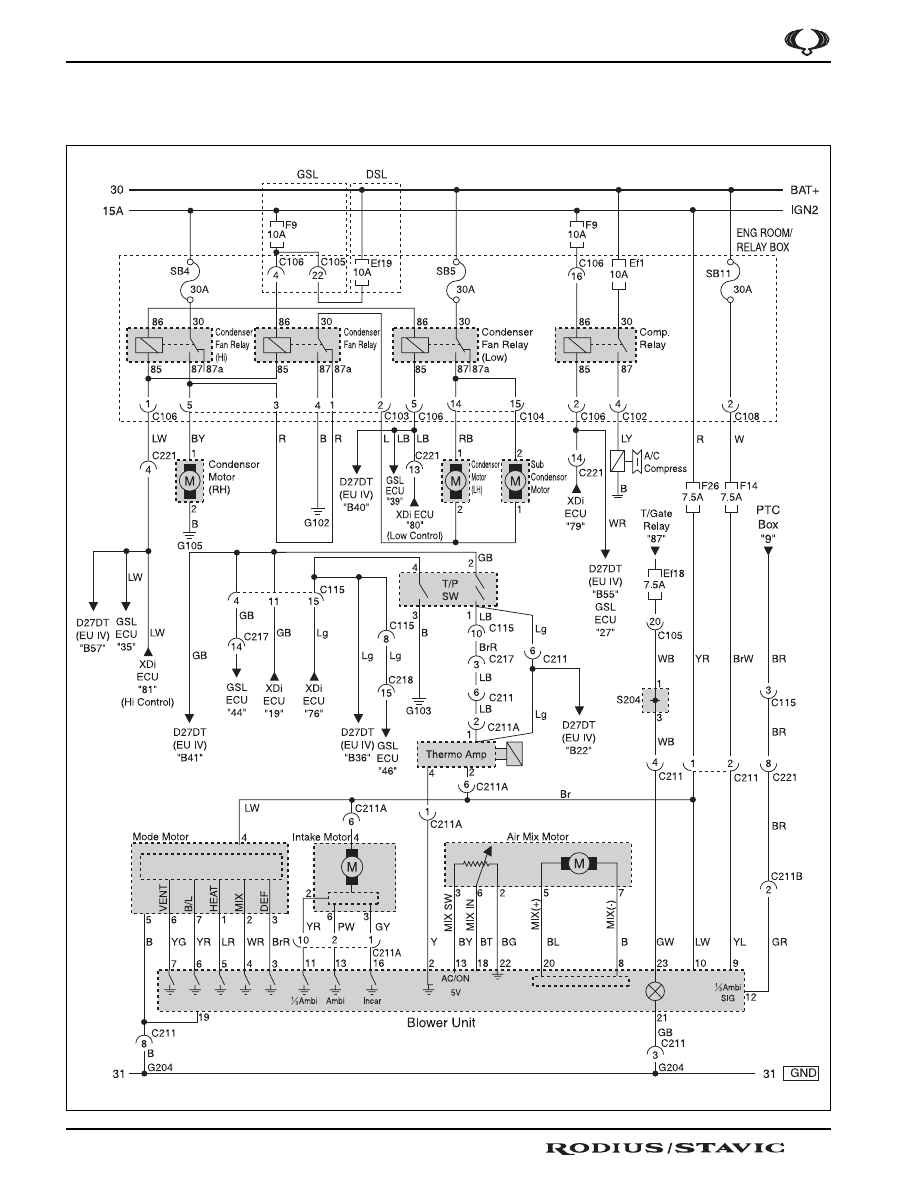

14. AIR CON (MANUAL)

1) POWER A/C, COMP., MOTOR (MODE, INTAKE, AIR MIX)
