SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 475

Wiring Diagram for Power Supplies  5-25

Electrical Wiring Diagram

(LHD)

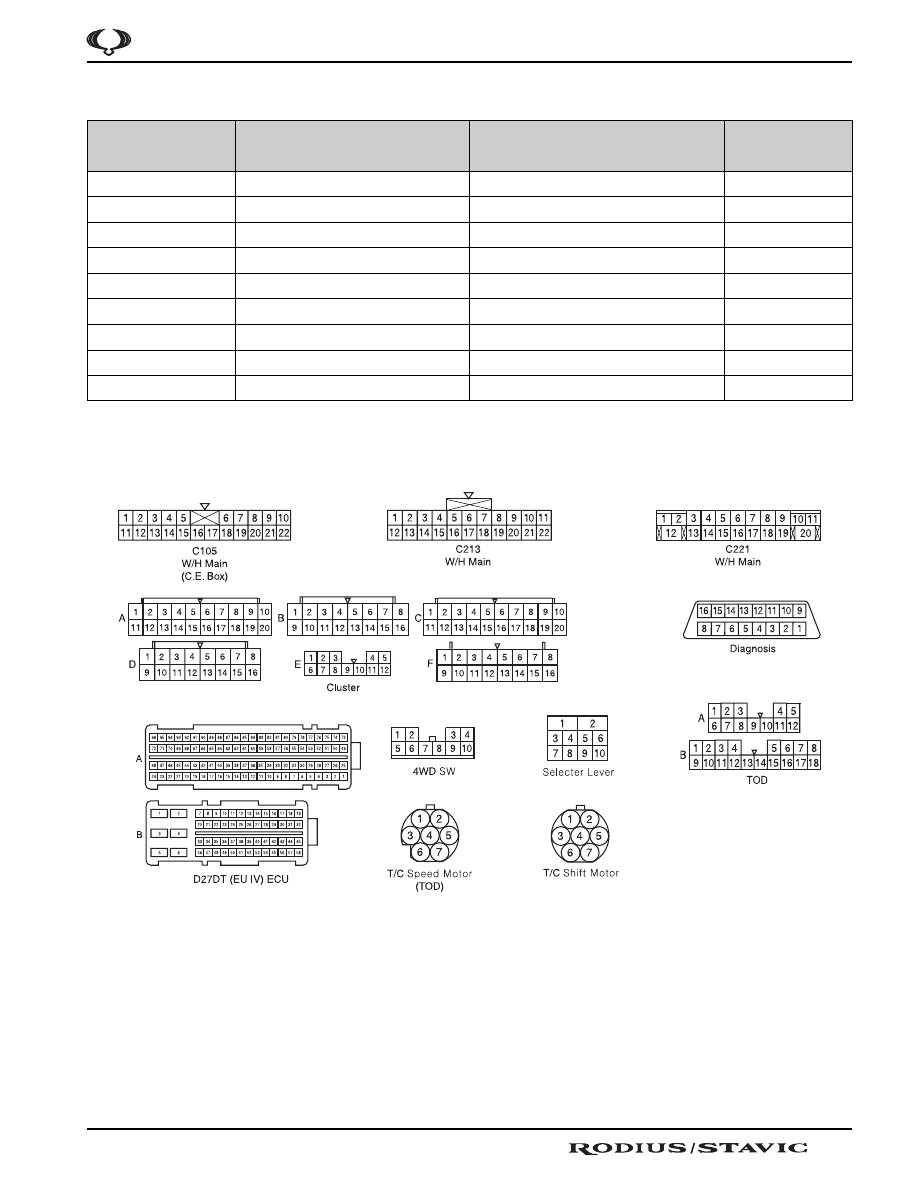

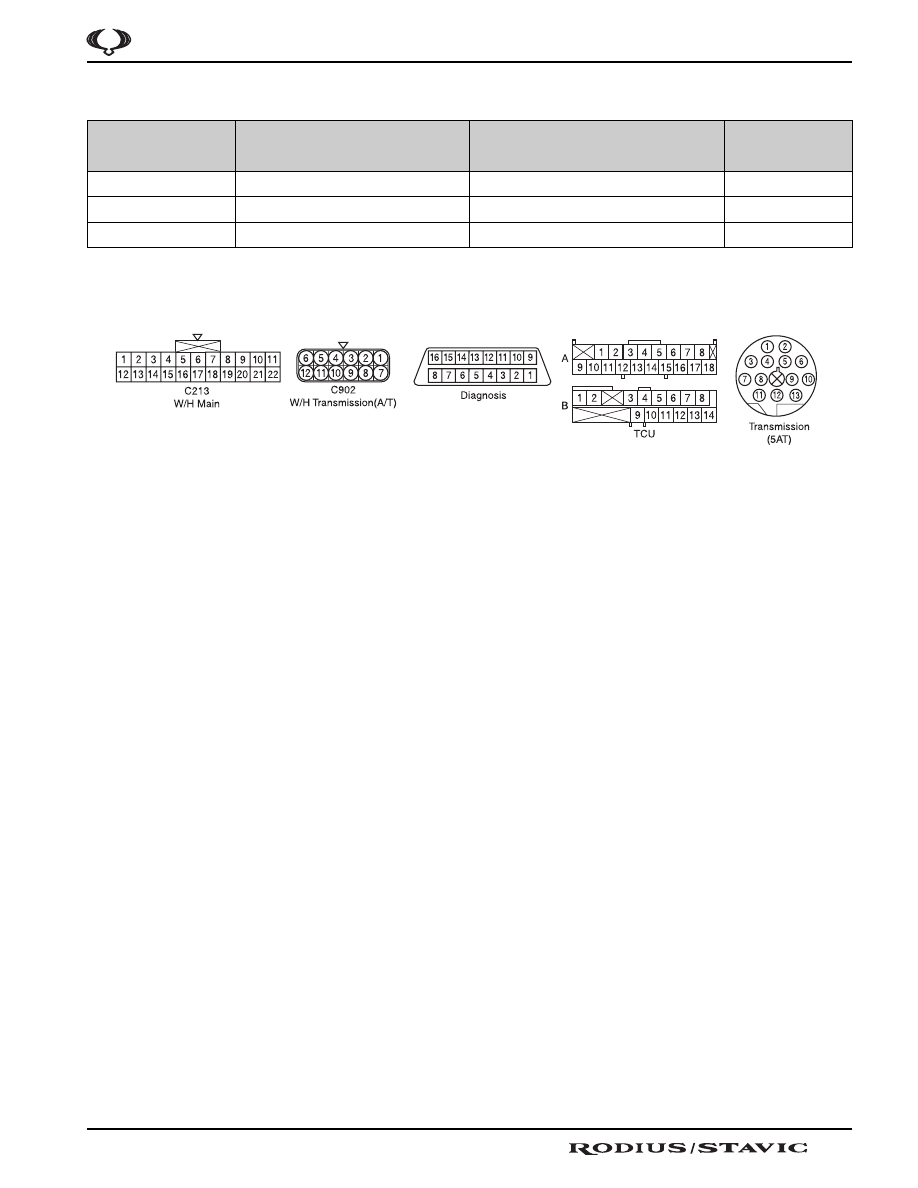

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Main - Floor (LH)

Floor (LH) - TM

W/H Floor (LH)

C213 (22Pin, White)

C902 (12Pin. Black)

G302

Connecting Wiring

Harness

FRT TGS Lever

Under the Floor

Under Driver Seat

A/T

Remark

Connector Position

5-26  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

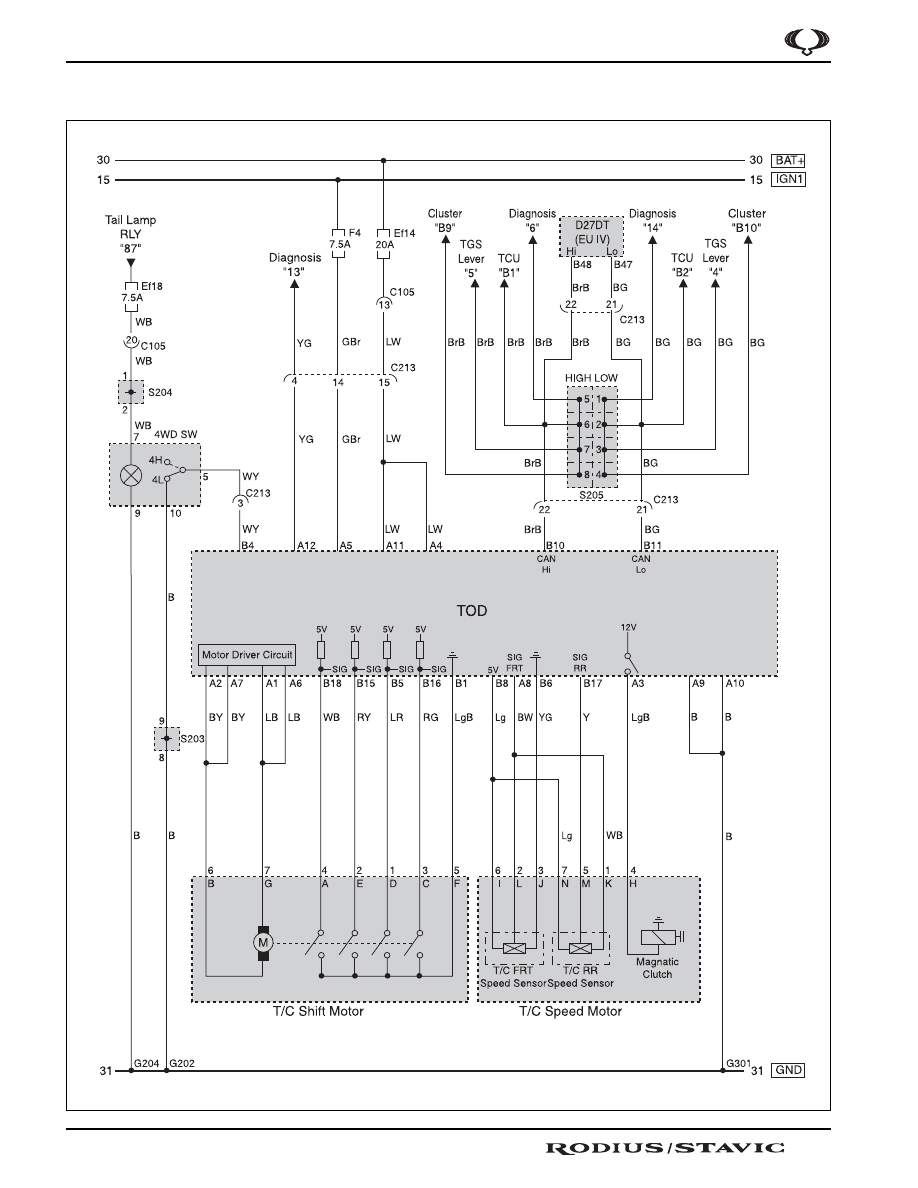

7. TOD

Wiring Diagram for Power Supplies  5-27

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Main

Main - Floor (LH)

Main - Floor (RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor (LH)

C105 (22Pin, White)

C213 (22Pin, White)

C221 (20Pin, Gray)

S203 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

G202

G204

G301

Connecting Wiring

Harness

Engine Room Fuse Box

FRT TGS Lever

Inside Passenger Side Cowl PNL

Under the Relay Box RR Left the Cluster

Under the Relay Box RR Center the Cluster

Upper the Right Driver Under Cover

Inside Driver Side Cowl PNL

Behind TGS Lever

Under Driver Seat

Power Seat (Seat Warmer)

GND

ILL

CAN

Remark

Connector Position

5-28  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

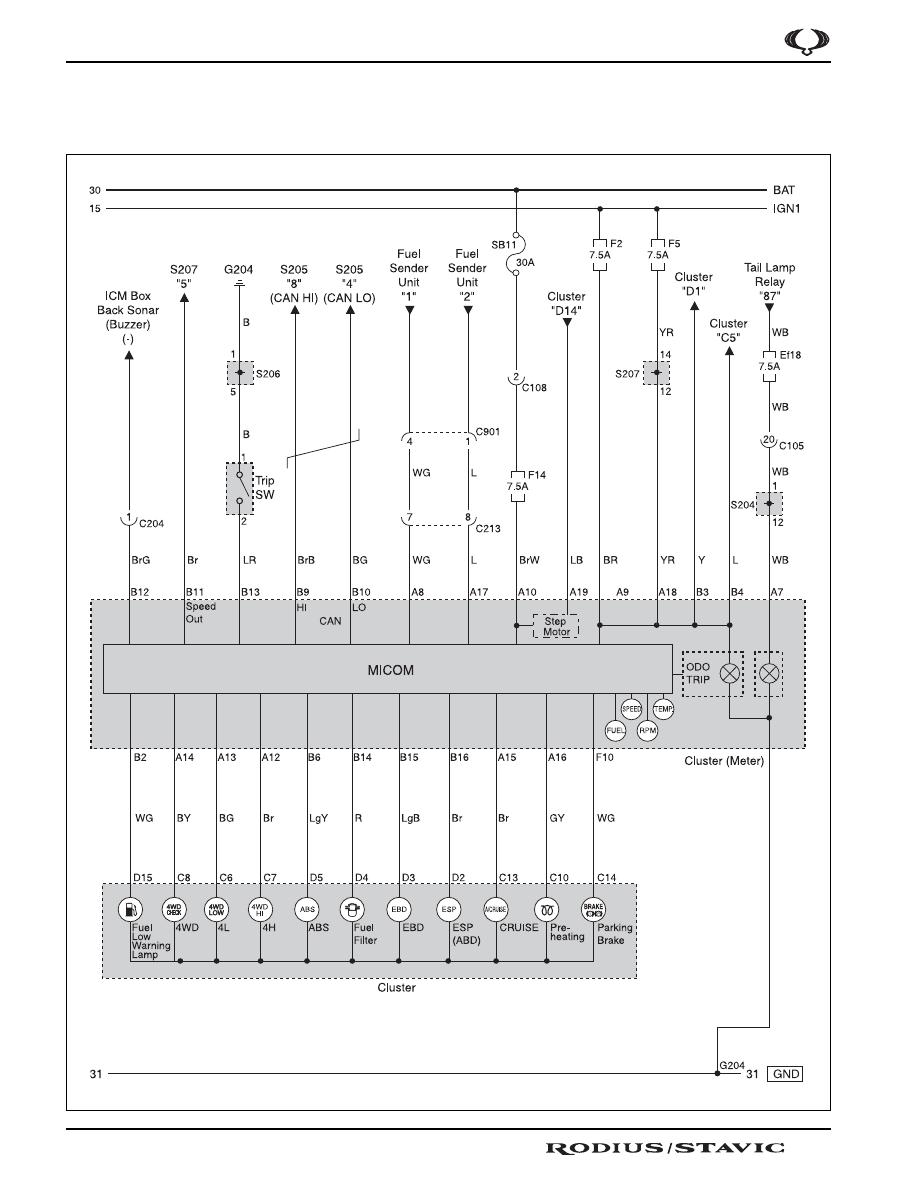

8. CLUSTER

1) GAUGE(SPEED, RPM, FUEL, TEMP, WARNING LAMP(4WD, FUEL FILTER, ABS/ESP)
