SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 433

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

46

5A

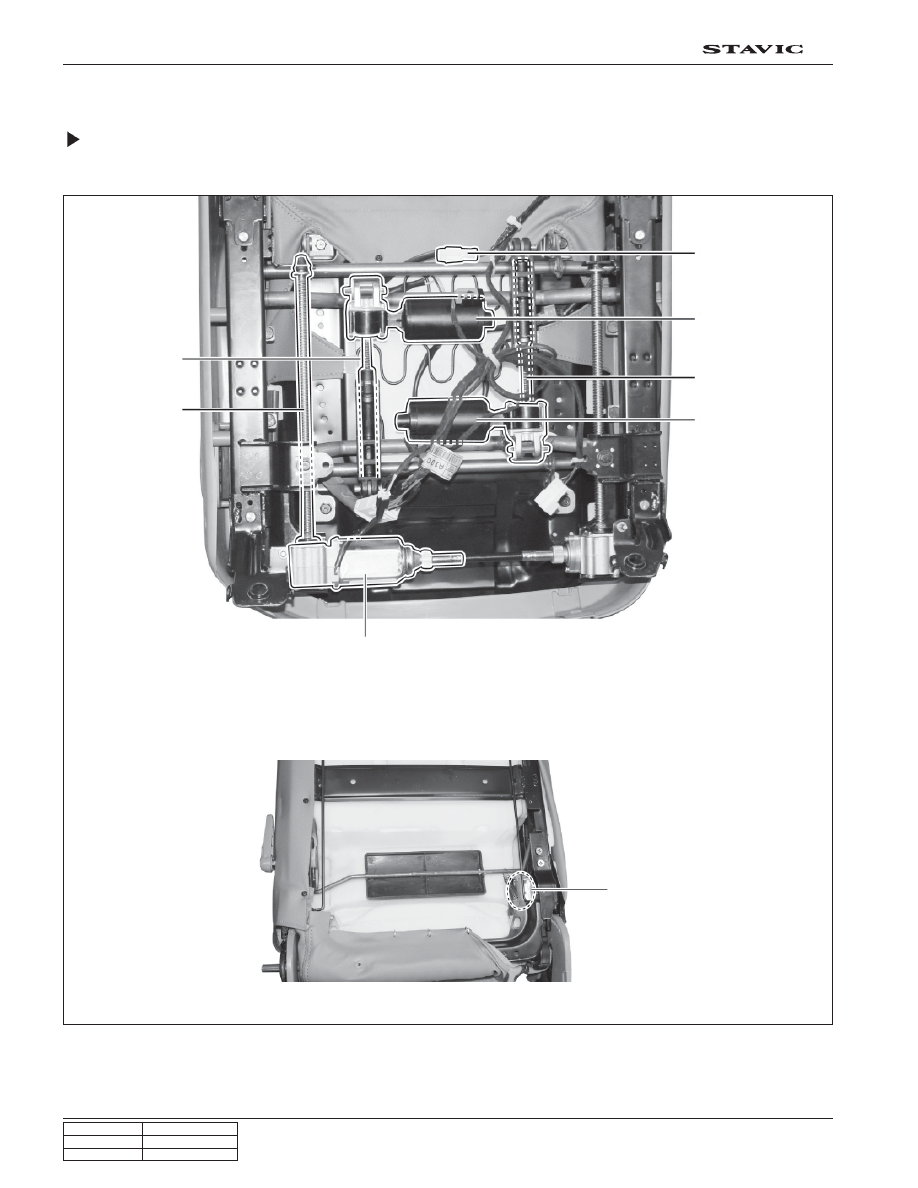

4. OPERATION OF SEAT

Front Seat (Driver’s Seat)

1) Components

Seat position

(front up/down

rail)

Sliding rail

Seat warmer
connector

Seat position
(up/down motor)

Seat position
(up/down rail)

Seat position
(rear up/down
motor)

Sliding motor

Reclining motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

47

5A

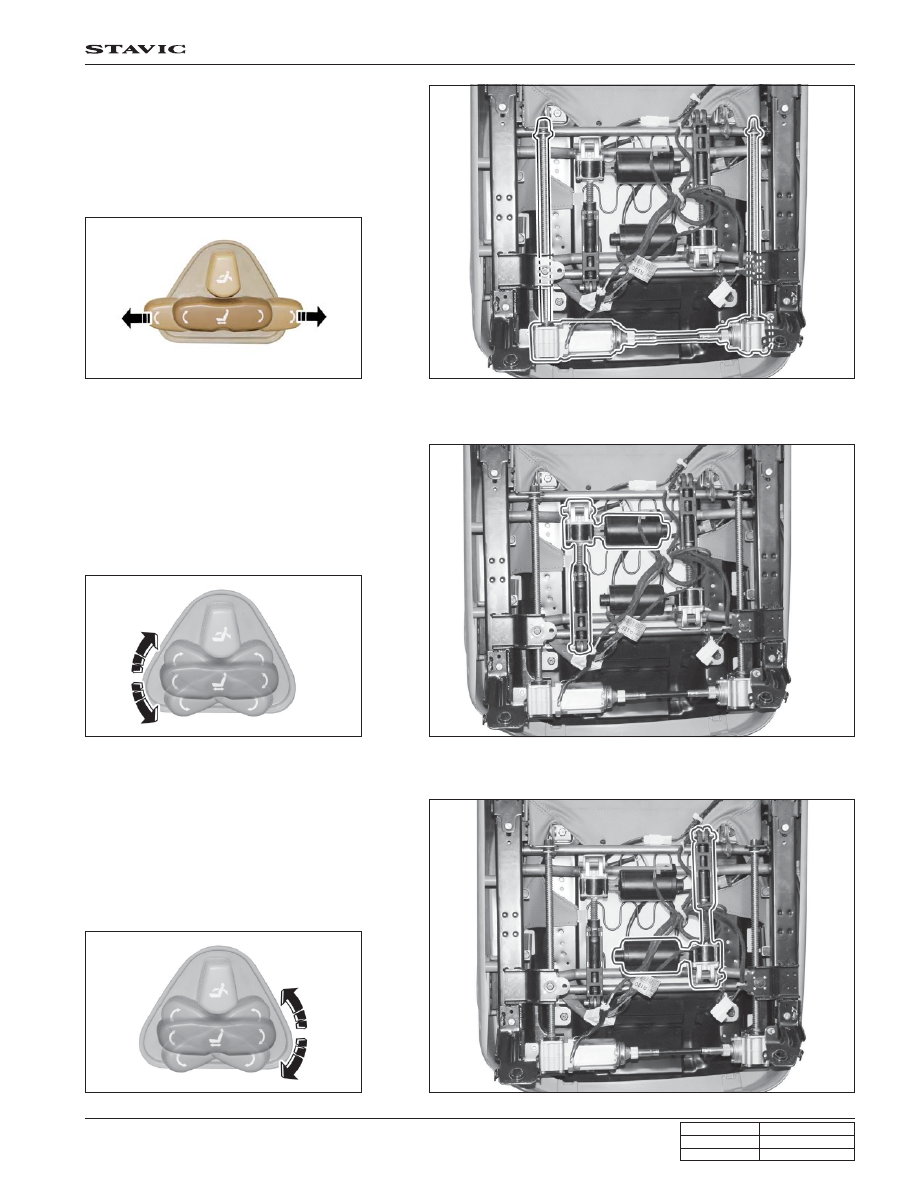

2) Operation of seat

• Sliding

: Seat moves from front to rear controllde

by sliding control switch

• Seat position (front up/down)

: Front side of seat moves up/down

controlled by seat position control
switch

• Seat position (rear up/down)

: Rear side of seat moves up/down

controlled by seat position control
switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

48

5A

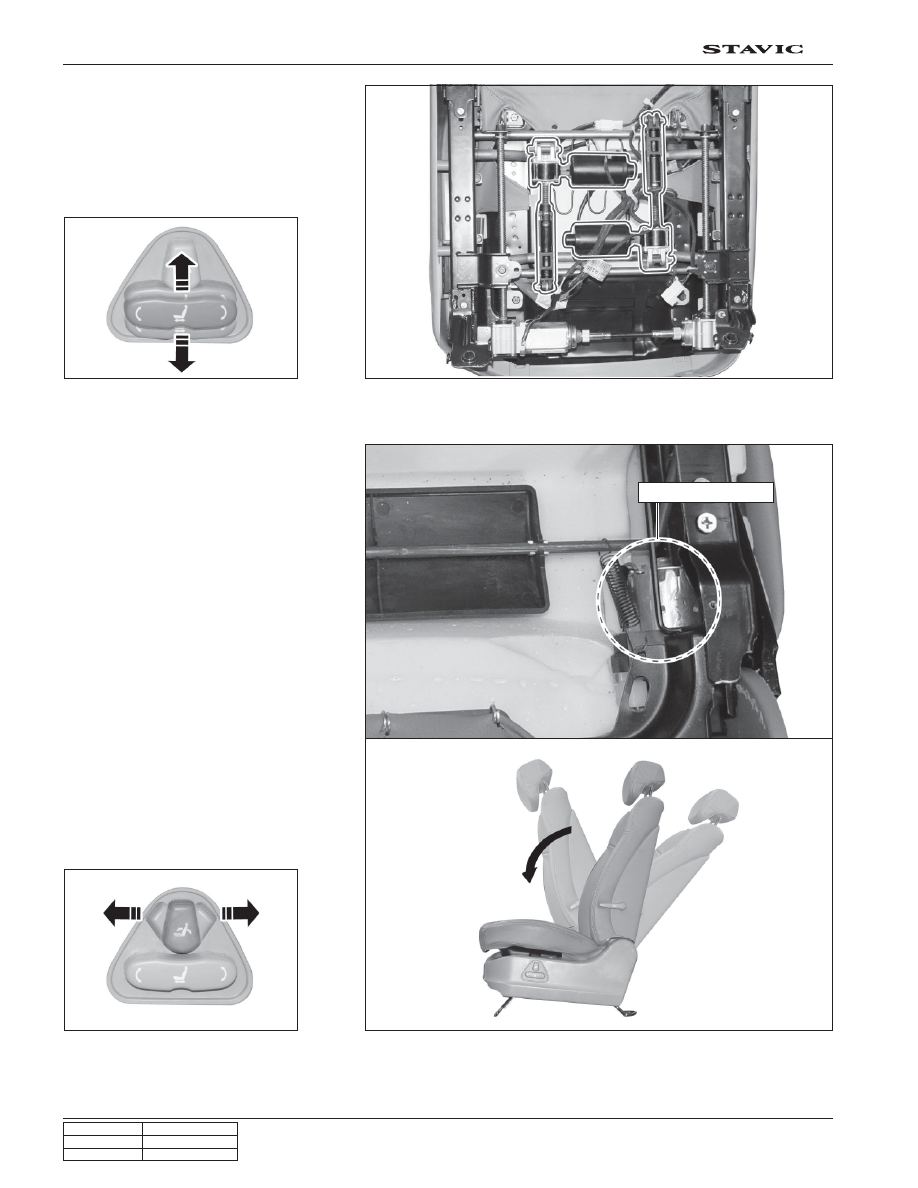

• Seat height (up/down)

: Seat moves up/down controlled

by seat height control switch

• Reclining

: Seat back reclining controlled by

seat reclining control switch

Seat reclining motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

49

5A

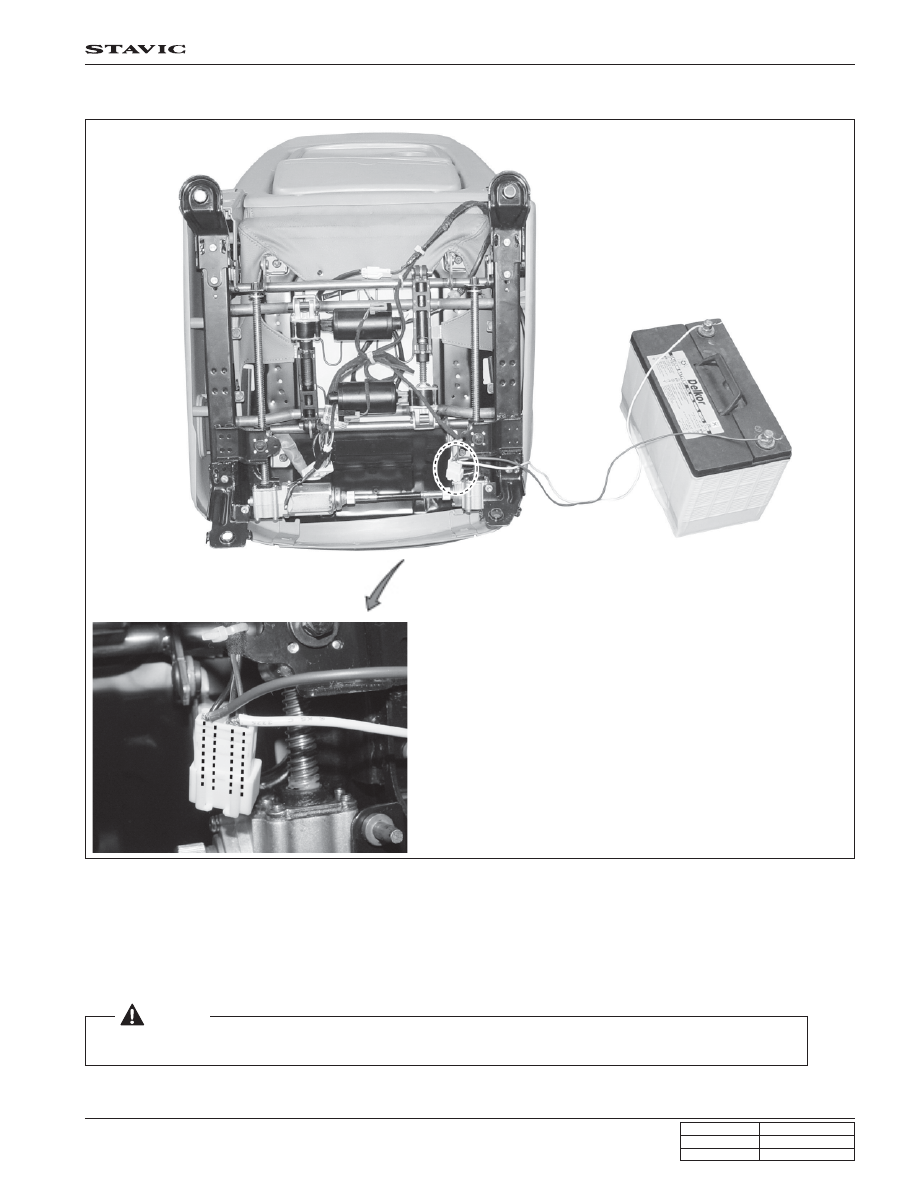

3) Seat electrical equipment check

• Disconnect the seat wiring connector and check if the power is supplied (Refer to the wiring diagram)

1) If the power supply has no problem, remove the seat.

2) Check the motor and wiring if damaged.

3) Connect the battery to the seat connector.

4) Control the seat switch and check the opration.

 [Notice]

Electrical parts are not supplied by a part separately.
