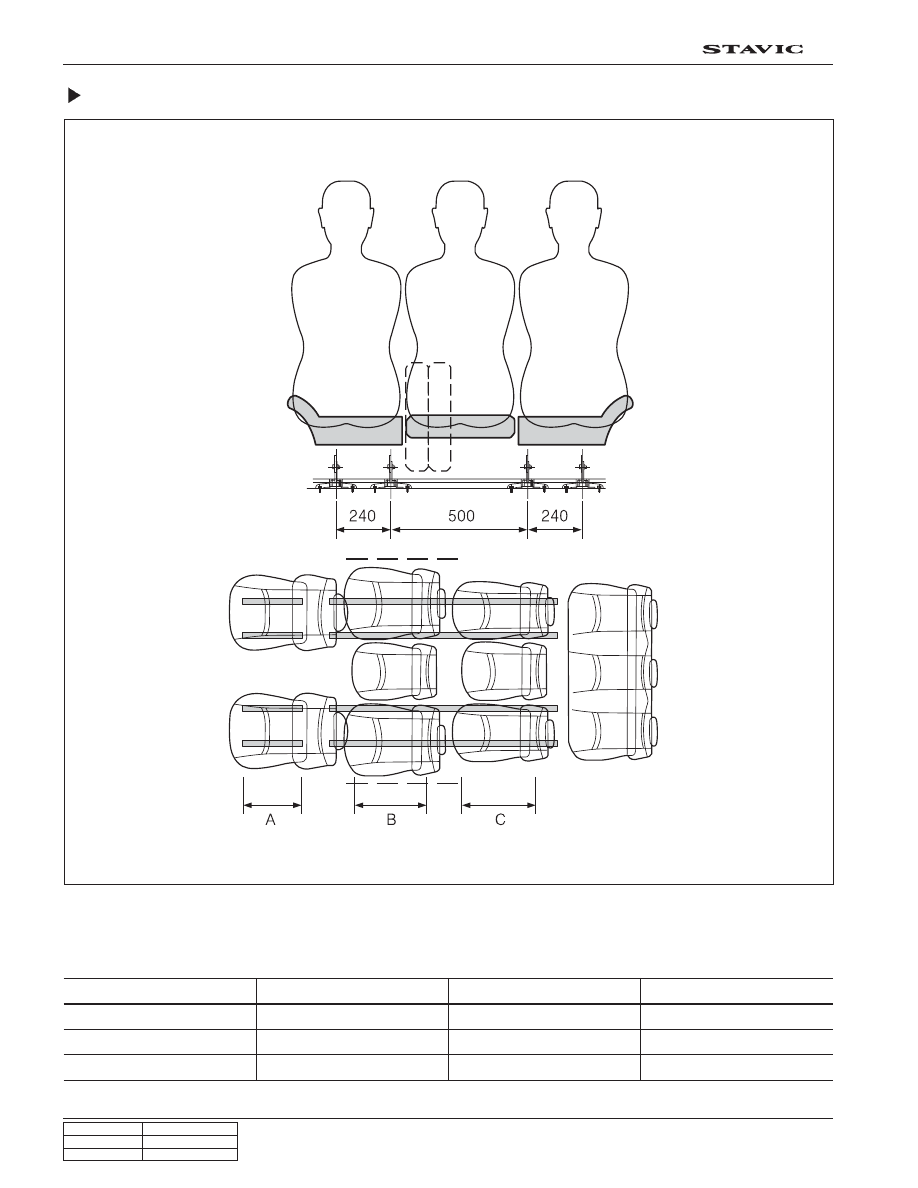

Sliding of Rear 1st and 2nd Seat

- 4 rail (1.610mm) for rear 1st and 2nd seat sliding

- Rail mounting : Floor bolt type

Seat

Front

Rear 1st

Rear 2nd

Sliding distance

228 mm

280 mm

400 mm

Seat

Rear 3rd

Rail overlength

Sliding distance

Fixed

1,610 mm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

43

5A

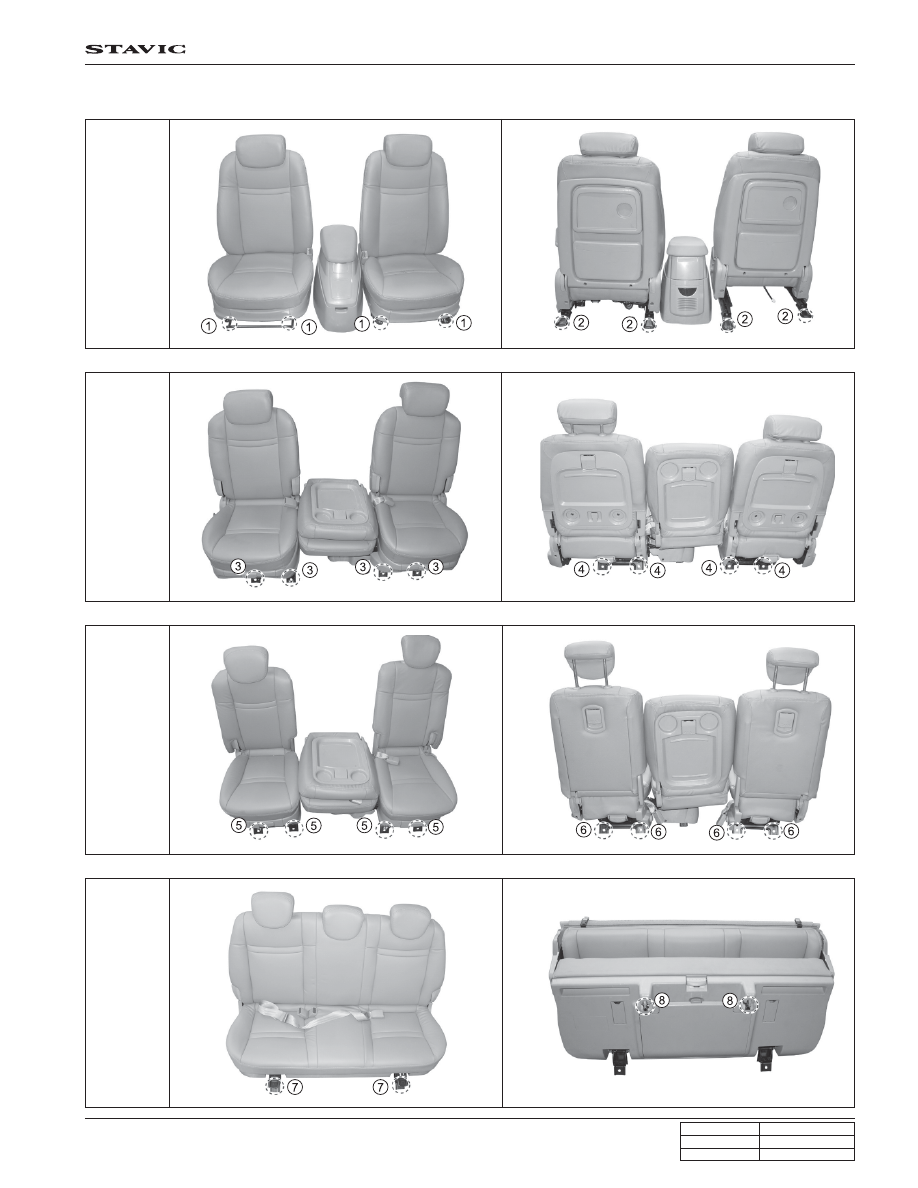

3. REMOVAL AND INSTALLATION

Front

Seat

Rear 1st

seat

Rear 2nd

seat

Rear 3rd

seat

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

44

5A

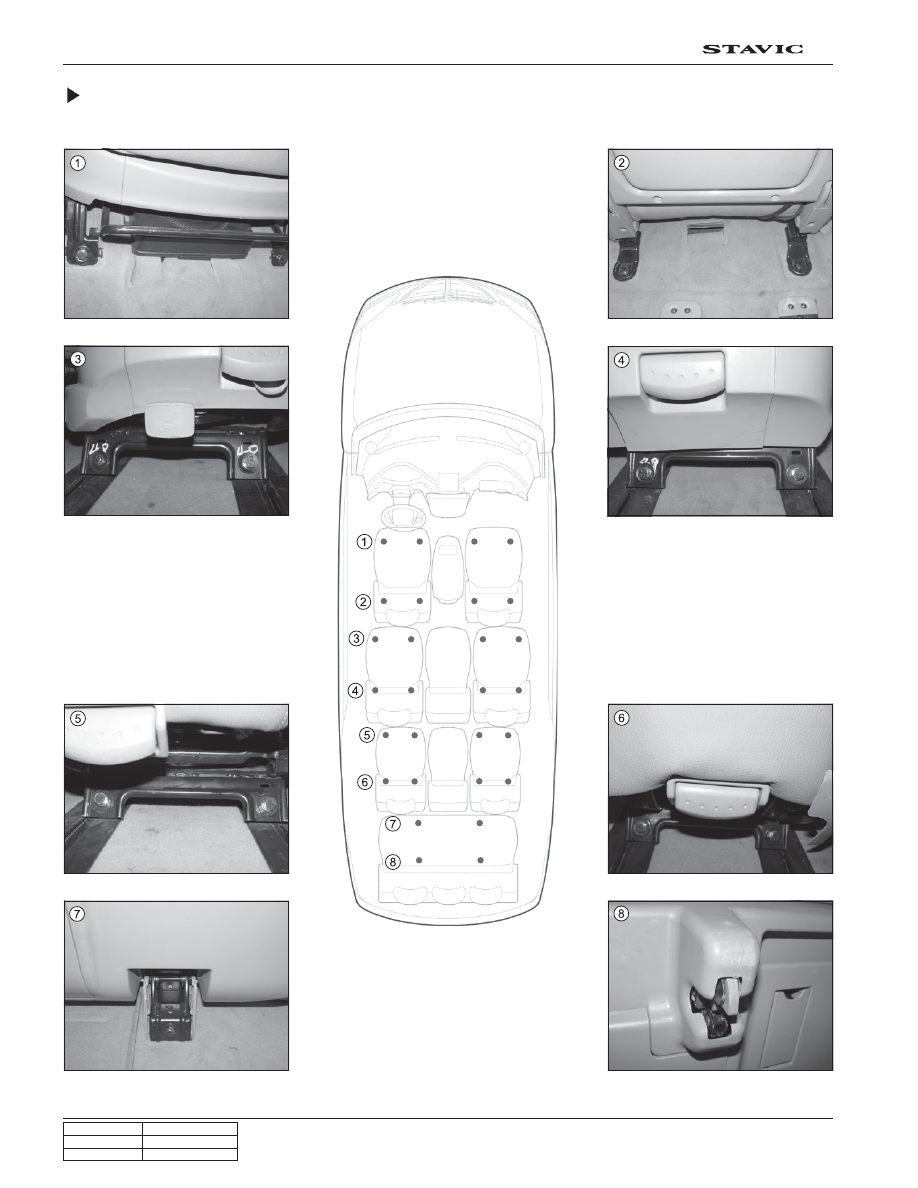

Seat Mounting Point

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

45

5A

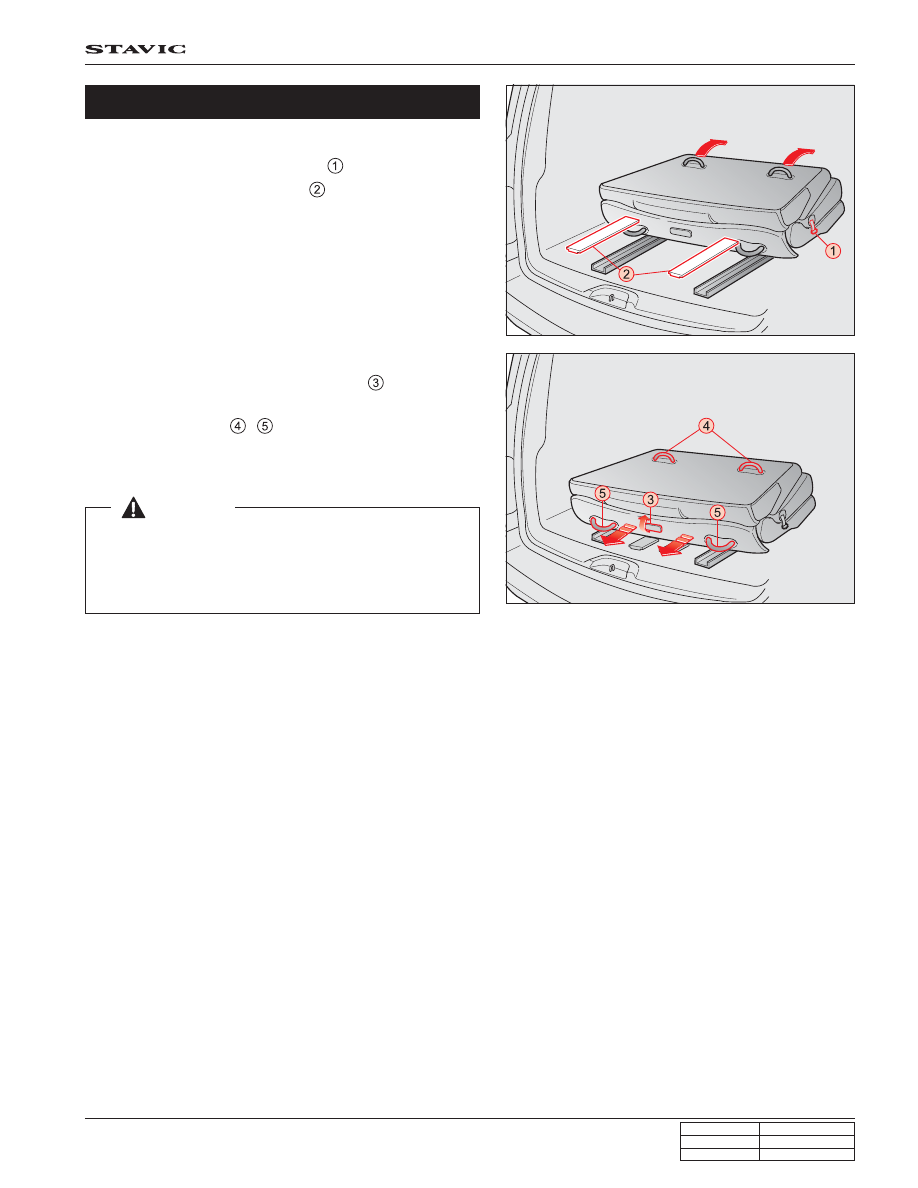

1. Fold down the seatback of the third row seat while puling

up the seatback reclining lever (

).

2. Remove the seat rail covers (

)

Removable Seat

3. Slide the third row seat to its rear end (arrow direction)

while pulling up the seat sliding lever (

).

4. Carefully remove the third row seat from the rail by using

the hand grips (

,

) on the seat as shown in the

figure.

5. Install the seat in the reverse order of removal.

 [Caution]

• Be careful not to drop the seat when removing it. It may

cause a personal injury.

• Make sure that the seat is securely engaged on the rail

during installation.
