SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 428

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

2. Unscrew the retractor mounting bolts to remove seat belt assembly.

Rear 2nd row

seat belt

Rear 3rd row

seat belt

Rear 1st row

seat belt

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

Seat Belt (2 point)

1) Rear 1st seat belt

1. Unscrew seat mounting bolts and remove the seat.

[Reference]

•

2-point type seat belt are installed at the center seat of rear 1st / 2nd / 3rd row seat.

•

Rear 1st seat have two types of seat belt. Normally it adapts 3 point type, however, it adapts 2 point type seat belt when
swivle.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

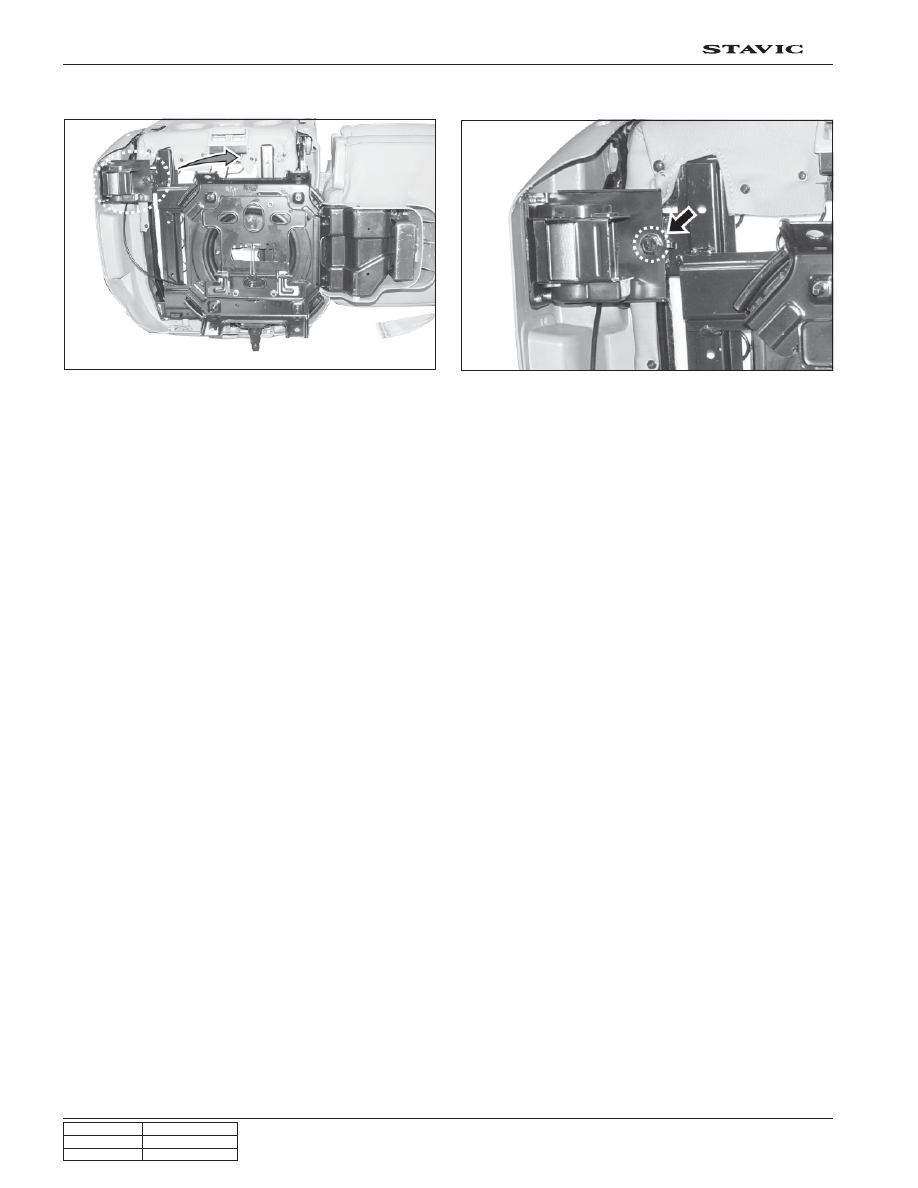

2. Unscrew the retractor mounting bolt to remove seat belt assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

Center Seat Belt

1. Disassemble the seat mounting part on the seat under

cover.

2. Unscrew the seat mounting bolt and remove it.
