SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 426

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

18

5A

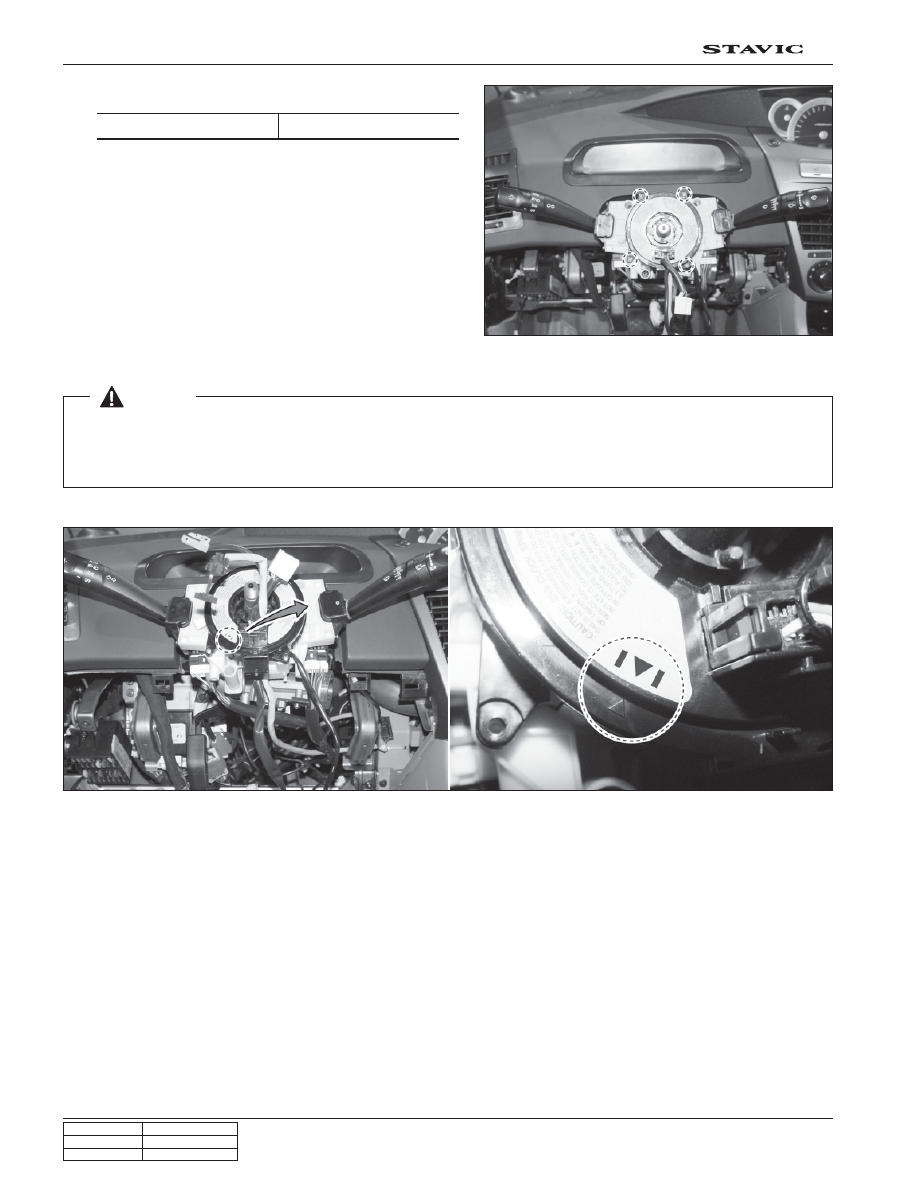

4. Install in the reverse order of removal.

Tightening torque

10 ± 1.0 Nm

 [Notice]

Allgn the contact coil to the right direction. (Refer to the arroow mark in the following picture)

If thealignment of contact coil, is not precise. It could result in a accident due to bad steering condition.

Also, it can damage a contact coil and therefore, can be a reason of airbag failure.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

19

5A

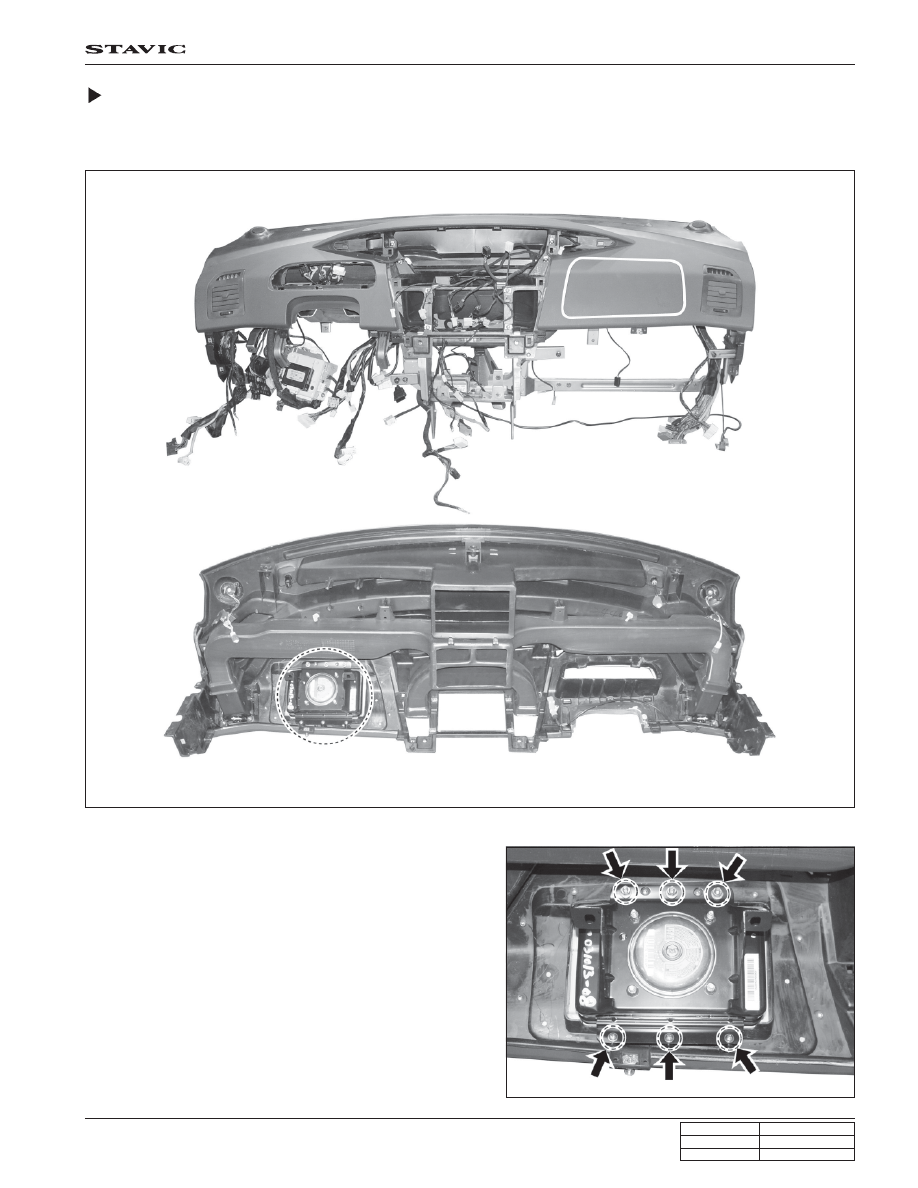

Passenger’s Airbag

1. Disconnect the battery negative cable.

2. Remove the I/P panel.

3. Remove the supplementary airbag module.

4. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

20

5A

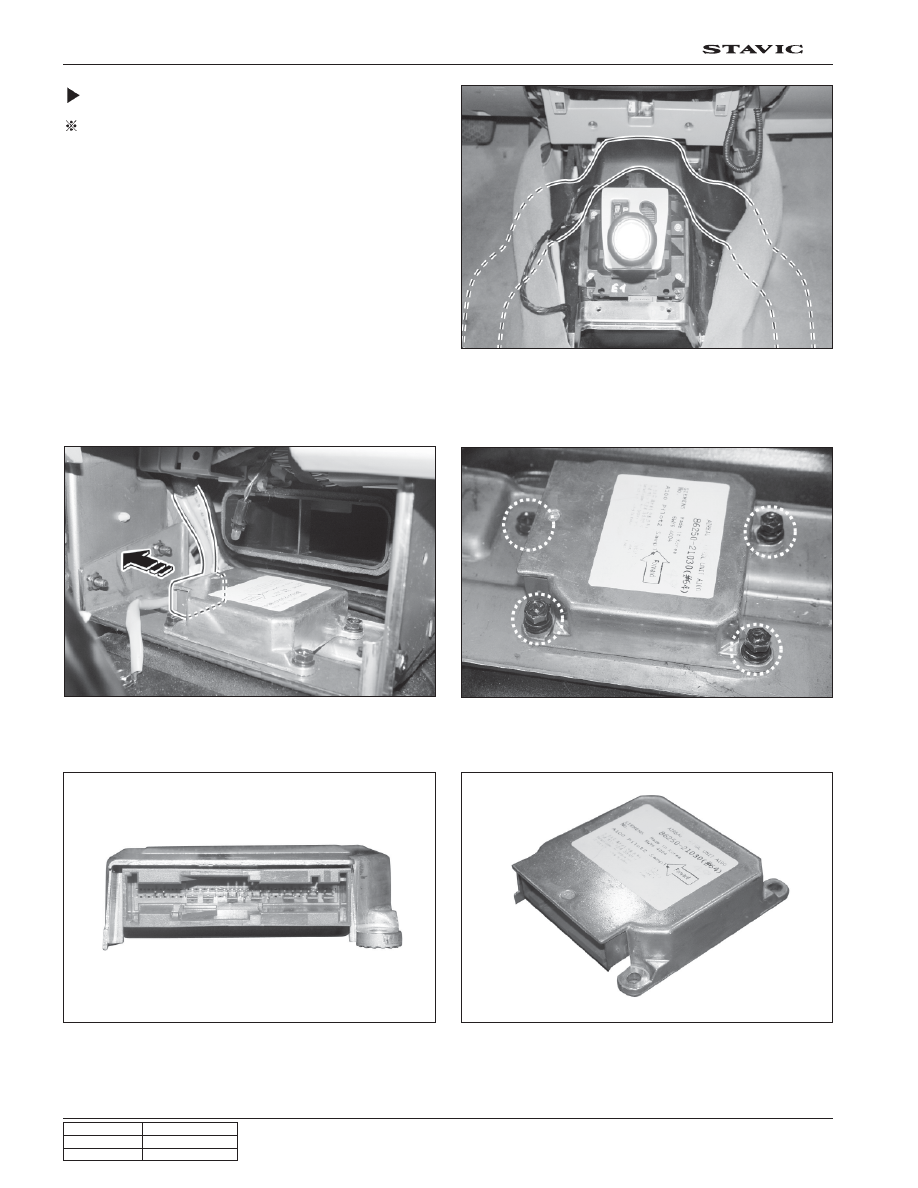

Airbag Unit (SDM)

Preceding Work: Remove the center facia

1. Remove the center floor duct.

2. Disconnect the SDM and ground connectors.

3. Remove the SDM from the mounting deck.

4. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

21

5A

Upper anchor

Retractor

Buckle

Lower anchor

Upper anchor

Retractor

Buckle

Lower anchor

Height adjuster

Buckle

Lower anchor

Pretensioner

Upper anchor

Retractor

Buckle

Lower anchor

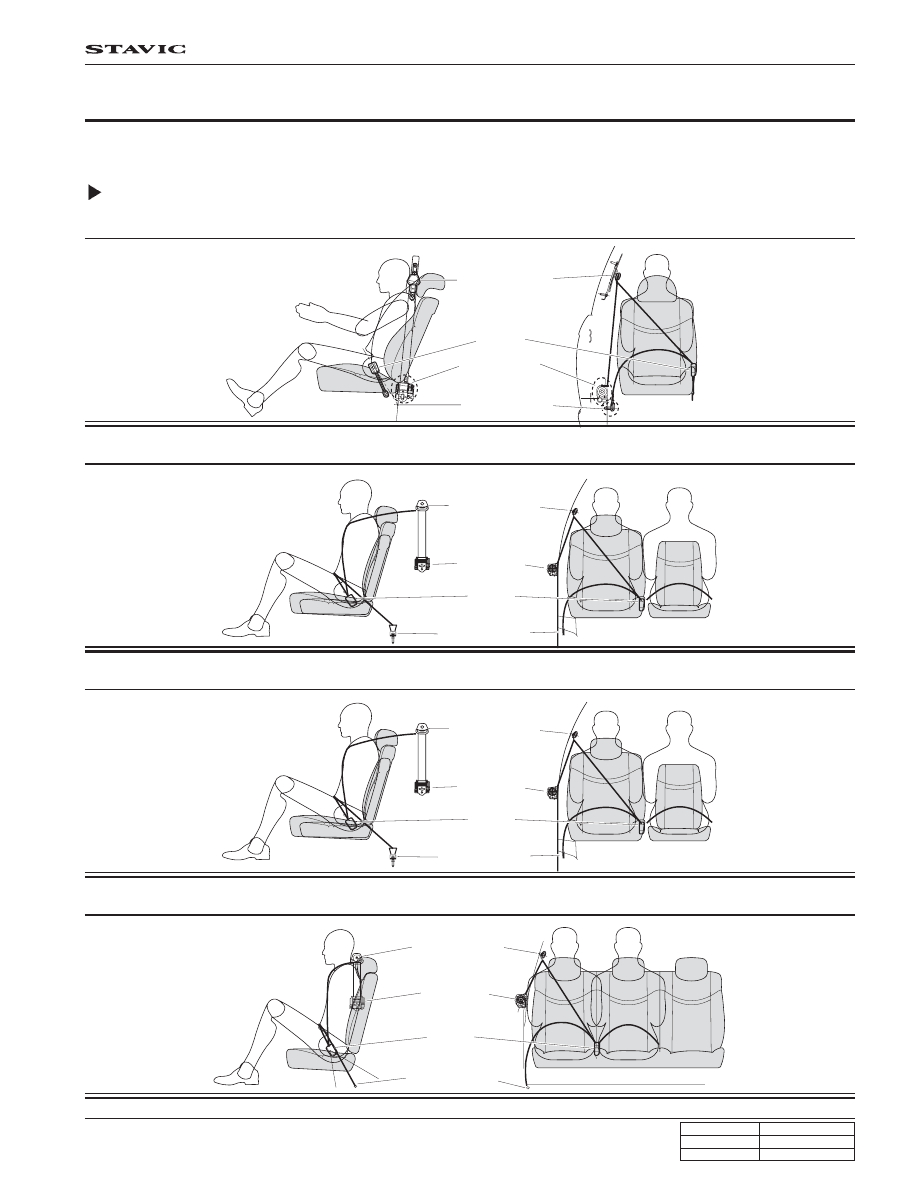

SEAT BELT

Rear 1st row (3 point + 2 point)

Rear 3rd row (3 point + 2 point)

Rear 2nd row (3 point + 2 point)

Front Seat Belt (3 point)

1. COMPONENTS

11 Passengers
