SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 425
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
BODY INTERIOR
STAVIC - 2004.09
14
5A
Code
1363
1364
1367
1368
1369
1370
1620
1650
1651
1652
1657
1670
2500
Fault Contents
Driver’s pretensioner circuit short to ground
Driver’s pretensioner circuit short to bat-
tery voltage
Passenger pretensioner circuit, resis-
tance too high
Passenger pretensioner circuit, resis-
tance too low
Passenger pretensioner circuit, short to
ground
Passenger pretensioner circuit, short to
battery voltage
SDM interal fault
Front impact memorid
Side impact (driver) memoried
Side impact (passenger) memoried
Belt pretensioner operation memoried
Secondary front impact memoried
Warning is faulty
Check
Check the connection of the driver pretensioner connector.
Check the wiring condition of the driver pretensioner.
Check the bending of the airbag terminal.
Check the connection of the driver pretensioner connector.
Check the wiring condition of the driver pretensioner.
Check the bending of the airbag terminal.
Check the connection of the passenger pretensioner connector.
Check the wiring condition of the passenger pretensioner.
Check the bending of the airbag terminal.
Check the connection of the passenger pretensioner connector.
Check the wiring condition of the passenger pretensioner.
Check the bending of the airbag terminal.
Check the connection of the passenger pretensioner connector.
Check the wiring condition of the passenger pretensioner.
Check the bending of the airbag terminal.
Check the connection of the passenger pretensioner connector.
Check the wiring condition of the passenger pretensioner.
Check the bending of the airbag terminal.
Replace the SDM
Replace the SDM
Replace the SDM
Replace the SDM
Replace the SDM
Replace the SDM
• Check the wiring to warning lamp
• Check the warning lamp bulb
• Check the SDM unit terminal

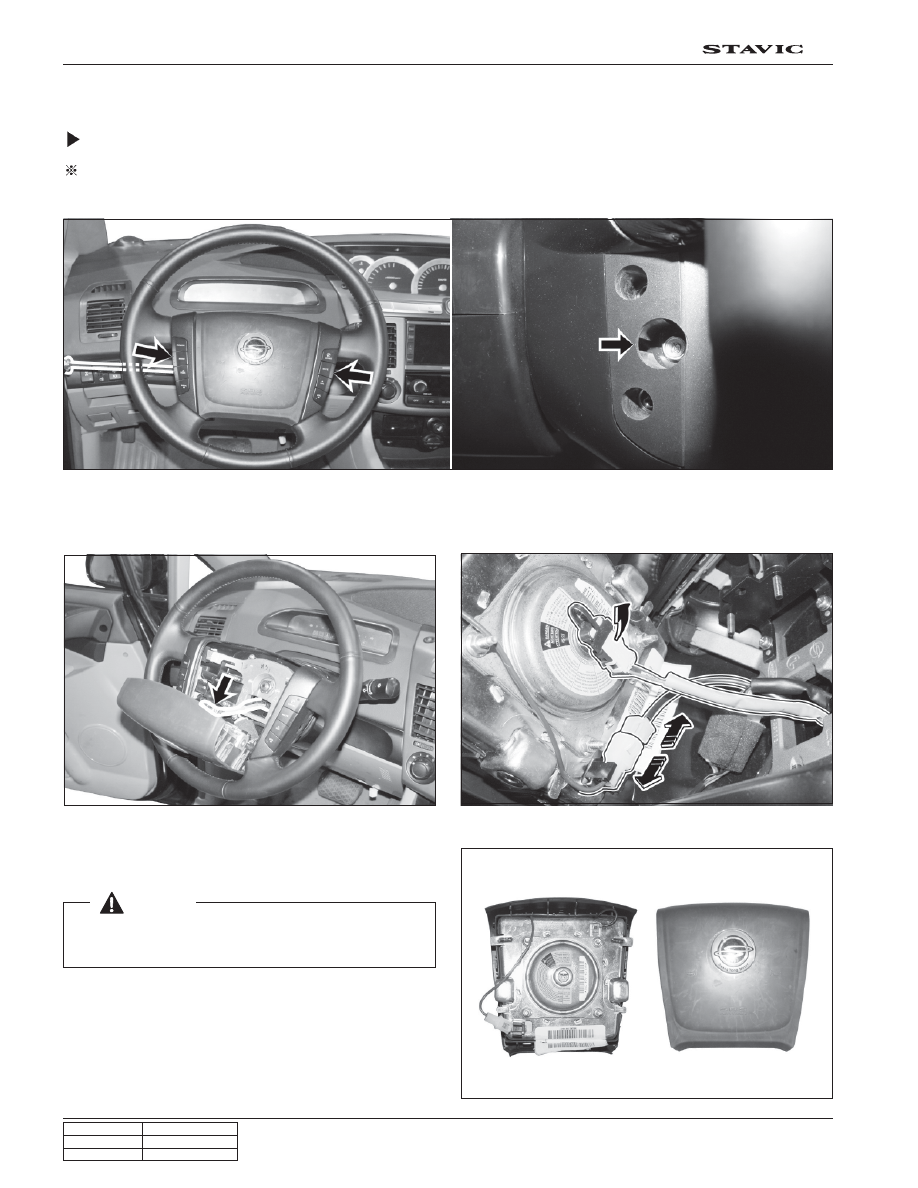

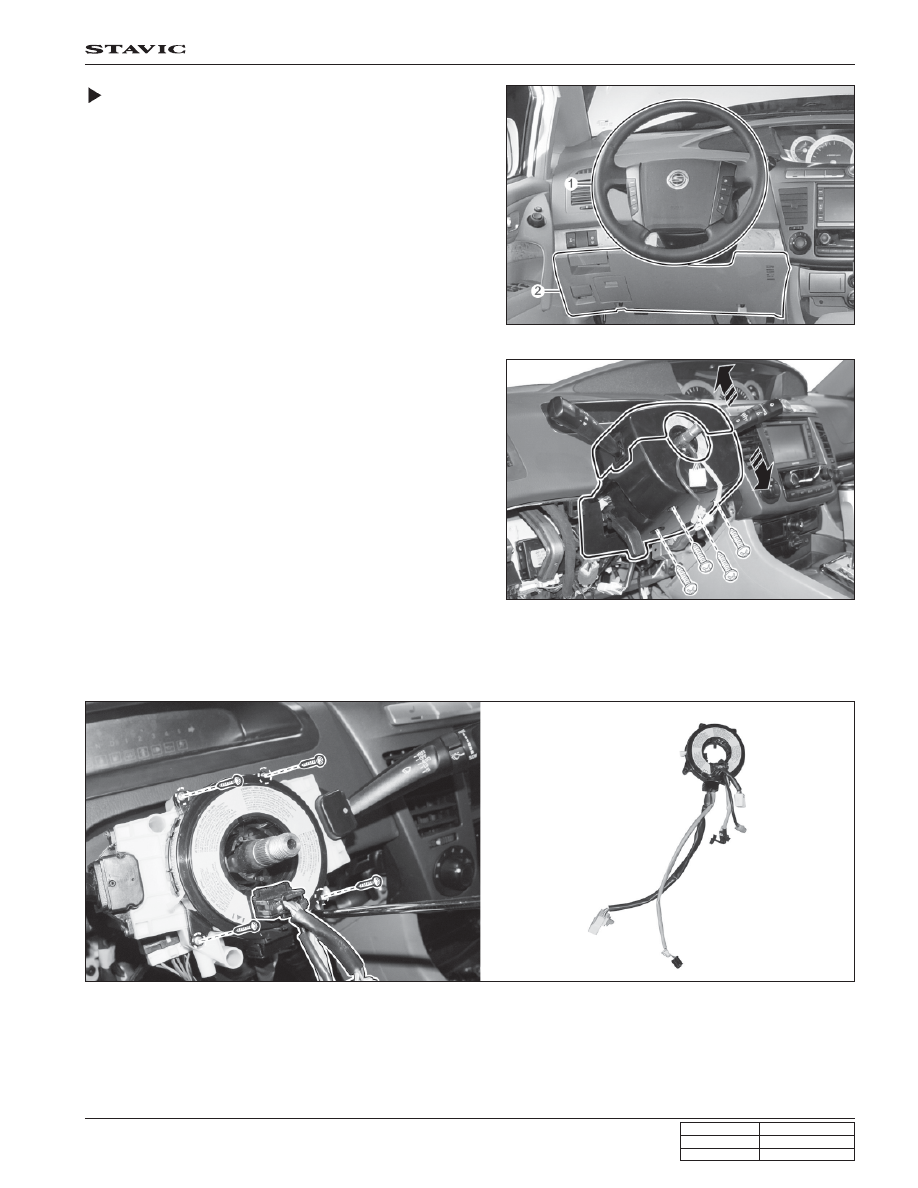

[Notice]
•

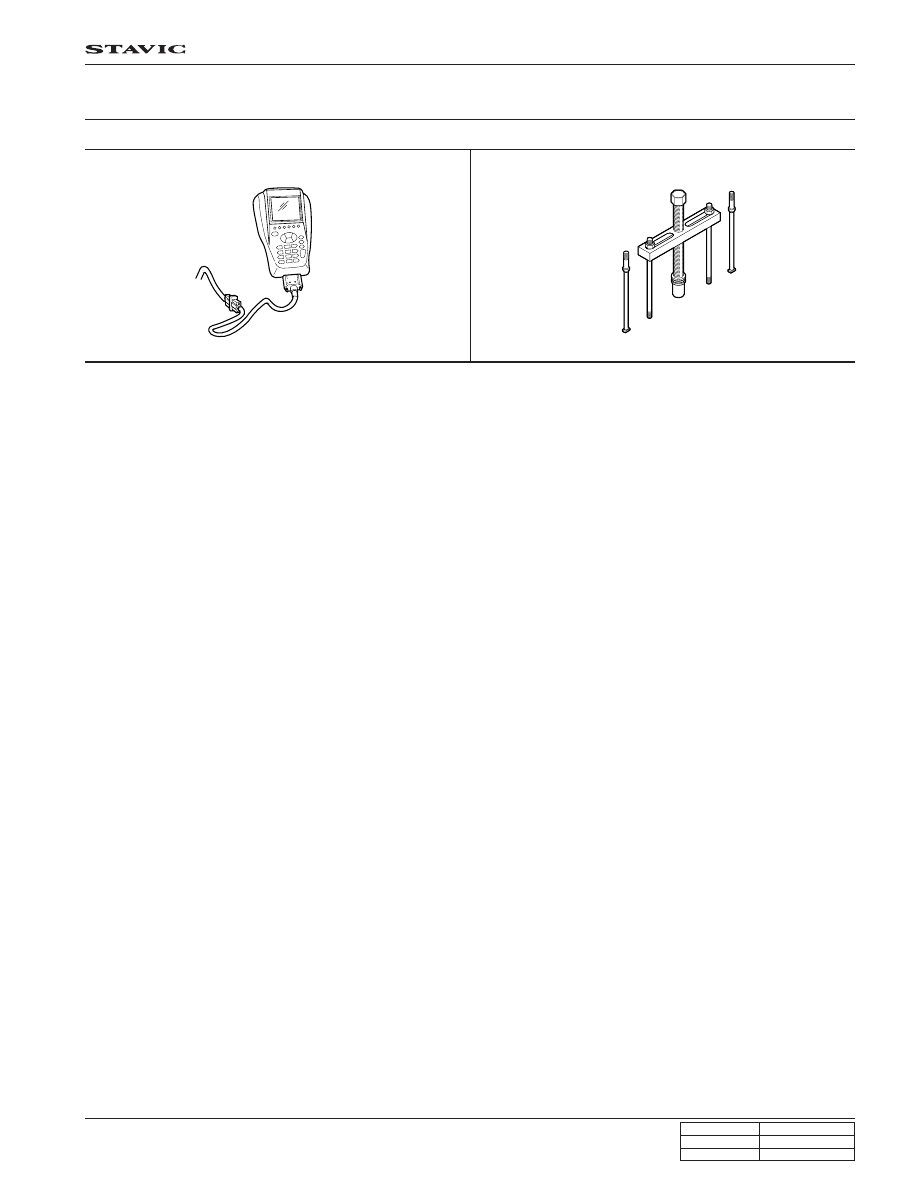

Use only the scan tool to check the airbag module and the sensing and diagnostic module (SDM). Never measure the
resistance of an airbag module with an ohmmeter. An ohmmeter’s battery can deploy the airbag and cause injury.
•
Before testing, disconnect the negative battery cable. Wait 1 minute for the SDM capacitor to discharge. The capacitor
supplies reserve power to deploy the airbags, even if the battery is disconnected. Unintentional deployment of the
airbags can cause injury.
•
Do not attempt to repair the supplemental inflatable restraints (SIR) wiring harness. An SIR repair can create a high-
resistance connection which can keep the airbags from deploying when needed, resulting in injury.
