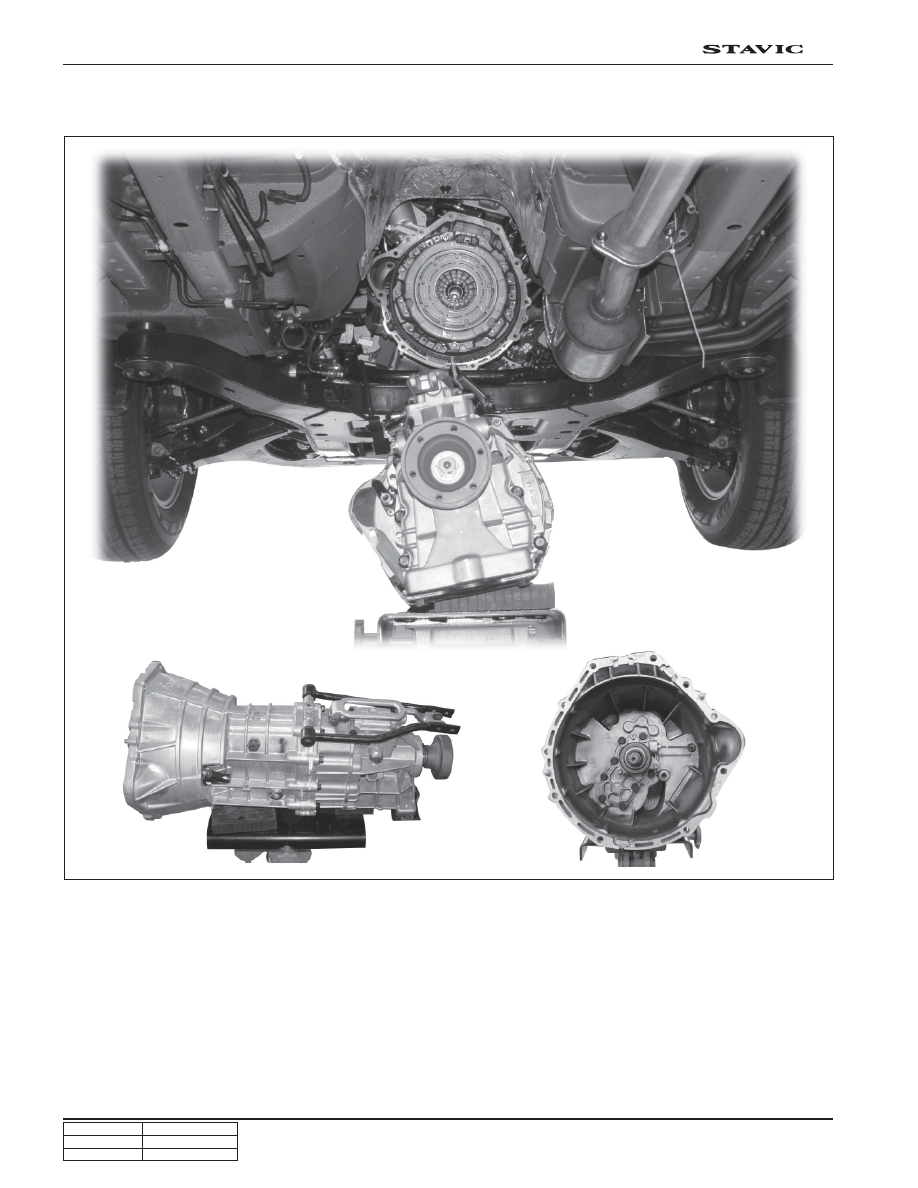

10. Drop the hydraulic jack with T/M slowly.

11. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

35

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

T/M ASSEMBLY

1. ASSEMBLY OVERVIEW

Top Cover Assembly

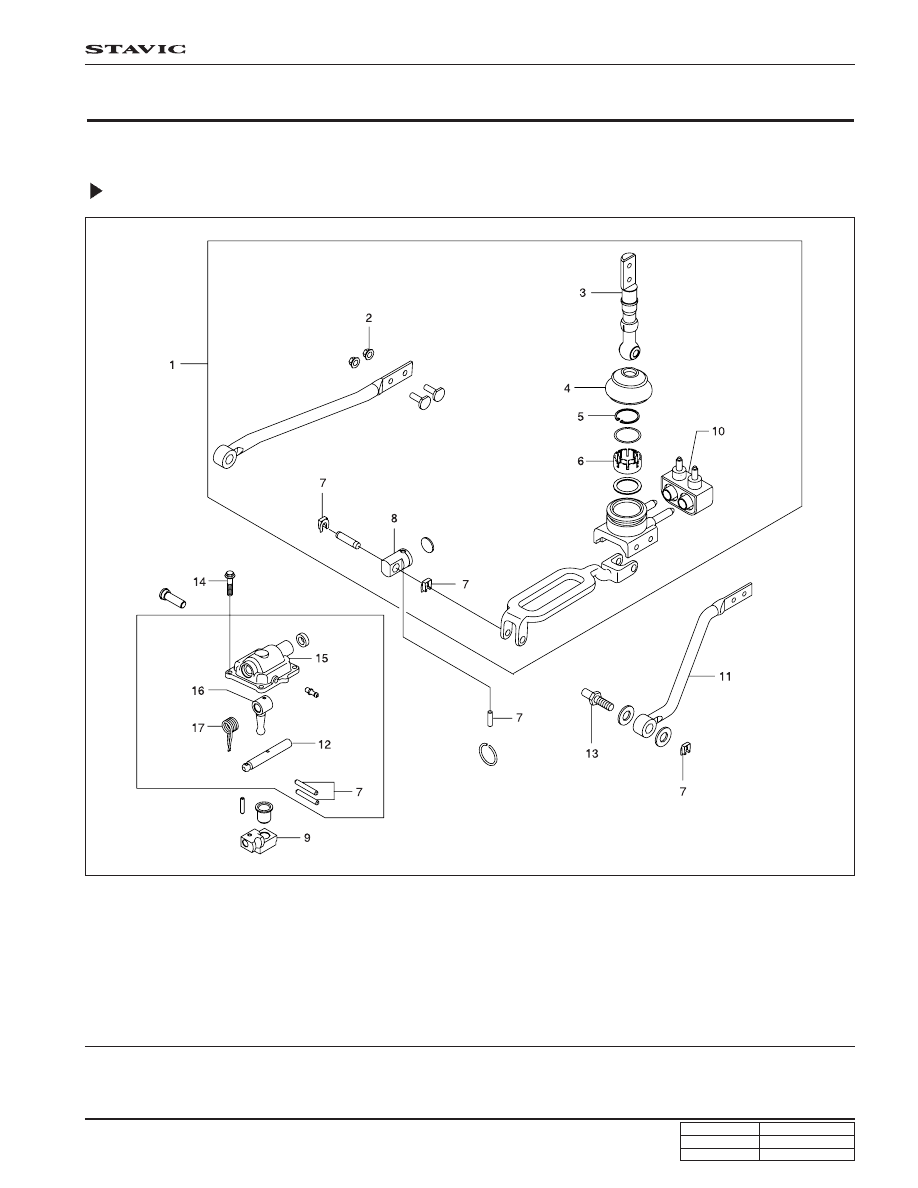

1. Top cover assembly - semi remote

2. Nut

3. Remote shift lever

4. Shift boot - inner

5. Snap ring

6. Lining shift socket

7. Pin

8. Joint housing

9. Offset lever

10. Control housing arm insulator

11. Semi remote kit assembly

12. Shift rail

13. Stud bolt

14. Bolt

15. Shift top cover

16. Offset control lever

17. Control shift spring

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

36

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

T/M Housing & Adaptor, Extension Housing

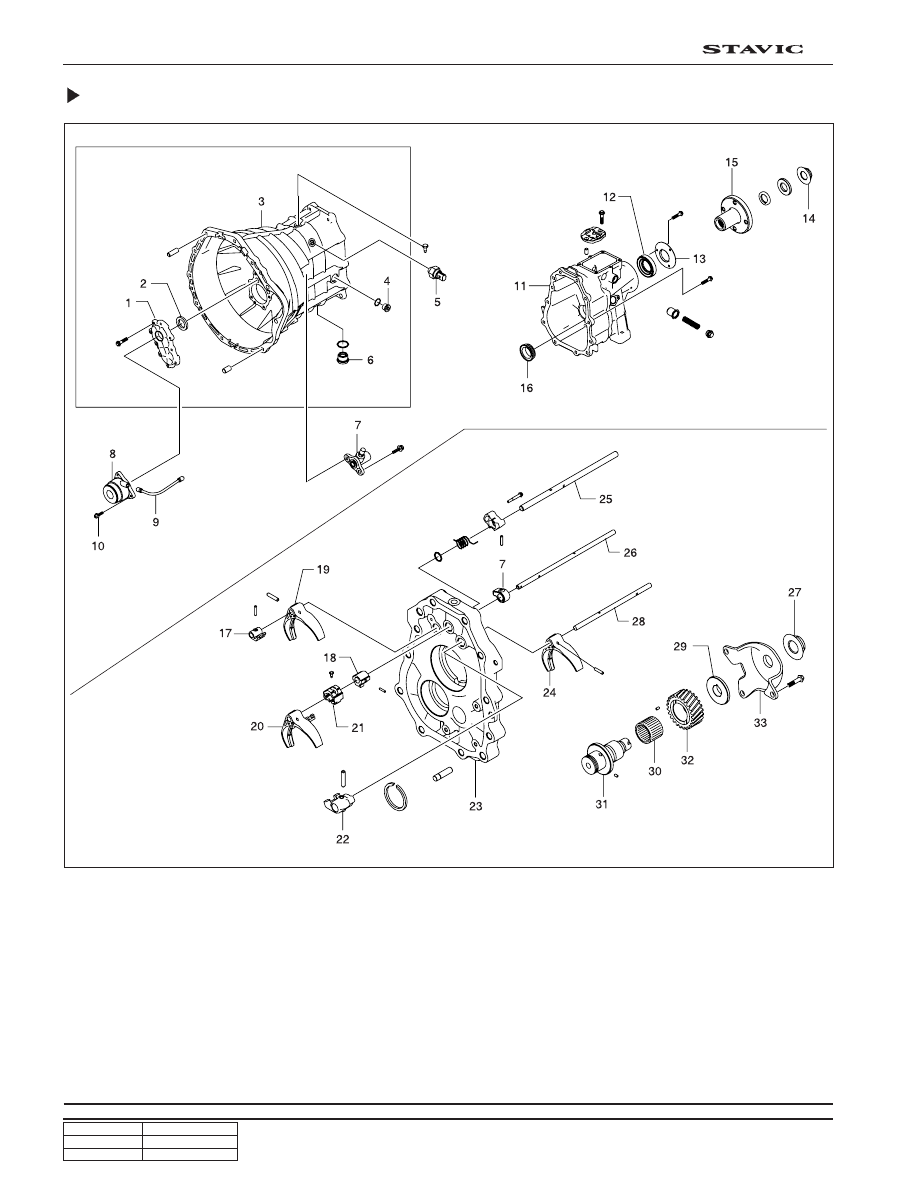

1. Front cover

2. Spacer

3. T/M housing

4. Filler plug

5. Back up lamp S/W

6. Drain plug

7. Adaptor

8. Clutch cylinder

9. Pipe

10. Bolt

11. Extension housing

12. Oil seal

13. Rear cover

14. Lock nut

15. Rear flange

16. Bearing

17. Shift lug

18. Shift lever rail-inner

19. 1st/2nd shift fork

20. 3rd/4th shift fork

21. Inner lock plate

22. Shift lug

23. T/M adaptor

24. 5th/R shift fork

25. 1st/2nd shift rail

26. 3rd/4th shift rail

27. Reverse lock nut

28. 5th/R shift rail

29. Spacer

30. Roller bearing

31. Reverse idler shaft

32. Reverse idler gear

33. Reverse idler bracket

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

37

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

Gear Assembly

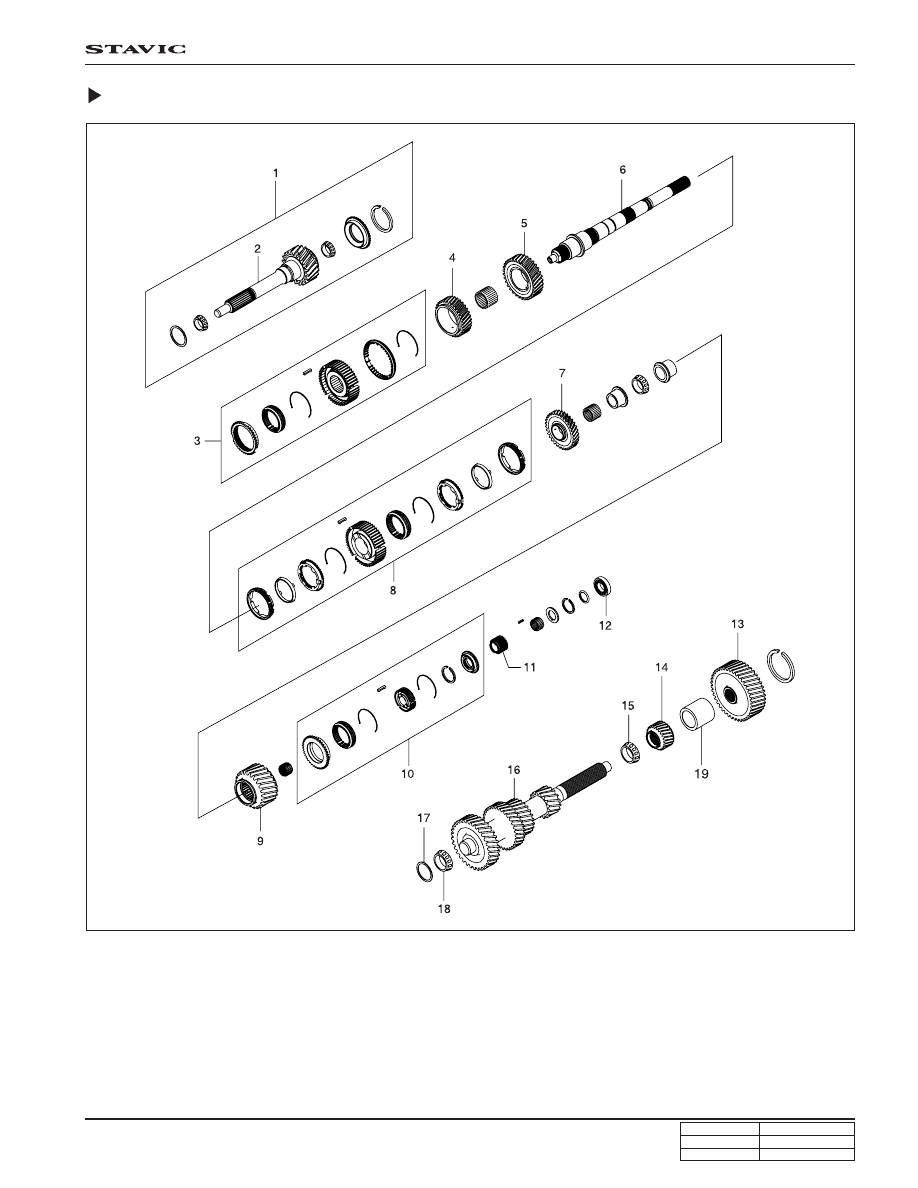

1. Input shaft assembly

2. 4th shift gear

3. Synchronizer assembly (3rd/4th)

4. 3rd shift gear

5. 2nd shift gear

6. Main shaft

7. 1st shift gear

8. Synchronizer assembly (1st/2nd)

9. Reverse shift gear

10. Synchronizer assembly (5th/Reverse)

11. 5th shift gear

12. Ball bearing

13. Counter gear-5th

14. Counter gear-Reverse

15. Taper bearing

16. Counter gear assembly

17. Retainer ring-counter

gear

18. Taper bearing

19. counter reverse spacer
