SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 333

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

30

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

3. Unscrew extension bar - sem remote mounting nut (1) and remove a pin (A) which connects the shifting lever and

extension rod.

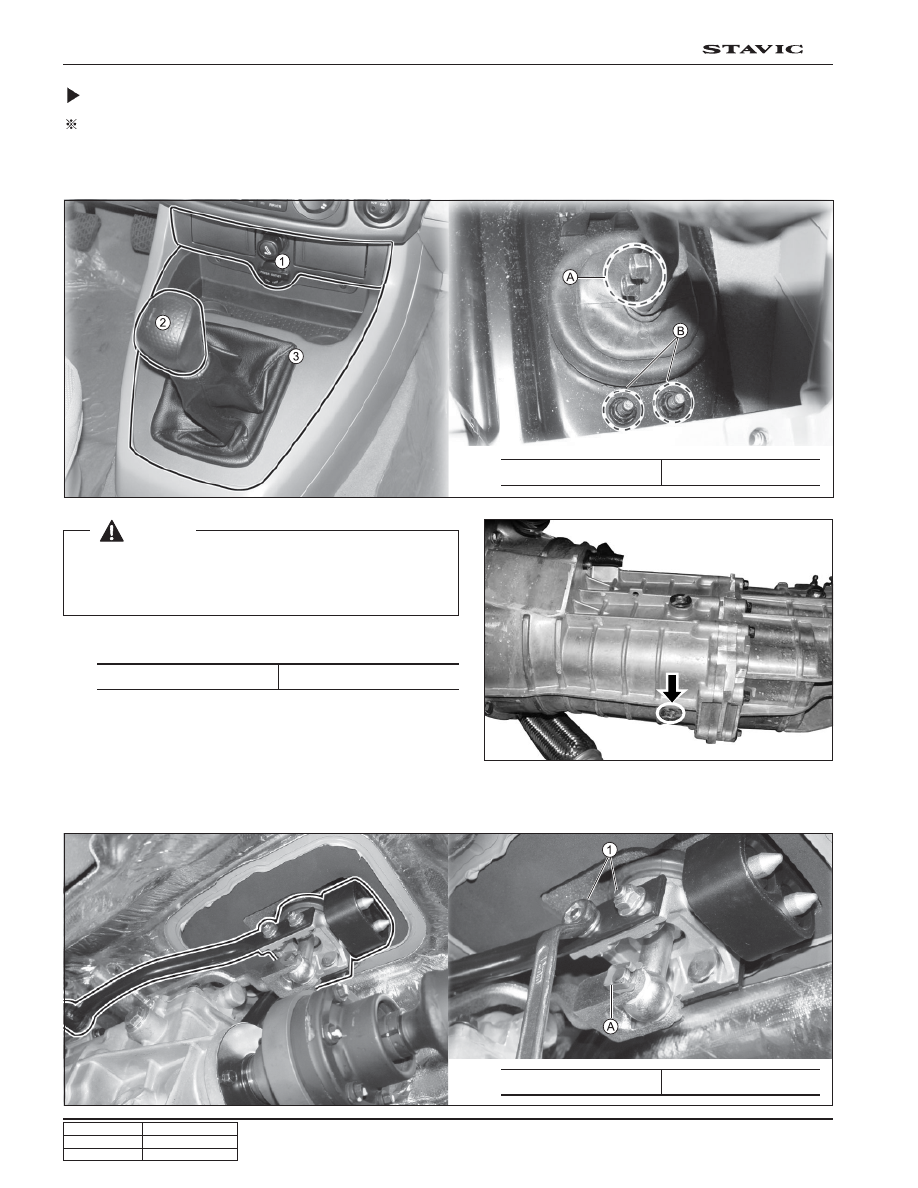

Removal and Installation

 Preceding work: Disconnect the battery negative cable.

1. Remove the center cup holder assembly (1), shifting lever nob (2) and center console cover (3).

2. Unscrew the shifting lever mounting nut (A) and the shifting lever cover mounting nut (12 mm - 2 EA) (B).

Tightening torque

70 ~ 90 Nm

Installation Notice

Tightening torque

70 ~ 90 Nm

 [Notice]

IIf the oil should be changed, remove the oil drain plug in
transmission housing and fully drain the oil. And, retighten
the plug.

Tightening torque

40 ~ 50 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

31

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

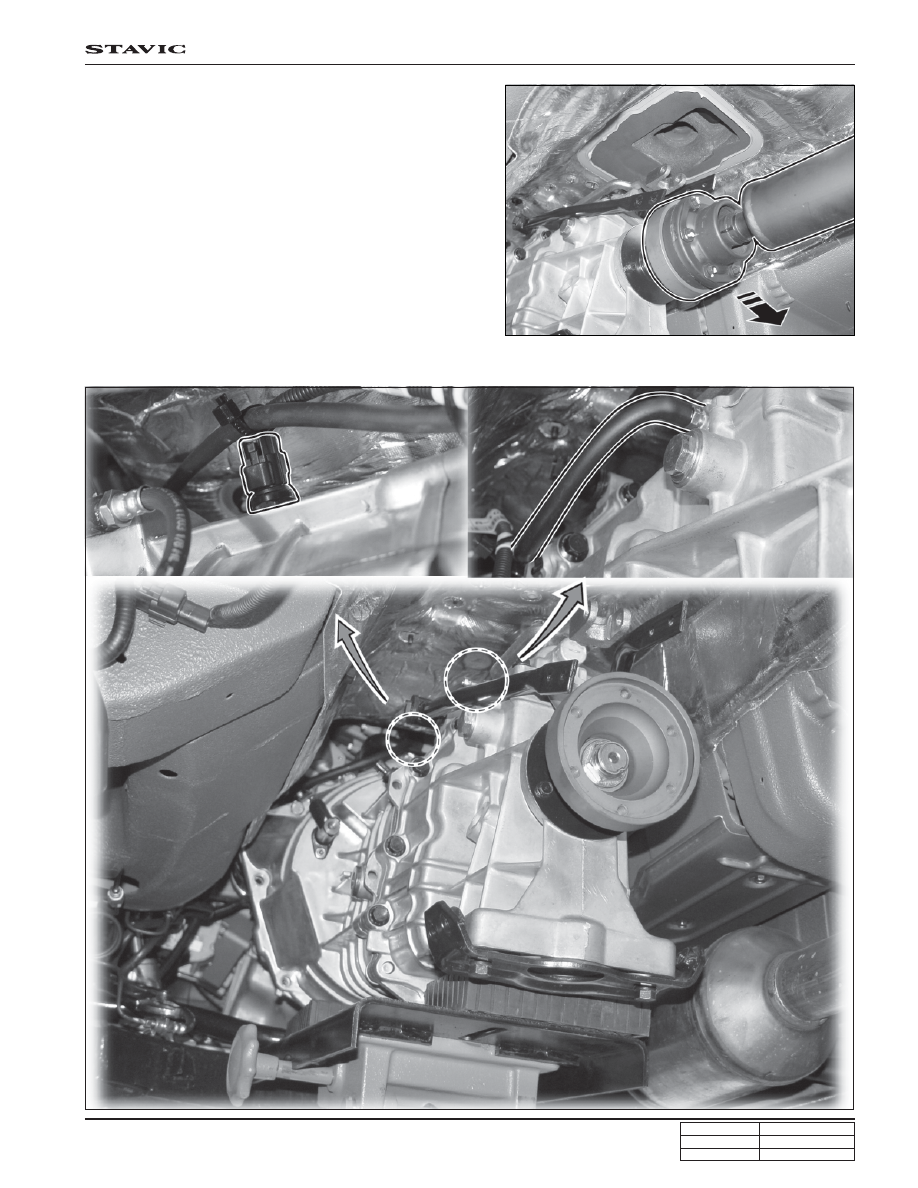

4. Unscrew 6 bolts at T/M output shaft flange, and fix the

propeller shaft on the body.

5. Disconnect the back up lamp switch connector and air bleeder hose from the T/M assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

32

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

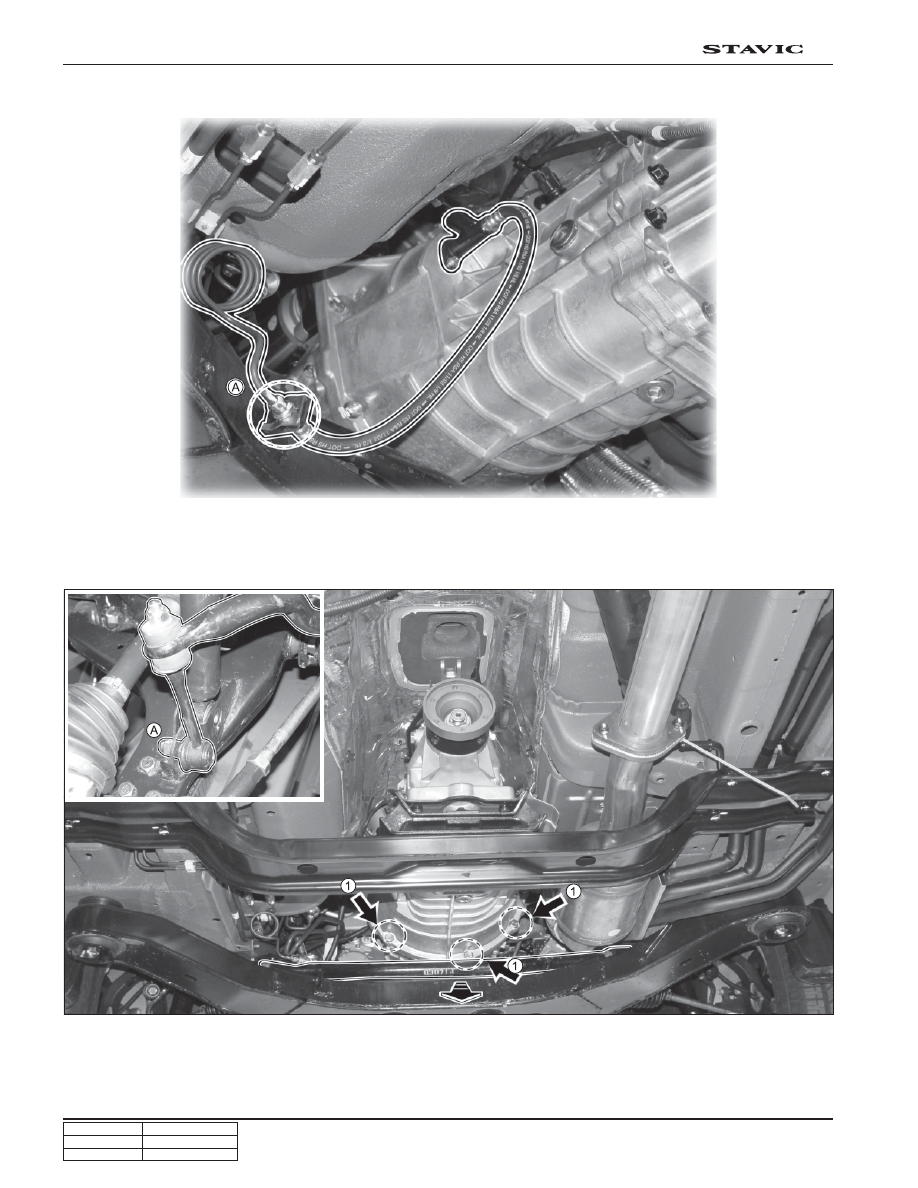

6. Disconnect the clutch oil hose (Fix the hose with a tool to prevent oil leakage) at “A” marked position.

7. For easier work, unscrew three T/M housing bolts (1) and disconnect stabilizer bar from link (A) to have the

stabilizer bar down to sub frame.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

33

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

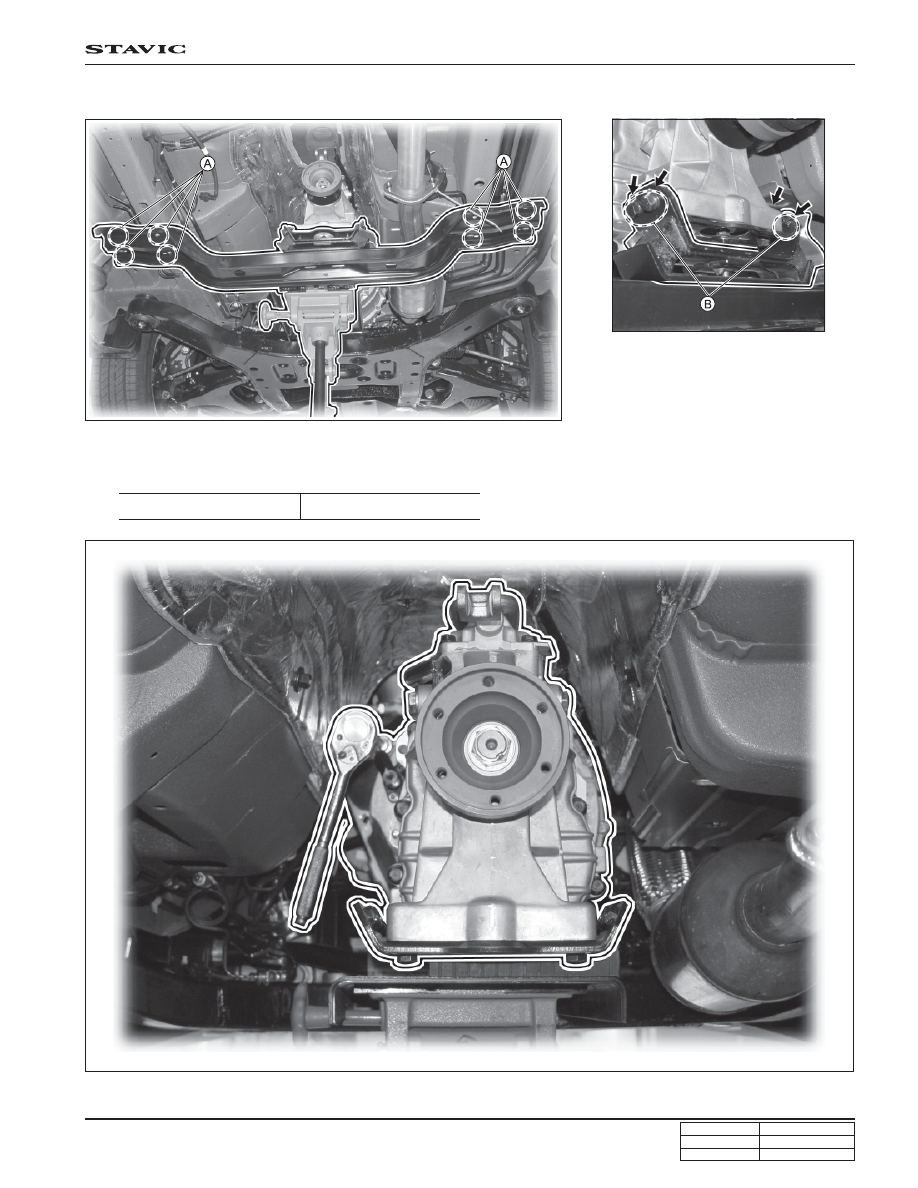

8. Securely support the T/M with a hydraulic jack and then, remove center cross member.

- Center cross member mounting

bolts (A) (14 mm - 8EA)

- T/M mounting insulator bracket

bolts (B) (14 mm - 4EA)

9. Unscrew the T/M  housing bolts.

Tightening torque

50 ~ 60 Nm
