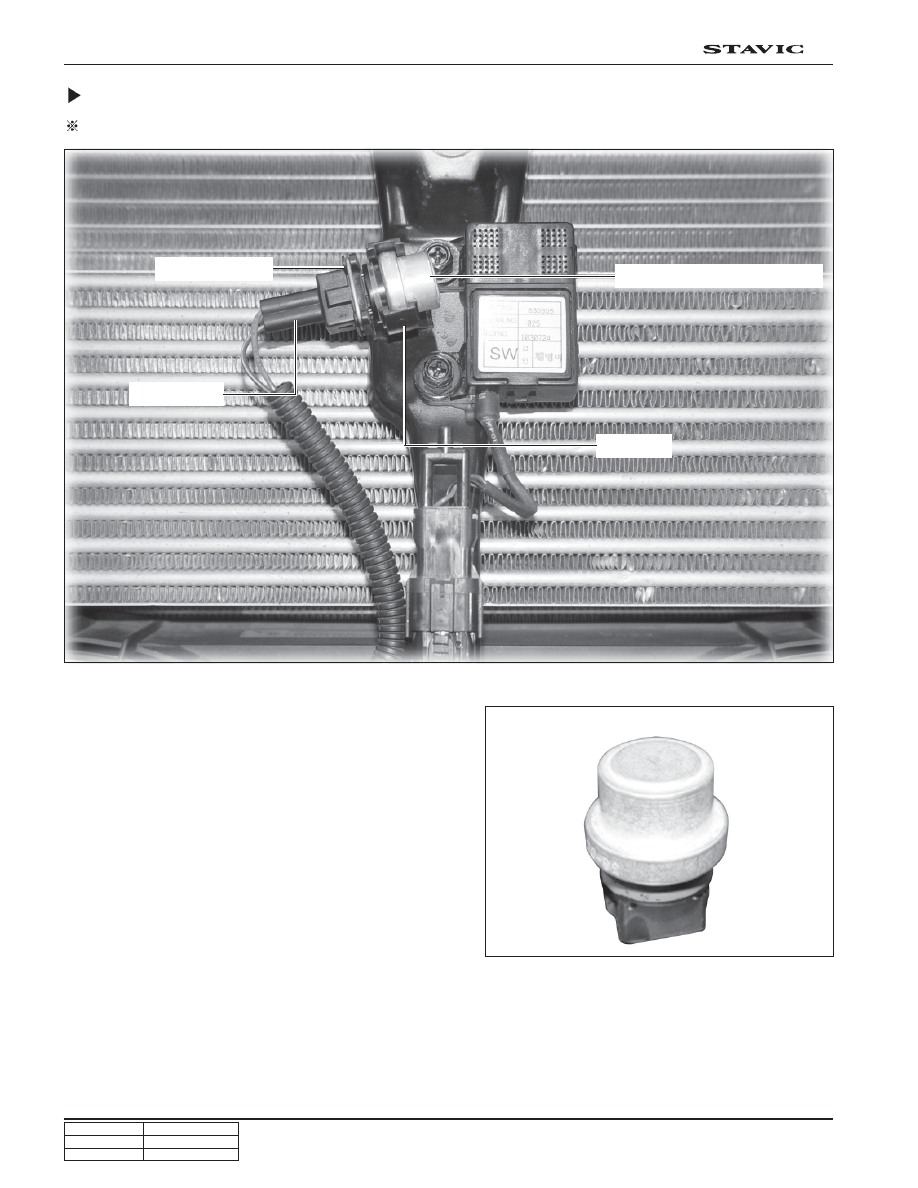

Ambient Temperature Switch

Preceding Work: Disassemble the front bumper assy

1. Disassemble the ambient temperature sensor (1) from

holder (2).

2. Disconnect connector (4) as push the connector pin (3).

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

21

FFH & PTC

STAVIC - 2004.09

3B

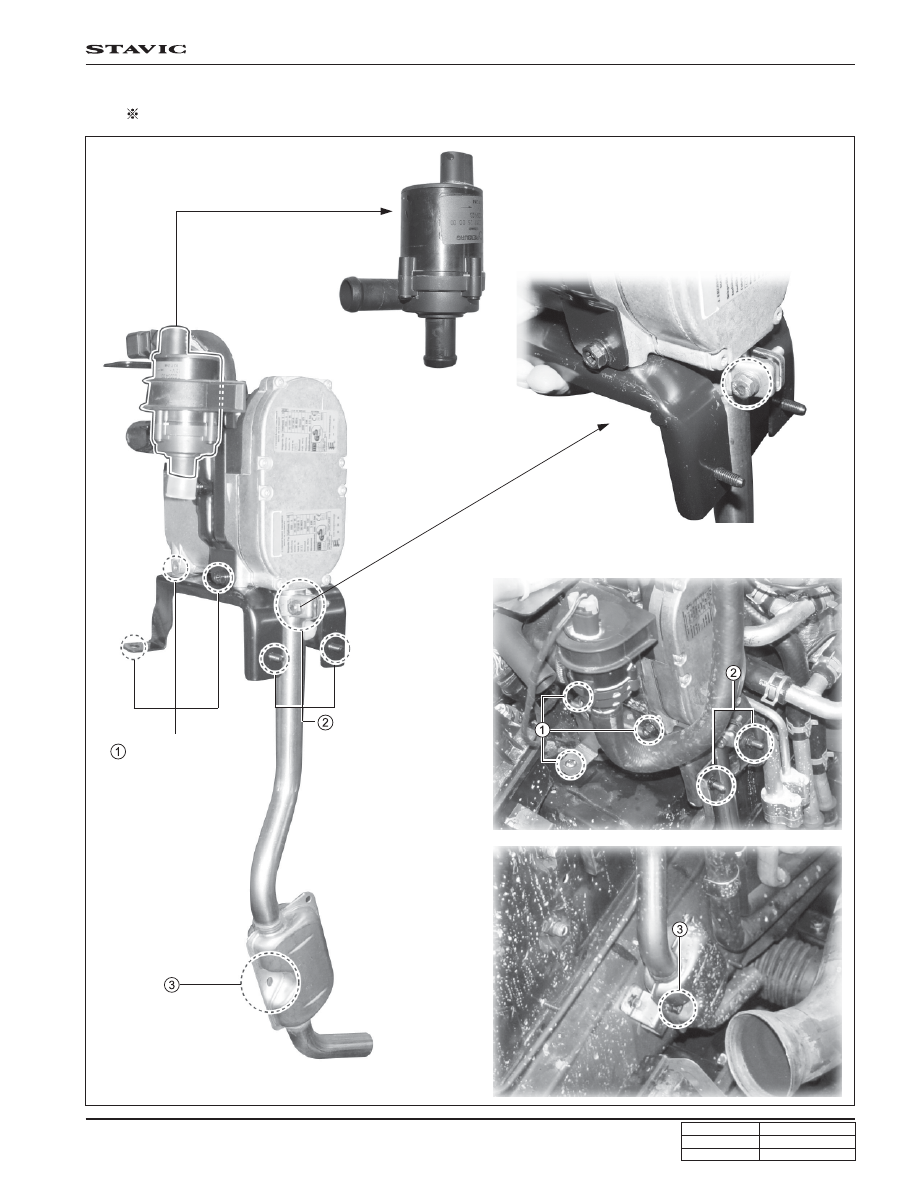

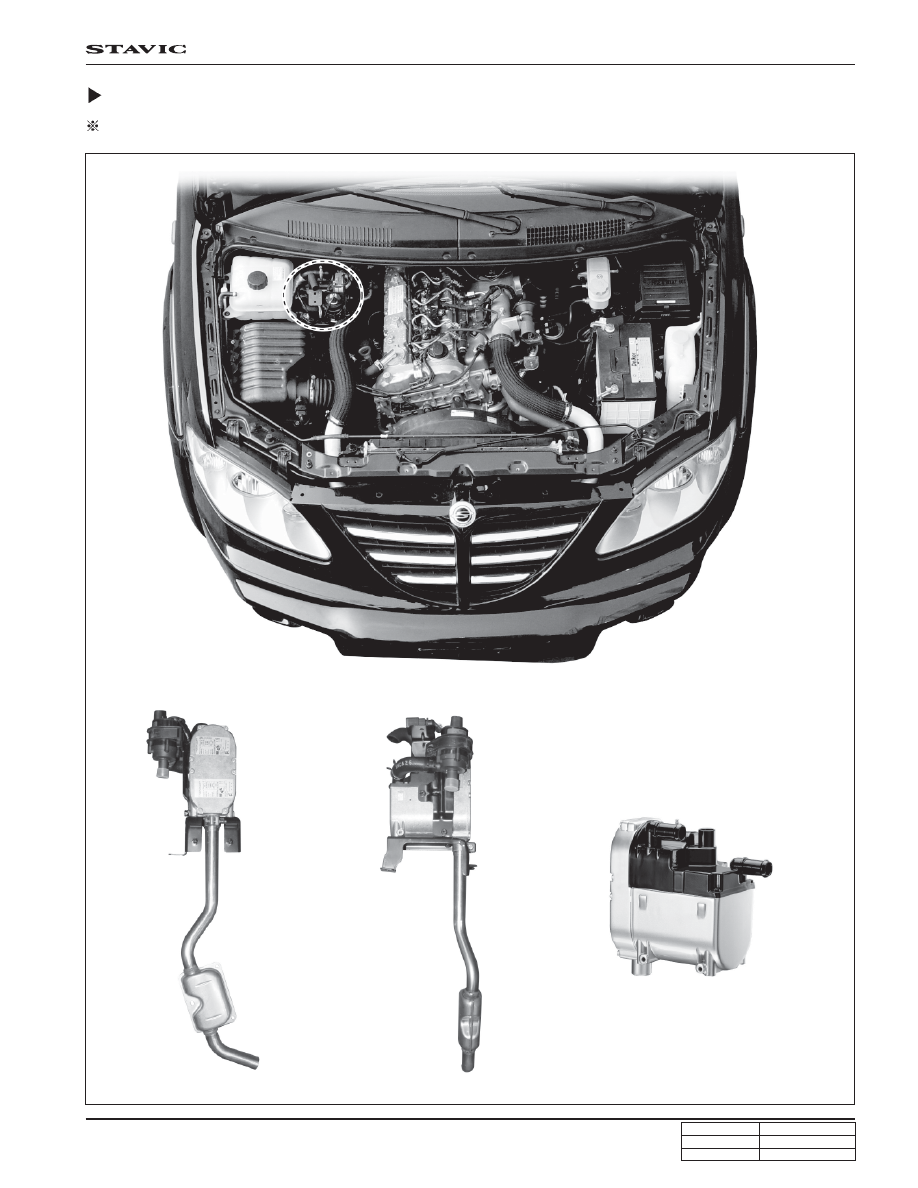

FFH Assembly

Preceding Work: Disconnect the battery terminal (-)

○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

22

FFH & PTC

STAVIC - 2004.09

3B

 [Notice]

Use cap to prevent fuel leakage and be careful in handling
the hose & pipe.

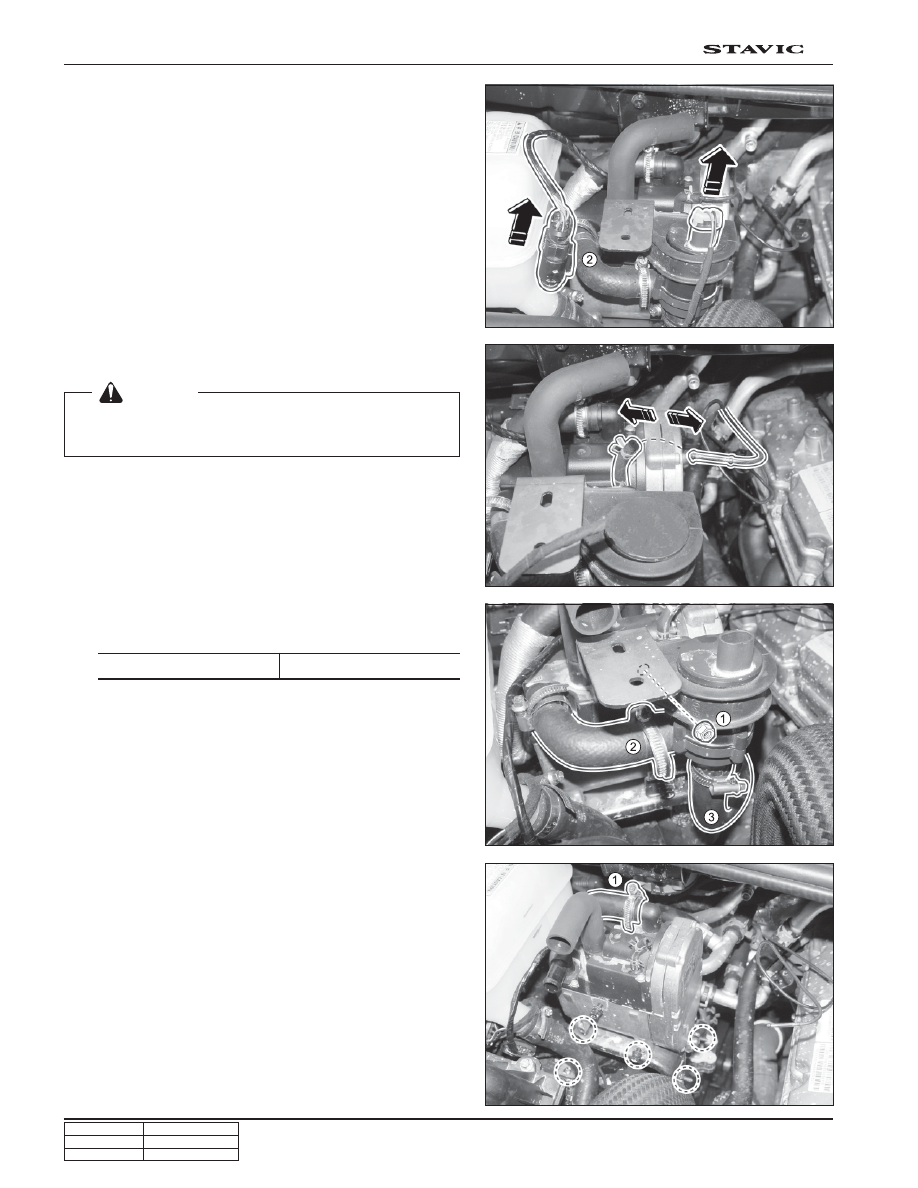

3. Disassemble the fuel pump hose and pipe.

5. Disconnect the coolant outlet hose (1).

1. Disconnect FFH coolant circulation pump connector.

2. Disconnect FFH connector (2).

4. Unscrew the bracket nut (1) & clamp and disassemble

the inlet (3) & outlet (2) hose in coolant circulation pump.

Tightening torque

10 ± 1.0 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

23

FFH & PTC

STAVIC - 2004.09

3B

6. Disconnect the FFH assembly. (Install in the reverse order of removal)

(

Fuel feeding process should be done)

   : Left/ Right

1. FFH Mounting

bolt (10mm - 6EA)

    : Silence braket bolt

(10mm - 2EA)
