SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 292

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

16

FFH & PTC

STAVIC - 2004.09

3B

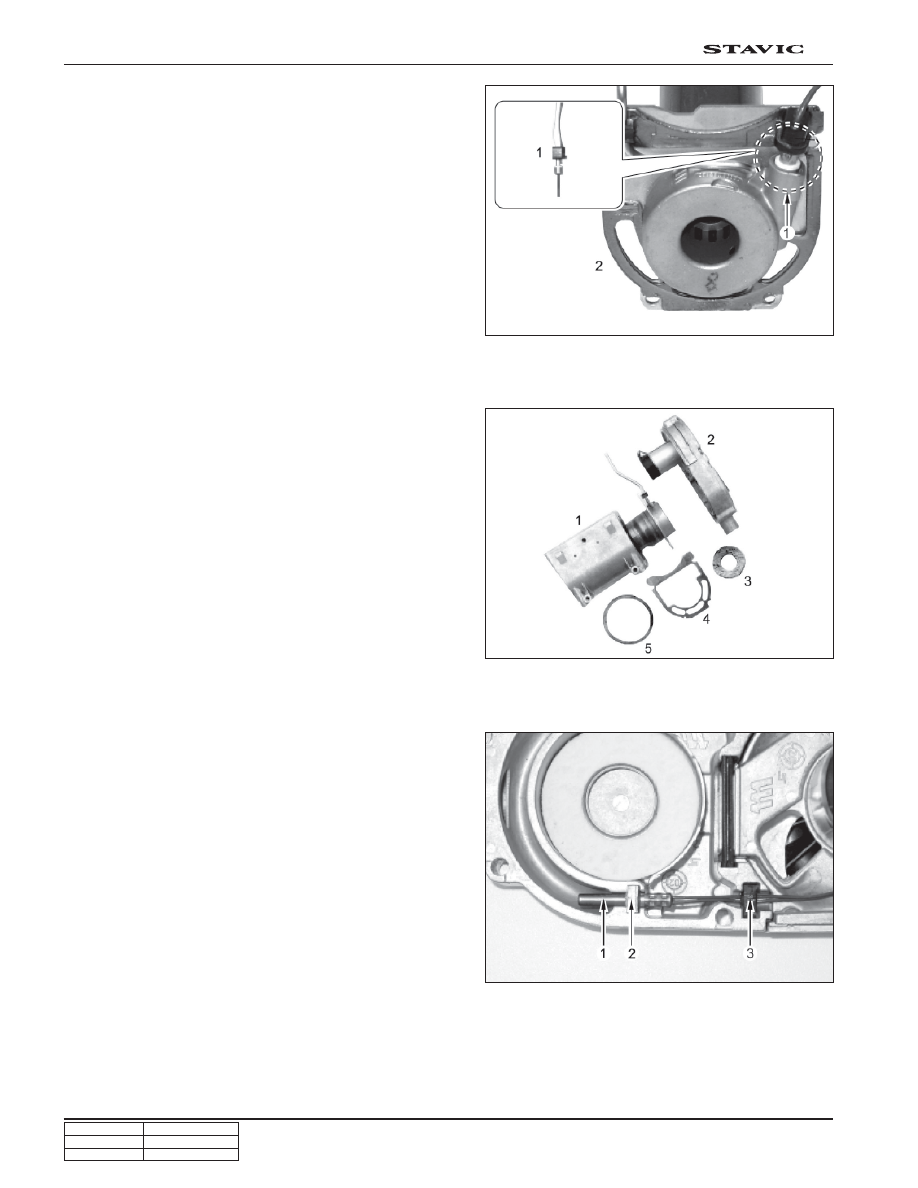

Glow plug

1. Glow plug

2. Combustion chamber with flame pipe

Combustion chamber housing

1. Jacket

2. Combustion chamber

3. Combustion chamber housing

4. Insulation washer

5. Seal - combustion chamber / combustion air fan

6. Seal - combustion chamber / heat exchanger

Flame sensor

1. Flame sensor

2. Graphite bush

3. Bush

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

17

FFH & PTC

STAVIC - 2004.09

3B

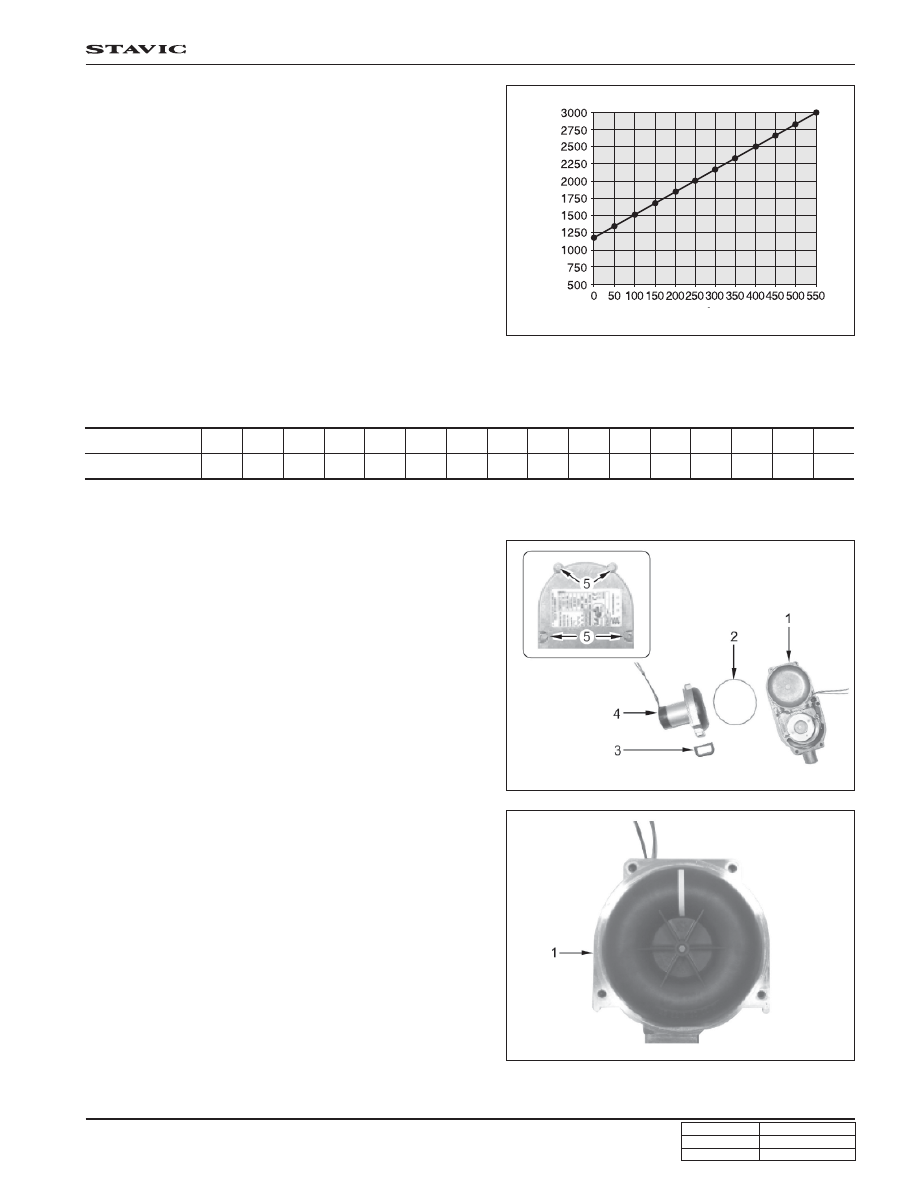

Combustion air fan

1. Combustion chamber

2. O-ring

3. Rubber seal

4. Combustion air fan

5. Screw

Check flame sensor

Check the surface sensor with a digital multimeter. If the re-
sistance of flame sensor is out of specified values, the flame
sensor is defective.

Temperature [

°C]

Resistance [

Ω]

Specified value

250

1941

200

1758

150

1573

130

1498

100

1385

90

1347

80

1309

50

1194

30

1097

20

1062

10

1022

0

1000

-50

803

350

2297

300

2120

400

2470

Resistance (Ohm)

Temperature (°C)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

18

FFH & PTC

STAVIC - 2004.09

3B

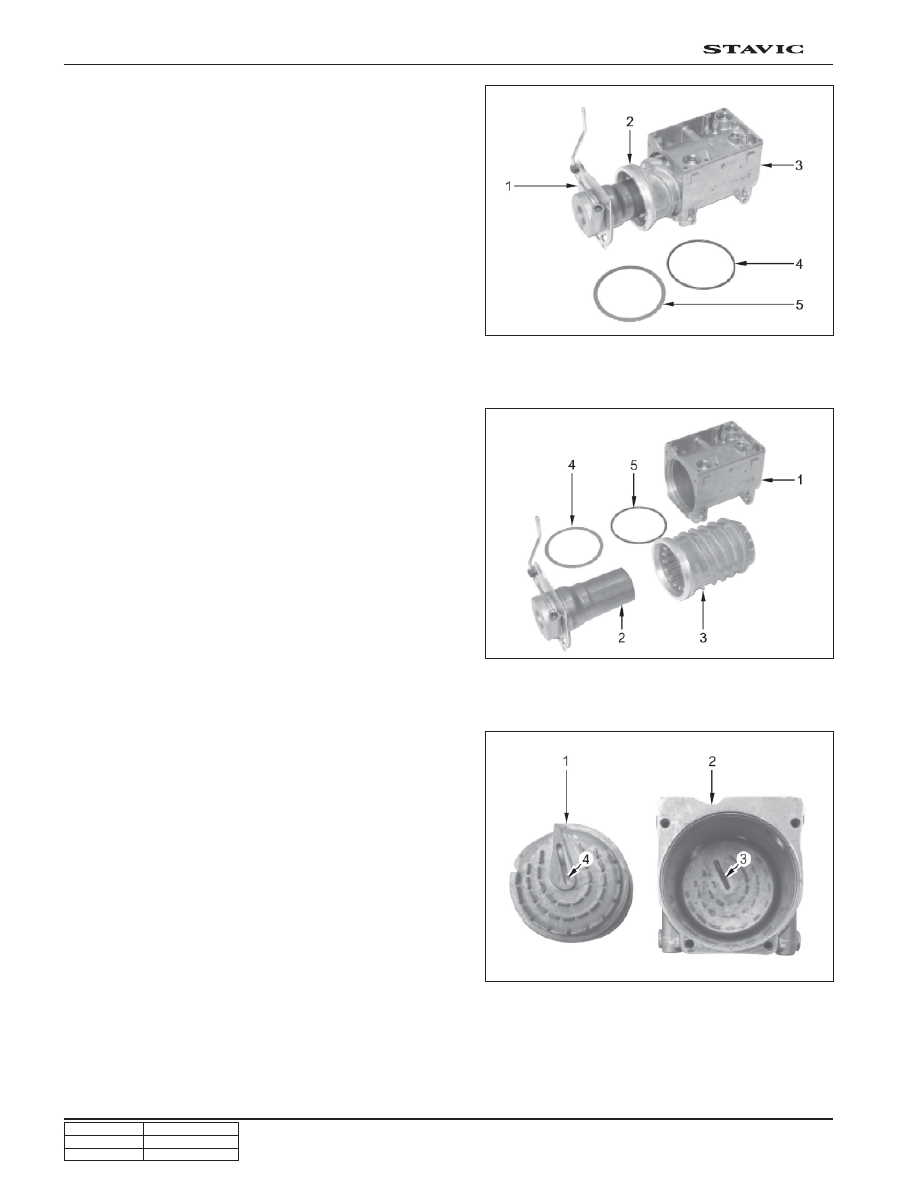

Combustion chamber

1. Combustion chamber

2. Heat exchanger

3. Jacket

4. O-ring

5. Seal - combustion chamber / heat exchanger

Heat exchanger

1. Jacket

2. Heat exchanger

3. Combustion chamber with flame tube

4. Seal - combustion chamber / heat exchanger

5. O-ring (for heat exchanger)

Heat exchanger

1. Heat exchanger

2. Jacket

3. Stopper

4. Groove (bottom of heat exchanger)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

19

FFH & PTC

STAVIC - 2004.09

3B

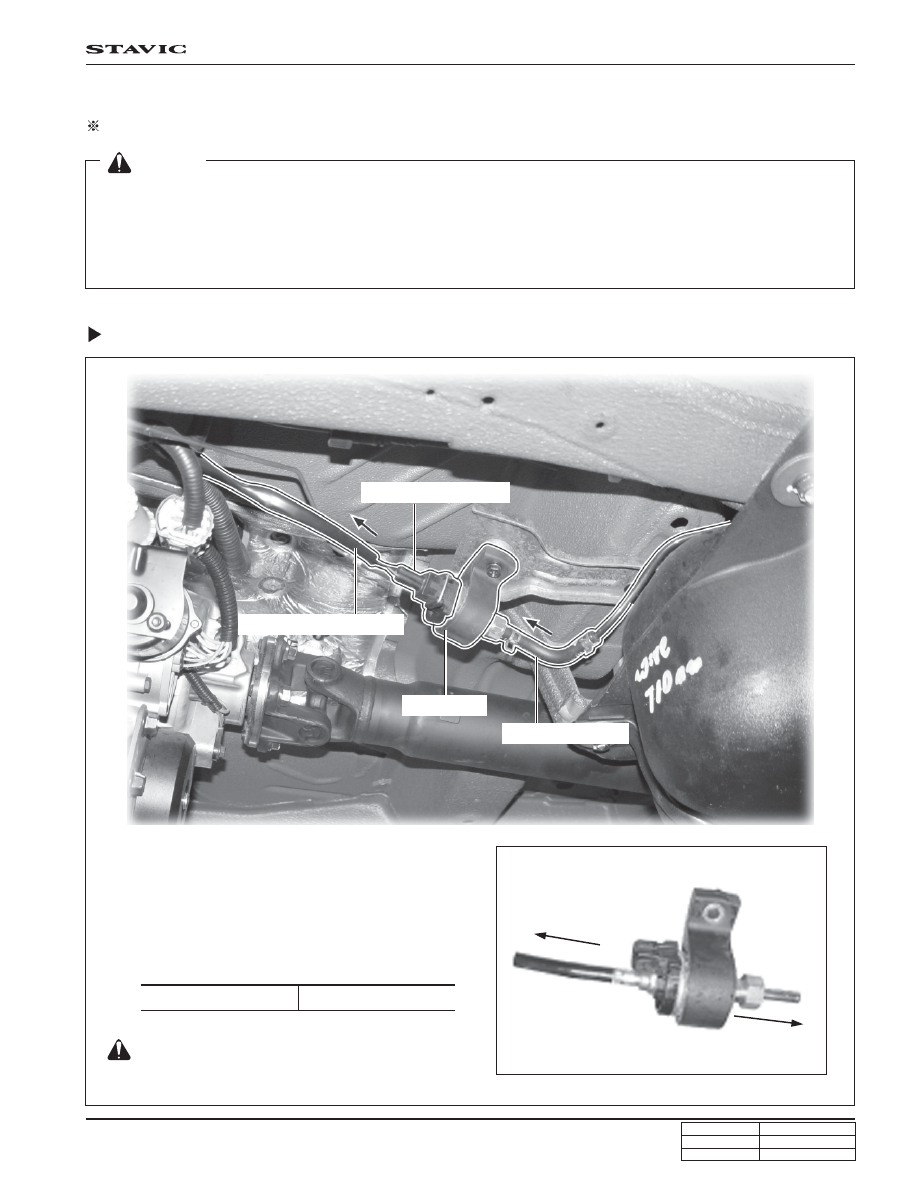

Removal and Iinsallation of Fuel Pump

1. Disconnect Fuel Pump Connector as the vehicle lifted.

2. Disconnect both left (2) and right (3) fuel supply hose

in above picture.

3. Unscrew fuel pump mounting bolt (10M-1EA) and

disassemble fuel pump.

Fuel Pump

7. REMOVAL AND INSTALLATION

Preceding Work: Disconnection of negative battery cable

[Notice]

Cap the fuel supply hose to prevent oil leakage

Tightening torque

10 ± 1.0 Nm

•

This supplementary heater is a fuel burning type and improves the heating effect by increasing the engine coolant
temperature.

•

This device is automatically operated by conditions of the coolant temperature and the ambient temperature.

•

In initial operating stage, the fuel pump generates the operating sound and the FFH heater produces white smoke. These
are normal states to fill the fuel into the FFH fuel line.

[Notice]

Fuel Tank

FFH

3. Fuel supply hose

1. Fuel pump connector

2. Fuel supply hose (FFH)

4. Fuel pump
